      Bently Nevada 330104-02-12-50-02-00
      Bently Nevada 330104-02-12-50-02-00
      Bently Nevada 330104-02-12-50-02-00
      Bently Nevada 330104-02-12-50-02-00
      Bently Nevada 330104-02-12-50-02-00
      Bently Nevada 330104-02-12-50-02-00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330104-02-12-50-02-00

      Armored Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

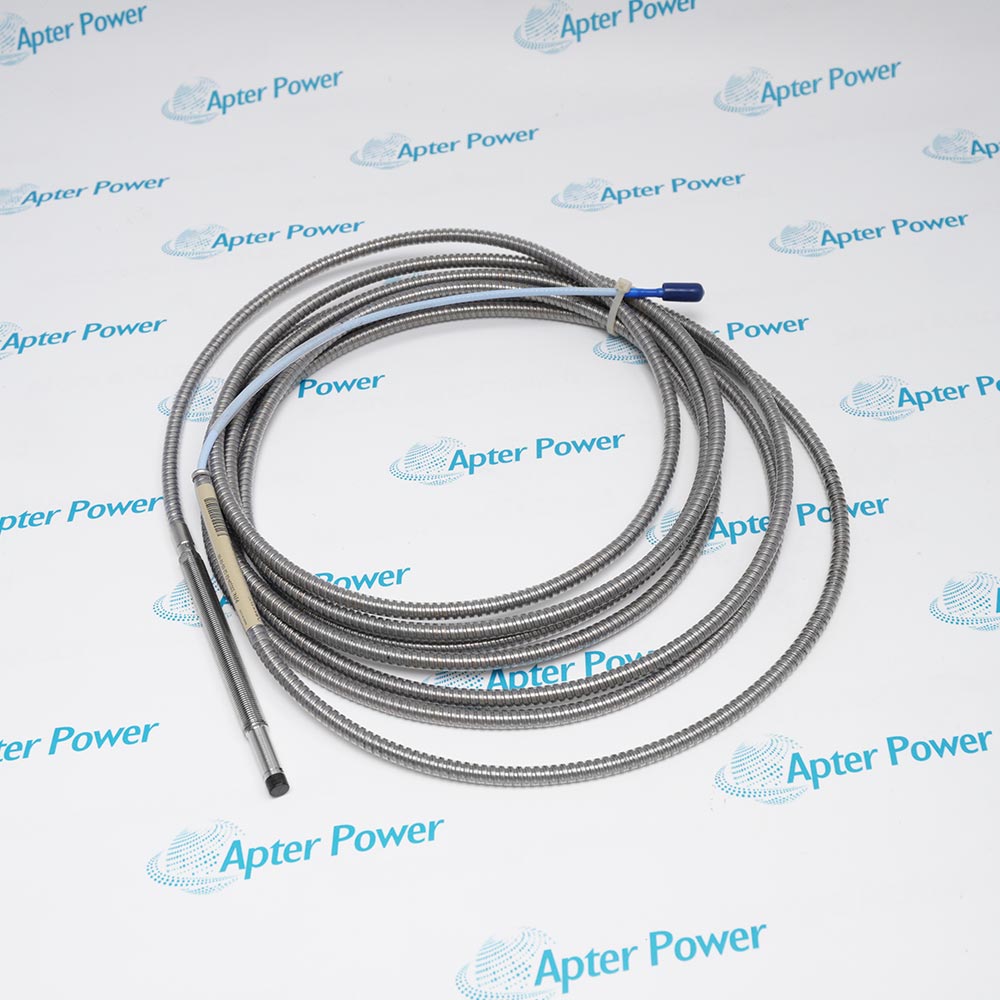

      Bently Nevada 330104-02-12-50-02-00 is an armored 3300 XL 8 mm proximity probe with M10 x 1 mounting thread and a 5 m standard cable. Its 20 mm unthreaded length, 120 mm case, and miniature ClickLoc connector identify the documented execution.

      Ask our team:

      Get a quick price for： 330104-02-12-50-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330104-02-12-50-02-00

      Technical specifications for 330104-02-12-50-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330104-02-12-50-02-00
      • Estimated shipping dimensions:
        25x3.5x28cm
      • Weight:
        0.54 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe family:
        3300 XL 8 mm proximity probe
      • Mounting and armor:
        M10 x 1 threaded case, armored cable
      • Unthreaded length:
        20 mm (AA option 02)
      • Overall case length:
        120 mm (BB option 12)
      • Total probe length:
        5.0 m (CC option 50)
      • Connector and cable:
        Miniature ClickLoc coaxial connector; standard cable (DD option 02)
      • Agency approval option:
        00: no additional agency approval selected
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330104-02-12-50-02-00 is an armored metric-threaded 3300 XL 8 mm proximity probe for a matched five-meter transducer system.
      • Armored 3300 XL 8 mm probe with M10 x 1 case thread
      • AA 02: 20 mm unthreaded section; BB 12: 120 mm overall case
      • CC 50: 5.0 m total probe length for a matched 5 m system
      • DD 02: miniature ClickLoc coaxial connector and standard cable

      The five option groups identify the mechanical case, integral lead, connector and approval selection. Match the complete order code to the installed probe and Proximitor chain.

      Important Notice: Code EE 00 does not select additional agency approvals; confirm the installation requirements before release.

      Bently Nevada 330104-02-12-50-02-00 Manuals & Downloads
      Bently Nevada 330104-02-12-50-02-00 Technical Reference (PDF)Bently Nevada 330104-02-12-50-02-00 Installation & Commissioning Guide (PDF)

      The technical reference records the exact 3300 XL 8 mm probe ordering execution and matched-system data; the separate guide covers installation, commissioning and controlled acceptance.

      Fluid-film bearing vibrationIn a matched 3300 XL 8 mm transducer chain, the probe senses dynamic shaft displacement relative to the bearing housing.
      Axial position observationThe gap-dependent output supports static shaft-position measurement where the installed machine design calls for an 8 mm probe.
      Keyphasor phase referenceA probe observing the approved shaft feature can provide the reference event used with vibration measurements.
      Rotational speed measurementThe transducer signal can be used for speed measurement when the probe, target and associated monitoring channel are configured for that duty.
      Before work on Bently Nevada 330104-02-12-50-02-00, confirm the complete probe identity, the matched 3300 XL 8 mm transducer chain and the machine maintenance procedure.
      1
      Confirm the complete 330104-02-12-50-02-00 order code and the documented five-meter 3300 XL 8 mm system before fitting the probe.
      2
      Place the monitored machine and its associated transducer channel in the approved maintenance state before disconnecting the probe.
      3
      Check the M10 x 1 mounting position and the specified 20 mm unthreaded section and 120 mm case against the installed bracket.
      4
      Route the armored probe lead without violating the documented minimum cable bend radius or disturbing the shaft clearance.
      5
      Mate the miniature ClickLoc connection finger-tight; inspect its locking engagement and use the approved environmental protector where required.
      6
      Keep the total probe and extension-cable length matched to the five-meter Proximitor configuration; do not mix length options by appearance alone.
      7
      Confirm the target material and calibration basis before interpreting gap voltage; a nonstandard target requires a documented calibration decision.
      8
      After controlled energization, verify gap/position response and the intended vibration, Keyphasor or speed channel function before release.

      Technical notes

      Technical notes

      Ordering identity: 330104 = armored M10 x 1 probe; 02 = 20 mm unthreaded length; 12 = 120 mm overall case; 50 = 5 m total probe length; 02 = miniature ClickLoc coaxial connector with standard cable; 00 = no additional agency-approval option. Match this five-meter probe to the documented 5 m Proximitor system. Source: Baker Hughes / Bently Nevada, 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AN, metric probe ordering, pp. 12-13.

      FAQS

      • What does 330104-02-12-50-02-00 identify?
        It identifies an armored M10 x 1 threaded 3300 XL 8 mm proximity probe with the listed length and connector options.
      • What case geometry does 330104-02-12-50-02-00 use?
        The 02 and 12 options specify 20 mm unthreaded length and a 120 mm overall case.
      • Which system length matches 330104-02-12-50-02-00?
        The 50 option gives a 5.0 m total probe length, intended for a 5 m Proximitor system.
      • Does 330104-02-12-50-02-00 include a connector protector?
        The 02 connector option is a miniature ClickLoc coaxial connector with standard cable; the preinstalled protector is a different option.
      • Is 330104-02-12-50-02-00 a FluidLoc cable variant?
        No. The 02 connector and cable option uses standard cable; FluidLoc is represented by other connector-option codes.
      • What does the final 00 mean on 330104-02-12-50-02-00?
        It selects no additional agency-approval option. Do not infer CSA, ATEX or IECEx approval from this ordering code.
