      Bently Nevada 330103-00-09-05-02-00
      Bently Nevada 330103-00-09-05-02-00
      Bently Nevada 330103-00-09-05-02-00
      Bently Nevada 330103-00-09-05-02-00
      Bently Nevada 330103-00-09-05-02-00
      Bently Nevada 330103-00-09-05-02-00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330103-00-09-05-02-00

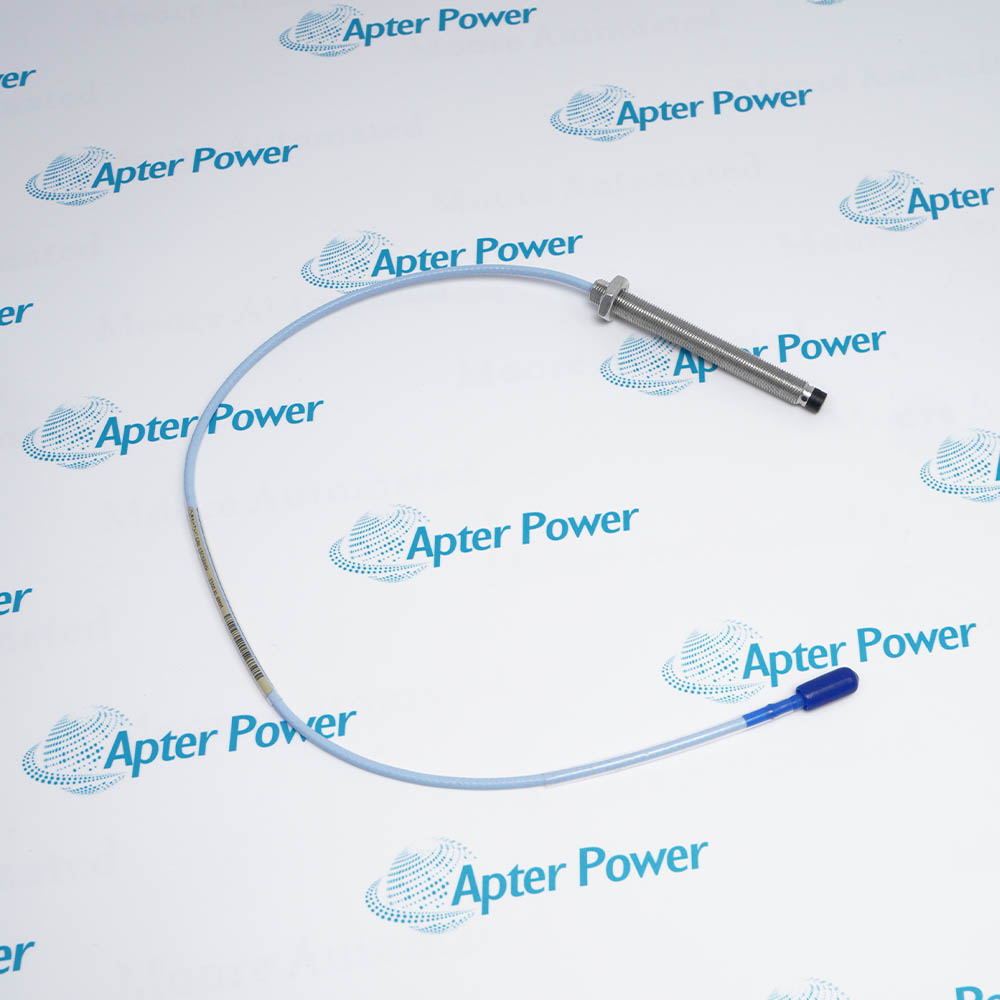

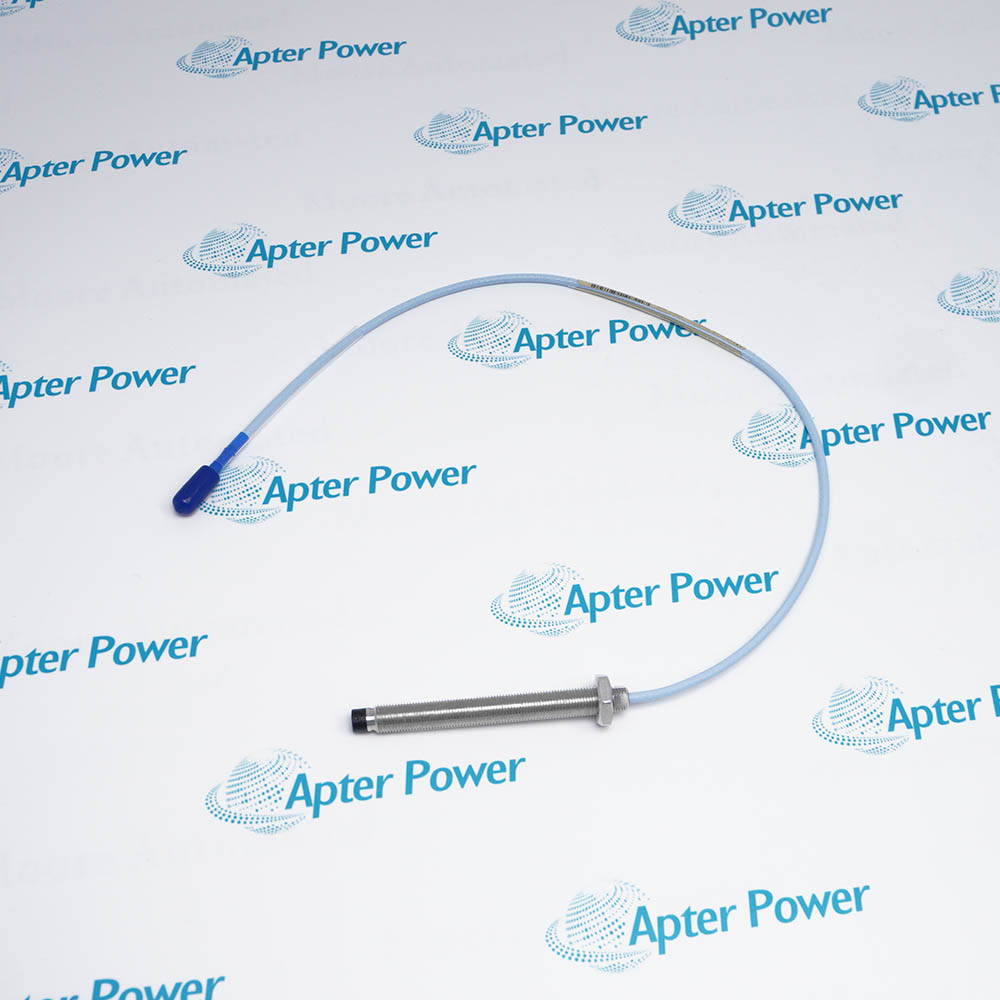

      8mm Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330103-00-09-05-02-00 is a metric 3300 XL 8 mm proximity probe with an M10 × 1 unarmored case for matched non-contact shaft-vibration and position measurement.

      Ask our team:

      Get a quick price for： 330103-00-09-05-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330103-00-09-05-02-00

      Technical specifications for 330103-00-09-05-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330103-00-09-05-02-00
      • Estimated shipping dimensions:
        58.5x1.5x1.5cm
      • Weight:
        0.06 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product family:
        3300 XL 8 mm proximity probe
      • Probe case thread:
        M10 × 1
      • Cable armor:
        None
      • Unthreaded length:
        0 mm
      • Overall case length:
        90 mm
      • Integral lead length:
        0.5 m
      • Cable type:
        Standard 75 Ω triaxial, FEP-insulated cable
      • Connector:
        Miniature coaxial ClickLoc, no protector
      • Agency approval option:
        00 — not requested
      • Matched system:
        3300 XL 8 mm proximity transducer system
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330103-00-09-05-02-00 is an unarmored metric 3300 XL 8 mm proximity probe for a matched non-contact shaft-motion measurement chain.
      • Exact article identity 330103-00-09-05-02-00
      • M10 × 1 metric case without cable armor
      • Standard lead with miniature coaxial ClickLoc connector
      • Configured for the matched 3300 XL 8 mm transducer system

      This probe is installed at the documented shaft target. Preserve the extension cable, Proximitor Sensor and monitor-channel configuration as a matched measurement chain.

      Important Notice: Confirm the complete 330103-00-09-05-02-00 marking, receiving thread, connector, target material and accepted channel gap before service release.

      330103-00-09-05-02-00 Manuals & Downloads
      330103-00-09-05-02-00 Technical Reference (PDF)330103-00-09-05-02-00 Installation & Commissioning Guide (PDF)

      These documents serve different purposes: the first organizes the probe and matched-system technical data; the second guides inspection, installation, commissioning and acceptance.

      Radial shaft vibrationMeasure non-contact shaft motion through the matched 3300 XL 8 mm probe, cable and Proximitor chain.
      Axial shaft positionTrack thrust-position change when the approved machine target and monitor channel are configured for this probe.
      Speed or zero-speedUse 330103-00-09-05-02-00 at a documented target for a configured machinery-speed channel.
      Phase referenceProvide a Keyphasor reference signal through the assigned monitoring channel.
      Read the applicable 3300 XL 8 mm instructions before work. Verify 330103-00-09-05-02-00, the installed machine state and the complete measurement chain before isolation or commissioning.
      1
      Verify the complete 330103-00-09-05-02-00 marking and installed monitor-channel record.
      2
      Place the machine and affected protection channel in the approved maintenance state.
      3
      Confirm the M10 × 1 receiving thread and probe-case clearance before removal.
      4
      Record the target condition, existing gap, cable route and Proximitor configuration.
      5
      Inspect the unarmored lead, probe tip and ClickLoc joint for damage or contamination.
      6
      Match the probe lead and extension cable to the selected Proximitor system length.
      7
      Seat the connector and route the standard cable without excessive bend or strain.
      8
      Check static gap, diagnostics and controlled shaft-motion response before release.

      Technical notes

      Technical notes

      Confirm the complete 330103-00-09-05-02-00 identity and installed 3300 XL 8 mm transducer-system length. The 05 probe lead is 0.5 m; match the extension cable and Proximitor sensor before commissioning.

      FAQS

      • What thread and armor does 330103-00-09-05-02-00 use?
        This 330103 execution has an M10 × 1 metric case thread and no cable armor.
      • How is the 00 unthreaded-length code read on 330103-00-09-05-02-00?
        The metric unthreaded-length option is 0 mm; the 09 case-length option gives a 90 mm overall case.
      • What does the 05 lead-length option mean for 330103-00-09-05-02-00?
        It specifies a 0.5 m integral probe cable. Match it with the extension cable and Proximitor system length.
      • Which connector and cable are fitted to 330103-00-09-05-02-00?
        Option 02 is a miniature coaxial ClickLoc connector without a connector protector on standard cable.
      • Does the final 00 code on 330103-00-09-05-02-00 add agency approvals?
        No. The 00 agency-approval option means approvals were not requested for this order code.
      • What should be checked before installing 330103-00-09-05-02-00?
        Confirm the M10 × 1 receiving thread, 90 mm case clearance, target condition, cable route, matching extension cable and configured Proximitor channel.
