Bently
View products
Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 330103-00-06-10-02-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330103-00-06-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330103-00-06-10-02-00
-
Estimated shipping dimensions:20.5x22.4x3.3cm
-
Weight:0.15 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Sensor Type:Vibration
-
Sensing Range:2mm
-
Sensitivity:1um
-
Output Type:Voltage
-
Installation Type:Non-contact
-
Package/Casing:Injection Molding
-
Operating Range:0.25 mm to 2.3 mm
-
Scale Factor:7.87 V/mm (200 mV/mil) ±5%
-
Accuracy/Linearity:Max ±0.025 mm (±1 mil)
-
Probe Tip Diameter:8.0 mm
-
Unthreaded Length Option:0 mm
-
Overall Case Length Option:60 mm
-
Total Length Option:1.0 meter (3.3 feet)
-
Connector and Cable-Type Option:Miniature coaxial ClickLoc connector, standard cable
-
Agency Approval Option:Not required
Information
Overview
Manuals
Common Applications
Product Precautions

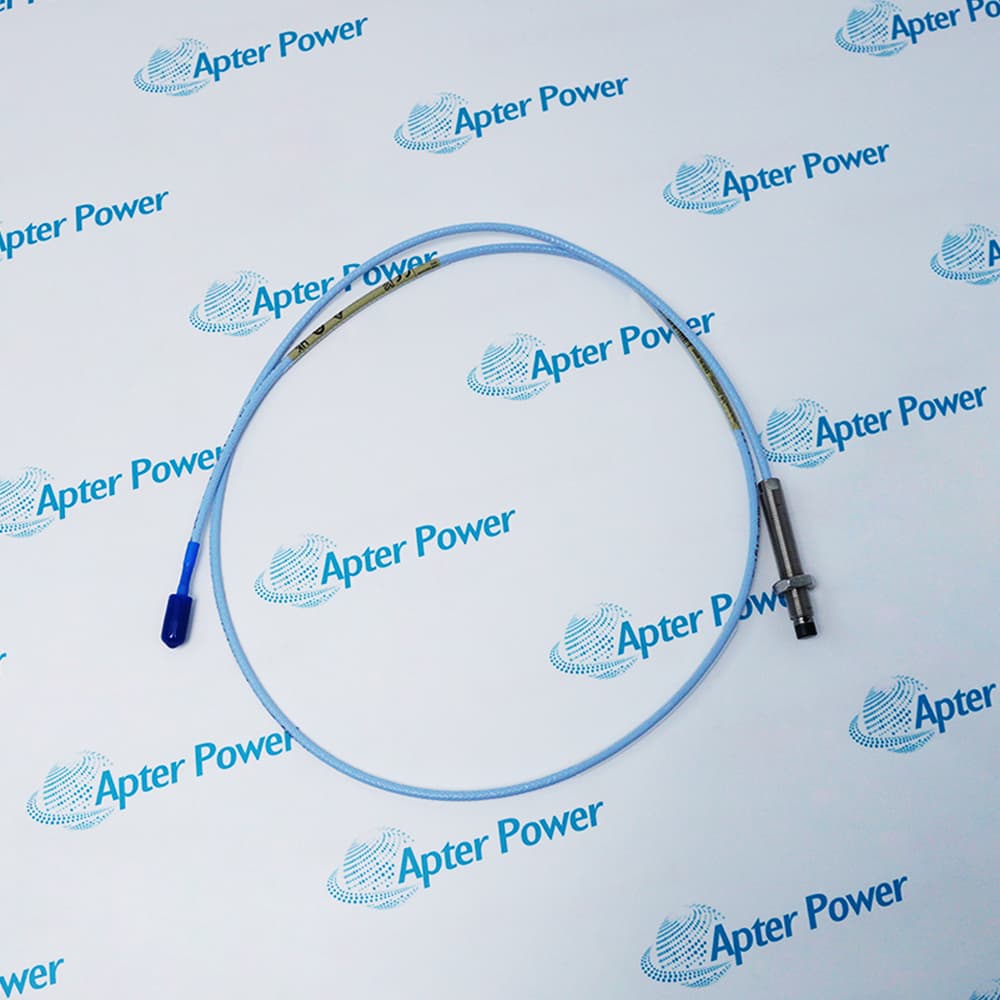

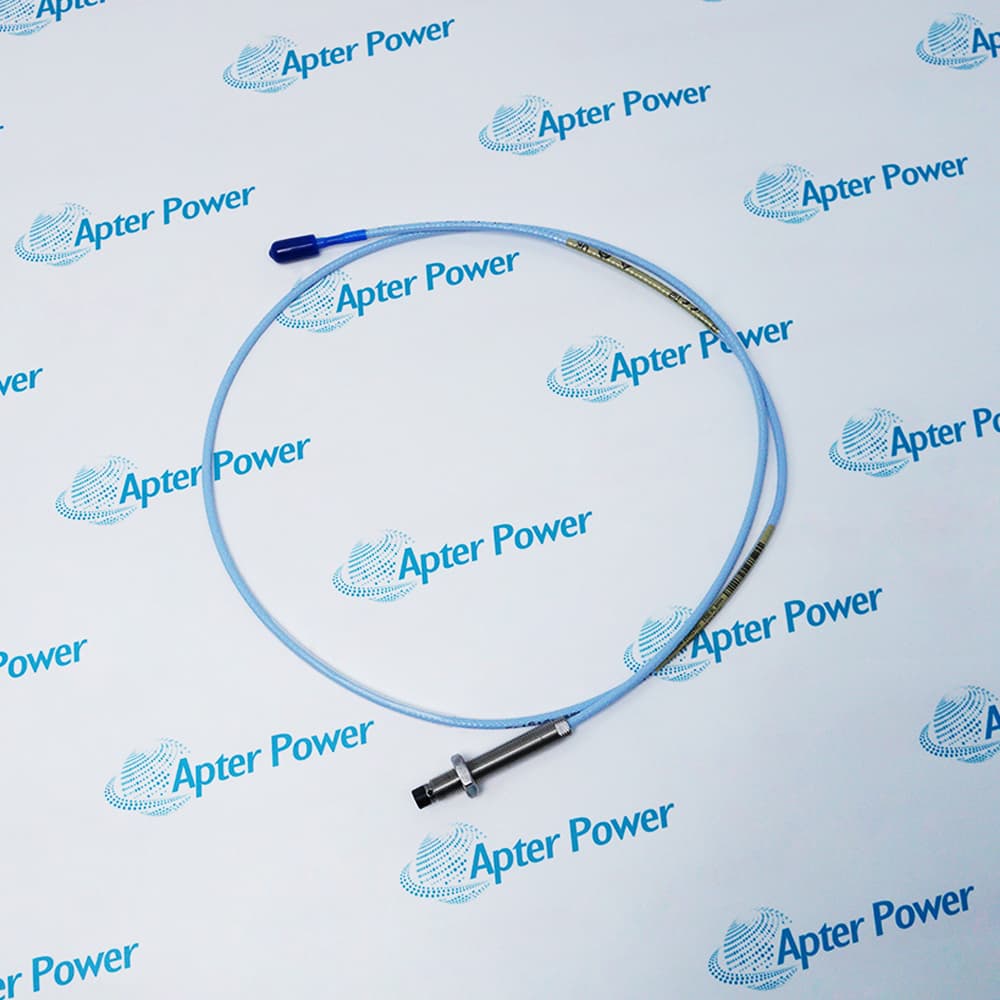

The 330103-00-06-10-02-00 is an eddy current proximity transducer probe belonging to the premium 3300 XL 8mm series system. It is primarily utilized to monitor shaft vibration, axial displacement, and Keyphasor phase references of rotating machinery, serving as a core precision sensing component within turbine TSI protection systems across chemical and power industries.
- One 3300 XL 8 mm probe
- One 3300 XL extension cable
- One 3300 XL Proximitor Sensor
The system delivers industry-leading performance in mechanical configuration, linear range, and temperature stability, complying fully with the American Petroleum Institute’s (API) 670 Standard. It supports complete, calibration-free component interchangeability across 3300 XL probes, extension cables, and Proximitor sensors, eliminating the need for bench tuning. Furthermore, this component offers excellent backward compatibility and interchangeability with standard non-XL 3300 series 5 mm and 8 mm transducer systems, providing flexible deployment in restricted mounting spaces.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330103-00-06-10-02-00 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation
Monitoring shaft vibration in gas or steam turbines to prevent rotor-stator contact by tracking axial displacement in real-time.
Oil & Gas
Installed on the bearing housings of centrifugal compressors. The armored cable resists oil corrosion, ensuring stable operation in flammable and explosive environments.
Aerospace Testing
Used for dynamic balance testing on aero-engine test cells. It captures shaft center-lines at extremely high speeds to evaluate engine structural integrity.
Fertilizer Manufacturing
Driving high-pressure reciprocating compressors. The probe monitors the status of critical transmission components to ensure continuity in ammonia and urea production processes.
Pulp & Paper
Controlling the axial float of paper machine dryer cylinders. High precision ensures uniform paper thickness and prevents web breaks during high-speed production.
Due to the short 0.6-inch case, precise adjustment of the Gap Voltage using a multimeter is critical. The ideal center point is typically -10V DC. An insufficient gap risks probe destruction by the rotor, while an excessive gap causes signal distortion. Coaxial connectors between the probe and extension cable must remain dry and clean. Oil, moisture, or dust inside the connector will alter impedance, causing severe reading drift. Sealing the connection with self-fusing tape or specialized heat-shrink tubing is highly recommended.
Alternative Names
330103 00 06 10 02 00
330I03-00-06-I0-02-00
33O1O3-OO-O6-1O-O2-OO
33OIO3-OO-O6-IO-O2-OO
330103-00-06-15-02-00
330103-00-06-10-02-CN
330103-00-06-10-02-05
330103-00-06-50-02-00
330103-00-06-90-02-00
330103-00-06-10-11-00
330103-00-06-10-01-00
330103-00-06-10-12-00
Technical notes
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. To deliver these precise measurements, this specific configuration (330103-00-06-10-02-00) features a 3300 XL 8 mm eddy current proximity probe housed in an M10×1 metric threaded stainless steel case with a 60 mm overall case length and an unthreaded length option of 0 mm. Designed for versatile installations, the unarmored standard cable has a total length of 1.0 meter (3.3 feet) and terminates in a miniature coaxial ClickLoc connector without requiring a factory-supplied connector protector. Operating without a dependency on localized agency approvals, this standardized configuration ensures complete, calibration-free component interchangeability. It serves as an optimal solution for critical vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements on critical rotating machinery.
FAQ View All FAQ
-
What is 330103-00-06-10-02-00?330103-00-06-10-02-00 is a 3300 XL 8 mm Proximity Probes.
-
What is the principle of the 330103-00-06-10-02-00 probe?Proximity sensors detect objects without touching them. They operate using principles like electromagnetic induction (inductive), changes in capacitance (capacitive), reflection of ultrasonic waves (ultrasonic), or interruption of light beams (photoelectric).
-
How to correctly install and use the 330103-00-06-10-02-00 probe in an industrial field?Screw it into a specific mounting bracket via the 3/8-24 UNF threads and use its integrated 1.0-meter cable to link into a 4.0-meter extension cable which connects to a Proximitor.
-
What are the core industrial application scenarios for 330103-00-06-10-02-00?It is widely applied to fluid-film bearing static and dynamic condition monitoring of steam turbines, centrifugal compressors, and heavy-duty fans within conventional safe plant zones.
-
Under what temperature environments can 330103-00-06-10-02-00 work safely and stably?The probe tip and standard integrated cable can endure long-term continuous duty under industrial harsh temperatures ranging from -35°C to +177°C.
