Technical specifications for 330130-040-02-05
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330130-040-02-05
-
Estimated shipping dimensions:20.5x22.5x3.5cm
-
Weight:0.2 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Cable Length Option:4.0 meters (11.5 feet)
-
Connector Protector and Cable Option:Standard cable with connector protector
-
Agency Approval Option:CSA, ATEX, IECEx Approvals
-
Connector Type:Miniature coaxial connectors
-
Minimum Bend Radius:25.4 mm (1.0 inch)
Information
Overview
Manuals
Common Applications
Product Precautions

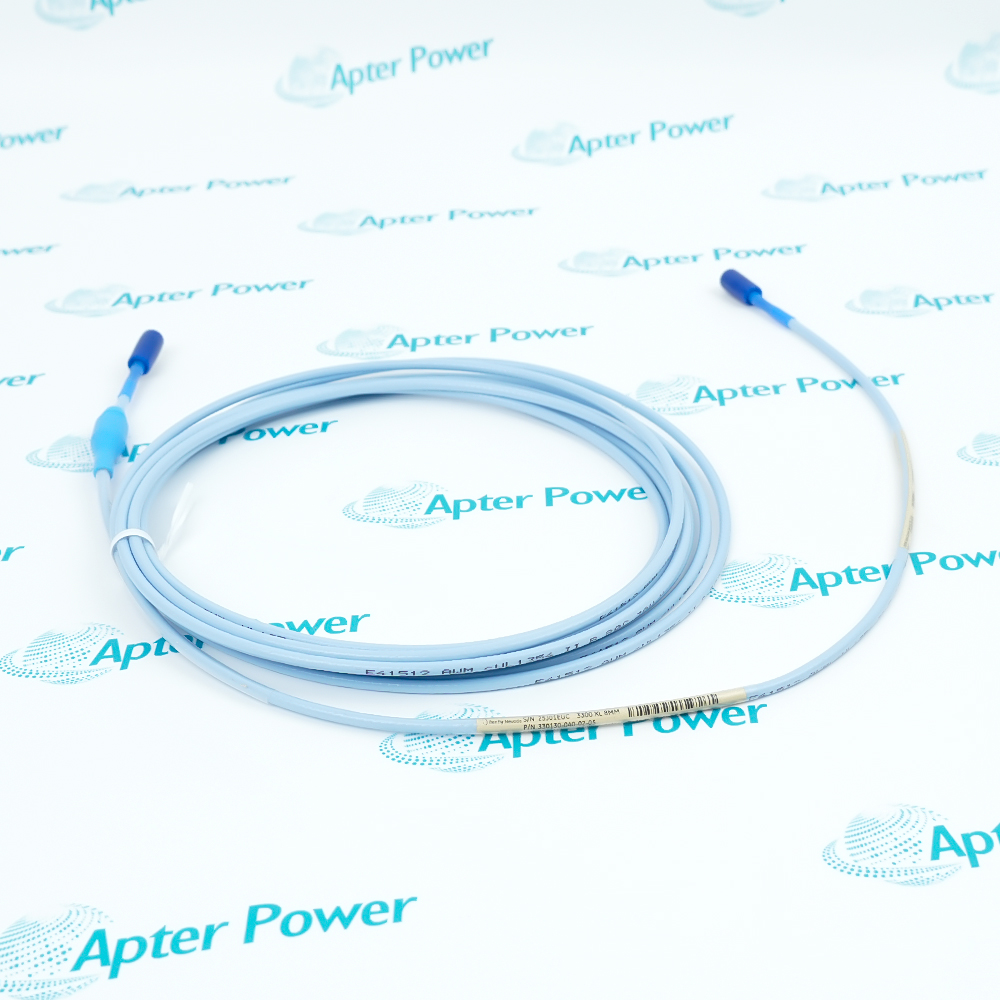

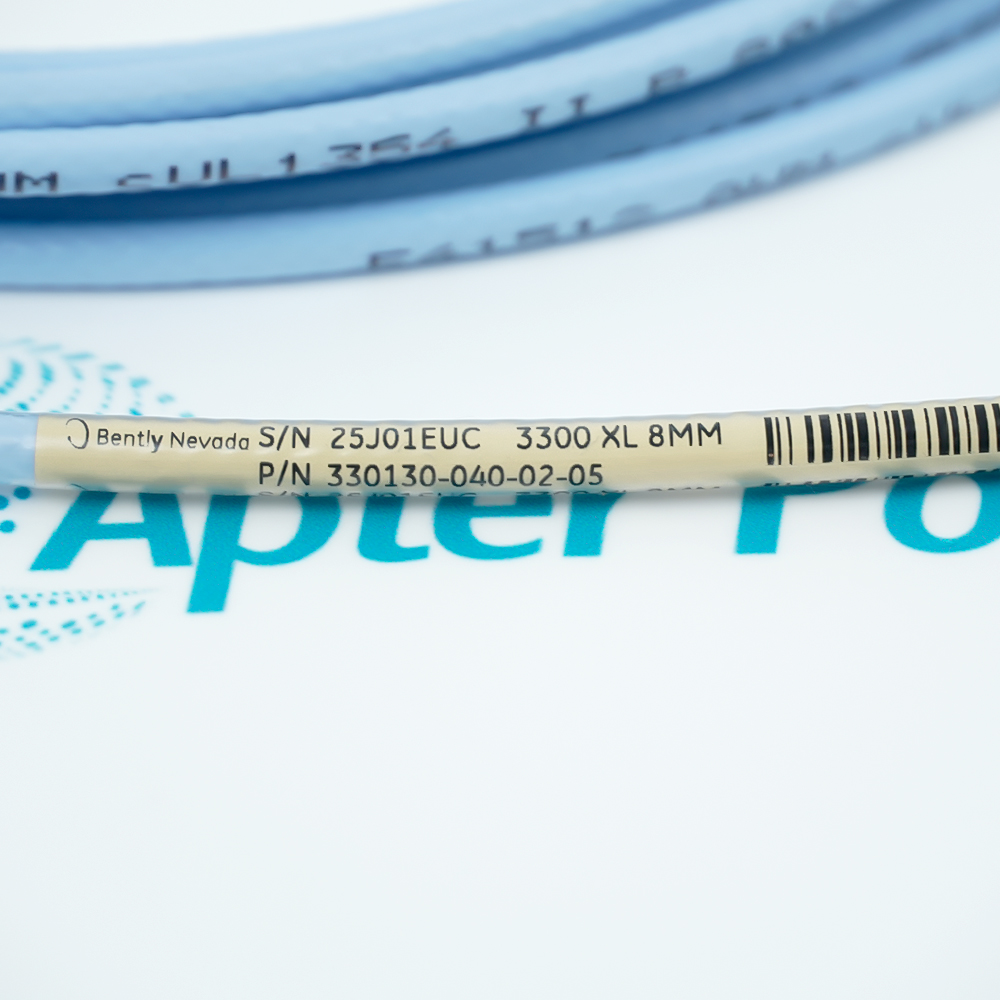

The 330130-040-02-05 is a 3300 XL standard extension cable for non-contact eddy current proximity transducer systems. It connects a 3300 XL 8mm proximity probe to a Proximitor sensor, transmitting signals for industrial machine condition monitoring.
- API 670 Standard
- Forward compatibility
- Miniature coaxial connector with connector protector
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330130-040-02-05 Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation Industry
Connects probes at steam turbine-generator bearings to transmit signals for monitoring shaft radial vibration.
Hydroelectric Power Generation
Transmits axial displacement signals of hydro-turbine shafts to prevent collision between the rotor and stator.
Nuclear Power Generation
Transmits bearing vibration data for main feedwater pumps and reactor coolant pumps outside the nuclear island.
Petroleum Refining & Chemical Industry
Transmits bearing condition signals for large rotating machinery, such as cracking gas compressors, in hazardous areas.
Steel & Metallurgical Industry
Connects sensors on blast furnace blowers and large exhaust fans to transmit vibration signals of high-load bearings.
Air Separation Industry
Transmits bearing vibration and keyphasor (speed) signals on the high-speed shafts of centrifugal air compressors.
Do not cut, extend, or bend the 330130-040-02-05 cable to prevent capacitance changes and coaxial structure damage. Seal the connector protector against oil, water, and chemicals. Route away from power lines and ground to prevent interference. Combine with the specified probe and Proximitor for a 5-metre system.
Alternative Names
330130 040 02 05
330130-040-02-00
330130-040-02-CN
330130-040-02-BR
330130-040-02-RU
330130-040-02-O5
330130-040-O2-05
330130-04O-02-05
330130-O40-02-05
33013O-040-02-05
330I30-040-02-05
33O130-040-02-05
Technical notes
As part of the Bently Nevada 3300 XL 8mm transducer system, the 330130-040-02-05 reverse mount probe enables an output voltage directly proportional to the distance between the probe tip and the observed conductive surface to measure both static (position) and dynamic (vibration) values. Its primary applications include vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
FAQ View All FAQ
-
What is the 330130-040-02-05?The 3300 XL Standard Extension Cable.
-
Which product series does the 330130-040-02-05 belong to?It belongs to the 3300 XL 8mm transducer system.
-
What is the standard Average Scale Factor (ASF) for the 330130-040-02-05?The nominal sensitivity (ASF) is 7.87 V/mm (200 mV/mil) when measuring standard AISI 4140 steel.
-
What is the operating temperature range for the 330130-040-02-05?The standard operating temperature range for the probe body and integral cable is -51 °C to +177 °C.
-
