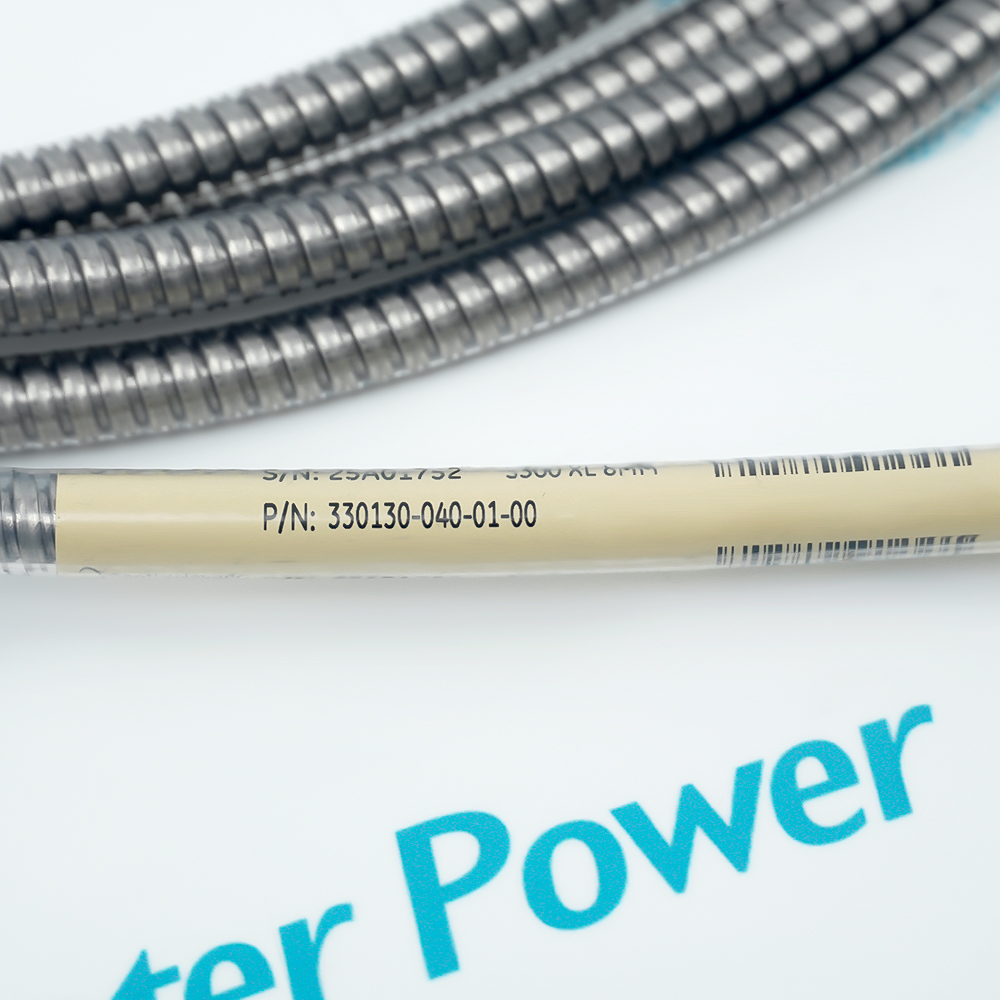

The 330130-040-01-00 is an industrial-grade standard extension cable belonging to the industry-benchmark 3300 XL 8mm eddy current proximity transducer system. It is specifically designed to reliably and losslessly extend and transmit weak high-frequency signals captured by the field proximity probe to the remote Proximitor sensor.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330130-040-01-00 Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Refining
Connects hydrocracking compressor probes in refinery catalytic cracking units to route critical shaft vibration signals to instrument cabinets.
Thermal Power Generation
Used around high-temperature bearing housings of large steam turbine generator units to extend axial displacement (position) probe signals, preventing thrust bearing failure.
Petrochemical & Ethylene Production
Transmits non-contact shaft vibration signals losslessly to Proximitors on million-ton ethylene cracking compressor trains (charge gas, propylene, and ethylene compressors).
Hydroelectric Power Generation
Installed in the humid environments of hydro-turbine generator units to safely extend shaft runout (radial vibration) signals.
Nuclear Power Generation
Connects Keyphasor and vibration probes for giant main steam turbines and reactor coolant pumps (RCPs) in the conventional island.
Iron & Steel / Metallurgy
Routes dynamic vibration signals from blast furnace blowers, the core power equipment of blast furnaces, in harsh, dusty environments.
Please pay close attention to the following points when installing and maintaining the 330130-040-01-00 extension cable. First the minimum bend radius constraint of 25.4 mm (1.0 inch) must be strictly followed. You must never pull, twist excessively, or create sharp kinks because these actions can easily damage the internal coaxial shielding.
Second since this model is a 4.0-meter standard unarmored cable, it must be routed inside external protective conduits or dedicated cable trays on-site to prevent mechanical wear and physical damage.
Lastly when connecting to the probe and Proximitor, please ensure the ClickLoc connectors click firmly into place. You must always install the original silicone rubber connector boots to completely isolate the junction from industrial oil, moisture, and conductive dust.
330130-040-01-00 is an extension cable that, when paired with a probe featuring a 0.5-meter native cable, perfectly forms a standard 5.0-meter transducer system fully compliant with the API 670 industrial standard. It supports 100% calibration-free component interchangeability, provides exceptional temperature stability and mechanical strength, and is specifically designed to reliably extend and transmit weak signals from the field eddy current probe to the Proximitor sensor.
What is the primary function of 330130-040-01-00 in the system?
Its primary function is to reliably extend and transmit the weak, high-frequency electrical signals captured by the field proximity probe to a physical Proximitor sensor located at a safe distance, maintaining strictly controlled capacitance and impedance.
How to properly connect and use 330130-040-01-00?
To use it, connect one end of the cable to a proximity probe with a 0.5-meter native cable, and the other end to a 3300 XL Proximitor sensor. Ensure the connectors
Which meter system does 330130-040-01-00 form?
It belongs to the 5-meter system. It must be paired with a probe featuring a 0.5-meter native cable and a dedicated 5-meter Proximitor sensor (e.g., 330180 5-meter version) to sum up to a complete 5.0-meter electrical length.
What industrial standards does 330130-040-01-00 comply with?
When operating as part of the 3300 XL 8 mm 5-meter system, it fully complies with the American Petroleum Institute's API 670 standard regarding mechanical installation, linear range, accuracy, and temperature stability.
What are the advantages of the ClickLoc connector on 330130-040-01-00?
The ClickLoc connectors feature gold plating for superior corrosion resistance. Their unique locking mechanism prevents loosening caused by long-term mechanical vibration in the field, and their compact size allows for easy pulling through narrow protective conduits.
