177230-01-01-05

Seismic Transmitter
In Stock

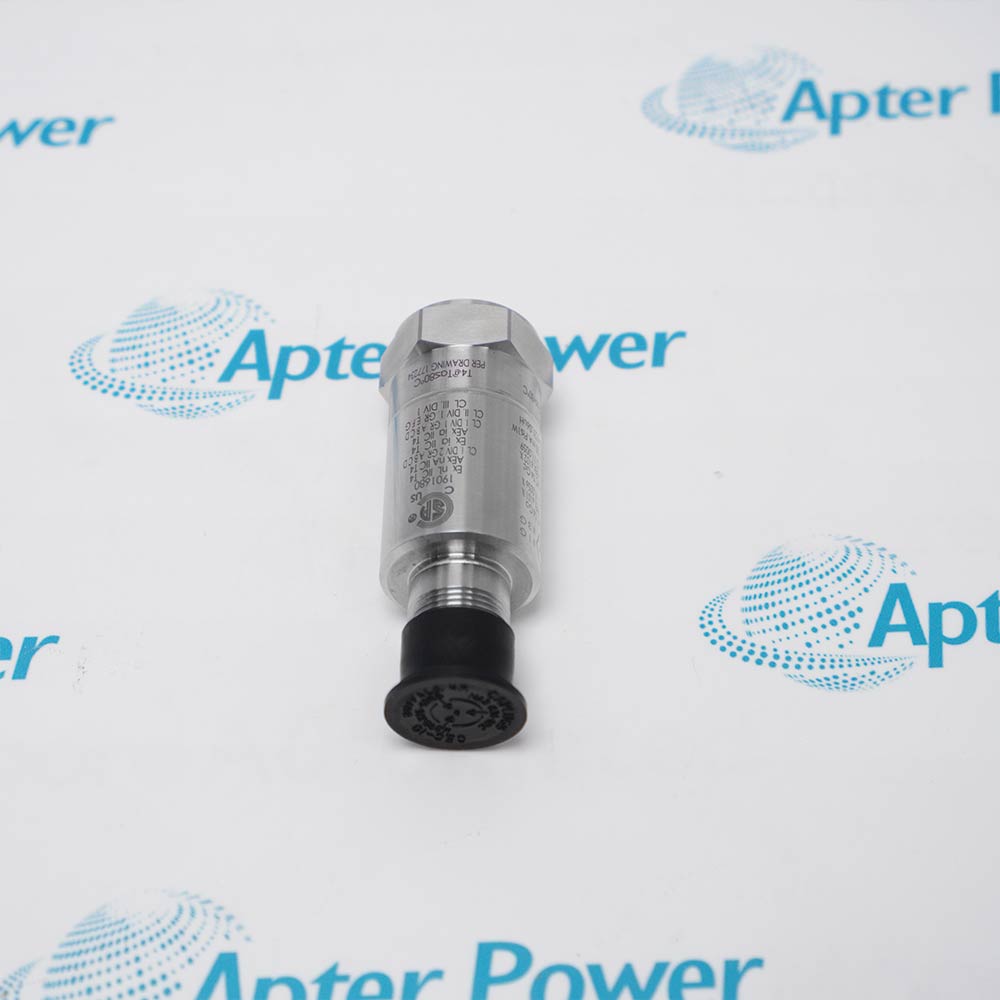

Bently Nevada 177230-01-01-05

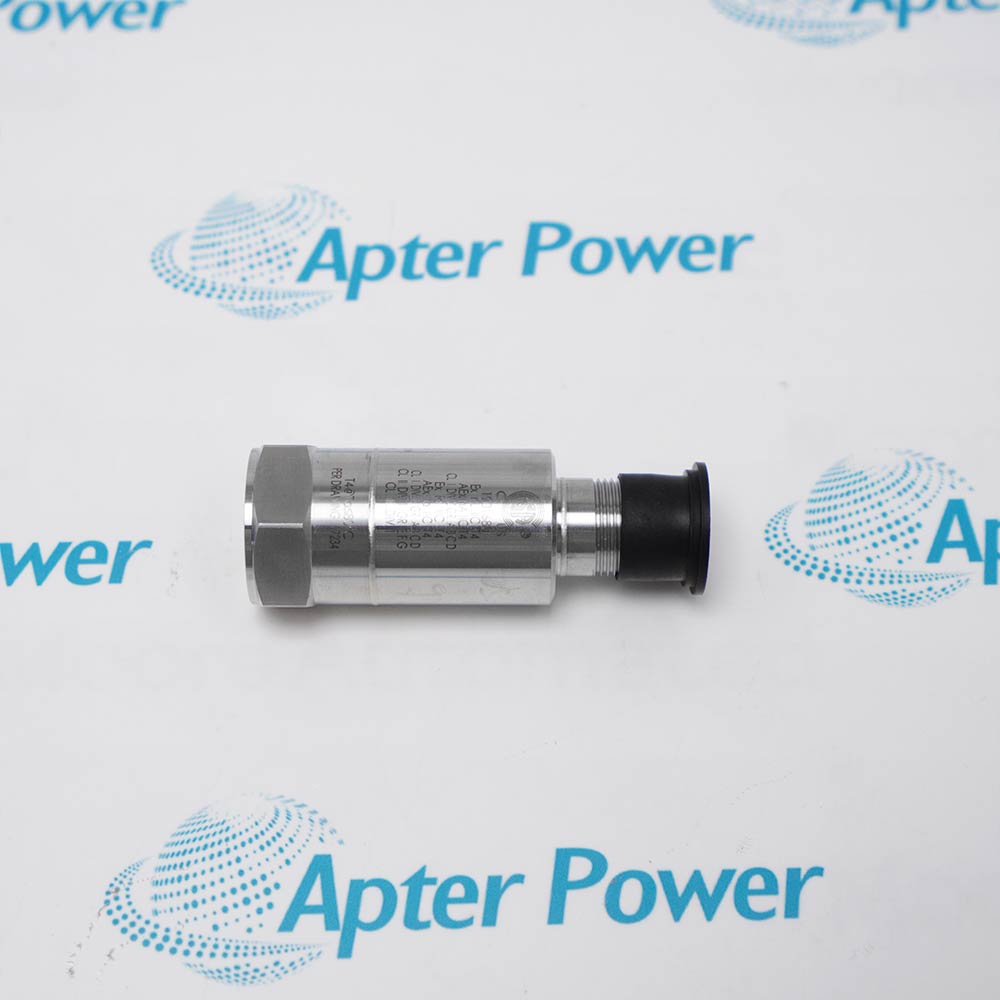

Bently Nevada 177230-01-01-05

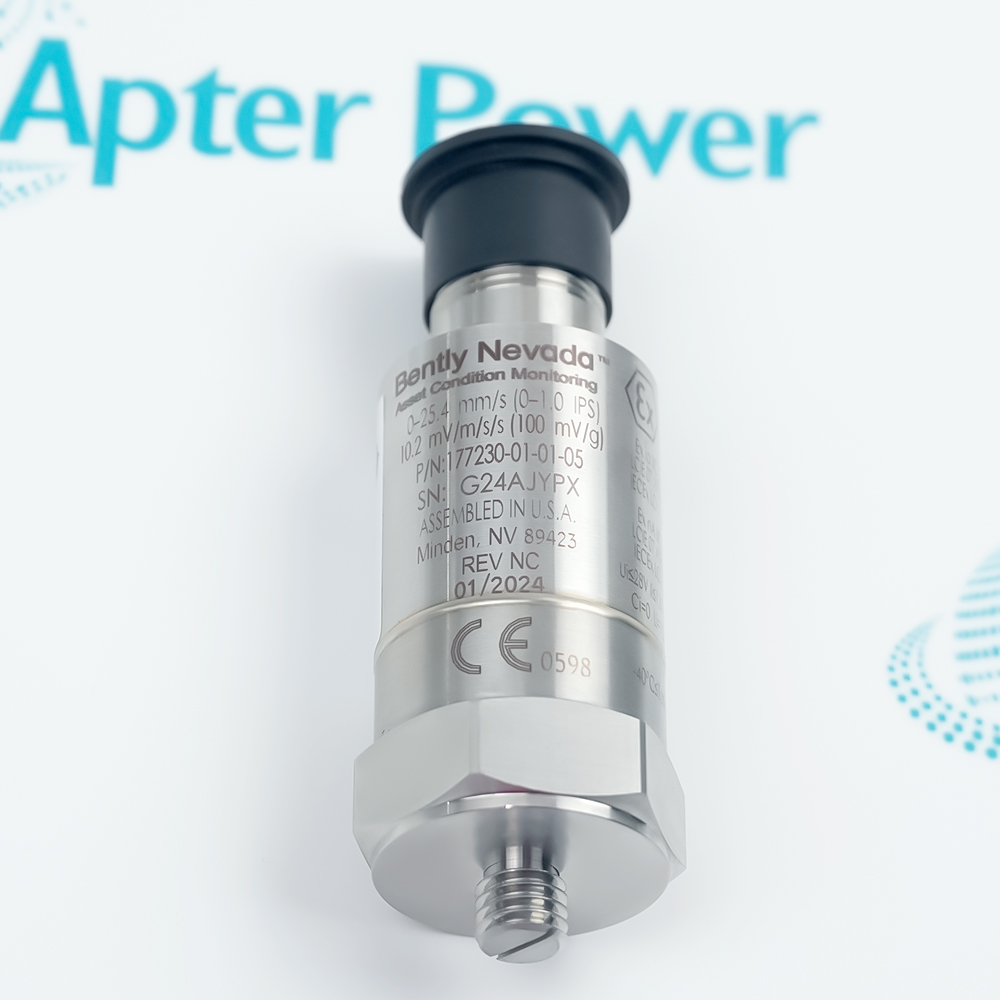

Bently Nevada 177230-01-01-05

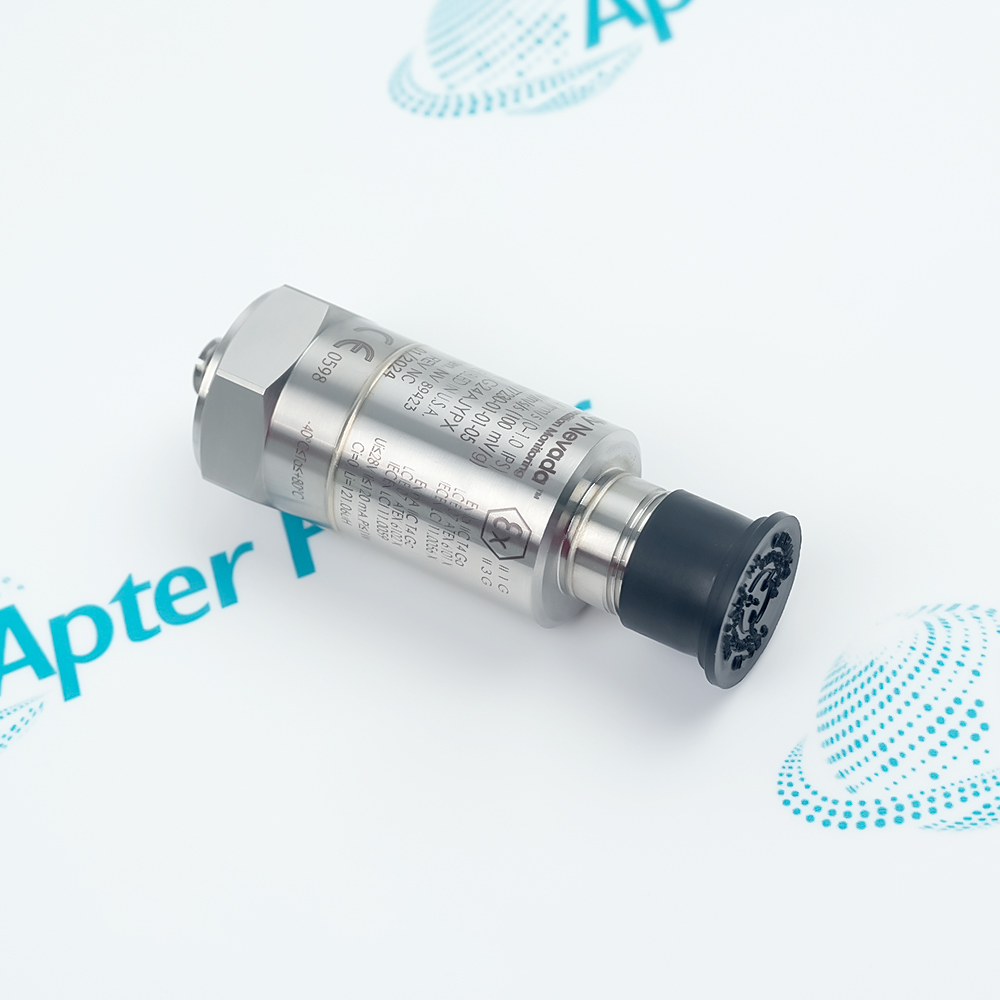

Bently Nevada 177230-01-01-05
Bently Nevada 177230-01-01-05
Bently Nevada 177230-01-01-05
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Seismic Transmitter
Piezoelectric Accelerometer
Ceramic/Shear Sensing
Element Type
Dual-Output Design
Get a quick price for 177230-01-01-05
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 177230-01-01-05

  • Manufacturer:
    Bently Nevada
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    177230-01-01-05
  • Estimated shipping dimensions:
    7x2.5x2.5cm
  • Weight:
    0.12 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Frequency:
    10 Hz to 1 kHz
  • Output Signal:
    4 - 20 mA
  • Protection Rating:
    IP65
  • Temperature Range:
    -40°C to 85°C
  • Power Supply:
    12 - 30 VDC
  • Measurement range:
    0–25.4 mm/s
  • Frequency response:
    10 Hz to 1 kHz RMS
  • Output signal:
    4–20 mA
  • Approvals:
    Multiple Approvals (CSA/NRTL/C, ATEX/IECEx)

Information

Overview Manuals Common Applications Product Precautions
The 177230-01-01-05 is an integrated seismic vibration transmitter/sensor manufactured by Bentley Nevada Corporation in the United States. It is commonly used in industrial fields to monitor the vibration of the casing of rotating machinery such as fans, pumps, and motors.
    • Uses simple data format
    • Provides accurate and repeatable data
    • Provides raw vibration signal for verification and analysis
The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets. The 177230 Seismic Transmitter incorporates robust CM design for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Bently Nevada 177230-01-01-05 Seismic Transmitter Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation
Monitors vibration on balance-of-plant (BOP) machinery such as boiler feed pumps, cooling tower fans, and coal pulverizers to prevent unexpected outages.

Oil and Gas
Deployed on centrifugal pumps, small gas compressors, and air-cooled heat exchangers (fin-fans) operating in classified hazardous zones.

Pulp and Paper
Measures vibration on continuous pulper drives, vacuum pumps, and drying roll bearings exposed to high humidity and temperature.

Pharmaceutical Manufacturing
Tracks the operational stability of cleanroom HVAC air handling units (AHUs), purified water distribution pumps, and granulator drives.

Semiconductor
Monitors ultra-pure water (UPW) pumps and critical cleanroom recirculation fans where minimal background vibration is required for lithography.

Automotive Manufacturing
Deployed on centralized paint shop ventilation blowers, hydraulic press power packs, and stamping line cooling systems.

 When deploying the transmitter, achieving a flat, smooth mounting surface and applying the exact factory-specified torque are critical to ensure accurate high-frequency vibration transmission and prevent case distortion. Technicians must utilize a properly grounded, twisted-shielded cable to isolate the current loop from electromagnetic noise, while verifying that the loop excitation voltage remains strictly within the nominal operating limits. Because it is a seismic sensor, the housing must be oriented to align precisely with the machine's primary vibration axis. Furthermore, appropriate intrinsic safety barriers must be integrated into the loop when operating in hazardous environments to maintain compliance with its explosion-proof and flameproof ratings.

FAQ View All FAQ

  • What is 177230-01-01-05?
    177230-01-01-05 is a Seismic Transmitter.
  • How does an engineer install and deploy the 177230-01-01-05?
    The transmitter is stud-mounted directly onto the machine's bearing housing. It connects via a 3-pin MIL-C-5015 twisted-shielded cable directly into a PLC, DCS, or SCADA analog input card.
  • What physical parameters does the 177230-01-01-05 measure?
    It measures casing vibration velocity. The internal microelectronics integrate the raw acceleration signal into velocity, which is the industry standard for monitoring general-purpose machinery health.
  • How do technicians utilize the dynamic signal of the 177230-01-01-05?
    Reliability engineers connect portable machinery analyzers or data collectors to Pin C of the connector to capture raw waveforms and perform FFT spectrum analysis.
  • On what types of industrial equipment should the 177230-01-01-05 be deployed?
    It is designed for general-purpose, non-critical balance-of-plant assets equipped with rolling element bearings, such as electric motors, centrifugal pumps, fans, and small blowers.
