1746-OW4

Relay Output Module
In Stock

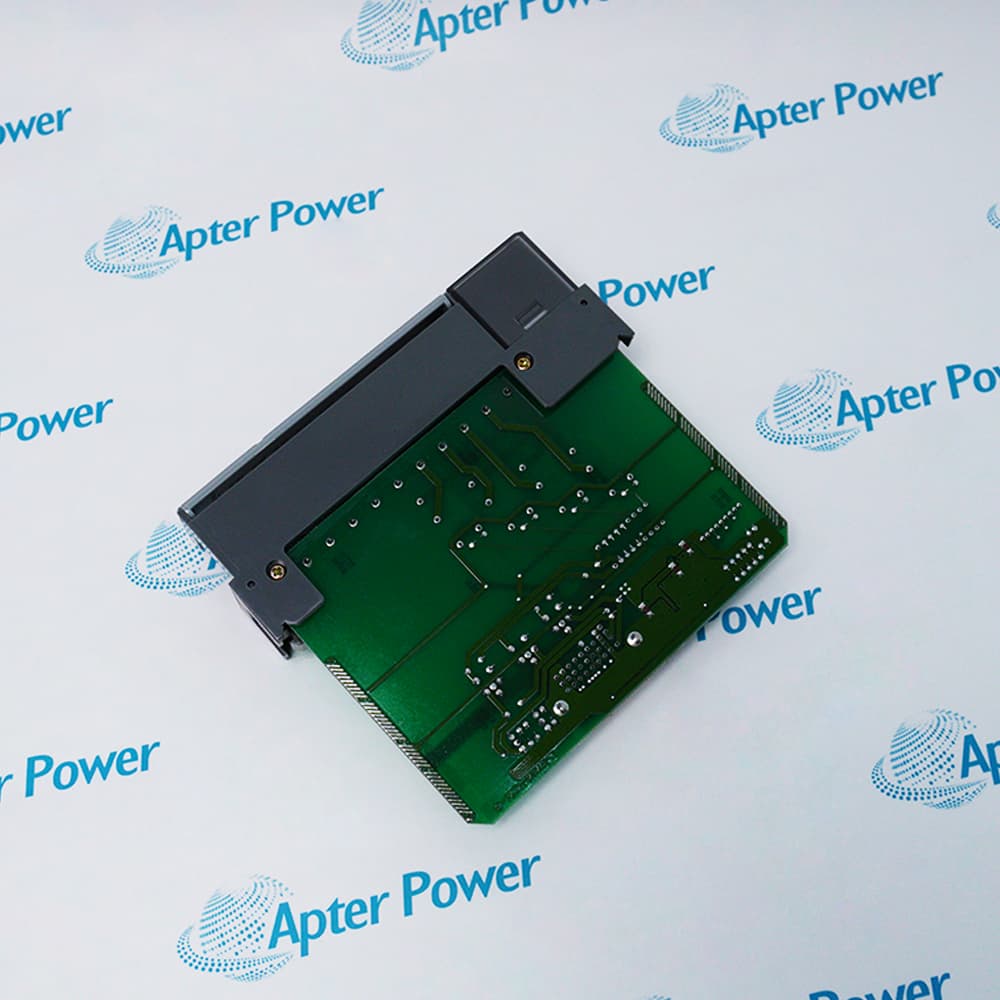

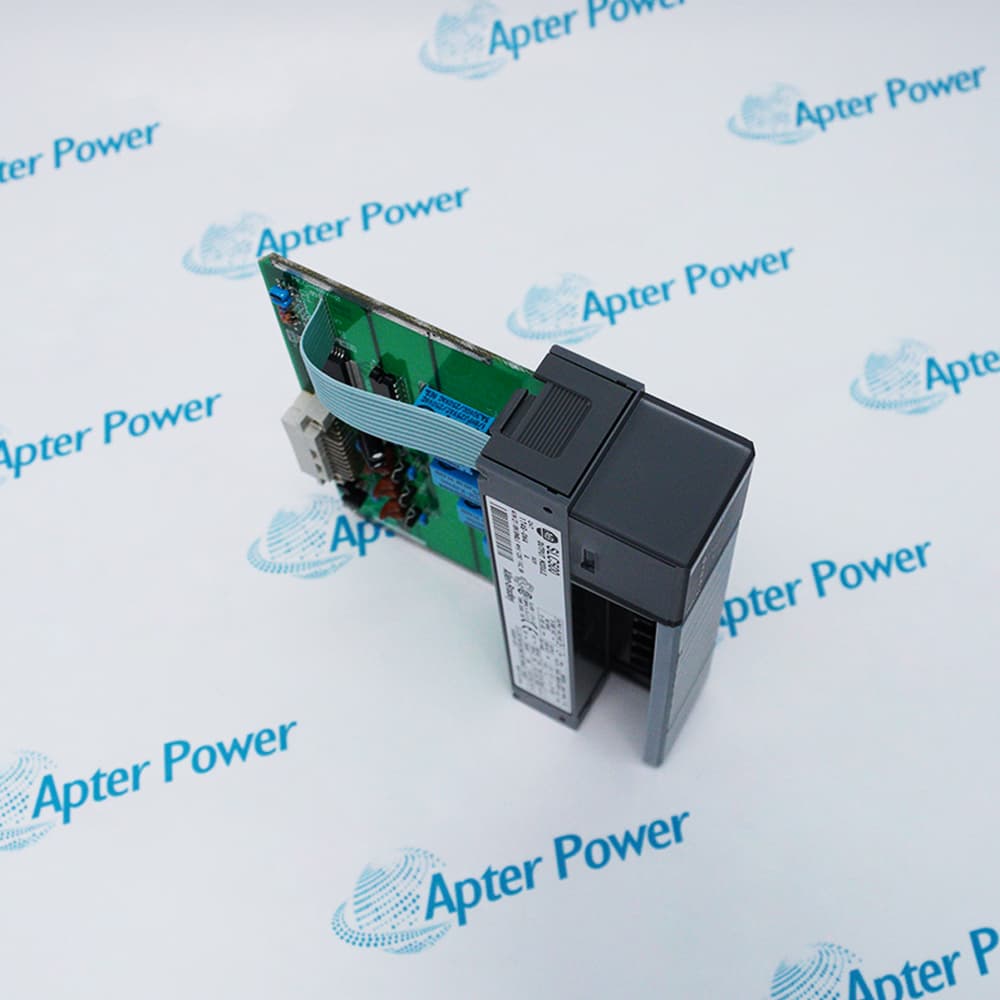

Allen-Bradley 1746-OW4
Allen-Bradley 1746-OW4
Allen-Bradley 1746-OW4
Allen-Bradley 1746-OW4
Allen-Bradley 1746-OW4
Allen-Bradley 1746-OW4
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

DISCONTINUED BY MANUFACTURER
OUTPUT MODULE
4 POINT
RELAY
DIGITAL
OUTPUT 5-265 VAC
5-125 VDC
FOR PROGRAMMABLE CONTROLLER
Get a quick price for 1746-OW4
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1746-OW4

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1746-OW4
  • Estimated shipping dimensions:
    12.7x5.1x15.2cm
  • Weight:
    0.3 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Outputs:
    4
  • Operating Voltage:
    5-265 Volt AC or 5-125 Volts DC
  • Output Types:
    N.O. Relay Contact
  • Current/Output (120 VAC):
    1.5 amps
  • Current/Output (24VDC):
    1.2 amps
  • Backplane Current:
    45 milliamps

Information

Overview Manuals Common Applications Installation
The 1746-OW4 is a 4-point digital relay output module designed for the SLC 500 platform, providing four normally open (Form A) relay contacts. It can be installed in any available slot of a 1746 I/O chassis, except slot 0, and features two points per common to interface with various field devices.
    • Versatile AC/DC Switching
    • 2.5A High Current Capacity
    • Dual Isolated Commons
This module supports a broad operating voltage range of 5 to 125V DC and 5 to 265V AC, with a maximum continuous current of 2.5A per point. It provides optical isolation between the backplane and the field-side circuits, and is rated for a maximum of 8.0A per module to ensure reliable switching of both AC and DC loads.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1746-OW4 Relay Output Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Power Generation
Controls high-voltage AC/DC auxiliary circuits and generator start sequences. It provides high-current relay contacts with electrical isolation from the backplane.

 Oil and Gas
Manages hazardous area actuators and signaling for offshore platforms. The module handles a wide range of switching voltages from 5V to 265V AC.

 Water Treatment
Operates large AC motor starters and solenoid valves in municipal facilities. It utilizes isolated common terminals to control independent power circuits.

 Automotive Manufacturing
Drives safety interlocks and conveyor motor controllers on assembly lines. The robust design handles high-inrush inductive and resistive loads.

 Steel and Mining
Regulates heavy material handling and furnace controllers in smelting plants. It switches high-current AC/DC field devices in harsh electrical environments.

 Food and Beverage
Coordinates high-speed packaging lines and automated sorting machinery. It ensures precise operation of dry-contact points for production line actuators.
The 1746-OW4 requires a backplane current draw of 45 mA at 5V DC and 45 mA at 24V DC, and because the module does not contain internal fusing, users must provide external fuses for each output circuit to protect against short circuits and overloads.

During installation or wiring, personnel must wear a grounding wrist strap to prevent electrostatic discharge (ESD) from damaging internal components and must ensure all chassis power is removed before inserting or removing the module to avoid injury or equipment damage. The module provides a maximum contact response time of 10.0 ms for both ON and OFF states and requires surge suppression for inductive loads to protect the relay contacts and extend the life of the module.

Revisions

Revision Part #

Also known as

1746-OW4 Ser A
1746-OW4-A, Rev A

FAQ View All FAQ

  • What is the output configuration and number of points for the 1746-OW4 module?
    The 1746-OW4 is a 4-point relay output module that provides four normally open (form A) contacts, with two points per common.
  • What are the backplane current requirements for the 1746-OW4 at 5V and 24V DC?
    The module has a backplane current draw of 45 mA at 5V DC and 45 mA at 24V DC, which must be considered during chassis power supply loading.
  • What are the operating voltage ranges for the 1746-OW4 relay contacts?
    The module supports operating voltage ranges of 5 to 125V DC and 5 to 265V AC, allowing for versatile control of various AC and DC loads.
  • Is the 1746-OW4 module equipped with internal circuit protection?
    No, the 1746-OW4 does not contain internal fusing; therefore, you must provide external fuses to protect the module from short circuits and overloads.
  • What is the maximum continuous current per point for the 1746-OW4 module?
    The maximum continuous current per point is 2.5A for both AC and DC voltages, with a maximum of 8.0A per module at 30°C.
