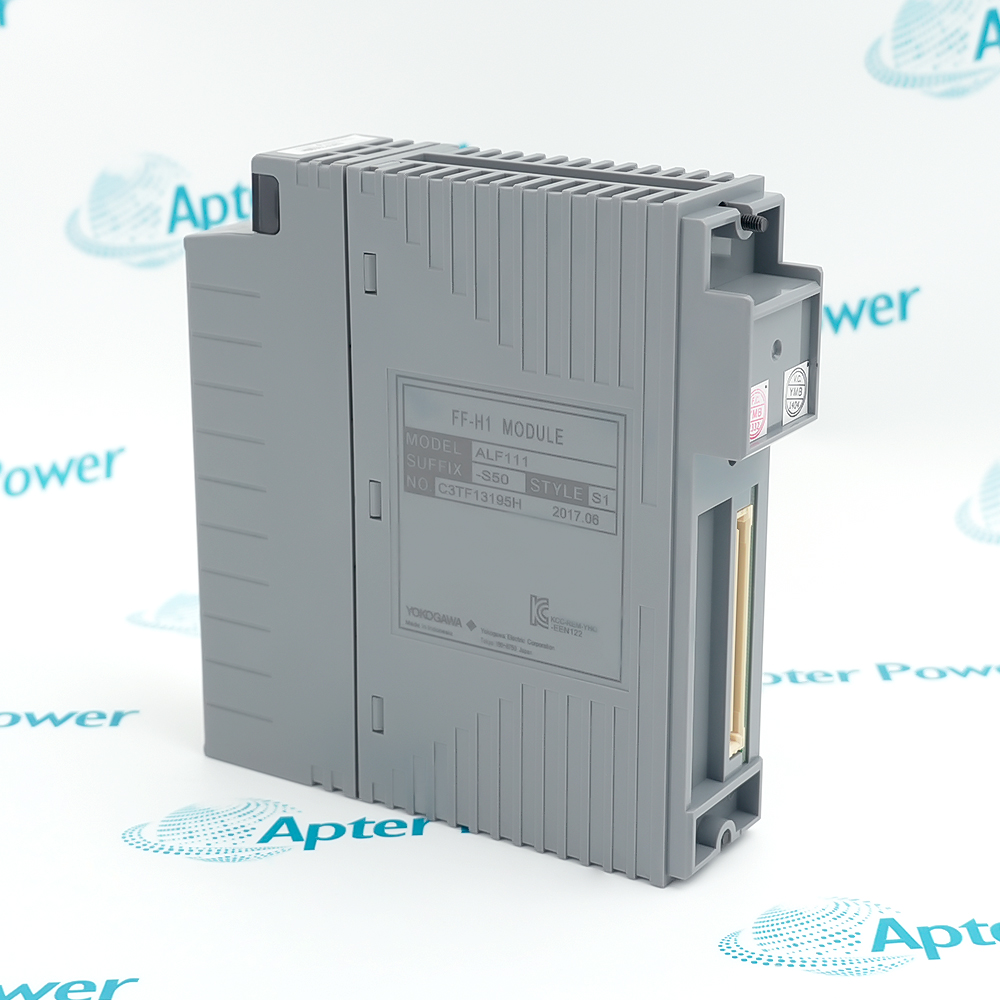

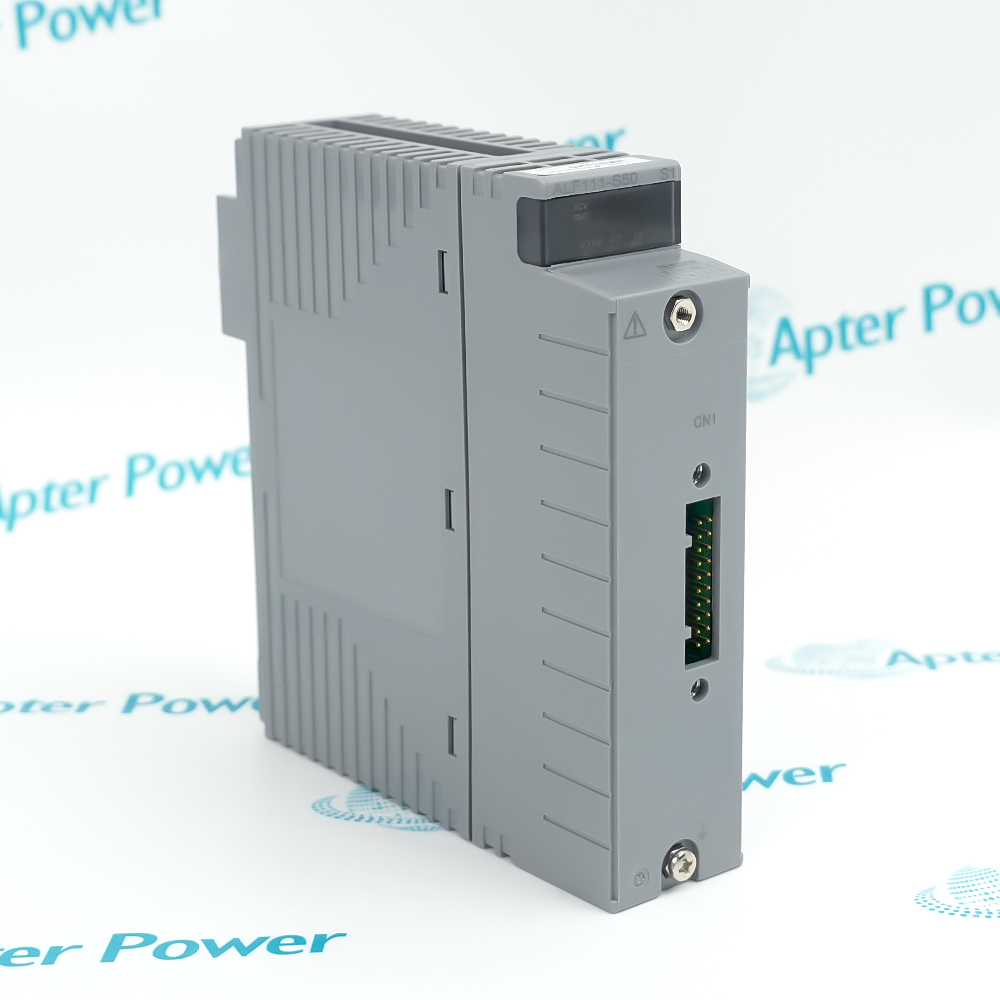

ALF111-S50-S1 is a Yokogawa ALF111 FOUNDATION Fieldbus H1 communication-module configuration for CENTUM field control hardware. The ALF111 establishes communication between the field control station and FOUNDATION Fieldbus transmitters, valve positioners, and other H1 devices.
- Yokogawa
- ALF111
- FOUNDATION Fieldbus H1
- Up to 4 per module
The module interfaces up to four H1 fieldbus segments with the FCS, exchanging cyclic control data, on-demand parameter data, diagnostics, events, and alarms; it can be engineered in a dual-redundant arrangement for higher availability.
Important Notice: Use the complete ALF111-S50-S1 code and verify the physical nameplate and current Yokogawa documentation before installation or replacement.
Apter Power ALF111-S50-S1 Manuals and Guides
Important Notice: These are two separate Apter Power documents with distinct layouts and model-specific content, prepared from the manufacturer-published Yokogawa information named in each document. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
Yokogawa CENTUM VP N-IO/FIO
Maintains the documented four-segment H1 communication and redundancy role in a correctly matched installation.
Process and machine automation
Supports the control, communication, power, safety, measurement, or protection duty stated in the official source for this exact or verified family identity.
Lifecycle-controlled maintenance
Requires complete-code, nameplate, host-system, and project verification before replacement or recommissioning.
Read and follow the exact Yokogawa documentation and host-equipment instructions before use. Verify ALF111-S50-S1 from the physical nameplate.
Check 1

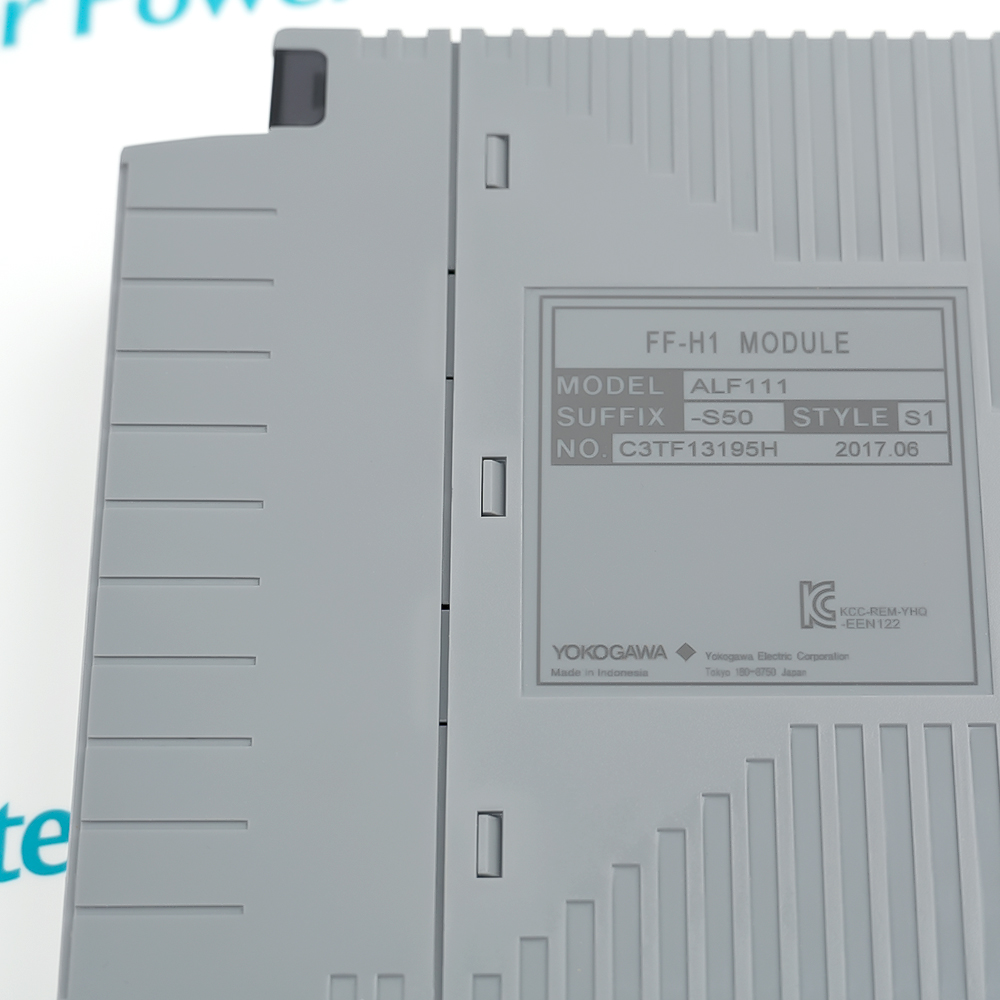

Match every character of ALF111-S50-S1 to the physical nameplate before work.
Check 2
Use the exact Yokogawa manual, wiring drawing, and safety instructions for the installed revision.
Check 3
De-energize and apply the required lockout, discharge, ESD, and stored-energy controls before removal.
Check 4
Back up firmware, parameters, controller project, calibration, and network settings where applicable.
Check 5
Verify supply, signal type, polarity, grounding, shielding, connector pinout, load, and environmental limits.
Check 6
Commission with the manufacturer test procedure and record results before returning equipment to service.
