      D3G146-AH50-16

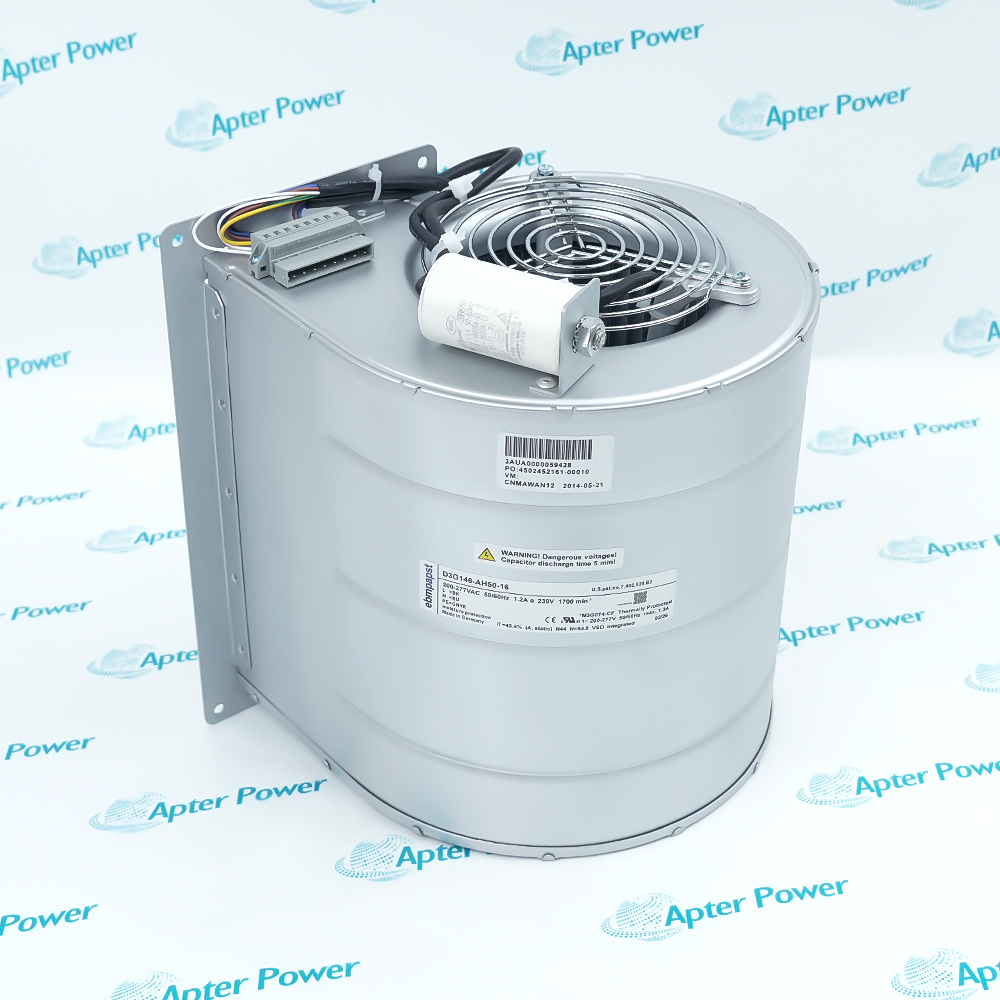

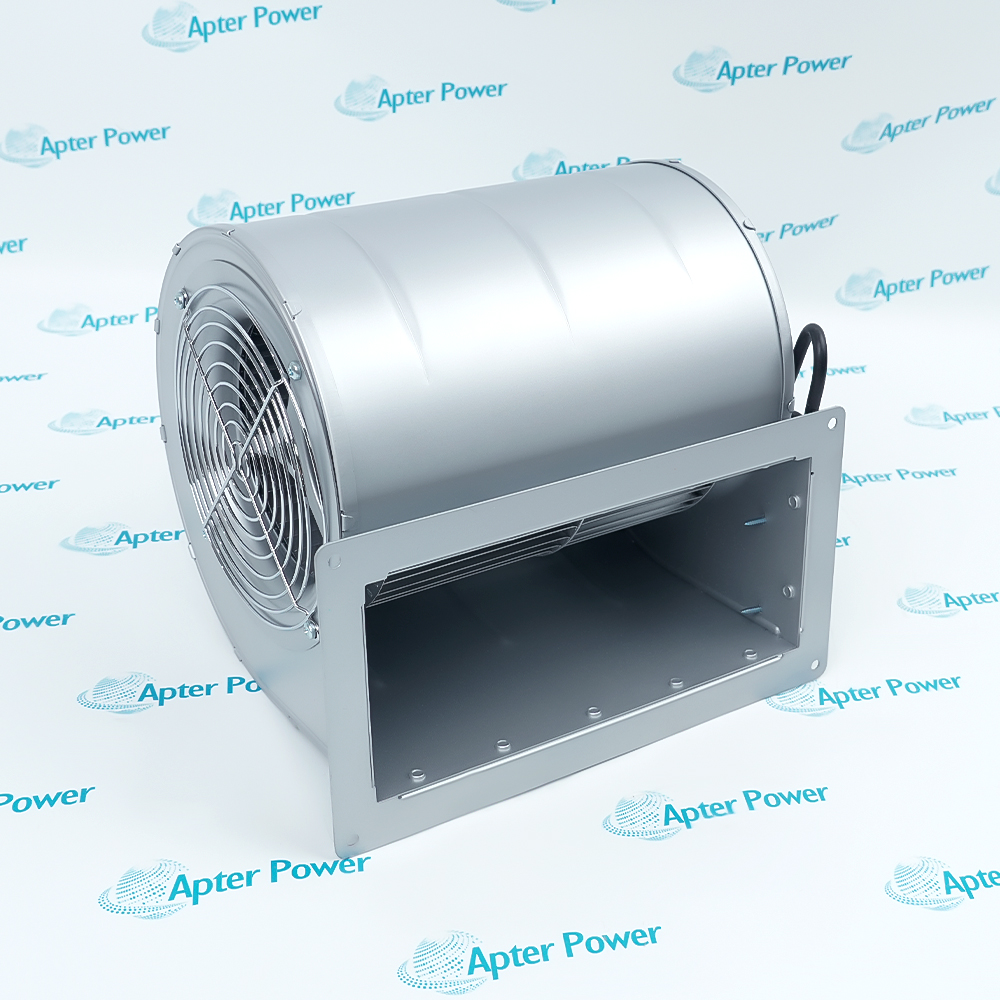

      ebm-papst Long-life centrifugal cooling fan used as the D8D module fan in an ABB ACS880-304 +A003 configuration
      In Stock
      Ships by Friday, August 28
      Fast Shipping Available

      Product Describe：

      ebm-papst D3G146-AH50-16 is a long-life centrifugal fan identified by ABB as the D8D module cooling fan for an ACS880-304 +A003 configuration.

      Ask our team:

      Get a quick price for： D3G146-AH50-16
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for D3G146-AH50-16

      Technical specifications for D3G146-AH50-16

      • Manufacturer:
        EBM-Papst
      • Product Category:
        General Automation
      • Spare Part Number:
        D3G146-AH50-16
      • Estimated shipping dimensions:
        29x24x21cm
      • Weight:
        4.9 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Exact type code:
        D3G146-AH50-16
      • Officially documented type:
        Long-life centrifugal fan
      • ABB stock code:
        3AUA0000059428
      • Verified host role:
        D8D module fan in ABB ACS880-304 +A003 hardware documentation
      • Host configuration notation:
        DOL +C188
      • Rated host-supply voltage:
        230 V AC
      • Frequency:
        50/60 Hz
      • Nominal current at 50 Hz:
        1.20 A
      • Nominal current at 60 Hz:
        1.62 A
      • Starting current at 50 Hz:
        2.40 A
      Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ebm-papst D3G146-AH50-16 is an exact fan type identified by ABB official documentation as a long-life centrifugal fan and as the D8D module cooling fan in an ACS880-304 +A003 diode-supply-module configuration; the physical ebm-papst nameplate must still be checked because no exact public ebm-papst -16 data page was located.
      • Exact type code: D3G146-AH50-16
      • Officially documented type: Long-life centrifugal fan
      • ABB stock code: 3AUA0000059428
      • Verified host role: D8D module fan in ABB ACS880-304 +A003 hardware documentation

      Its documented system function is to move cooling air through the drive module so heat produced by the power electronics can be removed and the drive can maintain its designed operating capability and reliability. In the ABB host configuration it is powered at 230 V AC and 50/60 Hz; ABB lists nominal current of 1.20 A at 50 Hz and 1.62 A at 60 Hz and identifies the connection as a direct-on-line D8D module fan. It is not a process-measurement or PLC signal-processing module, and no exact -16 feedback or control-signal interface is confirmed by the cited official sources. The verified application is cooling an ABB ACS880-304 +A003 D8D module where the drive manual, fan nameplate, ABB stock code, mechanical fit, airflow direction, connector, and maintenance schedule all match; use in any other drive, HVAC unit, or machine requires its own manufacturer documentation.

      Important Notice: Obtain a clear physical nameplate or an exact ebm-papst official order record showing D3G146-AH50-16 before publishing ebm-papst-specific motor, airflow, pressure, dimensions, weight, protection, control-interface, or approval data.

      Apter Power D3G146-AH50-16 Manuals and Guides

      Important Notice: The first link is the product-parameters PDF prepared only from the cited manufacturer information; the second link is the Apter Power product manual. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.

      ACS880 D8D module cooling
      Moves cooling air through an ABB ACS880-304 +A003 D8D module in the exact configuration documented by ABB.
      Long-life drive fan replacement
      Serves as the exact type associated with ABB long-life centrifugal fan stock code 3AUA0000059428 when both codes and the host parts list match.
      Preventive drive maintenance
      Supports planned cooling-fan renewal under ABB's drive-specific preventive-maintenance schedule; ABB recommends replacing long-life fans every nine years after installation.
      Industrial power-converter cooling
      Applies only to a power-converter assembly whose manufacturer documentation explicitly names D3G146-AH50-16; no broader HVAC or machine compatibility should be inferred.
      Read and follow the current ebm-papst documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
      1

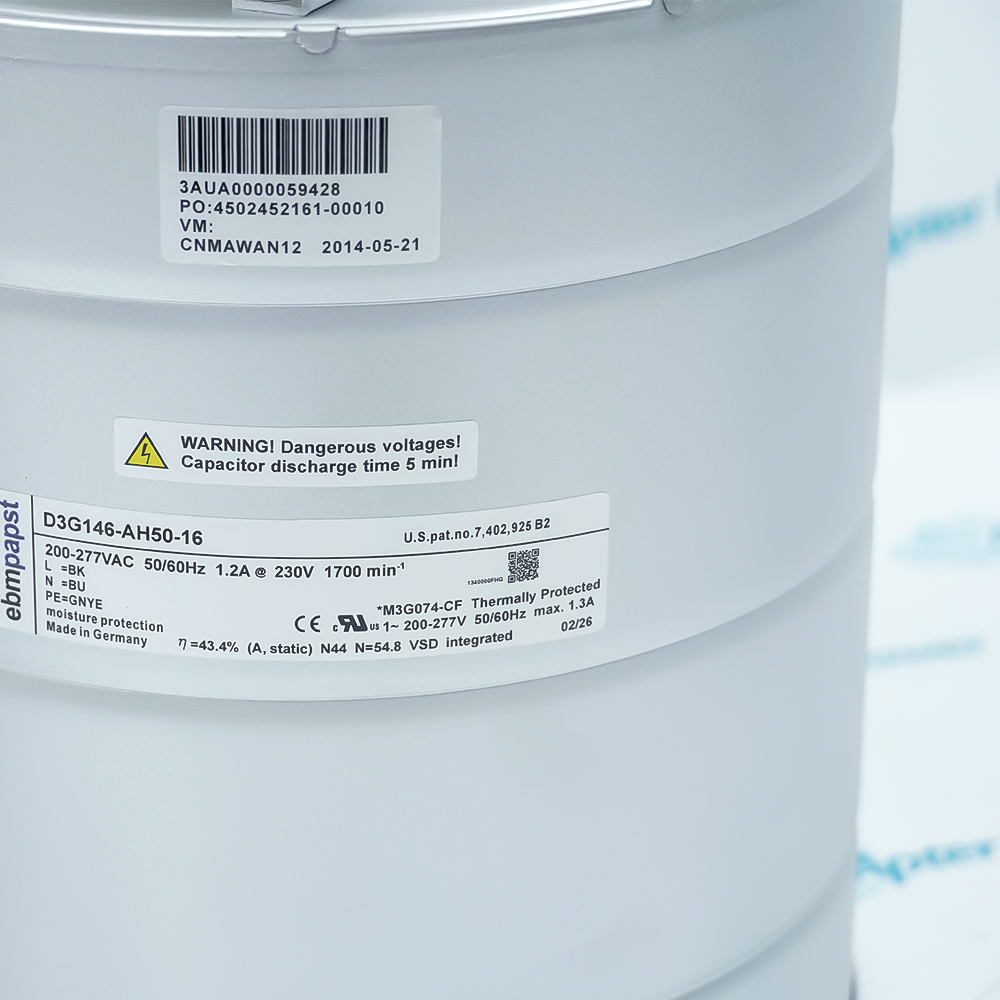

      Verify a clear physical nameplate showing D3G146-AH50-16. Do not accept D3G146-AH50-11 or D3G146-AH50-01 as the same variant.
      2
      For an ABB drive application, also verify stock code 3AUA0000059428 and the exact ACS880-304 +A003 D8D module parts list.
      3
      Isolate the drive and fan auxiliary supply and follow the exact ABB drive electrical-safety, discharge-time, lockout, and fan-replacement procedure before opening the module.
      4
      Verify 230 V AC, 50/60 Hz, fan connector, lead assignment, mounting, impeller clearance, airflow direction, and guards against the exact host manual and nameplate before energization.
      5
      Do not publish or configure airflow, static pressure, speed, power, dimensions, weight, IP rating, approvals, tachometer, 0-10 V, PWM, or MODBUS data until an exact -16 ebm-papst official document or nameplate supports each value.

      Alternative Names

      Alternative Names

      ebm-papst D3G146-AH50-16 EBM-Papst D3G146-AH50-16 D3G146-AH50-16

      Technical notes

      Technical notes

      Verification Status: EXACT_TYPE_CODE_VERIFIED_IN_OFFICIAL_ABB_HOST_EQUIPMENT_DOCUMENTS; EXACT_PUBLIC_EBM_PAPST_-16_PAGE_OR_MANUAL_NOT_LOCATED Exact Mapping: ABB maps type D3G146-AH50-16 to long-life centrifugal fan stock code 3AUA0000059428 and identifies it as the D8D module fan in the ACS880-304 +A003 hardware manual. Lifecycle Status: No exact ebm-papst public lifecycle statement was located. ABB's 2019 long-life-fan note lists the type and ABB stock code, but that document does not establish a current Active, Classic, Limited, or Obsolete phase for the fan in 2026. Country Of Origin: Not published for the exact -16 type in the cited official sources; do not guess. Dimensions: Not published for exact D3G146-AH50-16 in the cited official sources. Weight: Not published for exact D3G146-AH50-16 in the cited official sources. Obtain a clear physical nameplate or an exact ebm-papst official order record showing D3G146-AH50-16 before publishing ebm-papst-specific motor, airflow, pressure, dimensions, weight, protection, control-interface, or approval data. Do not copy any specification from D3G146-AH50-11 or D3G146-AH50-01. The suffix is part of the exact type code and may represent an OEM-specific construction. For an ABB drive replacement, verify both D3G146-AH50-16 and ABB stock code 3AUA0000059428, plus the host drive/module configuration and connector details. Exact ebm-papst public lifecycle phase Country of origin Motor type Voltage range beyond ABB's documented 230 V host rating Power consumption Speed Airflow Static or total pressure Dimensions Weight Ambient-temperature limits IP or insulation class Tachometer, PWM, 0-10 V, alarm, or communication interface Approvals or certifications Interchangeability with D3G146-AH50-11, D3G146-AH50-01, or any other suffix

      FAQS

      • What is D3G146-AH50-16?
        ABB official documentation identifies it as a long-life centrifugal cooling fan and as the D8D module fan in an ACS880-304 +A003 configuration.
      • What is the associated ABB stock code?
        ABB maps D3G146-AH50-16 to stock code 3AUA0000059428 in its long-life-fan technical note.
      • Which equipment is officially verified for this fan?
        The cited ABB hardware manual identifies it as the D8D module fan for an ACS880-304 +A003 configuration. Other equipment requires its own manufacturer documentation.
      • What supply is documented?
        ABB lists 230 V AC at 50/60 Hz for the D8D module-fan application.
      • What nominal current does ABB list?
        ABB lists 1.20 A at 50 Hz and 1.62 A at 60 Hz.
      • Can D3G146-AH50-11 data be used for the -16 fan?
        No. The suffix is part of the exact fan code, and no official source reviewed here establishes that -11 and -16 share all electrical, mechanical, airflow, control, or approval data.
      • Does the fan process analog or digital field signals?
        No process-signal function is documented. Its verified role is to create cooling airflow for the host power-electronic module.
      • What airflow, speed, power, dimensions, and weight apply?
        Those values are withheld because no exact public ebm-papst D3G146-AH50-16 page or manual was located in the official-source search. Confirm them from the physical -16 nameplate or an exact ebm-papst official record.
      • Is D3G146-AH50-16 officially discontinued?
        No exact ebm-papst lifecycle statement was located. ABB's 2019 note lists the type and stock code, but it does not establish a current lifecycle phase.
      • What maintenance interval does ABB recommend for long-life fans?
        ABB recommends replacement every nine years after installation in accordance with the drive-specific preventive-maintenance schedule.
