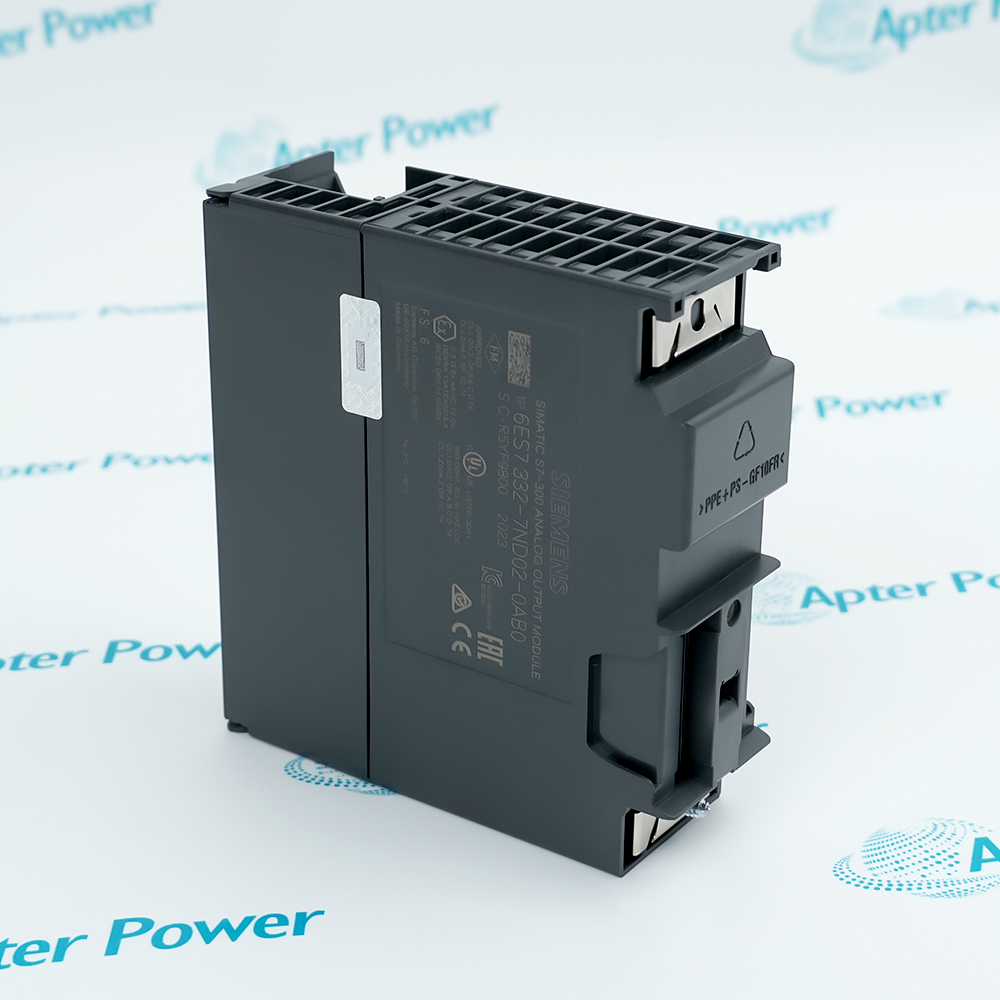

6ES7332-7ND02-0AB0 is a Siemens SIMATIC S7-300 SM 332 analog output module with four channel-isolated outputs, 16-bit resolution, voltage and current ranges, a 20-pole front connection, and support for isochronous operation.
- Siemens
- SM 332 analog output
- 4, isolated by channel
- 16 bit
The module converts four controller output words into precise voltage or current signals for modulating valves, drives, positioners, recorders, and other continuous-control equipment while returning channel and module diagnostics to the PLC.
Important Notice: Use the complete 6ES7332-7ND02-0AB0 code and verify the physical nameplate and current Siemens documentation before installation or replacement.
Apter Power 6ES7332-7ND02-0AB0 Manuals and Guides
Important Notice: These are two separate Apter Power documents with distinct layouts and model-specific content, prepared from the manufacturer-published Siemens information named in each document. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
SIMATIC S7-300
Maintains the documented high-resolution analog command output and isochronous control role in a correctly matched installation.
Process and machine automation
Supports the control, communication, power, safety, measurement, or protection duty stated in the official source for this exact or verified family identity.
Lifecycle-controlled maintenance
Requires complete-code, nameplate, host-system, and project verification before replacement or recommissioning.
Read and follow the exact Siemens documentation and host-equipment instructions before use. Verify 6ES7332-7ND02-0AB0 from the physical nameplate.
Check 1

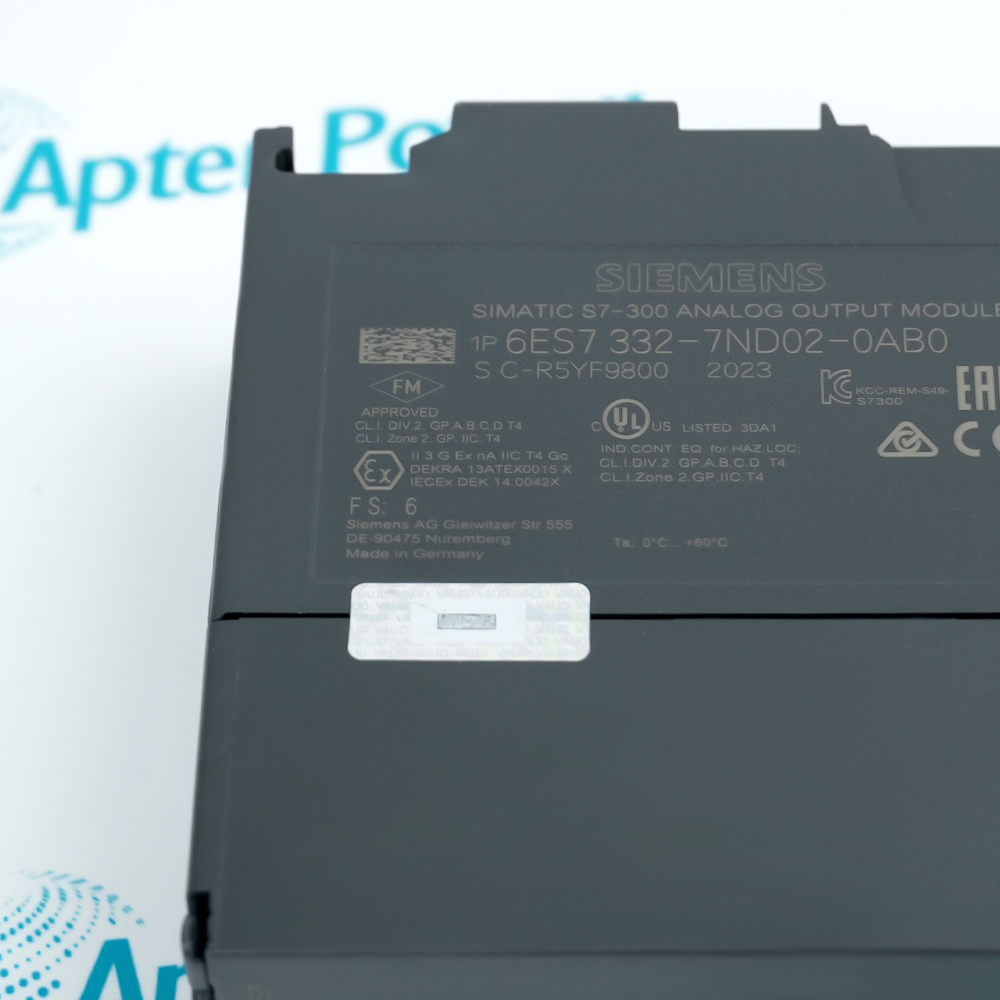

Match every character of 6ES7332-7ND02-0AB0 to the physical nameplate before work.
Check 2
Use the exact Siemens manual, wiring drawing, and safety instructions for the installed revision.
Check 3
De-energize and apply the required lockout, discharge, ESD, and stored-energy controls before removal.
Check 4
Back up firmware, parameters, controller project, calibration, and network settings where applicable.
Check 5
Verify supply, signal type, polarity, grounding, shielding, connector pinout, load, and environmental limits.
Check 6
Commission with the manufacturer test procedure and record results before returning equipment to service.
