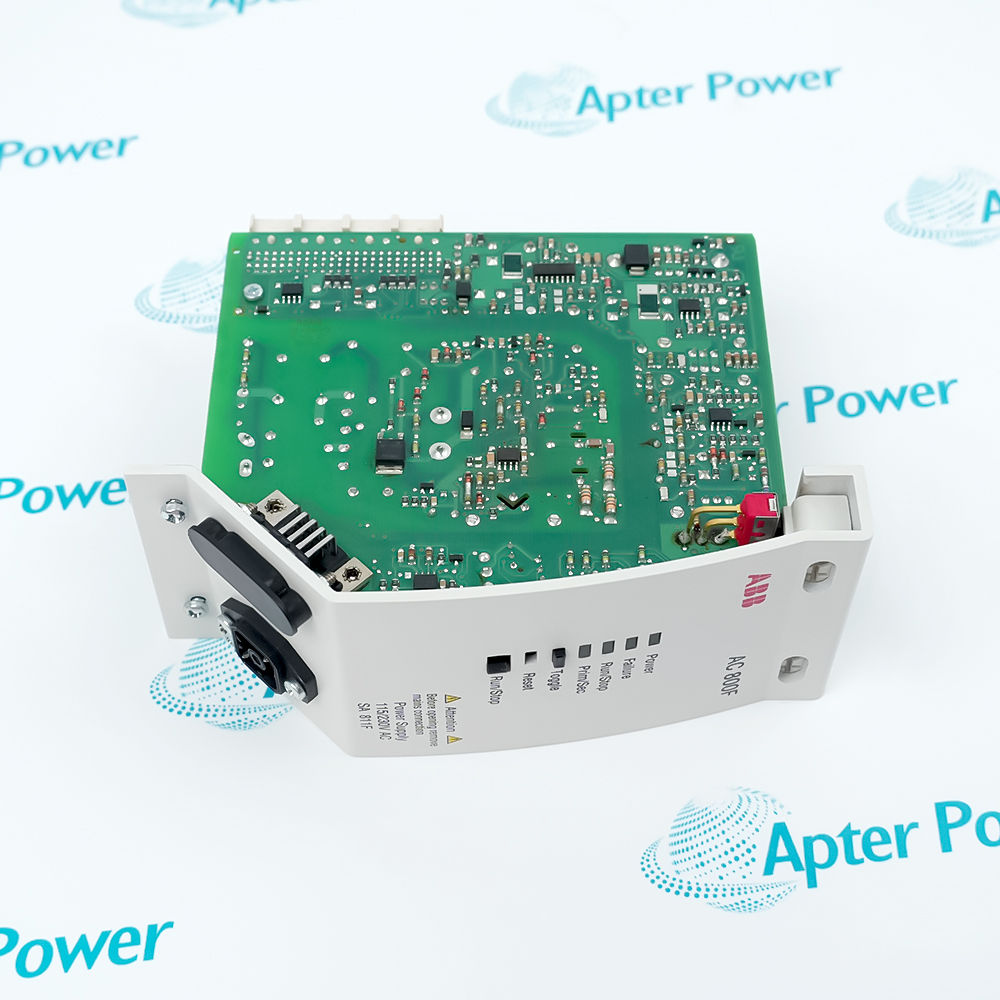

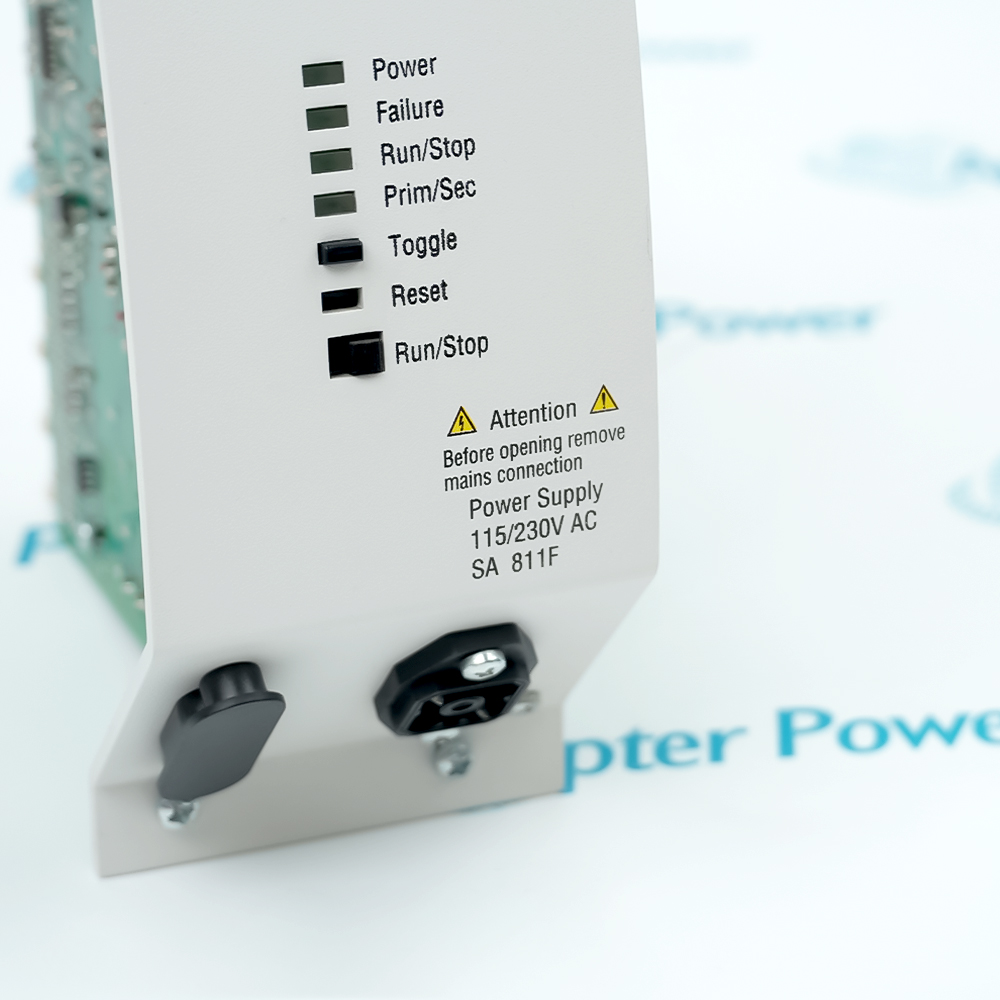

SA811F-3BDH000013R1 is an ABB Freelance power-supply module for AC 800F hardware. It accepts a self-adjusting 115/230 V AC input and supplies isolated 3.3 V DC and 5 V DC rails for the controller, with open-circuit, overload, sustained short-circuit, and power-fail handling described by ABB.
- ABB
- 115/230 V AC; permissible 90 to 260 V AC
- 47 to 63 Hz
- 3.3 V DC and 5 V DC, typical +/-3%
The module converts plant AC power into regulated controller rails and generates a power-fail signal so the CPU can shut down in a controlled manner and preserve a safe state during an input interruption.
