The 3500/53 133388-01 serves as a 2-channel rear analog I/O module with internal barriers, utilized to construct high-reliability, fast-response redundant overspeed detection systems compliant with API 670 and API 612 standards. Relying on a 3500 rack equipped with redundant power supplies, this module supports configuration into 2-out-of-2 or 2-out-of-3 voting logic, making it suitable for industrial rotating machinery overspeed protection.
Single-slot card integrates barriers and terminals, reducing panel footprint
Backplane bus routes high-bandwidth frequency signals with zero lag
Integrates hardware safety barriers to receive raw speed signals directly from hazardous areas

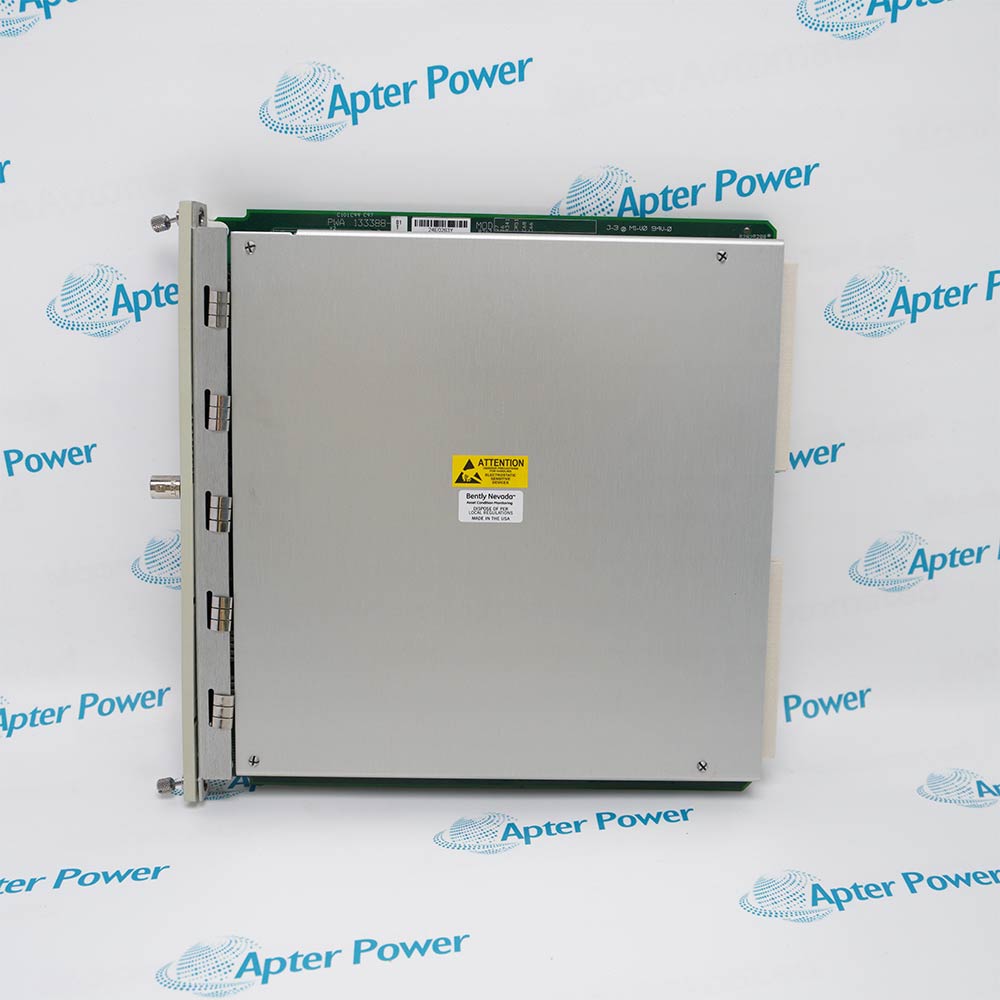

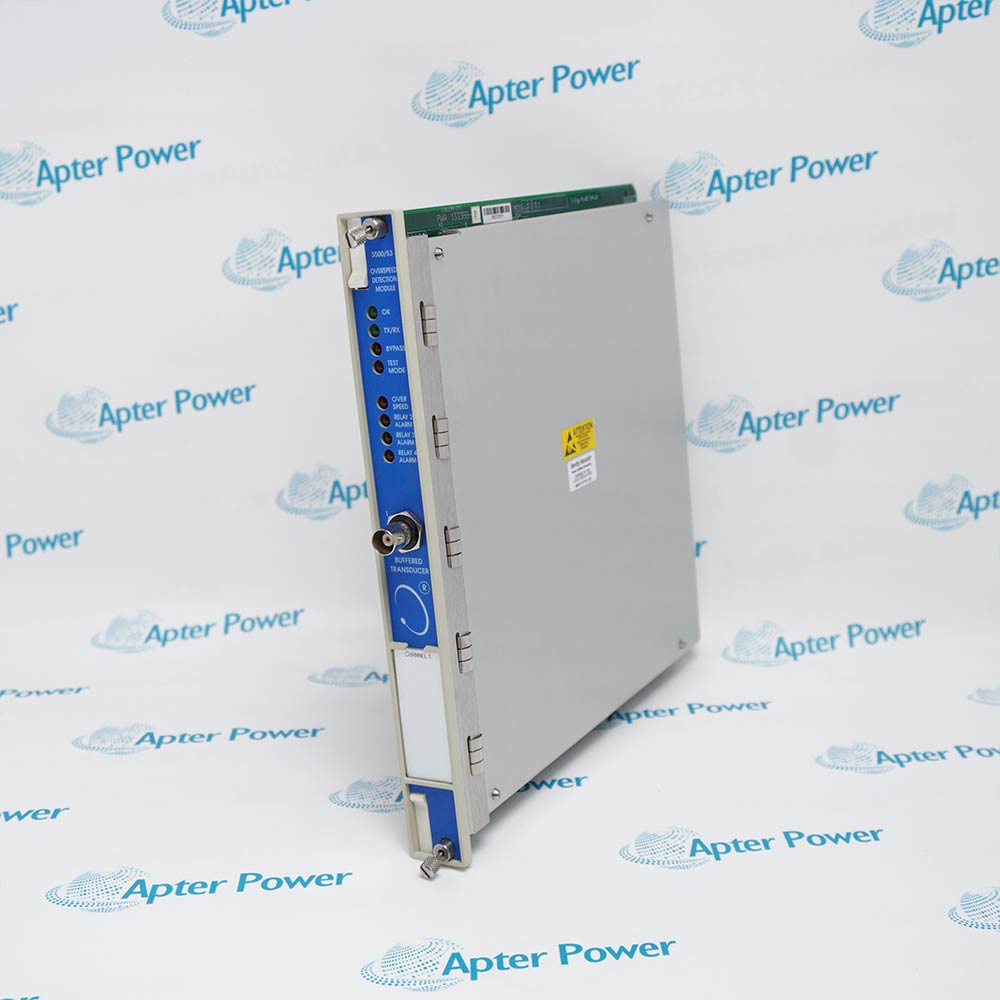

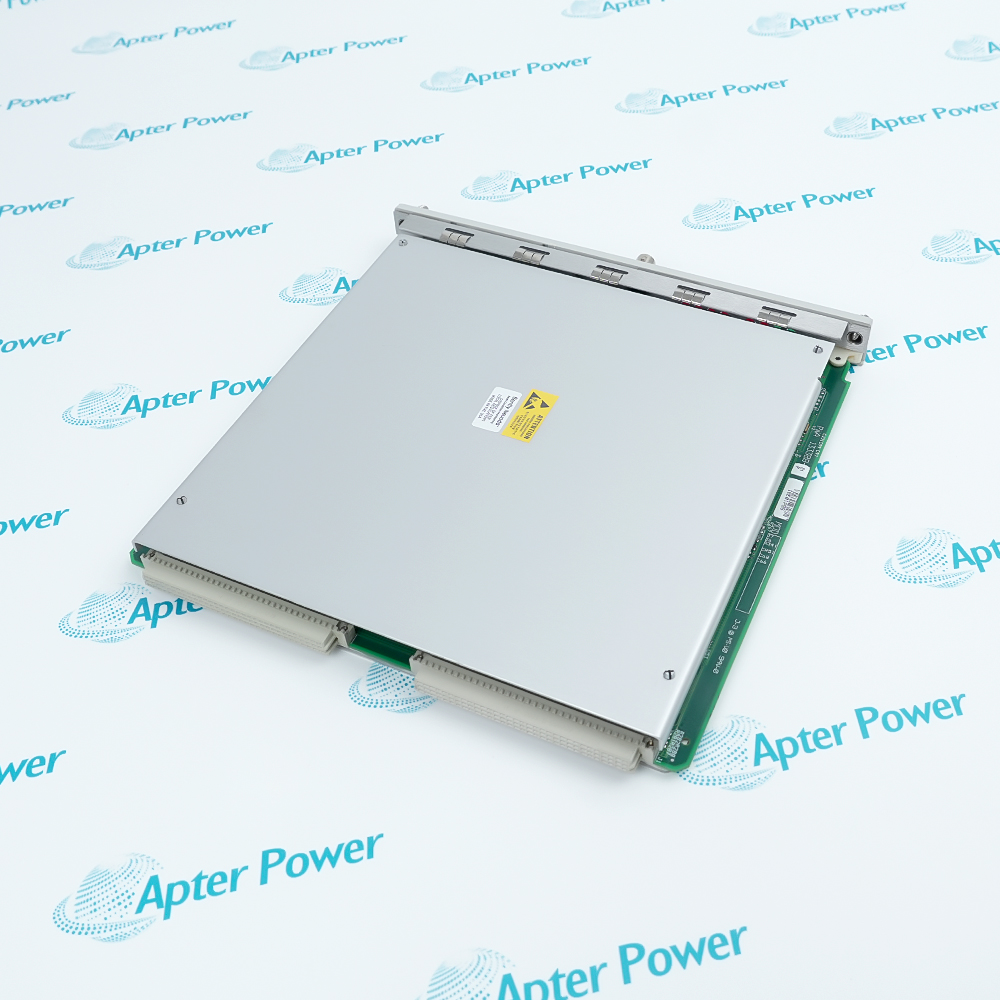

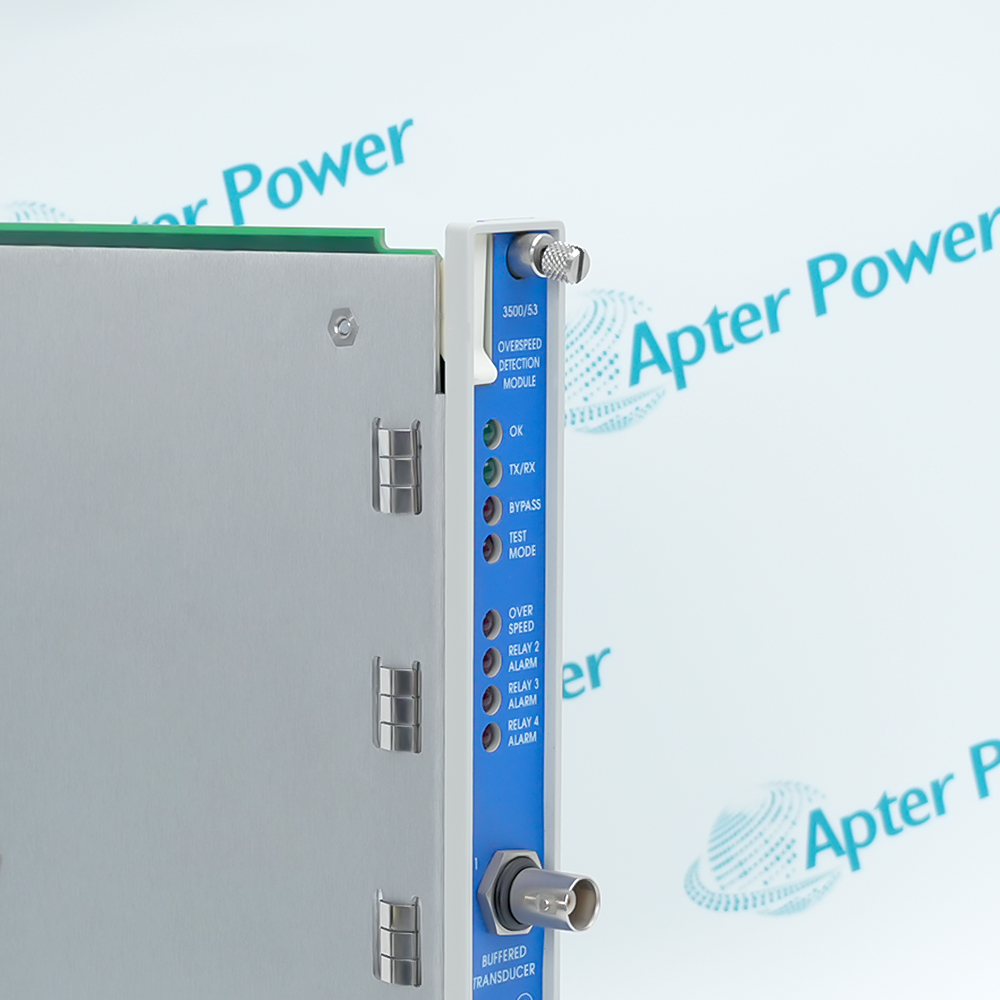

The Bently Nevada 3500/53 Electronic Overspeed Detection System (with PWA Main Board 133388-01) provides a highly reliable, fast-response, redundant tachometer system intended specifically for use as part of an overspeed protection system. It is engineered in strict compliance with the requirements of the American Petroleum Institute (API) Standards 670 and 612 pertaining to overspeed protection for critical rotating machinery.
The part number 133388-01 represents the core front processor module that installs seamlessly into standard monitor slots of the 3500 series rack, which requires redundant power supplies to guarantee high-availability fault tolerance. Multiple 3500/53 modules can be combined to form a 2-out-of-2 or a 2-out-of-3 (highly recommended) voting system to eliminate false trips while ensuring a 100% reliable emergency shutdown. Featuring an ultra-fast hardware response time of under 15 milliseconds (15 ms), the module processes high-frequency speed signals from magnetic pickups or proximity transducers.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation Industry
Used for overspeed protection of main steam turbine-generator units, real-time monitoring shaft transient speed via magnetic pickup sensors to instantly shut main steam valves and prevent runaway conditions upon reaching overspeed thresholds.
Nuclear Power
Used for speed monitoring of large steam turbines and high-pressure feedwater pump drive turbines in nuclear conventional islands, delivering high-reliability voting trip logic.
Petrochemical & Gas Turbine Power Industry
Used for speed monitoring and emergency shutdown of industrial gas turbines and large centrifugal compressor trains, such as ethylene compressors and cracking gas compressors.
Hydroelectric Power
Used for runaway and overspeed monitoring of high-head hydroelectric generator units, such as Francis and Kaplan turbines, during sudden load rejection events.
Air Separation & Industrial Gas Industry
Used for multi-channel speed monitoring of high-speed expanders and centrifugal oxygen/nitrogen compressors in air separation units, preventing rotor fragmentation from excessive centrifugal forces.
First, live disconnection is strictly prohibited. Never hot-swap the module while the DC link is energized or redundancy synchronization is active without unlocking redundancy or switching to an external bypass state, avoiding false trips of machinery.
Second, strictly limit the fiber optic cable bend radius. When connecting single-mode duplex LC fibers, adhere to physical curvature constraints to prevent optical signal attenuation from causing synchronization interruptions.
Third, ensure shield wires are properly single-ended grounded. The shield wires of the speed sensor cables must be securely tied to the specified chassis ground on the internal termination block and remain ungrounded at the field end, preventing ground loop noise and interference with high-bandwidth frequency signals.
Fourth, maintain proper environmental protection. Meeting open-style IP20 specifications, it must be installed in a well-ventilated, moisture-proof, and dust-free control cabinet, with a factory conformal coating variant selected for aggressive operating conditions.
3500/53 133388-01 is installed at the rear of the 3500 rack, directly receiving raw signals from magnetic pickup or proximity speed sensors located in hazardous field areas and providing intrinsically safe explosion-proof protection. This module draws power directly through the backplane bus, primarily serving to route high-bandwidth speed frequency signals without delay to the front 3500/53 processing mainboard, functioning as a critical underlying hardware barrier for constructing overspeed protection and interlocking trip logic for large rotating machinery assets.
The 3500/53 133388-01 is the electronic overspeed detection monitor main module within the Bently Nevada 3500 series machinery protection system. The part number 133388-01 represents its front core processor board assembly.
What is the primary purpose of the 3500/53 133388-01?
Its core purpose is to provide ultra-fast, highly reliable electronic overspeed protection interlocks for large, high-speed rotating machinery (such as steam and gas turbines) to prevent catastrophic accidents like mechanical runaway or structural rupture caused by excessive speed.
Does the 3500/53 133388-01 belong to PLC or DCS hardware?
It does not belong to general PLC or DCS hardware; rather, it is a dedicated piece of Machinery Protection System (TSI / Machinery Protection System) hardware specifically tasked with rotating equipment condition monitoring and safety interlocking.
Which types of sensors are compatible with the 3500/53 133388-01?
It is primarily paired with high-frequency response speed sensors, including official Bently Nevada Magnetic Pickups and Proximitor® Proximity Transducers.
How fast is the alarm response speed of the 3500/53 133388-01?
Its hardware response is extremely fast, with the internal hardware processing time for an overspeed trip interlock signal being under 15 milliseconds (15 ms), saving precious braking time for runaway high-speed turbines.
