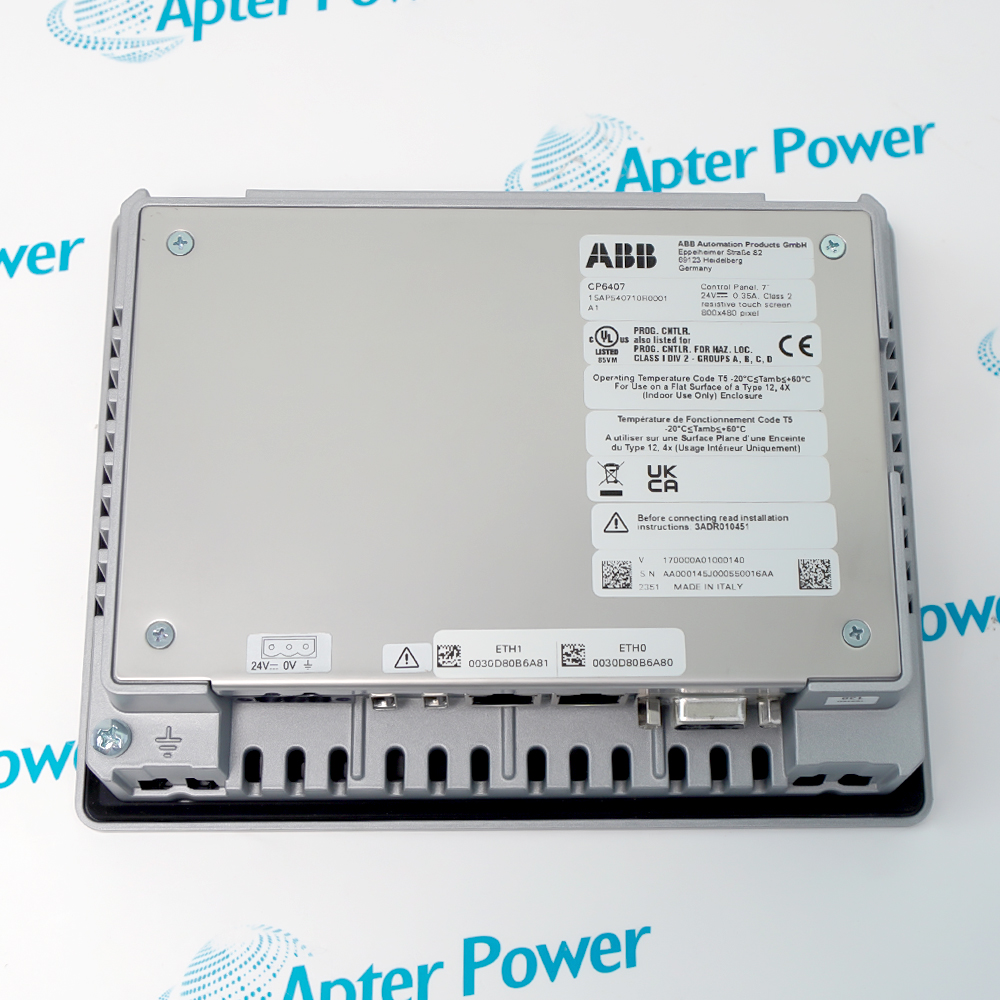

      1SAP540710R0001 CP6407

      ABB CP600 7-inch Industrial HMI Control Panel
      In Stock
      Ships by Friday, August 21
      Fast Shipping Available

      Product Describe：

      ABB 1SAP540710R0001 CP6407 is a CP600 second-generation industrial HMI control panel with a 7-inch 800 x 480 color TFT display and resistive touchscreen.

      Ask our team:

      Get a quick price for： 1SAP540710R0001 CP6407
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 1SAP540710R0001 CP6407

      Technical specifications for 1SAP540710R0001 CP6407

      • Manufacturer:
        ABB
      • Product Category:
        HMI
      • Spare Part Number:
        CP6407
      • Estimated shipping dimensions:
        18.6x14.6x4.8cm
      • Weight:
        0.95 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Display:
        7-inch TFT-LCD, 800 x 480, 65,536 colors
      • Touchscreen:
        Four-wire single-touch resistive
      • Processor / OS:
        ARM Cortex-A8 1 GHz / Linux RT
      • Memory:
        512 MB RAM; 4 GB flash
      • Ethernet:
        2 x 10/100 Mbit
      • Serial Interface:
        RS-232/RS-422/RS-485 software-configurable
      • USB / Storage:
        2 x USB 2.0 host; SD-card slot
      • Supply:
        24 V DC nominal, 0.35 A
      • Protection:
        Front IP66; rear IP20 when correctly installed
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB 1SAP540710R0001 CP6407 is a CP600 second-generation industrial HMI with a 7-inch color TFT display and resistive touchscreen.
      • 7-inch 800 x 480 TFT-LCD with 65,536 colors
      • ARM Cortex-A8 1 GHz processor, 512 MB RAM and 4 GB flash
      • Two 10/100 Mbit Ethernet ports and one configurable RS-232/RS-422/RS-485 port
      • 24 V DC nominal supply with IP66 front protection when correctly installed

      It presents PB610 application graphics and AC500 V3 web-server content, accepts local touch input, and exchanges controller data over Ethernet or serial links in industrial machine and control-cabinet operator stations.

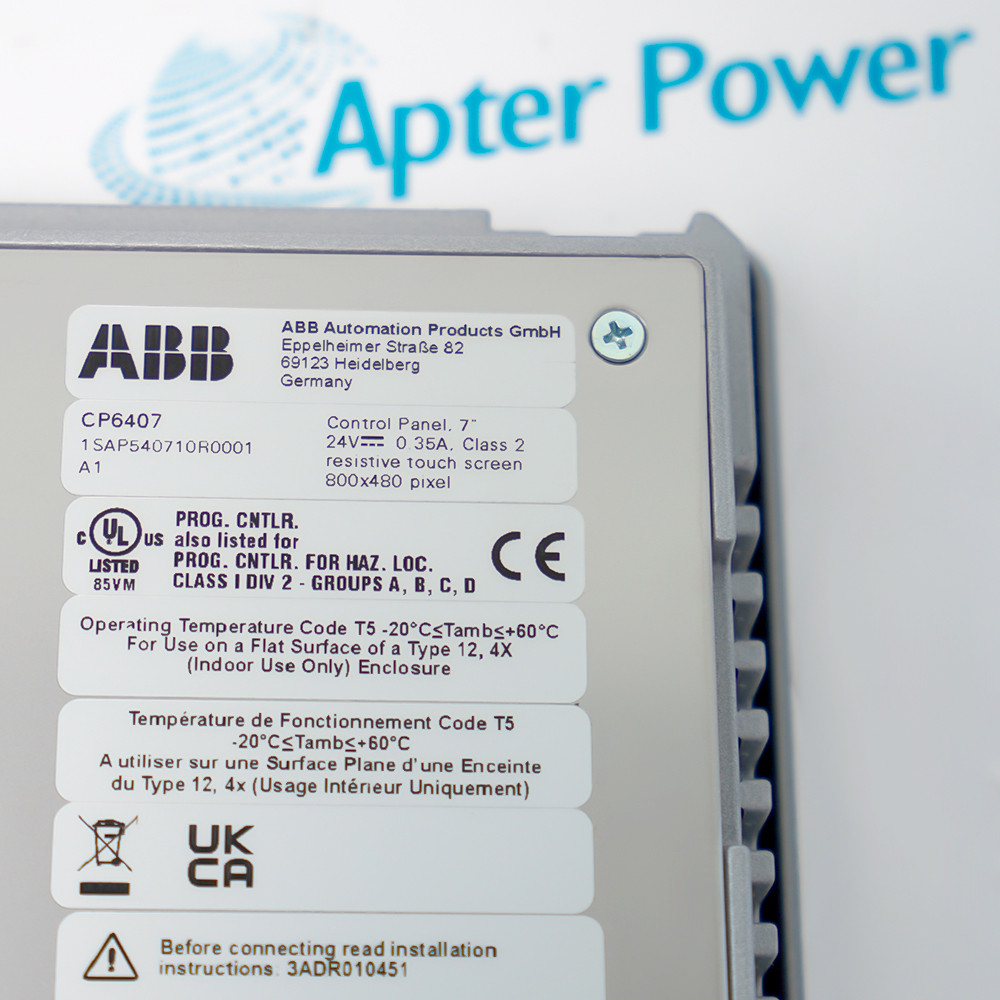

      Important Notice: Confirm the exact CP6407 and 1SAP540710R0001 nameplate, PB610 project requirements and AC500 V3 host compatibility before installation or project transfer.

      Apter Power 1SAP540710R0001 CP6407 Manuals and Guides

      Important Notice: The first link is the product-parameters PDF prepared only from the cited manufacturer information; the second link is the Apter Power product manual. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.

      Industrial machine operator stations
      Displays PB610 graphics and accepts local resistive-touch operator commands.
      Process visualization
      Presents machine or plant process information through the configured HMI application.
      AC500 V3 visualization
      Visualizes documented AC500 V3 web-server content over the supported network path.
      Control-cabinet HMI
      Supports landscape or portrait panel mounting in documented industrial installations.
      Read the CP6407 operating instructions and verify the panel, supply and installation environment before use.
      1
      Only qualified personnel may install or repair the HMI.
      2
      Ground the unit with at least a 1.5 square millimetre conductor and use a power supply with double or reinforced insulation.
      3
      Avoid prolonged direct sunlight, corrosive chemicals and blocked ventilation openings.
      4
      Do not operate the touchscreen with screwdrivers or other tools.
      5
      Maintain front IP66 protection with the specified flat cutout, panel thickness, gasket surface and bracket tightening.

      Alternative Names

      Alternative Names

      ABB CP6407 ABB 1SAP540710R0001 CP6407 CP600 Control Panel 1SAP540710R0001 7-inch HMI

      Technical notes

      Technical notes

      Country of origin and tariff code were not published in the cited ABB sources; the Heidelberg manufacturer address is not an origin statement. The later operating instruction identifies one USB host port at 500 mA maximum and the other at 100 mA maximum. Use 24 V DC nominal; ABB narrows the supply range to 18-32 V DC where EN 61131-2 10 ms voltage-dip compliance is required. ABB documents this browser-generation panel for AC500 V3 web-server visualization, not AC500 V2.

      FAQS

      • What is the official order code for CP6407?
        ABB identifies the CP6407 by order code 1SAP540710R0001.
      • What display and touchscreen does CP6407 use?
        It uses a 7-inch 800 x 480 TFT-LCD with 65,536 colors and a four-wire single-touch resistive touchscreen.
      • What applications can the panel visualize?
        ABB specifies CP6407 for PB610 applications and visualization of an AC500 V3 web server.
      • Which communication interfaces are available?
        The panel has two 10/100 Mbit Ethernet ports and one software-configurable RS-232/RS-422/RS-485 serial port, plus two USB 2.0 host ports and an SD-card slot.
      • How is a PB610 project transferred to CP6407?
        ABB documents transfer over an Ethernet connection from PB610 or by creating an update package and copying it to a USB flash drive.
      • What power supply does CP6407 require?
        It is rated for 24 V DC and 0.35 A. The operating instruction gives a general 10-32 V DC range, narrowed to 18-32 V DC for applications requiring EN 61131-2 compliance for 10 ms voltage dips.
      • What are the environmental and ingress ratings?
        Operating temperature is -20 to +60 °C, humidity is 5-85% RH non-condensing, and protection is IP66 at the front and IP20 at the rear when installed correctly.
      • Can CP6407 be mounted in portrait orientation?
        Yes. ABB specifies panel mounting in either landscape or portrait orientation.
