      Stahl ET-125-RS422
      Stahl ET-125-RS422
      Stahl ET-125-RS422
      Stahl ET-125-RS422
      Stahl ET-125-RS422
      Stahl ET-125-RS422

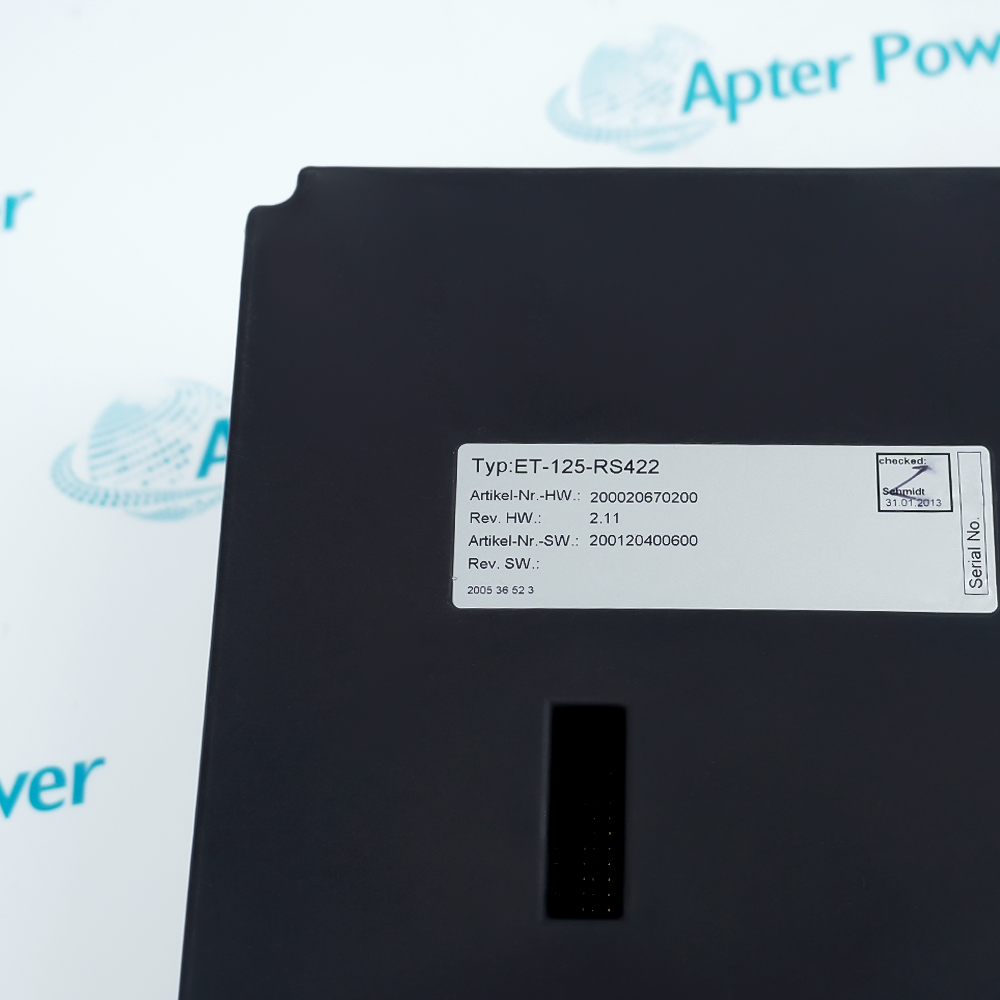

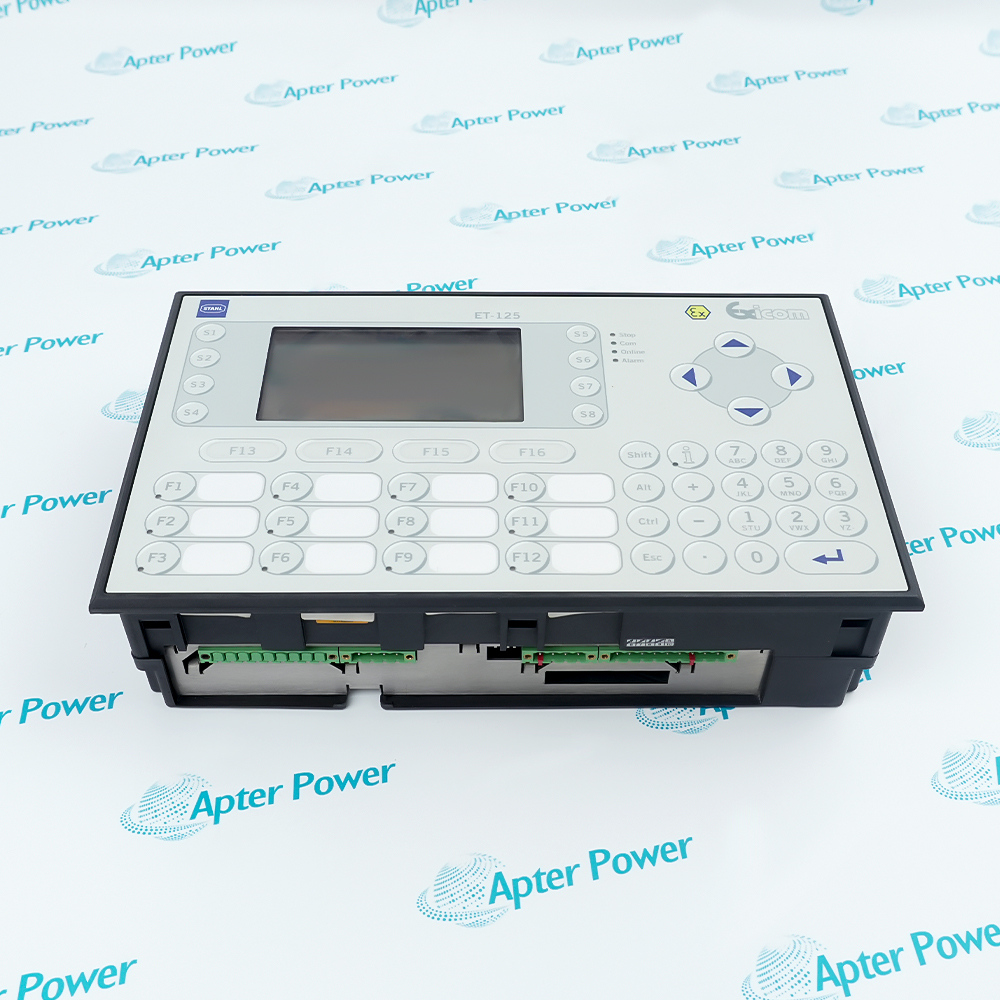

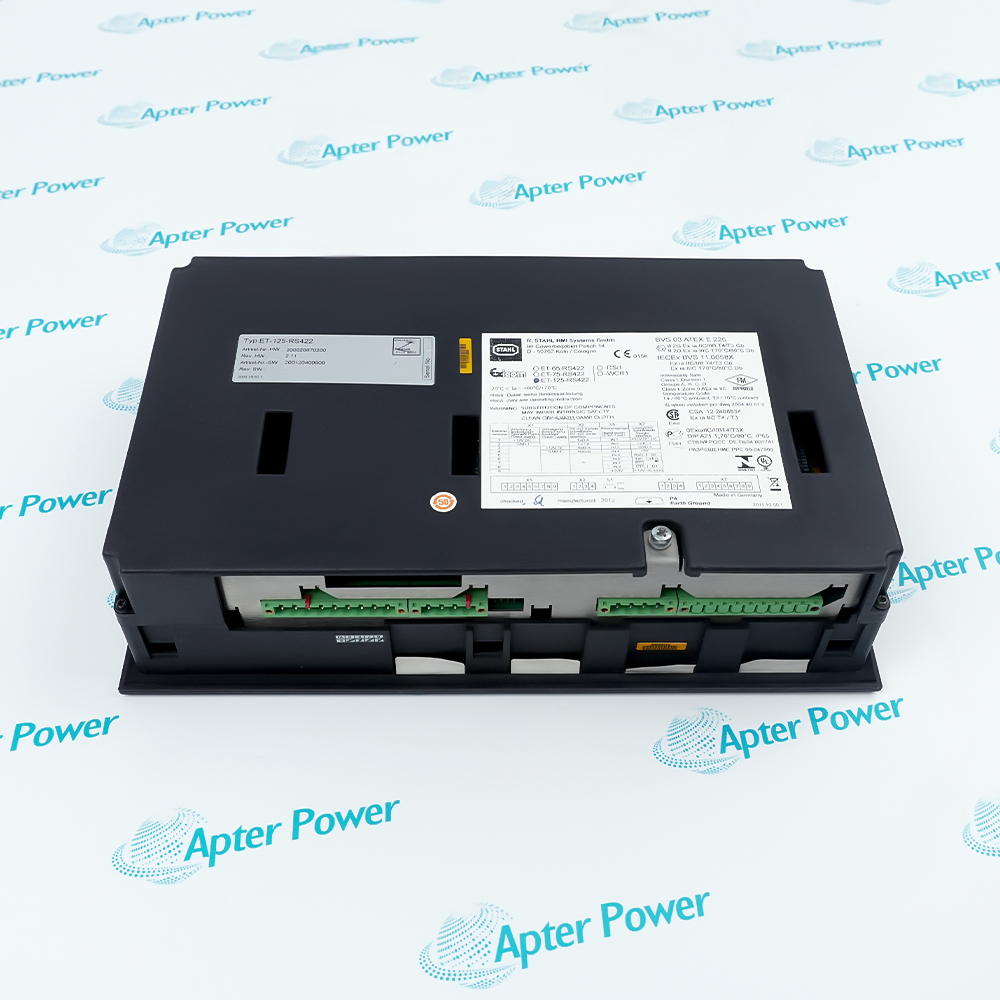

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      ET-125-RS422

      Falcon Operator Interface
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      STAHL ET-125-RS422 is an ET-Falcon operator interface for hazardous-area operating and monitoring tasks. The ET-125 platform provides a monochrome graphic display, keypad functions, serial communication and intrinsic-safety system integration for Zones 1, 2, 21 and 22.

      Ask our team:

      Get a quick price for： ET-125-RS422
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for ET-125-RS422

      Technical specifications for ET-125-RS422

      • Manufacturer:
        Stahl
      • Product Category:
        HMI
      • Spare Part Number:
        ET-125-RS422
      • Estimated shipping dimensions:
        31.2x19.2x8cm
      • Weight:
        1.55 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Device platform:
        Falcon
      • Function:
        Operator interface
      • Display:
        Monochrome graphic LCD
      • Resolution:
        240 by 128 pixels
      • Backlight:
        LED; approximately 50,000 h at 25 C
      • Function keys:
        16
      • Soft keys:
        8
      • Alphanumeric and system keys:
        23
      • System LEDs:
        STOP, COM, ONLINE, ALARM and INFO
      • Power input:
        10.8 V DC nominal; 8 to 12.5 V DC via 9143/10
      • Binary inputs:
        8 floating contacts, 3.3 V and 2 mA each
      • Communication:
        RS-422 bus-compatible connection to 9185/11
      • Processor:
        Winbond W77IC32P
      • Protocol drivers:
        3 loadable
      • Operating system:
        SPSPlusWIN
      • Front protection:
        IP65 when correctly installed
      • Operating temperature:
        -20 to 70 degrees C; +60 degrees C for T4 condition
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      STAHL ET-125-RS422 is an ET-Falcon operator interface for hazardous-area operating and monitoring tasks. The ET-125 platform provides a monochrome graphic display, keypad functions, serial communication and intrinsic-safety system integration for Zones 1, 2, 21 and 22.
      • Hazardous-area operation: Provides operator monitoring and control functions in the documented zones.
      • Graphic operator display: Shows configured process images, messages and alarms on the monochrome display.
      • RS-422 fieldbus connection: Connects through the documented 9185/11 fieldbus isolator arrangement.
      • Programmable keypad: Combines function, soft, cursor and alphanumeric keys for configured operator actions.

      Confirm the complete ET-125-RS422 type code, device supplement, power supply, RS-422 fieldbus isolator, Ex certificate, terminal assignment, seal and hazardous-area installation before commissioning.

      Important Notice: Confirm the complete STAHL ET-125-RS422 identity and controlled configuration before commissioning.

      STAHL ET-125-RS422 Manuals & Downloads
      STAHL ET-125-RS422 Technical Reference (PDF)STAHL ET-125-RS422 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Hazardous process HMI
      Provides local monitoring and operator input in an approved Zone installation.
      Tank-farm operation
      Supports the documented simple automation and access-control tasks.
      Serial controller interface
      Exchanges process data with a supported automation system through RS-422.
      Installed-base HMI renewal
      Restores a Falcon terminal from the controlled SPSPlusWIN and protocol records.
      Read the applicable STAHL instructions before work. Verify STAHL ET-125-RS422 and the installed system configuration before commissioning.
      1
      Verify the complete ET-125-RS422 type code and fifth-supplement applicability.
      2
      Use the documented 9143/10 supply and 9185/11 communication arrangement.
      3
      Confirm the applicable ATEX or IECEx installation and marking.
      4
      De-energize and follow the site hazardous-area work procedure before wiring.
      5
      Record X1 power, X2 RS-422 and X5 input terminal assignments.
      6
      Inspect the seal, fixing hardware and mounting surface before installation.
      7
      Use the approved enclosure and preserve IP65 front sealing.
      8
      Complete display, keypad, LED, communication, input and alarm tests before release.

      Technical notes

      Technical notes

      Confirm the complete ET-125-RS422 type code, device supplement, power supply, RS-422 fieldbus isolator, Ex certificate, terminal assignment, seal and hazardous-area installation before commissioning.

      FAQS

      • What is STAHL ET-125-RS422?
        ET-125-RS422 is a Falcon-platform operator interface with RS-422 communication for hazardous-area applications.
      • Which zones support STAHL ET-125-RS422?
        The Falcon operating instructions cover use in Zones 1, 2, 21 and 22 under the documented conditions.
      • What display does STAHL ET-125-RS422 use?
        It uses a monochrome graphic LCD with 240 by 128 pixel resolution.
      • How does STAHL ET-125-RS422 communicate?
        It uses the documented bus-compatible RS-422 connection through a 9185/11 fieldbus isolator.
      • Which supply arrangement supports STAHL ET-125-RS422?
        The operating instructions specify 10.8 V DC nominal through the 9143/10 power supply.
      • How many function and soft keys support STAHL ET-125-RS422?
        The ET-125 configuration lists 16 function keys and eight soft keys.
      • Which software supports STAHL ET-125-RS422?
        The Falcon platform uses SPSPlusWIN for configuration and operation.
      • What confirms STAHL ET-125-RS422 commissioning?
        Verify power, Ex installation, seal, display, keypad, LEDs, RS-422 communication, binary inputs and configured alarms.
