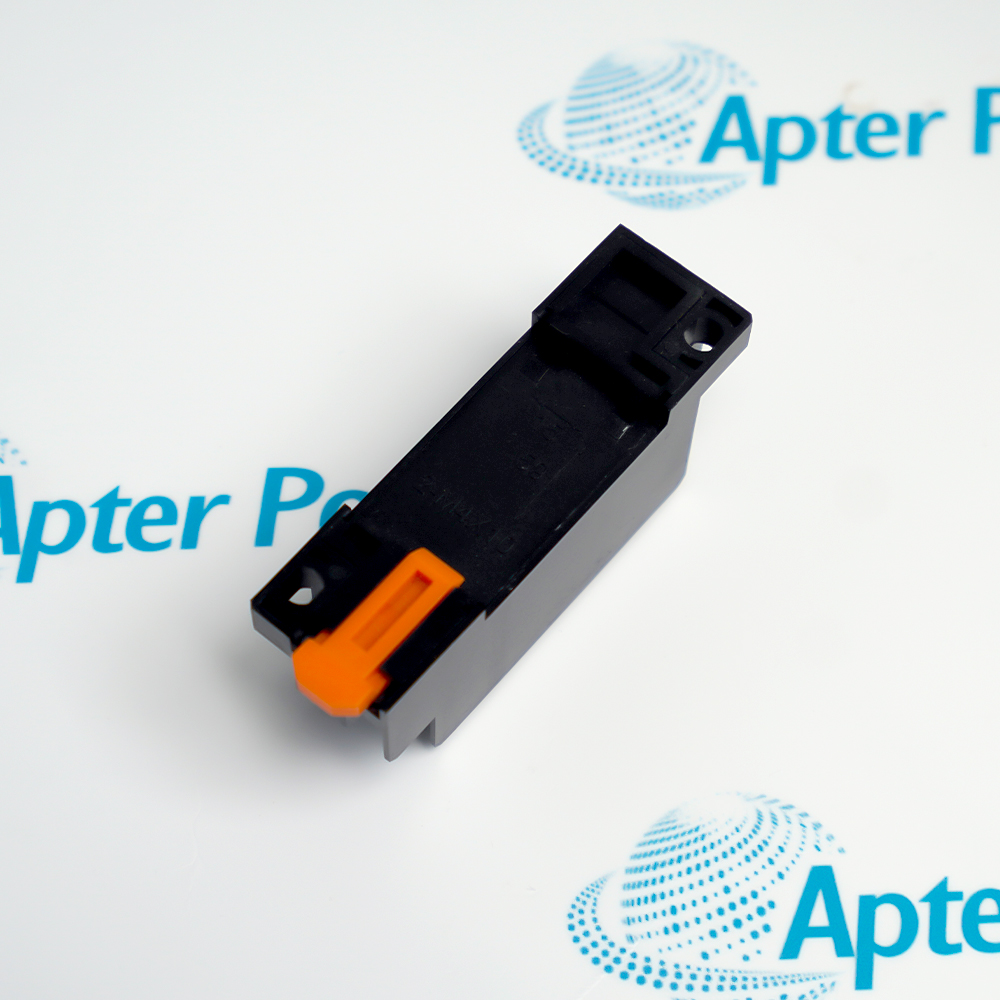

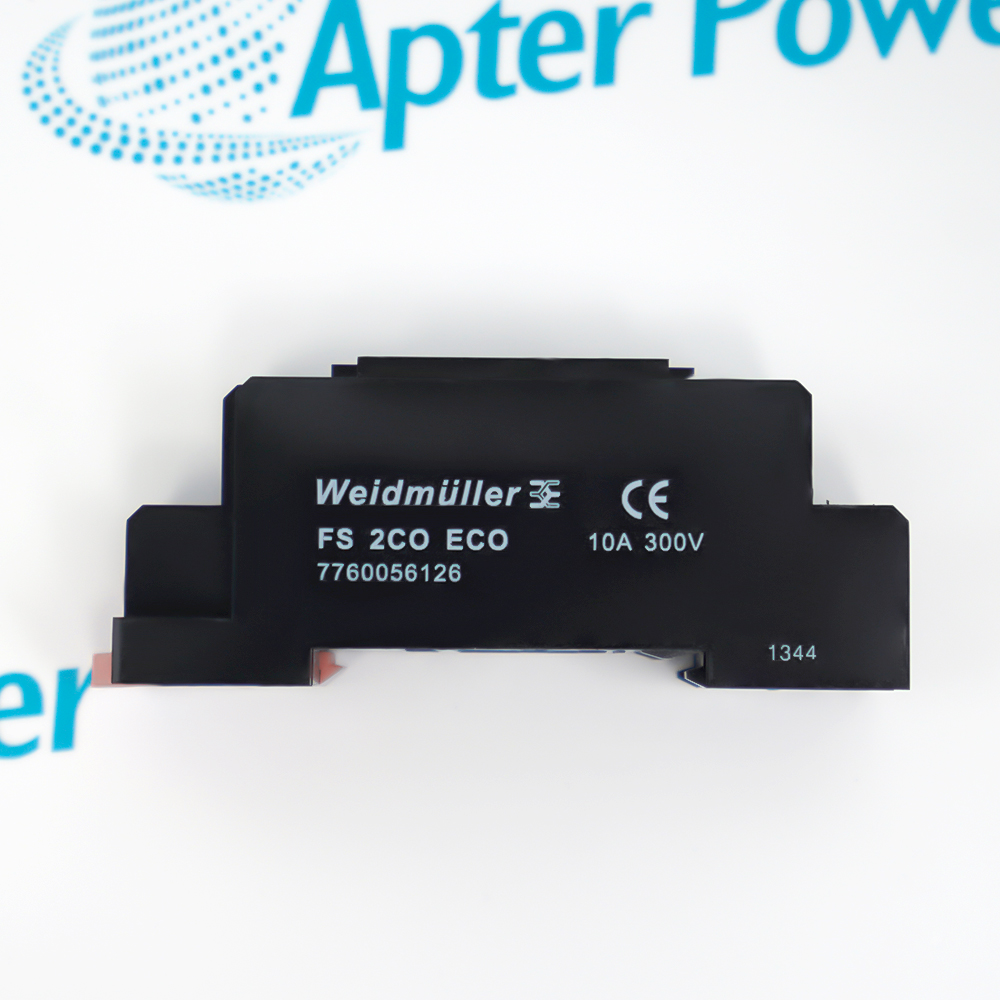

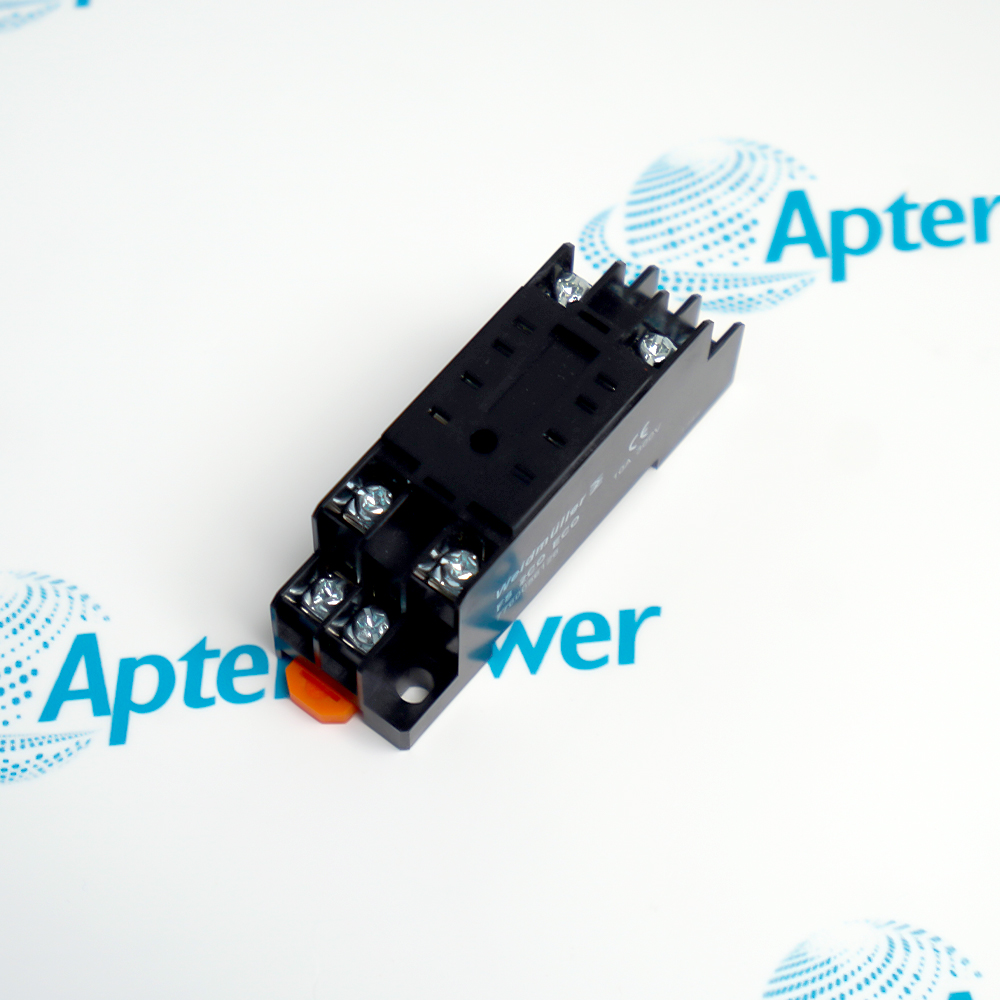

      Weidmuller FS2COECO
      Weidmuller FS2COECO
      Weidmuller FS2COECO
      Weidmuller FS2COECO
      Weidmuller FS2COECO
      Weidmuller FS2COECO
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      FS2COECO

      Relay Socket
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Weidmuller FS2COECO is the compact model form requested for the official FS 2CO ECO relay socket, order number 7760056126. It is an economical screw-connection socket for D-SERIES DRM and DRE relays with two changeover contacts and TS 35 mounting-rail installation.

      Ask our team:

      Get a quick price for： FS2COECO
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for FS2COECO

      Technical specifications for FS2COECO

      • Manufacturer:
        Weidmuller
      • Product Category:
        General Automation
      • Spare Part Number:
        FS2COECO
      • Estimated shipping dimensions:
        7.5×2.2×3.0cm
      • Weight:
        0.36 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        China
      • Order number:
        7760056126
      • Product family:
        D-SERIES relay socket
      • Connection type:
        Screw connection
      • Contact arrangement:
        2 changeover contacts
      • Contact rating:
        10 A at 300 V
      • Maximum switching voltage:
        250 V AC
      • Dielectric strength, coil-contact:
        2000 V
      • Dielectric strength, contact-contact:
        2000 V
      • Conductor cross-section:
        0.5 to 2.5 mm2
      • Tightening torque:
        0.5 to 0.8 Nm
      • Ambient temperature:
        -40 to +70 degrees C
      • Mounting rail:
        TS 35
      • GTIN:
        4032248878154
      • Minimum order quantity:
        10 pieces
      • UL file:
        cURus E355547
      • RoHS status:
        Compliant
      • ETIM classification:
        EC001456
      • ECLASS classification:
        27-37-16-03
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Weidmuller FS2COECO is the compact model form requested for the official FS 2CO ECO relay socket, order number 7760056126. It is an economical screw-connection socket for D-SERIES DRM and DRE relays with two changeover contacts and TS 35 mounting-rail installation.
      • Two changeover contacts: Provides the documented two-CO relay interface for the compatible D-SERIES relay.
      • Screw-clamp termination: Accepts documented conductor sizes through a serviceable screw-connection arrangement.
      • DIN-rail installation: Mounts on the standard TS 35 rail used in industrial control cabinets.
      • Wide ambient range: Supports the documented -40 to +70 degrees C operating environment.

      Verify FS 2CO ECO and order number 7760056126 on the installed socket. Match the relay, two-changeover contact arrangement, conductor preparation and tightening torque to the current Weidmuller documentation.

      Important Notice: Confirm the complete Weidmuller FS2COECO identity and controlled configuration before commissioning.

      Weidmuller FS2COECO Manuals & Downloads
      Weidmuller FS2COECO Technical Reference (PDF)Weidmuller FS2COECO Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Industrial relay interfacing
      Connects a compatible D-SERIES relay to cabinet control and load wiring.
      Control-panel maintenance
      Provides a removable relay base for documented inspection and replacement work.
      Signal isolation circuits
      Supports compatible relay circuits that require two changeover contacts.
      DIN-rail assemblies
      Fits TS 35 cabinet layouts using the approved conductor and torque values.
      Read the applicable Weidmuller instructions before work. Verify Weidmuller FS2COECO and the installed system configuration before commissioning.
      1
      Verify FS 2CO ECO and order number 7760056126 before installation.
      2
      Isolate all control and load circuits before wiring or relay removal.
      3
      Use only a compatible D-SERIES DRM or DRE relay for the documented socket arrangement.
      4
      Confirm the two-changeover contact assignment before terminating conductors.
      5
      Keep conductor size within the documented 0.5 to 2.5 mm2 range.
      6
      Tighten screw terminals within the documented 0.5 to 0.8 Nm range.
      7
      Verify TS 35 rail retention and terminal security before energization.
      8
      Complete continuity, isolation and controlled functional checks before release.

      Technical notes

      Technical notes

      Verify FS 2CO ECO and order number 7760056126 on the installed socket. Match the relay, two-changeover contact arrangement, conductor preparation and tightening torque to the current Weidmuller documentation.

      FAQS

      • What is Weidmuller FS2COECO?
        FS2COECO corresponds to the official FS 2CO ECO relay socket, order number 7760056126.
      • Which relay family uses Weidmuller FS2COECO?
        The official catalog identifies it as an economical socket for D-SERIES DRM and DRE relays.
      • How many changeover contacts does Weidmuller FS2COECO support?
        The socket is documented for two changeover contacts.
      • Which connection method does Weidmuller FS2COECO use?
        It uses screw connection.
      • Which mounting rail is specified for Weidmuller FS2COECO?
        The official data lists TS 35 mounting rail.
      • Which conductor range is documented for Weidmuller FS2COECO?
        The catalog lists 0.5 to 2.5 mm2 conductors.
      • Which tightening torque applies to Weidmuller FS2COECO?
        The documented tightening range is 0.5 to 0.8 Nm.
      • What confirms Weidmuller FS2COECO installation acceptance?
        The exact type and order number, compatible relay, contact assignments, conductor preparation, torque and functional test must match the controlled record.
