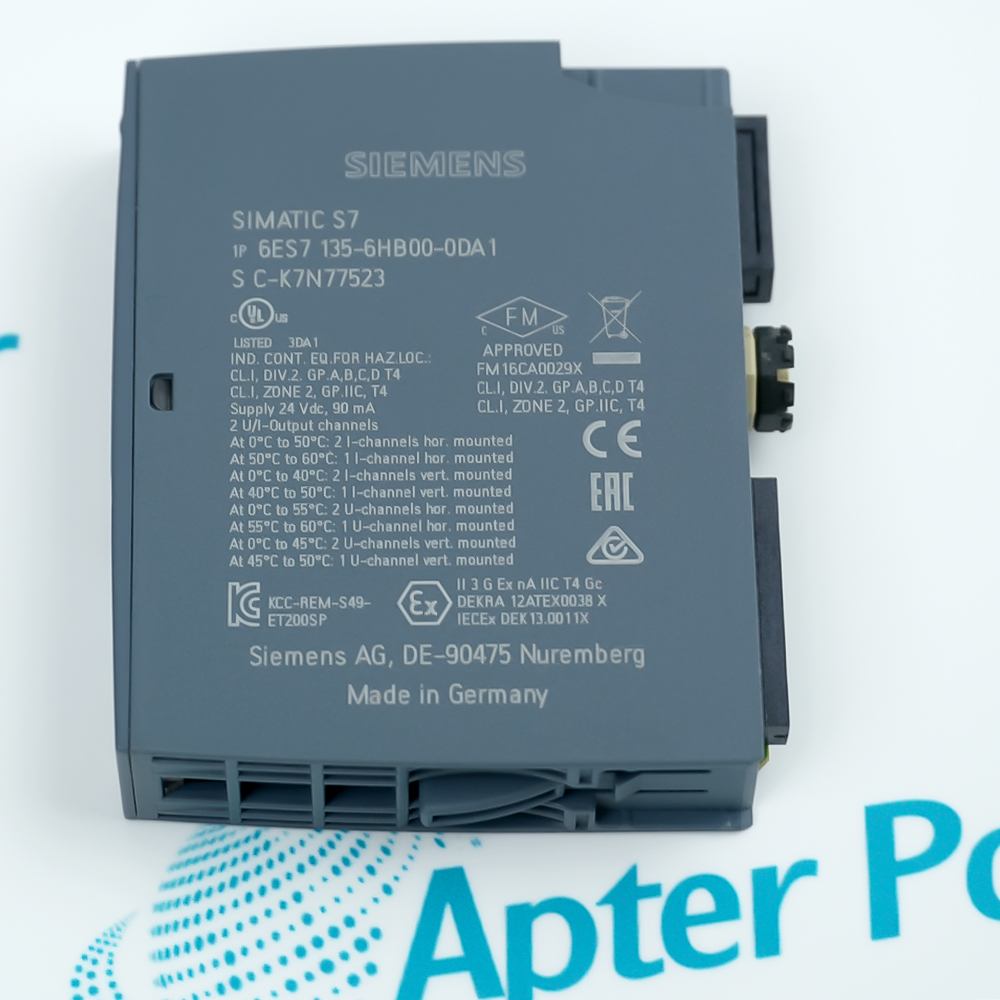

Technical specifications for 6ES7135-6HB00-0DA1
-
Manufacturer:Siemens
-
Product Category:PLC Systems
-
Spare Part Number:6ES7135-6HB00-0DA1
-
Estimated shipping dimensions:16x8.8x5.2cm
-
Weight:0.25 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
Product type designation:AQ 2xU/I HS
-
HW functional status:From FS06
-
usable BaseUnits:BU type A0, A1
-
Color code for module-specific color identification plate:CC00
-
Rated value (DC):24 V
-
permissible range, lower limit (DC):19.2 V
-
permissible range, upper limit (DC):28.8 V
-
Current consumption:45 mA; without load
-
Current consumption, max.:90 mA; 2 channels current output 20 mA
-
Power loss, typ.:0.9 W
-
Number of analog outputs:Number of analog outputs: 2
-
Voltage output, short-circuit current, max:45 mA
-
Cycle time (all channels), min:125 µs
-
Isolation tested with:707 V DC (type test)
-
Installation altitude above sea level, max:5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
-
horizontal installation, min.:-30 °C; < 0 °C as of FS06
-
vertical installation, min:-30 °C; < 0 °C as of FS06
Information
Overview
Manuals
Internal Device Protection
Main functional features

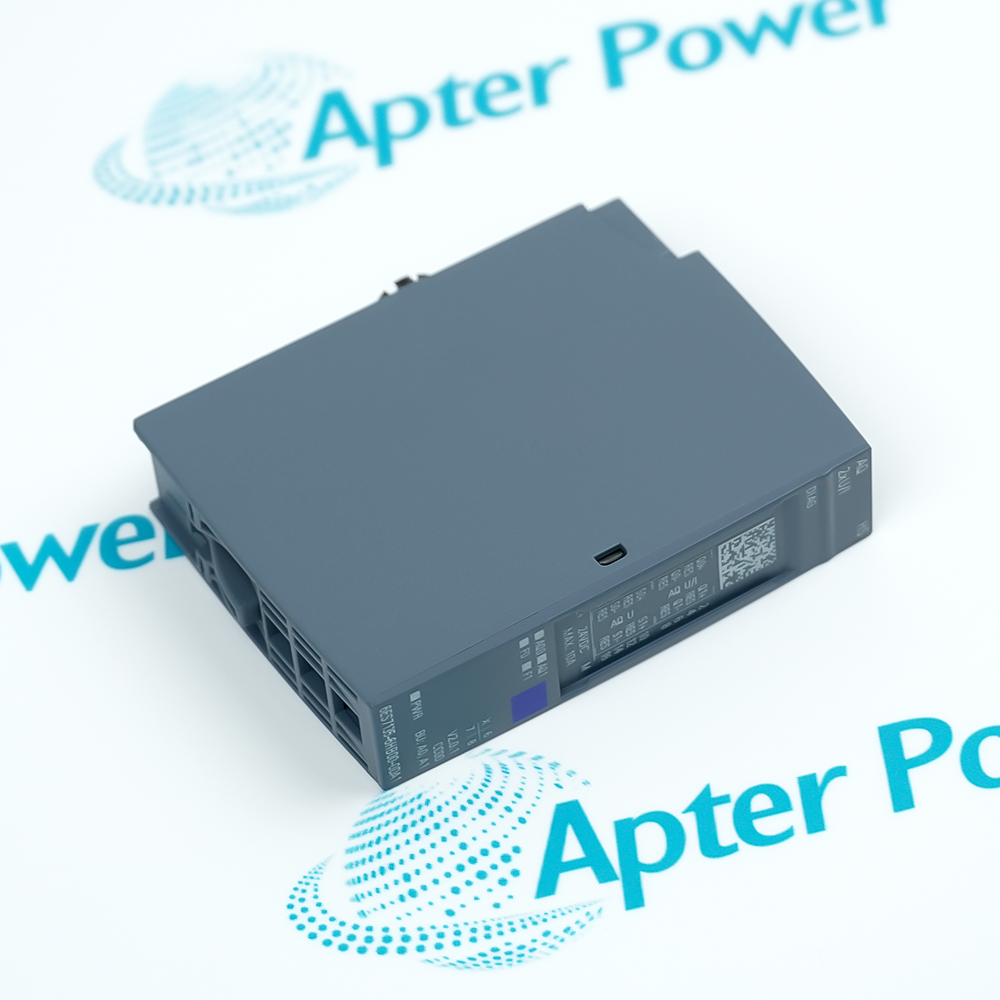

The 6ES7135-6HB00-0DA1 is an AQ 2xU/I High Speed analog output module from Siemens SIMATIC ET 200SP series. Its main characteristics are extremely short response time and high-precision output capability, suitable for industrial scenarios that require fast closed-loop control.
- High-Speed Analog Output Module With Precise Channel Diagnostics
- Supports Both Voltage And Current Signals With Wide Operating Range
- Flexible Installation And Low Power Loss For Demanding Applications
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7135-6HB00-0DA1 high-speed analog output module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Mainly achieved through electronic protection circuits, short circuit protection for voltage output terminals and wire break monitoring for current output terminals can effectively prevent damage to internal core components caused by external wiring errors, load abnormalities, or electromagnetic interference;
At the same time, the module has automatic detection and protection functions for missing supply voltage, combined with high isolation voltage design (test voltage up to 707 V DC), ensuring the stability and long-term reliability of the module hardware in complex industrial electrical environments.
At the same time, the module has automatic detection and protection functions for missing supply voltage, combined with high isolation voltage design (test voltage up to 707 V DC), ensuring the stability and long-term reliability of the module hardware in complex industrial electrical environments.
High speed performance: Supports Isochronous mode, with the fastest sending clock reaching
Oversampling: Supports oversampling for channels 0 and 1, providing higher temporal resolution.
Diagnostic function: It has channel level diagnostic functions, including short circuit, disconnection, up/down current, and power supply voltage loss monitoring. Software configuration: Supports STEP 7 TIA Portal
Diagnostic function: It has channel level diagnostic functions, including short circuit, disconnection, up/down current, and power supply voltage loss monitoring. Software configuration: Supports STEP 7 TIA Portal
FAQ View All FAQ
-
What type of Base Unit does 6ES7135-6HB00-0DA1 support?This module is compatible with A0 or A1 type base units.
-
Does 6ES7135-6HB00-0DA1 support hot swapping?support In distributed I/O systems, modules can be replaced during runtime (Multi Hot Swap).
-
What is the color code of 6ES7135-6HB00-0DA1 module?The color code is CC00, used to match the corresponding base.
-
What version of software configuration is required for 6ES7135-6HB00-0DA1?Recommend using STEP 7 TIA Portal V13 SP1 or higher version. It can also be configured in non Siemens controllers through GSD/GSDML files.
-
What are the common diagnostic alarms of 6ES7135-6HB00-0DA1 module?The module supports channel level diagnostics, including short circuit (voltage output), disconnection (current output), power supply voltage loss (L+24V), and up/down current diagnostics.
-
What happens if the output voltage is abnormal (such as displaying 34V)?This is usually because there is no common ground (inconsistent reference point) between the module output and the power supply. Due to the isolation of the output channel, it is necessary to ensure that the load is correctly connected to the reference potential (0V) of the module
