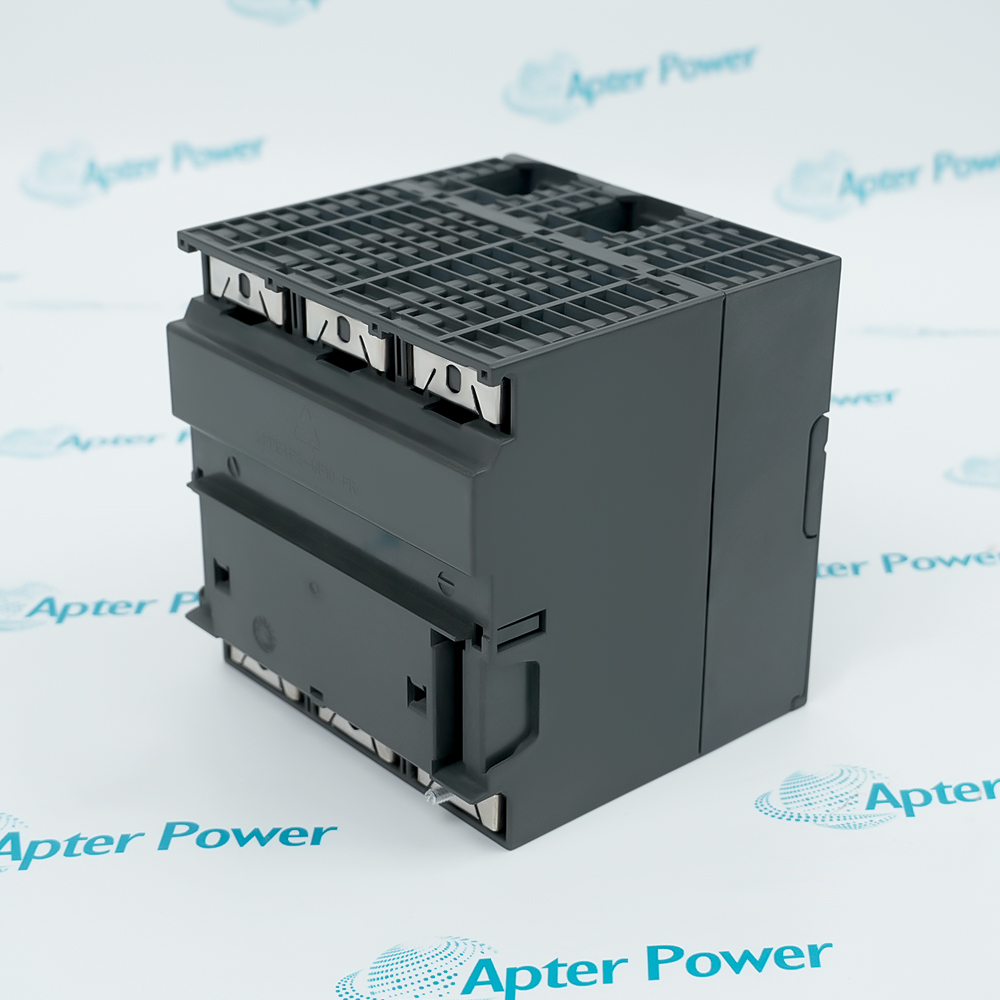

The Siemens 6ES7314-6CH04-0AB0 is a SIMATIC S7-300 CPU 314C-2 DP compact programmable controller with integrated digital and analog I/O, high-speed counters, MPI, and a PROFIBUS DP interface.
- CPU 314C-2 DP
- V3.3
- 192 KB
- 24 V DC; permitted range 19.2 to 28.8 V DC
It executes the control program, processes 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs, one Pt100 input, and four counters up to 60 kHz while acting through its integrated DP interface in distributed automation configurations.
Important Notice: Use the complete 6ES7314-6CH04-0AB0 code and verify the physical nameplate, memory card, project, and current Siemens documentation before installation or replacement.
Apter Power 6ES7314-6CH04-0AB0 Manuals and Guides
Important Notice: These are two separate Apter Power documents prepared from the manufacturer-published Siemens information named in each document. Confirm the physical nameplate, current Siemens documents, and host-system requirements before installation or replacement.
Compact distributed control
Runs machine logic while exchanging cyclic data over PROFIBUS DP
Conveyor and packaging lines
Processes onboard sensors and actuators plus remote DP stations
Process skids
Handles analog and Pt100 values without separate local I/O modules
Counter-based machines
Uses four integrated counters for documented high-speed tasks
Read and follow the exact Siemens documentation and host-equipment instructions before use. Verify 6ES7314-6CH04-0AB0 from the physical nameplate.
1. Identity

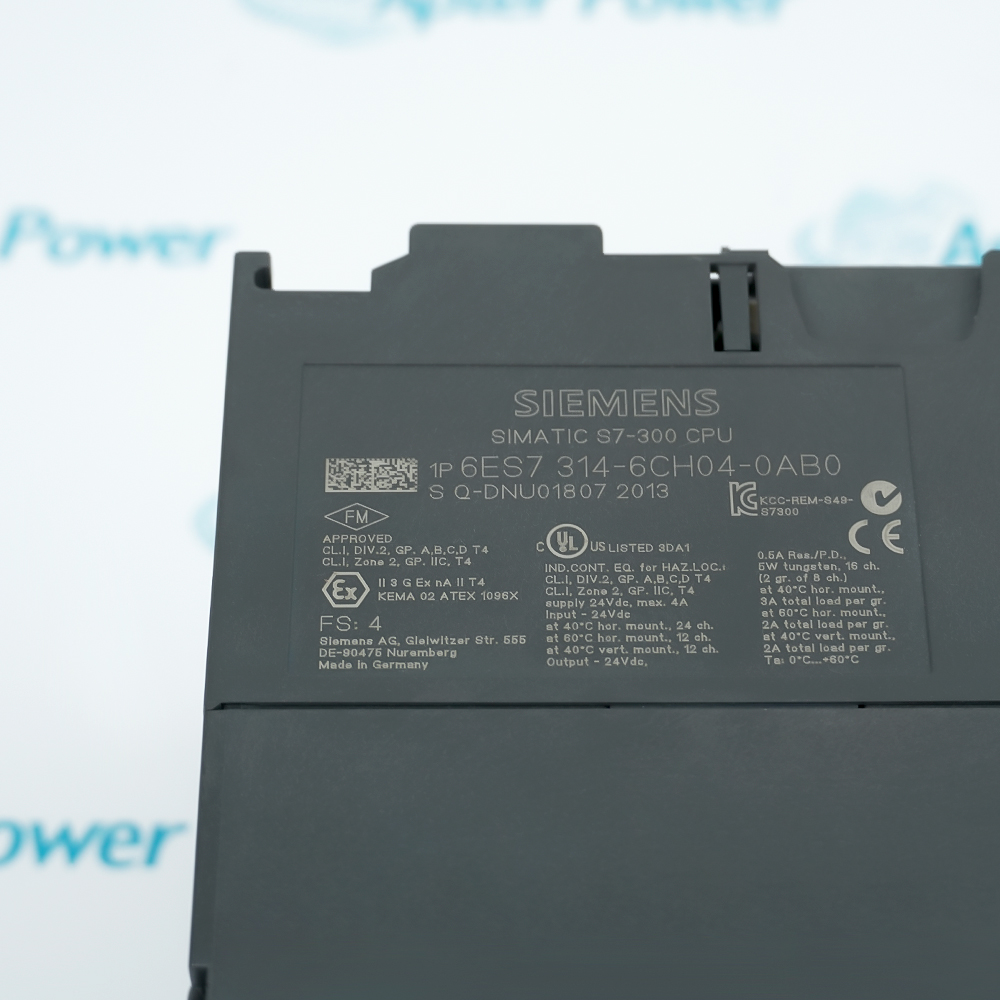

Verify the full 6ES7314-6CH04-0AB0 MLFB, hardware status 01, and firmware V3.3
2. PROFIBUS
Match DP address, baud rate, termination, cable, and GSD/project configuration
3. Integrated I/O
Confirm both 40-pole connector assignments before field wiring
4. Memory
Use the required SIMATIC Micro Memory Card and preserve the validated STEP 7 project
5. Commissioning
Check analog scaling, Pt100 wiring, counter parameters, and DP diagnostics
