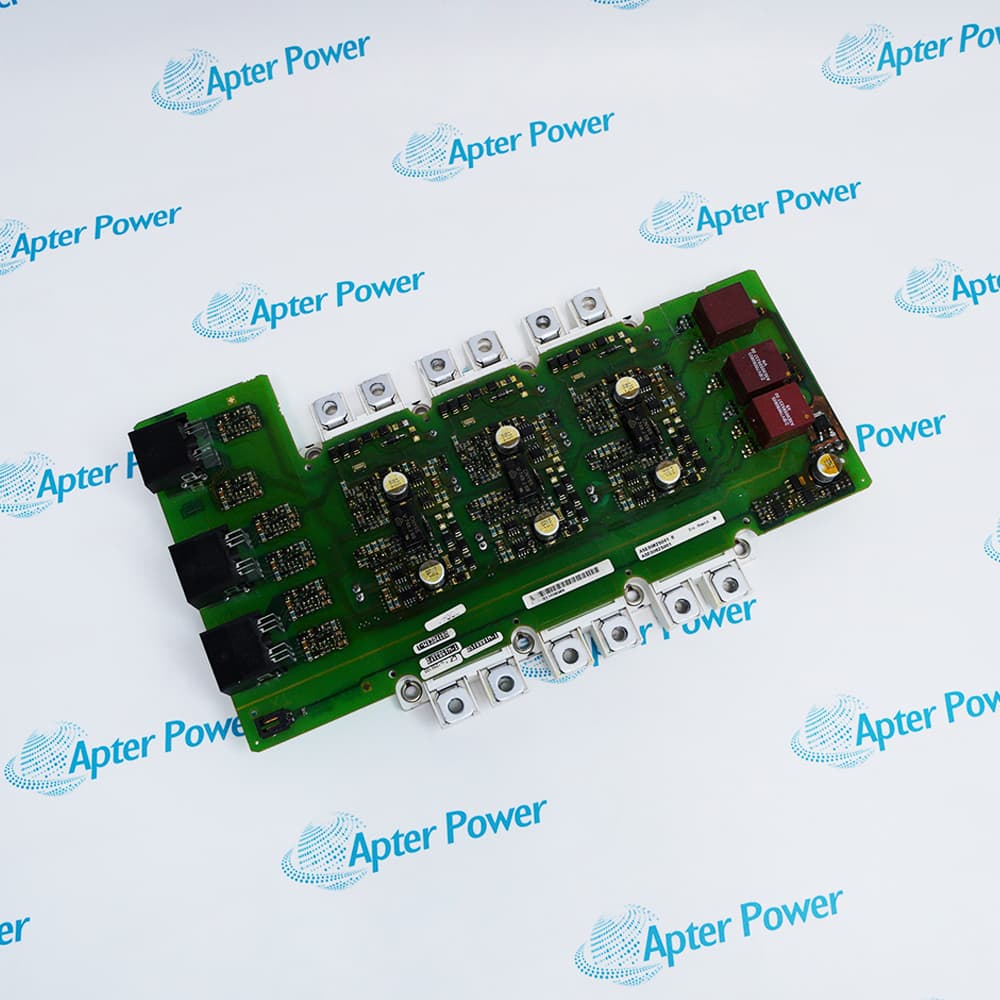

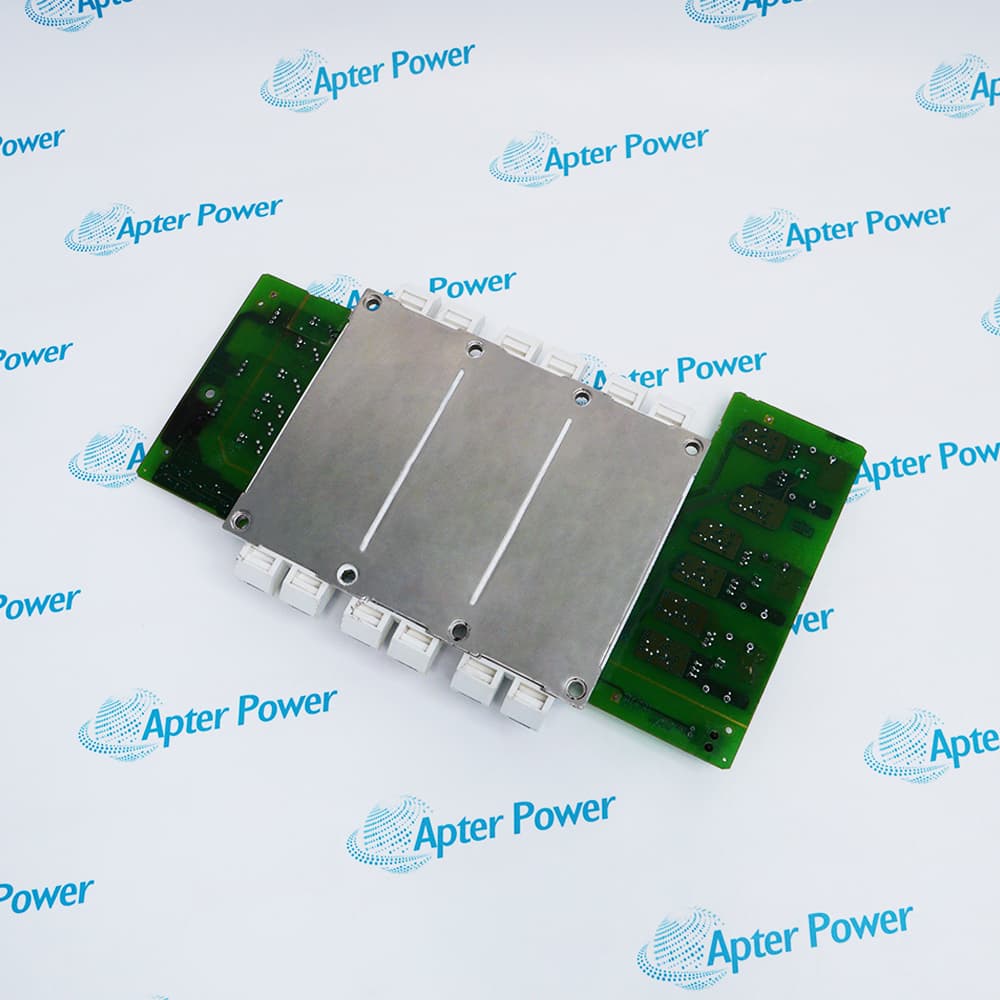

The A5E00825001 is a specialized SINAMICS S120 Power Block designed as an IGD1-R3-210A inverter bridge for chassis-format power units. This specific model serves as the core power semiconductor assembly for 400V Motor Modules, integrating the high-power IGBT bridge and gate driver electronics within a single replaceable chassis component to ensure consistent current delivery.
High Power Density
Integrated Gate Drivers
Chassis-Format Modular Design
Engineered for heavy-duty industrial drive applications, the A5E00825001 provides a rated output of 210A with forced-air cooling to maintain thermal stability during high-frequency switching. The unit incorporates integrated gate drivers and temperature monitoring sensors to provide self-protection against overcurrent and thermal overload. According to official technical data, its robust construction supports seamless integration into the SINAMICS S120 DC/AC modular system for high-performance motion control.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens A5E00825001 IGBT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Metal Processing
Applied in main drive systems for rolling mills and wire drawing machines to provide precise torque control. The power block handles the high-current demands required for continuous metal deformation and high-speed tension control.
Oil and Gas
Integrated into variable speed drives for centrifugal pumps and compressors in offshore and onshore extraction sites. Its robust chassis design ensures reliable motor control under high-load conditions in demanding petrochemical environments.
Marine Propulsion
Deployed in diesel-electric propulsion systems and thruster drives for commercial vessels and offshore platforms. The module supports the modular configuration required for space-efficient installation in maritime engine rooms.
Mining and Cement
Utilized in heavy-duty conveyor belts and grinding mill drives for the processing of raw materials. It provides the necessary power density to manage the high starting torques and varying loads common in mineral extraction equipment.
Paper and Plastics
Applied in multi-motor drive configurations for paper machines and extrusion lines to ensure precise web synchronization. The integrated gate drivers facilitate high-frequency switching for smooth operation and product consistency.
Energy Generation
Integrated into wind turbine converters and hydroelectric power control systems to manage energy conversion efficiency. The power block translates control signals into high-power outputs for grid-synchronized power delivery.
The A5E00825001 is a core component for heavy-duty SINAMICS S120 Motor Modules used in high-power industrial machinery such as main mill drives and large centrifugal fans. It is designed to drive induction motors or synchronous motors within the 400V voltage class, providing a rated current of 210A. The power block’s high-frequency switching capability supports the precision speed and torque control required for complex processing lines.
In material handling and lifting equipment, the A5E00825001 enables coordinated multi-axis motion in crane hoist systems and heavy-duty conveyors. It utilizes its integrated gate driver logic to execute rapid pulse-width modulation (PWM) commands, ensuring smooth motor acceleration under full load conditions. The module’s chassis-format design allows for quick integration into large-scale drive cabinets, facilitating high-capacity energy conversion and grid-synchronized operation.
What is the primary function and identification of the Siemens A5E00825001 unit?
The A5E00825001 is a SINAMICS IGD1 (Inverter Gate Driver) Power Block, serving as a core internal component for high-power SINAMICS S120 chassis units. It integrates the power semiconductor bridge and driver electronics to manage motor phase current at 400V.
What are the electrical ratings and cooling specifications for the A5E00825001?
This module is rated for a nominal input voltage of 400V AC and is typically utilized in 210A current class power units. According to technical data, the power block requires forced-air cooling via internal fans to maintain thermal stability during high-load switching operations.
How is the A5E00825001 interfaced with the SINAMICS control system?
The A5E00825001 interfaces with the Control Unit (CU320) through DRIVE-CLiQ communication cables or direct gate driver wiring. It translates logic signals from the processor into high-power pulse-width modulation (PWM) signals to drive the IGBT gate circuits.
What maintenance precautions should be taken for the Siemens A5E00825001?
When replacing the A5E00825001, ensure the DC link is fully discharged for at least 5 minutes to avoid residual voltage hazards. It is essential to use specific thermal interface materials and torque settings for electrical terminals as defined in the SINAMICS S120 spare parts guide.
Which SINAMICS S120 drive series is the A5E00825001 compatible with?
The A5E00825001 is a standard spare part for SINAMICS S120 Chassis Power Units, particularly the IGD1-R3-210A models. It is cross-referenced as a high-power inverter bridge component for both Motor Modules and Power Modules within the 400V range.
