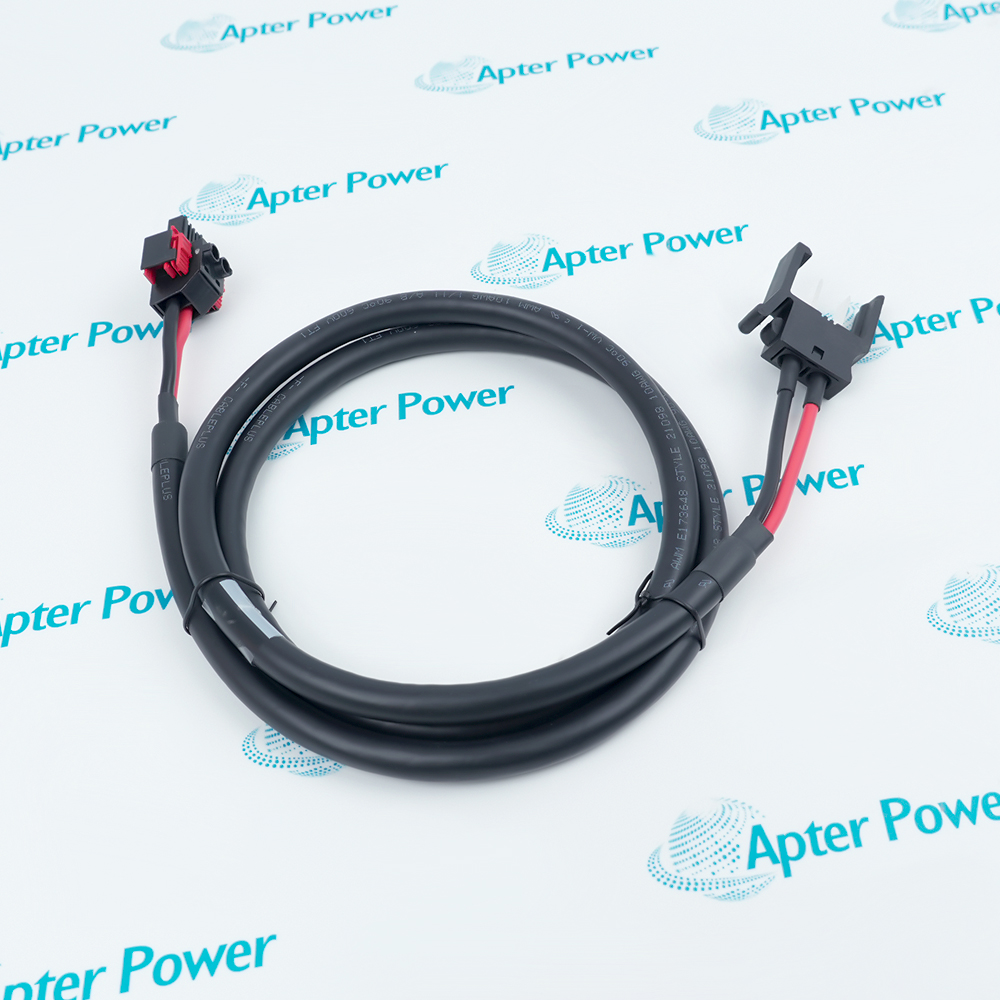

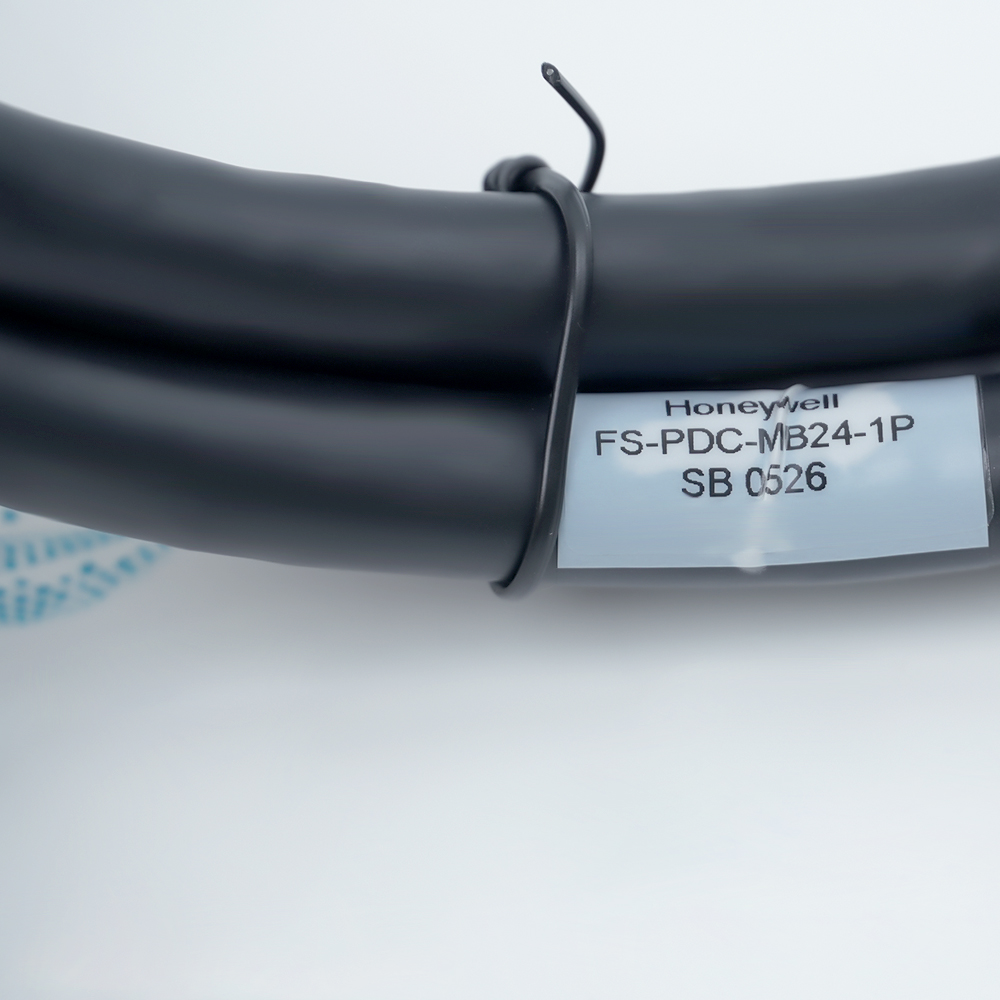

The FS-PDC-MB24-1P is a 24V DC power transmission conductor used inside industrial control cabinets. In the hardware assembly of automation control cabinets, it serves as the physical pathway for transferring electric current from the main power rail to the power distribution board. Through its specific cable length, wire gauge, and pre-terminated connectors, this product cross-connects and distributes the DC power output from the power supply unit to the various downstream hardware modules of the control system.
Oil and chemical resistant
AWM Style 21216 compliant
Anti-EMI shielded layout
The total length of the FS-PDC-MB24-1P cable is fixed at 145 centimeters or approximately 57.1 inches, making it suitable for horizontal or vertical routing layouts within standard industrial switch cabinets measuring 800 millimeters or 2100 millimeters in width. Wrapped inside the cable are two metallic conductors made from high-purity electrolytic copper. The wire specification complies with the 10 AWG standard where the actual cross-sectional area of each conductor core is about 6.0 square millimeters. This thick wire gauge reduces physical loss during current transmission and ensures that the remote power distribution board receives full voltage. For housing protection, the product utilizes polyvinyl chloride material to form the insulation layer and the outermost black jacket.
This industrial-grade plastic outer skin has been tested to meet the AWM Style 21216 industry technical standard and has passed the vertical and horizontal flame tests FT1 and FT2 of the CSA organization, classifying it as a flame-retardant material. In addition, the outer jacket blocks the penetration of chemical substances such as oil mist and acid-base moisture commonly accumulating at the bottom of industrial cabinets. The outer skin maintains its original toughness and resists brittle cracking under temperatures ranging from minus 40 degrees Celsius to plus 80 degrees Celsius and even up to 90 degrees Celsius in certain working conditions.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell FS-PDC-MB24-1P Power Distribution Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas Exploration
Applied in Emergency Shutdown systems on offshore drilling platforms and onshore wellhead control panels to power control modules for critical isolation valves during blowouts or leaks.
Petrochemical and Refining
Deployed in the core Safety Instrumented System cabinets of cracking units and hydroreactors to deliver continuous DC power to multi-channel field gas detectors and toxic gas alarms.
Chemical Manufacturing
Transmits 24VDC current to interlock protection devices and solenoid valve controllers for automated dosing valves within control cabinets of fine chemical reactors.
Thermal and Nuclear Power Generation
Used in the power distribution assemblies of steam turbine overspeed protection systems and Burner Management Systems to ensure uninterrupted power to critical protection modules during grid fluctuations.
Metallurgy and Steel Industry
Provides temperature-resistant and corrosion-resistant power connections for high-temperature furnace monitoring devices and high-pressure cooling water interlock systems in harsh control rooms of blast furnace ironmaking and converter steelmaking.
Pharmaceuticals and Biotechnology
Distributes clean power to high-precision batch control hardware and environmental cleanliness monitoring systems inside control cabinets of large fermenters and sterile formulation workshops compliant with GMP standards.
When using the FS-PDC-MB24-1P, you must strictly perform power-off operations, and hot-plugging is strictly prohibited to prevent arc damage. During wiring, ensure the physical latches are fully engaged to resist cabinet vibration, and carefully verify the positive and negative polarities. Maintain a proper bending radius during routing to avoid sharp cuts to the jacket, and ensure the actual operating current and ambient temperature do not exceed the critical material limits of 10A and 80 degrees Celsius. If the cable insulation layer shows wear or brittle cracking due to long-term service, DIY splicing repairs are strictly forbidden, and the cable must be completely replaced with a genuine original part immediately.
The FS-PDC-MB24-1P is a highly reliable, heavy-duty power distribution cable engineered specifically for the (url:1.1.1, 1.1.5). It establishes a critical internal power backbone, efficiently transferring 24VDC from the (url:1.1.3, 1.1.5) to the PDB-0824 power distribution board, ensuring continuous and uninterrupted clean power supply to downstream I/O modules and Field Termination Assemblies (FTA).
It is a 24VDC power distribution cable dedicated to Honeywell Safety Manager systems, used for internal power transmission in industrial control systems.
What is the core function of FS-PDC-MB24-1P?
Its core function is to efficiently and stably transfer 24VDC power from the FS-MB-0001 main power module to the (url:1.2.4, 1.3.7) power distribution board.
How to install and use FS-PDC-MB24-1P in industrial systems?
Disconnect system power, connect one end of the cable connector to the main power rail (or the corresponding 24V port of the control chassis), and connect the other end to the power input of the PDB-0824 board. Ensure secure fastening before powering on.
What are the connector types of FS-PDC-MB24-1P?
It typically features a specialized modular connector (such as a Molex or D-TAB squeeze-to-release connector) on one end, and bare wires or pre-terminated industrial connectors on the other end.
What wire specifications are used in FS-PDC-MB24-1P?
It utilizes high-specification 10 AWG (two-conductor 2C, approx. 6.0 mm²) high-grade copper wires to ensure low-loss transmission under heavy current loads.
