A 2-meter, 24VDC/2A Power Distribution Cable
that powers cabinet Field Termination
Assemblies and fans from PDB-0824/PDB-0824P
boards in automation systems

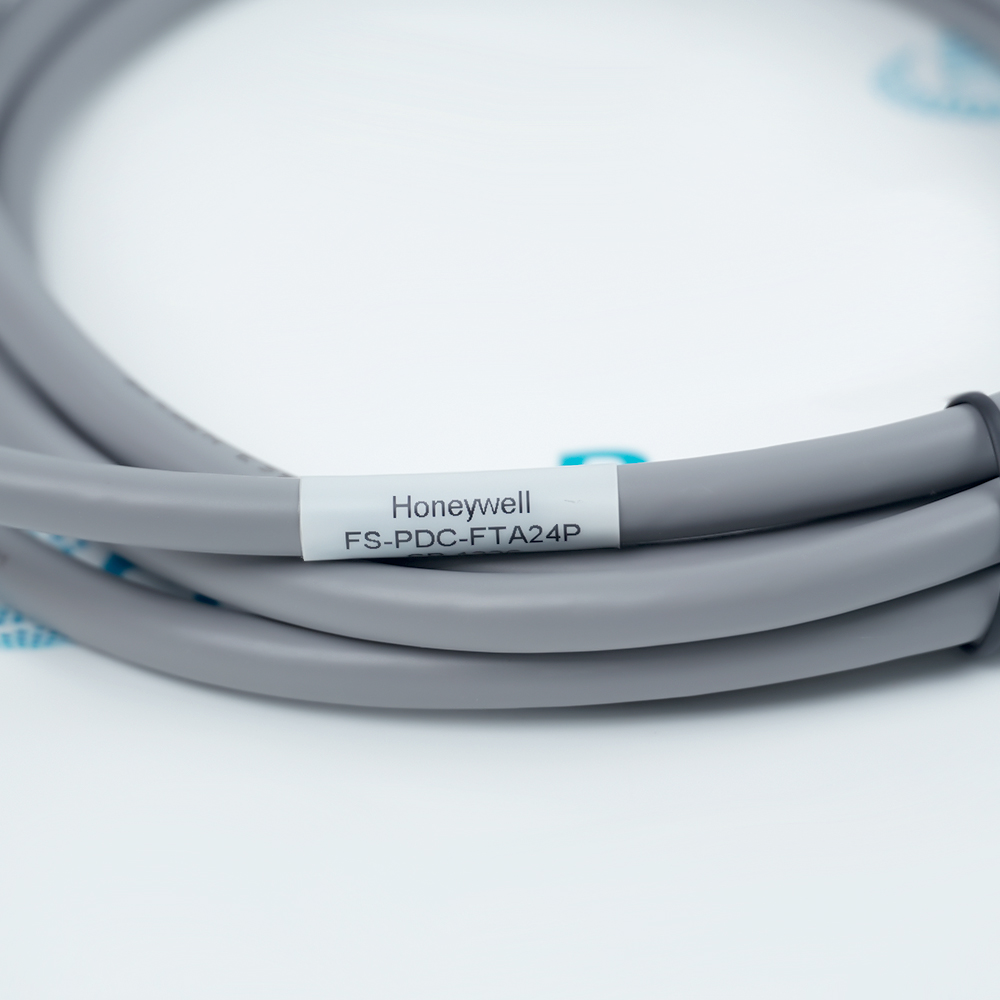

The FS-PDC-FTA24P is an essential internal hardware assembly developed for the Safety Manager system infrastructure. This heavy-duty cable is dedicated to routing reliable 24VDC (rated at 2A) secondary electrical supply from a centralized PDB-0824P or legacy PDB-0824 power distribution board straight to separate cabinet components. It establishes direct, safe low-voltage loops to powering downstream electronics inside severe industrial plant enclosures, such as localized cabinet cooling fan units and Field Termination Assemblies (FTAs).
Fully certified under global safety mandates including UL and CSA standards
Equipped with a premium 2-pole socket block housing
Heavy-duty 2-core wire gauge, utilizing 2 x 1.31 mm² (AWG 16) tri-rated premium industrial cabling for superior insulation barrier resistance
The physical construction of the FS-PDC-FTA24P consists of a 2-core multi-strand copper line measuring exactly 2 meters (approximately 78.74 inches) in length, using AWG 16 (1.31 mm²) cross-sectional gauge wires. It directly replaces the older, obsolete PDC-FTA24 model, which relied entirely on friction-fit retention clips that were prone to loosening inside compressor rooms and high-vibration control hubs. This updated cable version maintains identical electrical footprint dimensions, allowing it to drop directly into existing PDB-0824 slot layouts without modifying internal trunking space or mounting rail positions.
The outer insulation jacket complies with standard UL and CSA industrial flame-retardant and dielectric breakdown specifications required for functional safety deployment. The inner wire insulation of the FS-PDC-FTA24P uses a highly visible dual-color coding convention, consisting of a solid red jacket for the +24VDC positive feed and a solid black or blue jacket for the 0VDC return line.
This color differentiation allows quick visual tracking and accurate polarity mapping along the cable run. For electrical isolation verification, the cable assembly maintains an insulation resistance threshold of 100 MΩ or higher when verified with a 500VDC megger testing instrument. The outer sheathing retains its flexibility and dielectric properties within a standard temperature window of -25°C to +70°C, ensuring that tight-radius bends inside compact terminal wire trays do not cause physical cracking or breakdown of the protective barrier over time.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell FS-PDC-FTA24P Power Distribution Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Upstream Extraction
Directs 24VDC critical power to high-density Field Termination Assemblies inside Emergency Shutdown (ESD) systems on offshore drilling rigs and onshore oilfields.
Petrochemical & Refining
Serves Burner Management Systems in refinery hazardous zones by powering I/O modules and enclosure fan units that track field valves and toxic gas detectors.
Fine Chemicals & Pharmaceuticals
Interconnects power distribution boards and terminal blocks inside batch reactor interlock panels to maintain continuous loops for toxic and explosive safety logic solver circuits.
Thermal & Nuclear Power Generation
Utilized in boiler safety protection and Emergency Trip Systems (ETS) to ensure inner-cabinet power distribution remains resilient against continuous high-vibration power plant profiles.
Iron & Steel Metallurgy
Routes low-voltage DC power inside blast furnace safety panels to support critical isolation loops preventing catastrophic molten containment breaches.
Mining & Mineral Processing
Deployed in overland conveyor and deep-shaft hoist safety interlocking enclosures, leveraging screw-locking terminal resilience against intense structural vibrations.
When utilizing the FS-PDC-FTA24P power distribution cable, all plugging, stripping, and wiring operations must be performed under a completely powered-off state to eliminate short-circuit risks. When docking to the PDB board, both side-mounted locking screws must be fully tightened to guarantee a reliable contact interface under high-vibration conditions. During cabinet routing, polarity must be mapped accurately by strictly following the red (positive) and black/blue (negative) color coding, while maintaining an appropriate bending radius inside the wire trays to prevent the outer insulation jacket from physical cracking or long-term failure.
Alternative Names
Alternative Names
FS PDC FTA24P
Technical notes
Technical notes
Honeywell FS-PDC-FTA24P is a 2-meter industrial 24VDC power cable rated at 2A for Experion PKS and Safety Manager systems. It features 16 AWG copper wires, an FT4 flame-retardant jacket, and secure Weidmuller connectors with anti-looseness screws. Replacing the older PDC-FTA24 model, it safely delivers power from PDB-0824 or PDB-0824P boards to Field Termination Assemblies and fan units in harsh oil, chemical, and power environments.
What is the Honeywell FS-PDC-FTA24P Power Distribution Cable?
It is a dedicated 24VDC power distribution cable harness used internally within the Honeywell Safety Manager system.
What is the primary function of the Honeywell FS-PDC-FTA24P?
It is primarily used to transfer 24VDC electrical power from a Power Distribution Board (PDB) to individual Field Termination Assemblies (FTAs) or cooling fan units inside the cabinet.
How to properly install and use the Honeywell FS-PDC-FTA24P?
Plug the connector side into the PDB-0824P board and tighten the locking screws, then connect the non-connector wire end directly to the power inputs of the target downstream device.
Is the Honeywell FS-PDC-FTA24P fully interchangeable with the legacy PDC-FTA24?
Yes. Since the legacy PDC-FTA24 is obsolete, the FS-PDC-FTA24P serves as its direct upgraded replacement and is fully interchangeable and backward compatible.
What is the structural difference between the Honeywell FS-PDC-FTA24P and the older model?
Unlike the friction-fit legacy model, the FS-PDC-FTA24P features dedicated locking screws to prevent loose connections caused by continuous cabinet vibrations.
