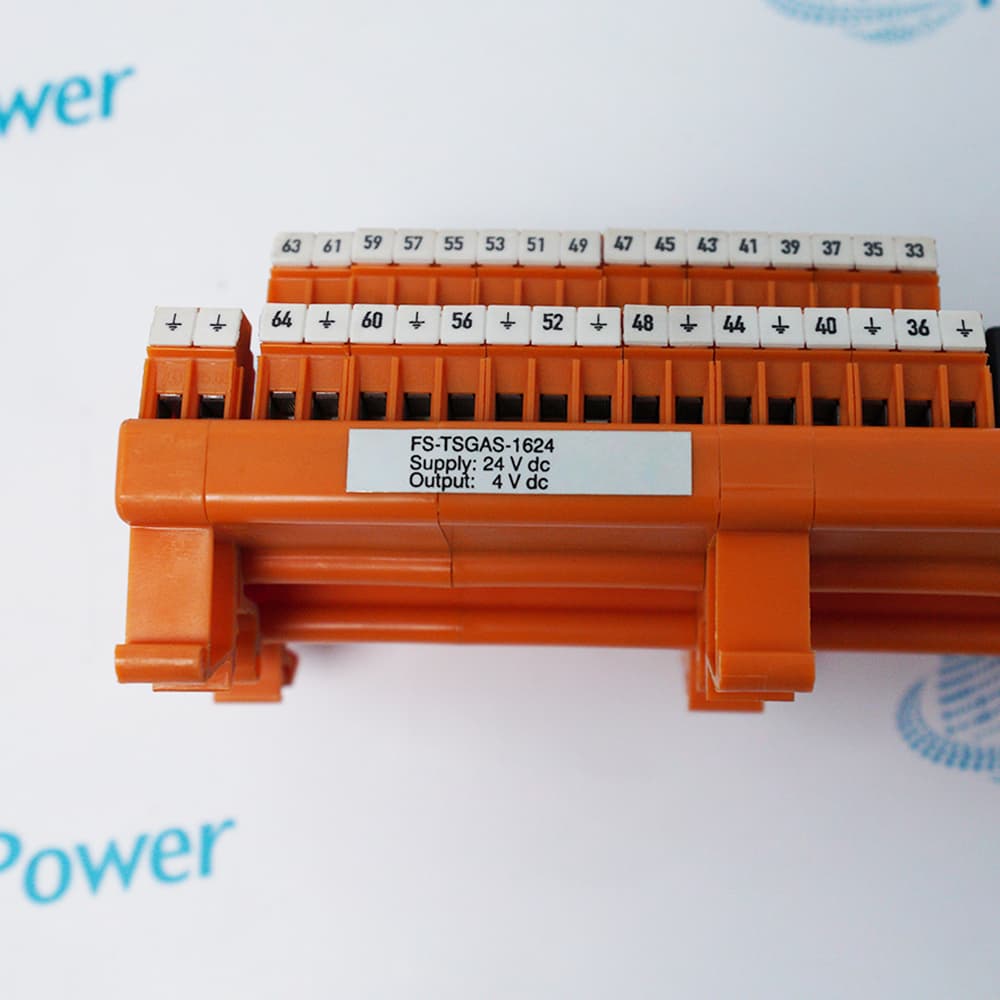

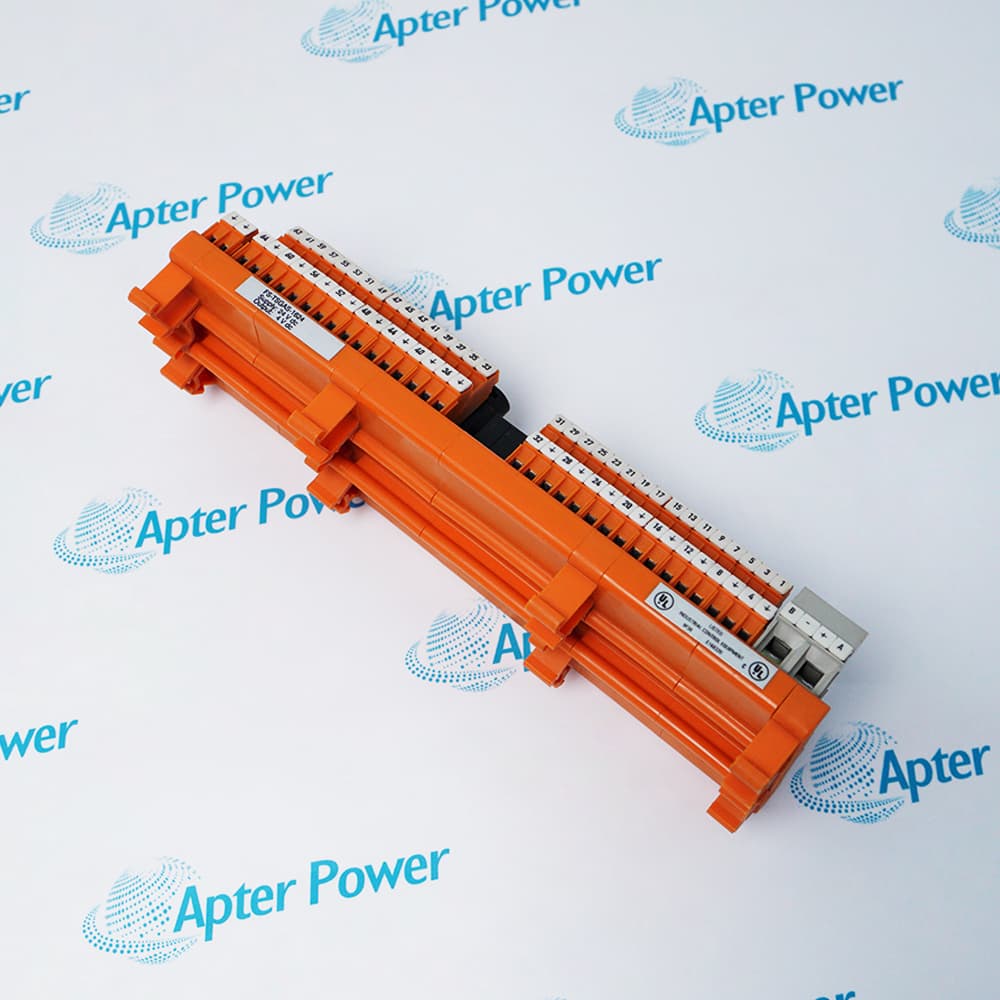

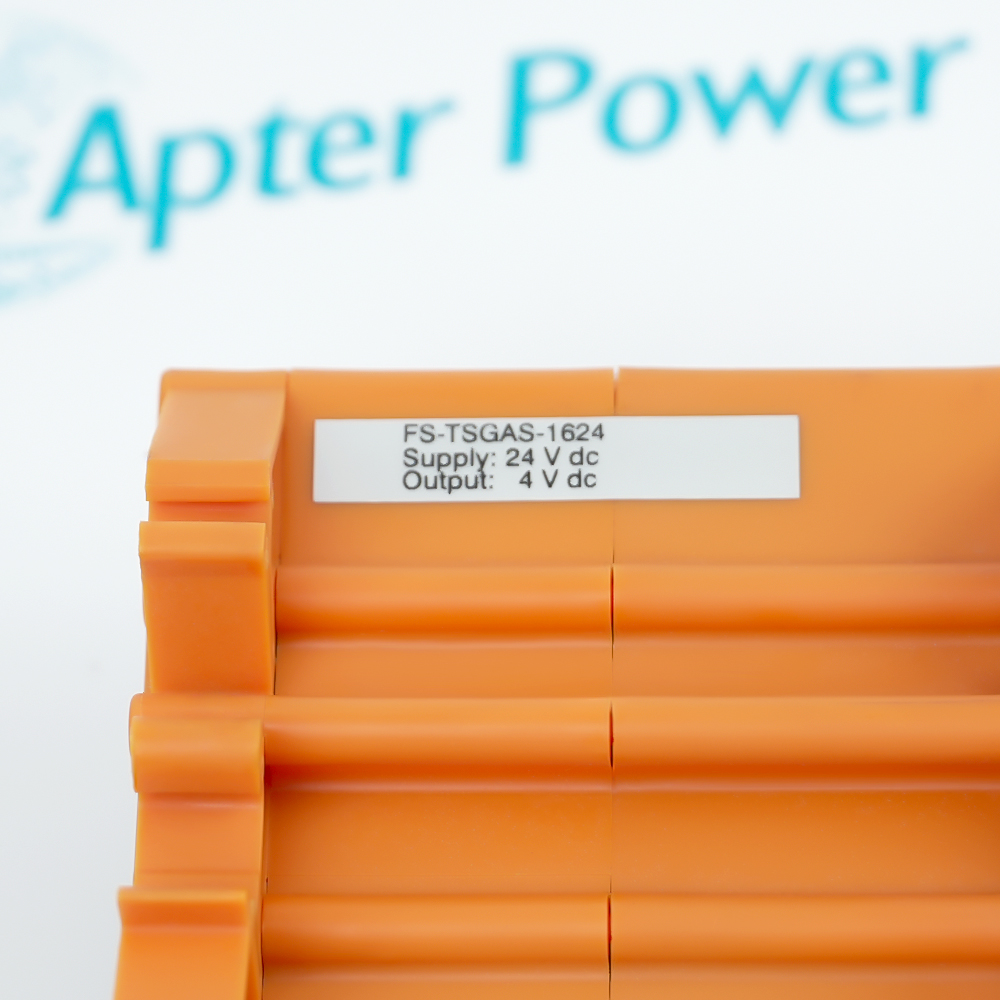

The FS-TSGAS-1624 is a dedicated Safe Field Termination Assembly (FTA) module within the Honeywell Safety Manager system. As a 16-channel analog input interface, it is primarily used to connect field-mounted gas and flame detectors.
Power supply distribution to each transmitter (500 mAT fused)
Enable monitoring of the external power connected to the TSGAS-1624 module
Linear signal conditioning for SAI-1620m
The field termination assembly module TSGAS-1624 is the interface between gas/flame detectors in the field and the safe high-density analog input module SAI-1620m in Safety Manager. The TSGAS-1624 module has sixteen analog input channels which may be used for both safety-related and non-safety-related applications. The TSGAS-1624 module uses a SICC-0001/Lx system interconnection cable to transfer the 16 input signals to a (redundant pair of) SAI-1620m module(s). The FTA module has a universal snap-in provision for standard DIN EN rails, and screw terminals for connection of power supply, ground and field wiring.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell FS-TSGAS-1624 Termination Assembly , Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Exploration
Monitoring combustible gas leaks and fire on drilling platforms to trigger emergency shutdowns.
Petrochemical Refining
Real-time monitoring of toxic gas concentrations (e.g., H2S) during refining to ensure production area safety.
Chemical Industry
Detecting volatile gases around chemical reactors to prevent explosion hazards.
Offshore & Marine
Integrated Fire & Gas (F&G) systems on Floating Production Storage and Offloading (FPSO) units.
Pipeline Transportation
Deployed at compressor stations along long-distance gas pipelines for remote F&G safety protection.
Semiconductor Manufacturing
Monitoring trace leaks of highly toxic or flammable process gases (e.g., silane) in gas rooms.
The core of using the FS-TSGAS-1624 lies in safeguarding signal link integrity and maintaining the system’s safety rating. Operationally, it is mandatory to enforce the replacement of identical-spec fuses (500mAT) to preserve independent channel protection and ensure a stable, monitored 24V DC external power supply to prevent detector outages. During installation and maintenance, shielded twisted-pair cables and standardized single-point grounding must be used to eliminate interference, while system interconnection cables should be handled carefully using the integrated self-locking mechanisms. Only by maintaining a dry, corrosion-free environment and strictly following redundancy protocols can the component reliably fulfill its critical Fire & Gas (F&G) safety mission.
It is typically a termination assembly or signal conditioning module used in industrial process safety systems.
What are the main applications for FS-TSGAS-1624?
It is primarily used in environments requiring high Safety Integrity Levels (SIL), such as Emergency Shutdown Systems (ESD) and Fire & Gas (F&G) systems in the oil & gas, chemical, and power industries.
How many channels does FS-TSGAS-1624 support?
Based on the "1624" designation, it typically supports 16 or 24 signal channels (depending on the specific I/O configuration) to process inputs from multiple sensors.
What safety features does FS-TSGAS-1624 have?
It features channel isolation, overcurrent protection, and diagnostic capabilities, monitoring line faults (like open or short circuits) in real-time to prevent hazardous failures.
How to maintain FS-TSGAS-1624?
Regularly check for loose wiring, remove surface dust, and perform periodic Proof Tests as required by the system to ensure its safety functions remain effective.
