Technical specifications for 3BHE021889R0101 UFC721 BE101
-
Manufacturer:ABB
-
Product Category:DCS Systems
-
Spare Part Number:UFC721BE101
-
Estimated shipping dimensions:31.6x18.8x1.8cm
-
Weight:0.28 kg
-
Tariff Code:8537101190
-
Counliy of origin:SWEDEN
-
Operating Voltage:+24 VDC (±10%)
-
Power Consumption:8W typical, 12W maximum
-
Update Rate:Configurable 1-1000 ms
-
Shock Resistance:15g, 11ms duration
-
Voltage Input Range:±10 V
-
Current Input Range:4–20 mA
-
ADC Resolution:12-bit or higher
-
Sampling Rate:Up to 10 kHz per channel
-
Voltage:>1 MΩ
-
Current:250 Ω
-
Supply Voltage:24 VDC ±10%
-
Power Consumption:<15 W
Information
Overview
Manuals
Application and compatibility
Internal Device Protection

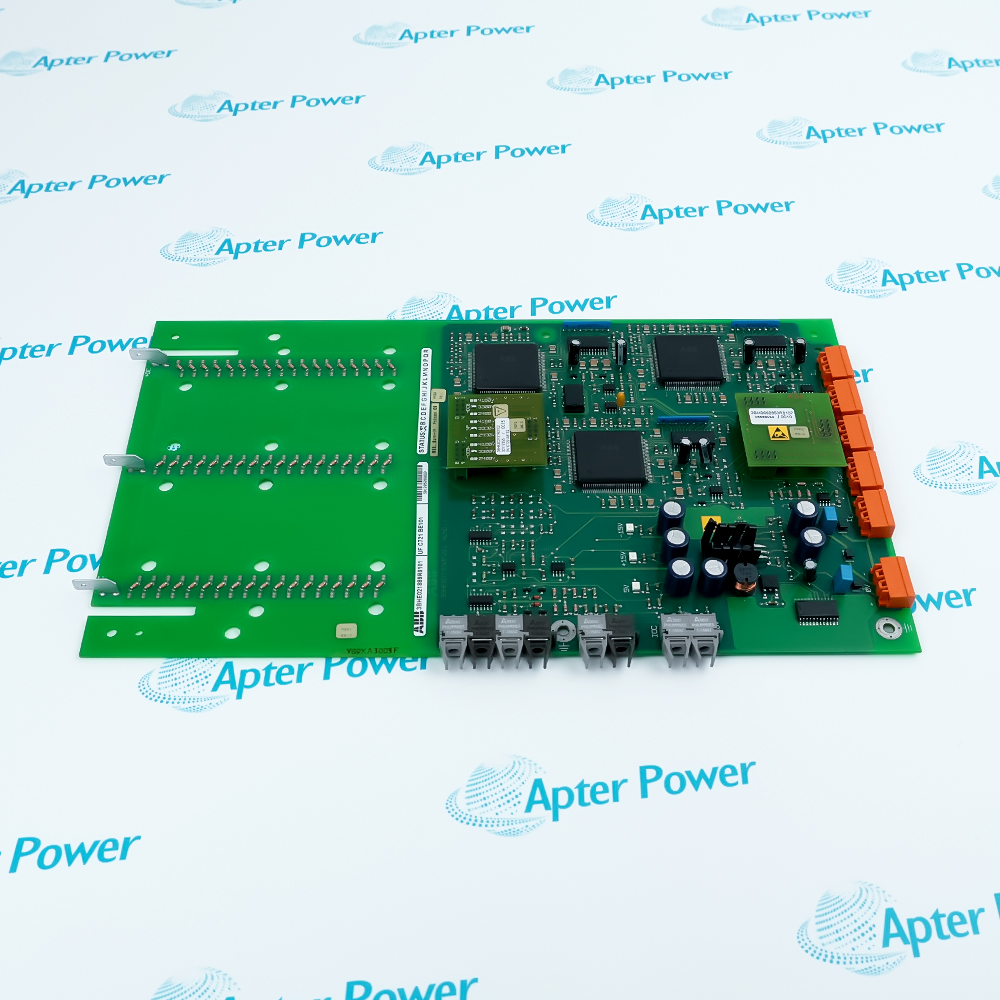

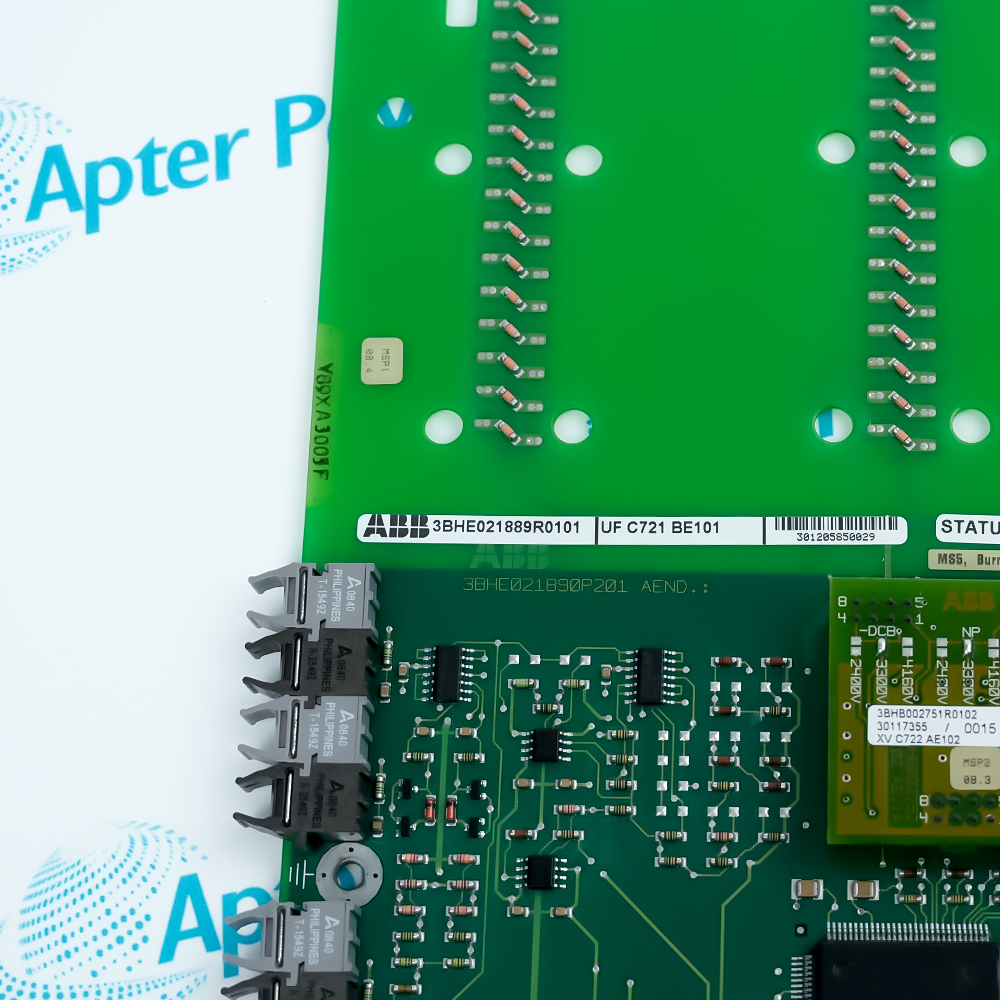

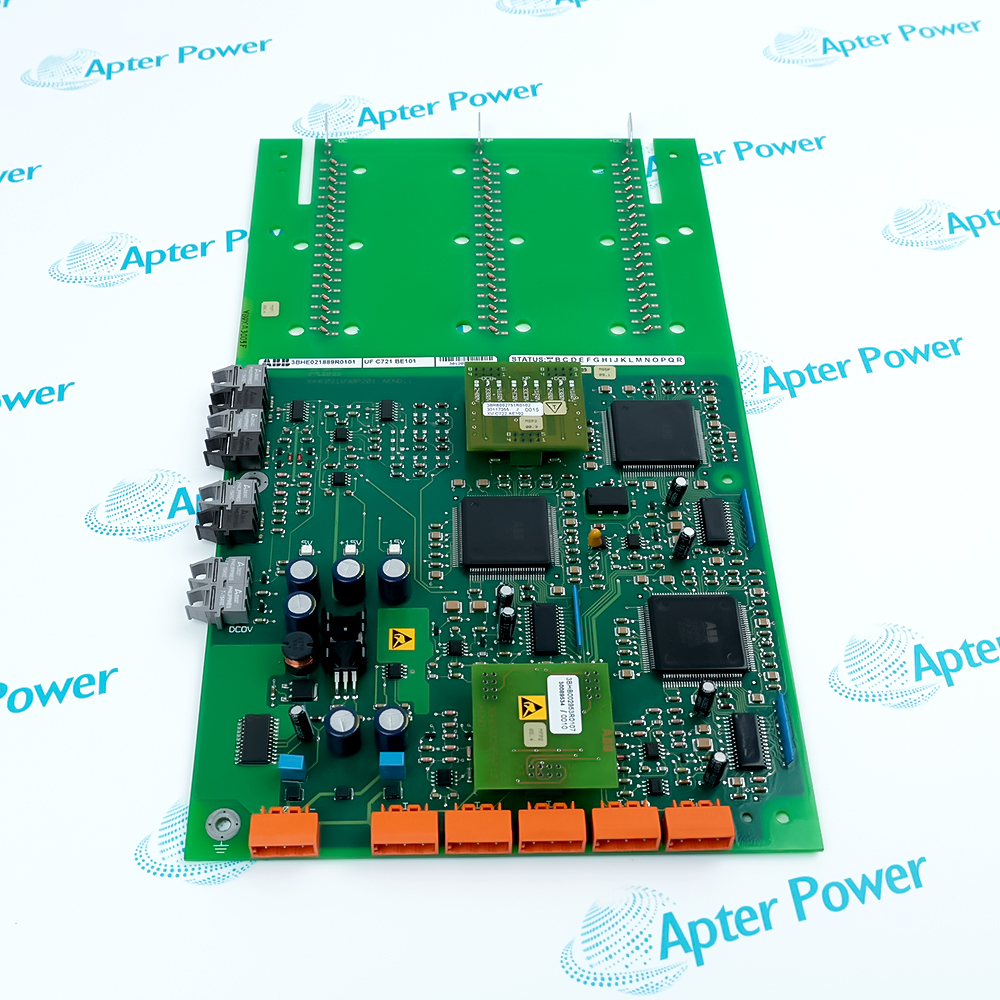

The ABB 3BHE021889R0101 (UFC721BE101) is an ADCVI (Analog to Digital Communication VI) board used in ABB ACS800 series industrial drives.
- High precision analog-to-digital conversion
- Multi protocol communication
- 16 isolated inputs
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB 3BHE021889R0101 UFC721 BE101 ADCVI Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Main application: Widely used in ABB's medium voltage frequency converters (such as ACS1000 series) and servo drive systems.
Alternative/upgrade suggestion: According to ABB's official technical guidelines, ADCVI boards are currently only available in stock. ABB strongly recommends upgrading it to the CVMI2B upgrade kit for long-term technical support.
Historical models: This board can replace old models such as 3BHB002916R0001 or 3BHB002916R0101.
Alternative/upgrade suggestion: According to ABB's official technical guidelines, ADCVI boards are currently only available in stock. ABB strongly recommends upgrading it to the CVMI2B upgrade kit for long-term technical support.
Historical models: This board can replace old models such as 3BHB002916R0001 or 3BHB002916R0101.
On the physical level, the board adopts advanced conformal coating to effectively block circuit short circuits or corrosion caused by moisture, salt spray, and conductive dust; On the electrical level, its I/O channels are equipped with high-level electrical isolation and transient voltage suppression (TVS) circuits, which can withstand external electromagnetic interference (EMI) and voltage surges.
At the same time, the onboard chip supports real-time self diagnostic logic, which can monitor power supply voltage and data transmission integrity. Once hardware abnormalities or communication timeouts are detected, the system protection response will be immediately triggered through the fieldbus, fully locking in the control accuracy and overall safety of the variable frequency drive system.
At the same time, the onboard chip supports real-time self diagnostic logic, which can monitor power supply voltage and data transmission integrity. Once hardware abnormalities or communication timeouts are detected, the system protection response will be immediately triggered through the fieldbus, fully locking in the control accuracy and overall safety of the variable frequency drive system.
FAQ View All FAQ
-
What is 3BHE021889R0101 UFC721BE101?3BHE021889R0101 UFC721BE101 is an ADCVI Board
-
What is the function of the 3BHE021889R0101 board?The UFC721BE101 board handles analog-to-digital communication for ABB drives, ensuring precise control of motor parameters.
-
Which systems is this 3BHE021889R0101 used in?It is primarily designed for the ABB ACS800 drive series.
-
What are the 3BHE021889R0101 key features?High-performance motor control. Enhanced reliability for industrial environments. Advanced algorithms for speed/torque control. High-performance, durable design.
