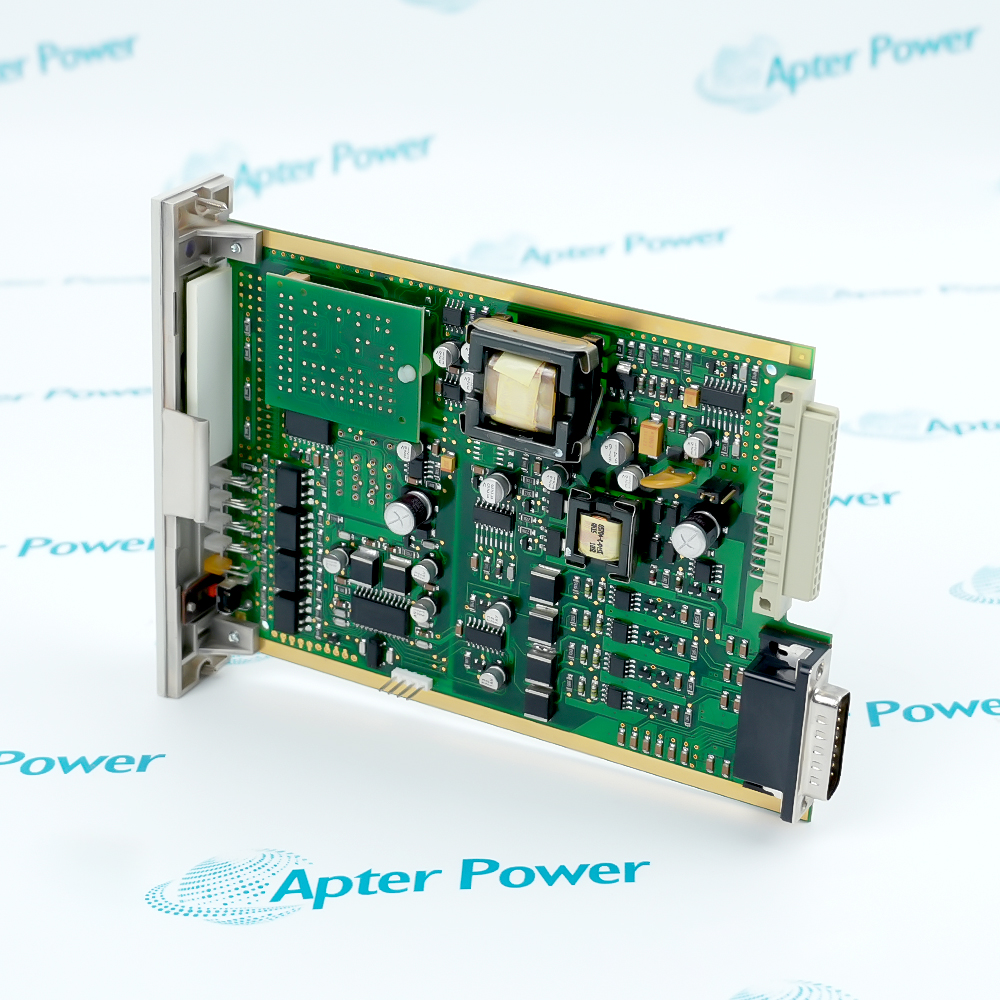

The 05704-A-0144 is a high-reliability four-channel control card manufactured by Honeywell, primarily used in industrial gas detection and control systems. It is part of Honeywell's 5704 series control systems, based on a microprocessor design, and capable of displaying gas detector readings and status.
Multi-channel monitoring
Equipped with fault self-diagnosis function
The front panel is equipped with a backlit LCD screen
The 5704 Four Channel Control Card provides control, display and alarm facilities for up to four connected gas detectors. The front panel backlit display indicates the gas reading, channel status and channel number while LEDs are used for alarms. A push-button is provided for resetting the alarms and selecting the card for use with the Engineering Card.The operation of the control card is microprocessor controlled and is fully definable for a wide range of connected gas detectors and application requirements. The software configuration setup is stored in an EEPROM.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell 05704-A-0144 CONTROL CARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Exploration
Detecting accumulated methane gas at the wellhead area of offshore platforms to prevent explosions.
Petroleum Refining
Monitoring high-pressure circulating hydrogen leaks in hydrocracking units.
Thermal Power Plants
Detecting fuel gas leaks inside gas turbine enclosures.
Steel Mills & Metallurgy
Detecting flammable gas leaks at connections of blast furnace gas pipelines.
Automotive Manufacturing
Monitoring flammable gases evaporated from paint thinners in spray booths.
Semiconductor & Electronics
Monitoring hydrogen gas used as a process gas in Chemical Vapor Deposition (CVD) rooms.
When using 05704-A-0144, it is essential to ensure the drive current strictly matches the detector parameters to avoid sensor burnout, and hot-swapping modules is strictly prohibited to protect the circuitry. Meanwhile, regular calibration via the Engineering Card is required, and the rack must be properly grounded to eliminate electromagnetic interference and ensure the reliability of safety interlocks.
It is a Receiver unit or a key electronic module for the Honeywell Searchline Excel open-path infrared gas detection system.
What is the primary function of 05704-A-0144?
It is designed to detect flammable hydrocarbon gases by analyzing the infrared beam intensity received from a transmitter.
What detection technology does 05704-A-0144 use?
It utilizes Non-Dispersive Infrared (NDIR) absorption technology in an open-path configuration.
What type of output signal does 05704-A-0144 provide?
It usually provides a 4-20mA analog current loop or digital communication via the HART protocol.
How to calibrate 05704-A-0144?
Validation is typically performed using functional test filters or specialized calibration gas cells provided by the manufacturer.
