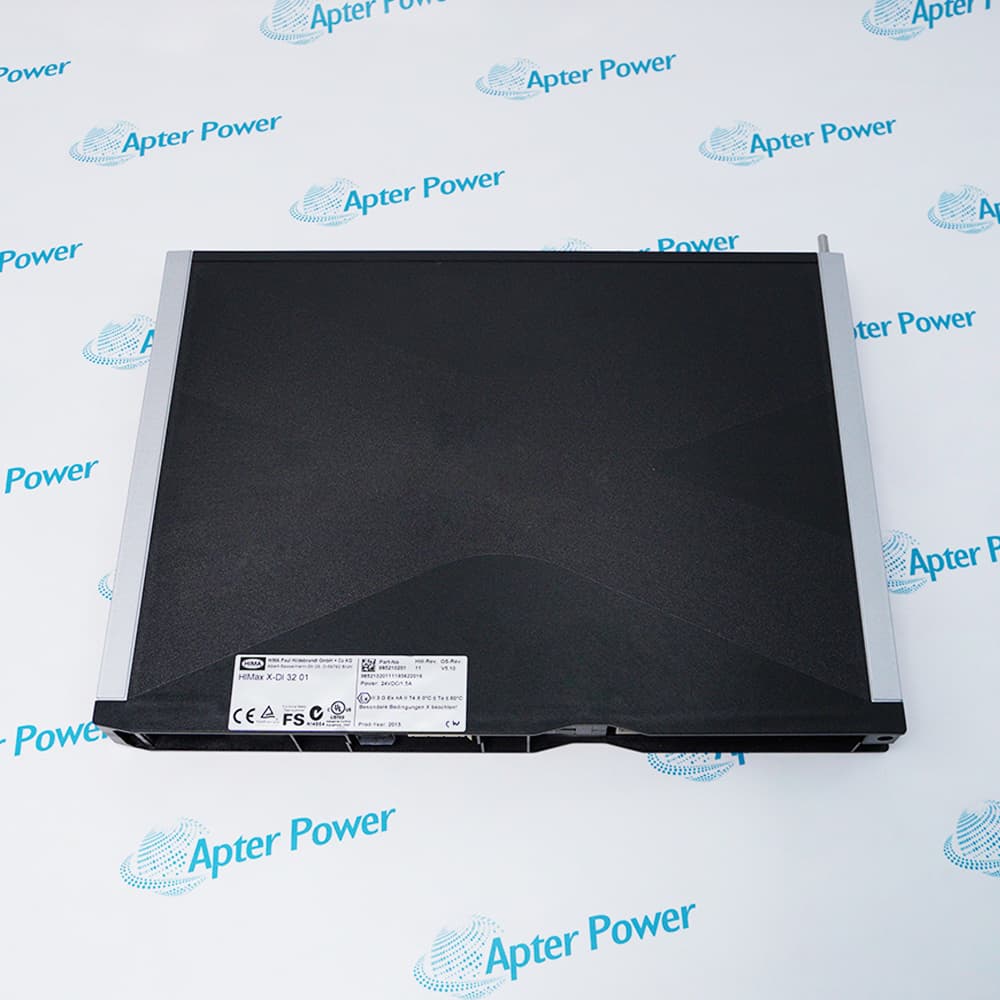

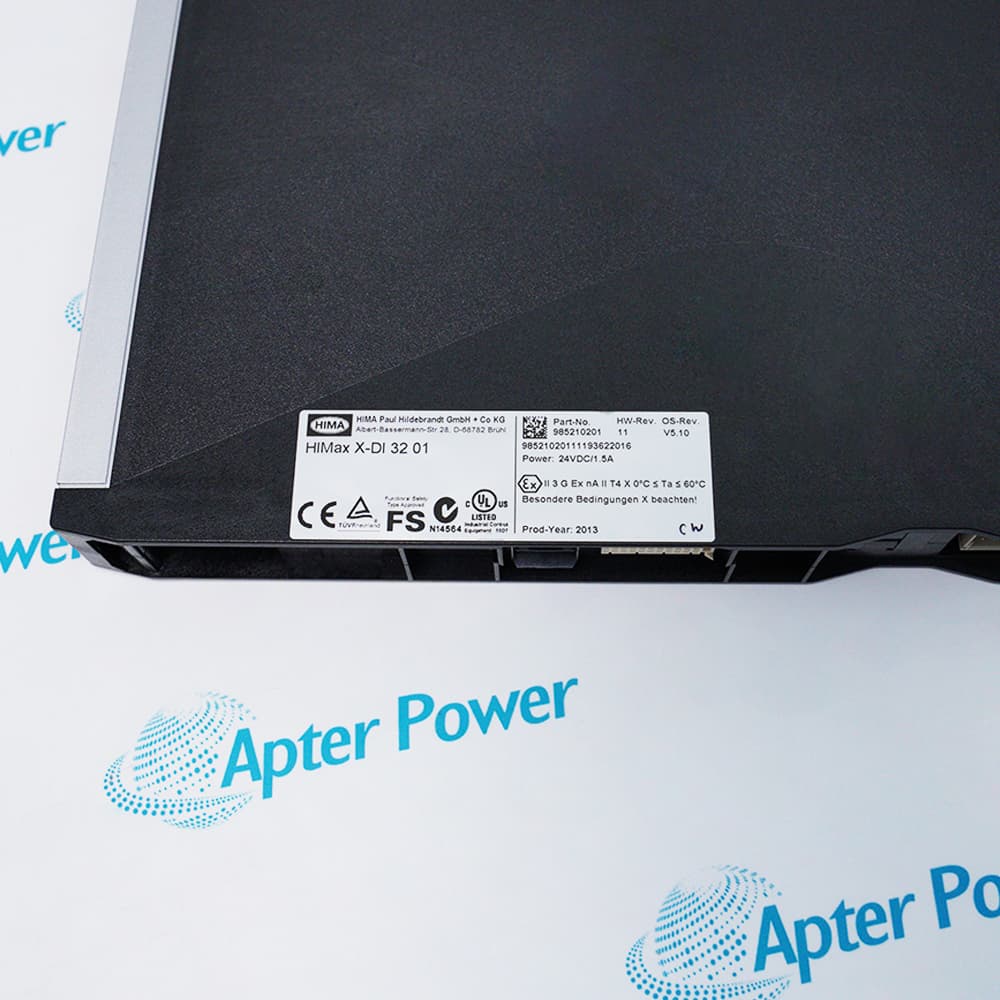

The HIMAX X-DI3201 is a safety-related digital input module equipped with 32 galvanically separated digital input channels. It is used in modular safety-related controller systems and can be inserted into the subrack slots for signal acquisition. The module adopts grouped power supply and is powered by 24 VDC, which is suitable for industrial safety applications.
32-channel galvanic isolation
SIL 3 / PL e certified
Short-circuit-proof supply
HIMAX X-DI3201 is certified by TÜV up to SIL 3 (IEC 61508, IEC 61511, IEC 62061), Cat. 4 and PL e (EN ISO 13849-1). It provides short-circuit-proof grouped power supply, supports line control for short-circuit and open-circuit detection, and has complete fault diagnosis and LED status indication functions to ensure safe and stable operation.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
HIMA HIMAX X-DI3201 Digital inputs module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Used for safety monitoring and emergency shutdown systems in oil exploitation, transportation and refining. It ensures safe signal acquisition and fault response in explosive hazardous environments.
Chemical Industry
Applied in process safety control of chemical plants to collect emergency stop and safety interlock signals. It meets high safety requirements and explosion-proof application conditions.
Railway Transit
Suitable for signal safety control and vehicle safety systems in rail transit. It complies with railway vibration, shock and SIL 4 safety certification standards.
Machinery Safety
Used for safety input signal acquisition of automated production equipment. It supports emergency stop loop monitoring to meet Cat. 4 and PL e safety levels.
Energy & Power
Applied in safety control systems of power plants and power distribution equipment. It realizes reliable collection of safety signals and rapid fault handling.
Metallurgical Industry
Used in high-temperature and harsh industrial environments for safety signal detection. It provides stable input acquisition and anti-interference safety protection.
The module is designed as a plug-in component for modular safety-related control systems, featuring 32 galvanically isolated digital input channels that support reliable signal acquisition in industrial safety applications. It adopts grouped short-circuit-proof power supply and is powered by 24 VDC from a safety-insulated power supply unit, meeting the requirements of Protection class III and Pollution degree II in line with IEC/EN 61508 standards.
The module is equipped with RUN and ERR status indicators as well as independent channel LEDs, enabling intuitive operation status monitoring and rapid fault location. It supports line control function to detect short-circuits, open-circuits and cross-circuits of input lines, and triggers a safe reaction in accordance with the de-energized to trip principle once a fault is identified.
The module can be configured via SILworX or ELOP II Factory programming tools corresponding to different CPU operating system versions, and can be applied in Zone 2 explosive hazardous environments when installed in an IP54 or higher protection enclosure. It requires no routine maintenance during normal operation, and a proof test must be performed at 10-year intervals to maintain the safety performance of the system.
HIMAX X-DI3201 is a safety-related digital input module with 32 galvanically separated input channels, used for safety-related control systems.
What is the input voltage of HIMAX X-DI3201?
The nominal input voltage of HIMAX X-DI3201 is 24 VDC; high level is 10…30 V, low level is max. 5 V.
What safety certifications does HIMAX X-DI3201 have?
HIMAX X-DI3201 is certified up to SIL 3 (IEC 61508), Cat. 4 and PL e (EN ISO 13849-1), SIL 4 for railway applications.
What is the operating voltage of HIMAX X-DI3201?
HIMAX X-DI3201 operating voltage is 24 VDC, tolerance -15…+20 %, from a safe insulation power supply unit.
How to configure HIMAX X-DI3201?
HIMAX X-DI3201 can be configured with SILworX (CPU OS V7+) or ELOP II Factory (CPU OS up to V6.x).
