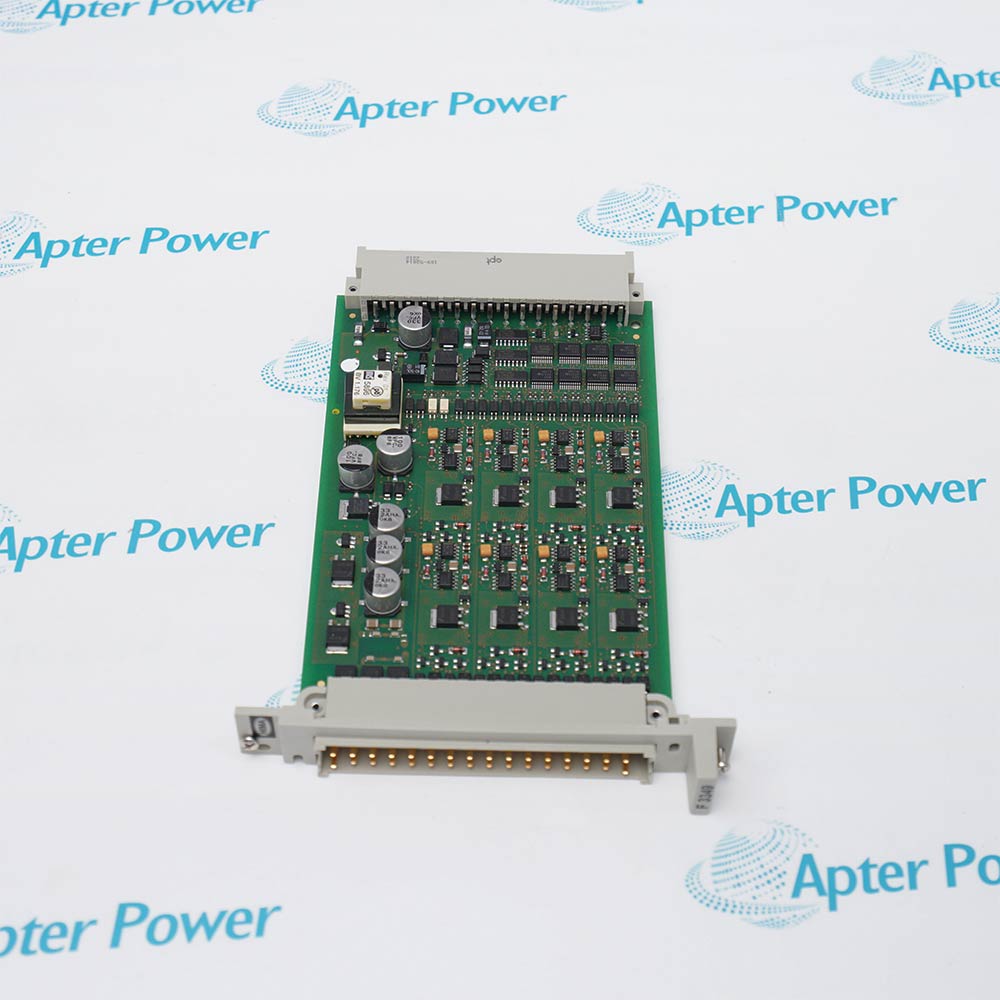

      F7130A

      24 VDC-to-5 VDC Power Supply Module for PES H41q
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      HIMA F7130A is an isolated 24 V DC-to-5 V DC power supply module for the PES H41q. It provides separate 5 V outputs for the central device/I/O modules and HIBUS, with front-panel LEDs indicating supply status.

      Ask our team:

      Get a quick price for： F7130A
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for F7130A

      Technical specifications for F7130A

      • Manufacturer:
        HIMA
      • Product Category:
        PLC Systems
      • Spare Part Number:
        F7130A
      • Estimated shipping dimensions:
        12.7x2.5x20.3cm
      • Weight:
        0.3 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Main input:
        24 VDC, −15% to +20%
      • Input ripple:
        Less than 15%
      • Primary fuse:
        5 A gL
      • Central/I/O output:
        5 VDC ±0.25 V, 10 A
      • HIBUS output:
        5 VDC ±0.25 V, 1 A
      • Efficiency:
        At least 70%
      • Short-circuit response:
        Outputs are short-circuit proof
      • Module width:
        4 SU
      • Central monitoring feed:
        Separate pin z16 (NG)
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      HIMA F7130A converts a 24 VDC main supply to isolated 5 VDC outputs for the PES H41q system. Its manufacturer sheet separates the central-device/I/O and HIBUS supply paths and specifies front status LEDs and integrated protection.
      • 24 VDC input is specified at −15% to +20% with less than 15% ripple.
      • Central-device/I/O output is 5 VDC ±0.25 V at up to 10 A.
      • A separate HIBUS output provides 5 VDC ±0.25 V at up to 1 A.
      • The module includes electrical isolation, current limiting and overvoltage protection.

      Use F7130A in the documented PES H41q power architecture with the approved rack wiring.

      Important Notice: Check the 5 A gL primary fuse and z16 (NG) monitoring feed; do not substitute an H51q supply.

      HIMA F7130A Manuals & Downloads
      HIMA F7130A Technical Reference (PDF)HIMA F7130A Installation & Commissioning Guide (PDF)

      The first PDF presents F7130A input, output and protection values; the second gives separate rack, supply and acceptance checks. Both use the original HIMA F 7130A (0507) data sheet as their technical basis.

      H41q central supply
      Feed the PES H41q central device from the isolated 5 V path.
      H41q I/O supply
      Support the approved I/O load within the 10 A output limit.
      HIBUS supply
      Feed the separate 5 V HIBUS path within its 1 A limit.
      Status monitoring
      Use L+, CPU/EA and HIBUS LEDs with the system diagnostics.
      For HIMA F7130A, verify the PES H41q rack, input tolerance, fuse and two separate 5 V output paths before energization.
      1
      Record the complete F7130A marking and H41q position.
      2
      Use the approved safe-work and isolation procedure.
      3
      Measure the 24 VDC input and its ripple under load.
      4
      Confirm the 5 A gL primary fuse and protection.
      5
      Trace central-device/I/O and HIBUS outputs separately.
      6
      Compare the two output loads with 10 A and 1 A limits.
      7
      Verify z16 (NG) and front LED indications.
      8
      Test controlled startup and accept the rack supply record.

      Technical notes

      Technical notes

      Verify the complete F7130A marking and PES H41q rack position. Check the 24 VDC feed and 5 A gL fuse, trace the separate 5 V central/I/O and HIBUS outputs, and confirm the z16 (NG) monitoring feed before commissioning.

      FAQS

      • What is HIMA F7130A?
        A 24 VDC-to-5 VDC power supply module for the PES H41q system.
      • What is the main input range?
        HIMA specifies 24 VDC with −15% to +20% tolerance and less than 15% ripple.
      • What are the two 5 V outputs?
        The central-device/I/O path is 5 V ±0.25 V at 10 A; the separate HIBUS path is 5 V ±0.25 V at 1 A.
      • Which primary fuse is specified?
        The original sheet specifies a 5 A gL primary fuse.
      • How is central monitoring supplied?
        A separate z16 (NG) pin provides the central-device monitoring feed.
