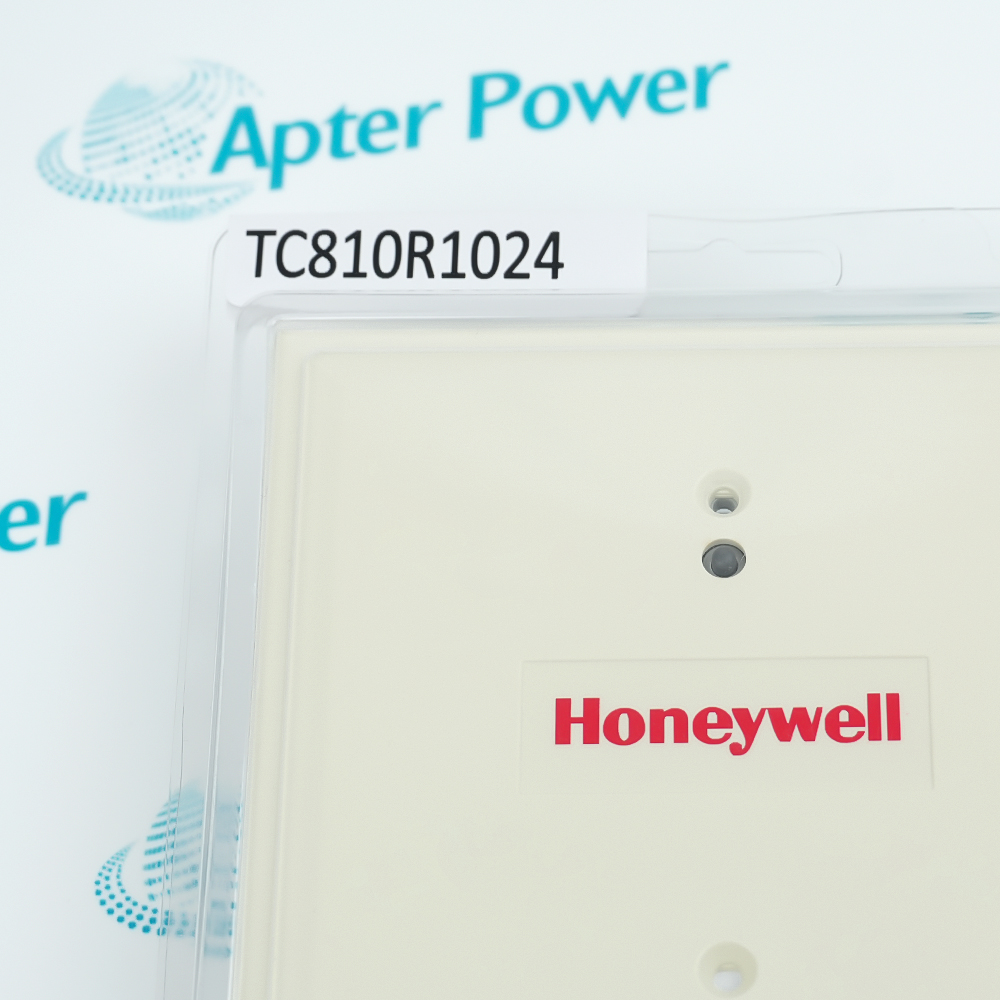

The TC810R1024 is provides the system with a dry- contact output for activating a variety of auxiliary devices, such as fans, dampers, control equipment, etc. Addressability allows the dry contact to be activated, either manually or through panel programming, on a select basis.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell TC810R1024 RELAY CONTROL MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Commercial Buildings
Integrated into fire alarm systems in office buildings, this system controls smoke-proof roller shutters, elevator emergency landings, and smoke exhaust fans.
Industrial Facilities
Applied to fire alarm linkage in industrial plants and warehouses, as part of an intelligent address loop, it switches discrete contacts according to control panel instructions to activate various auxiliary fire suppression equipment or alarm devices in industrial sites.
Healthcare Systems
Provides reliable fire safety management in hospitals and rehabilitation centers, supporting the FlashScan communication protocol for rapid response.
Education Campus
A comprehensive fire protection network widely installed in campus buildings, using rotary decimal switches to easily set addresses, enabling logical control of third-party controlled equipment such as ventilation and lighting in teaching buildings and dormitories.
Retail Complexes
Provides flexible auxiliary control solutions for large shopping malls and centers, supporting reliable routine maintenance and fire emergency switching through its compact installation structure and intuitive dual-color LED indicators.
Hospitality Industry
Integrated into the hotel's advanced fire control platform, compatible with CLIP and FlashScan protocols, it enables independent addressing and control of auxiliary safety systems on different floors, enhancing the overall security level of the hotel.
· Builtin type identification automatically identifies these devices to the control panel.
· Internal circuitry and relay powered directly by two-wire SLC loop.The TC810N1013(CDN) module requires power (for horns, strobes, etc.), or audio(for speakers).
· Integral LED “blinks” green each time a communication is received from the control panel and turns on in steady red when activated.
· LED blink may be deselected globally (affects all devices).
· High noise immunity (EMF/RFl)
· The TC810N1013(CDN) may be used to switch 24-volt NAC power, audio (up to 70.7 Vrms).
· Wide viewing angle of LED.
· SEMS screws with clamping plates for wiring ease
· Direct-dial entry of address 01-159 for FlashScan loops 01-99 for CLIP mode loops.
· Speaker, and audible/visual applications may be wired for Class B or A (Style Y or Z).
What is the primary function of the TC810R1024 relay module in a fire alarm system?
The TC810R1024 allows a compatible control panel to switch discrete contacts by code command, providing two isolated sets of Form-C contacts which operate as a DPDT switch.
How is the address of the TC810R1024 module set during installation?
The module uses two rotary decade switches for addressing, allowing installers to set the individual module address from 01 to 159 (or 01 to 99 depending on the panel capability).
Does the TC810R1024 provide any visual indication of its operational status?
Yes, the module includes a bicolor LED that flashes green under normal conditions and turns on steady red when the control panel issues a command to activate the relay.
What are the environmental operating limits for the TC810R1024 module?
The module is designed to operate within a temperature range of 32°F to 120°F (0°C to 49°C) and a humidity range of 10% to 93% non-condensing.
What type of communication protocol does the TC810R1024 use with the control panel?
The TC810R1024 supports both FlashScan and CLIP (Classic Loop Interface Protocol) modes to ensure compatibility with various Honeywell intelligent fire alarm control panels.
