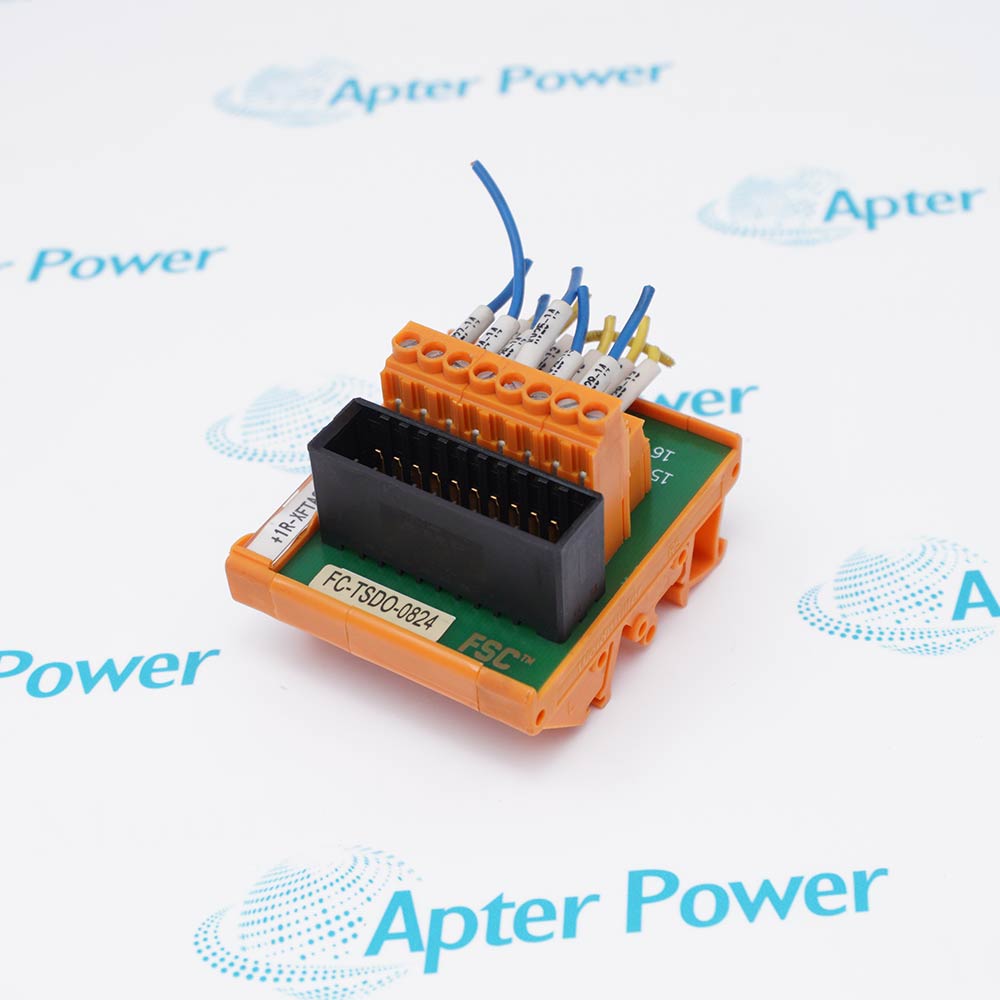

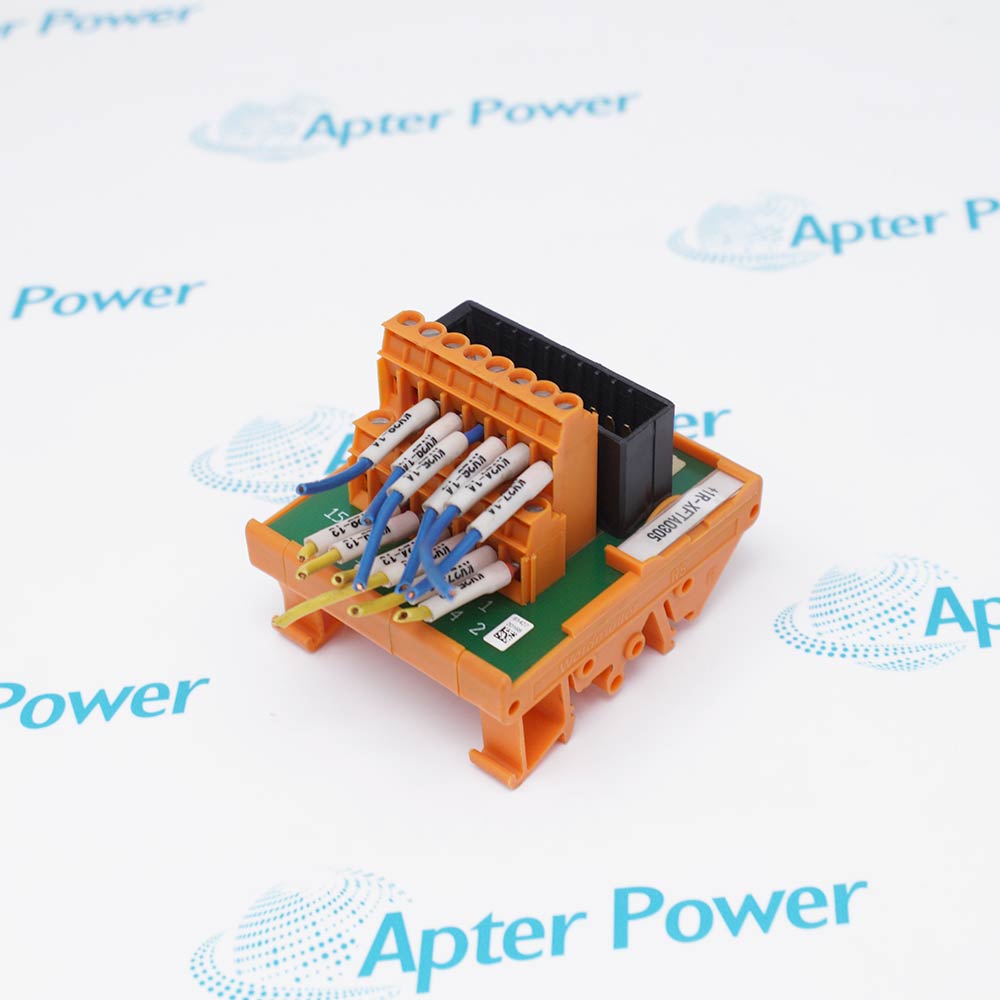

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for FC-TSDO-0824
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for FC-TSDO-0824
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:FC-TSDO-0824
-
Estimated shipping dimensions:7x6x5.5cm
-
Weight:0.05 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Output channels:8
-
Maximum voltage:36 Vdc
-
Maximum continuous current:1.5 A/channel
-
DIN rail:TS32; TS35 x 7.5
-
Terminal wire size:2.5 mm2 maximum
-
Terminal torque:0.5 Nm
-
Approvals:CE; TUV; UL; CSA; FM
Information
Overview
Manuals
Common Applications
Product Precautions
Honeywell FC-TSDO-0824 is an eight-channel safe digital-output FTA. It connects an SDO-0824 output module and system interconnection cable to external 24 Vdc field wiring.
- Terminates safety-related digital output circuits
- Connects the output module through an SICC cable
- Routes safety commands to protected field loads
- Provides DIN-rail screw-terminal access
FC-TSDO-0824 installs with SDO-0824 safe output module, SICC-0001/Lx interconnection cable, 24 Vdc field supply, Safe solenoid or indication load in an engineered Safety Manager configuration.
The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this safe digital output field termination assembly.
Important Notice: Confirm the complete FC-TSDO-0824 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.
Apter Power FC-TSDO-0824 Manuals and Guides
Apter Power FC-TSDO-0824 Product Technical Reference PDFApter Power FC-TSDO-0824 Installation / Application / Verification PDF
The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
Emergency shutdown solenoidsTerminates safety-related digital output circuits
Burner trip circuitsConnects the output module through an SICC cable
Fire-and-gas isolation outputsRoutes safety commands to protected field loads
Machine safety contactor commandsProvides DIN-rail screw-terminal access
Read the applicable Honeywell installation instructions before work. Verify FC-TSDO-0824 and the installed Safety Manager configuration.
1Verify the complete FC-TSDO-0824 marking and the assigned Safety Manager position before field work.
2Isolate the applicable power, network and field energy before disconnecting FC-TSDO-0824.
3Use ESD controls and protect the keyed connectors of FC-TSDO-0824 during handling.
4Record the installed wiring, jumpers, node or channel assignment before replacement.
5Confirm SDO-0824 safe output module and SICC-0001/Lx interconnection cable against the approved system configuration.
6Restore FC-TSDO-0824 under controlled conditions and review the product-specific diagnostics.
7Complete a functional test for emergency shutdown solenoids before production release.
Technical notes
Use the connected output module's permitted current as the controlling limit, apply the documented terminal torque and prove the de-energized safe state.
FAQ View All FAQ
-
What as-found wiring record is required for the FC-TSDO-0824 Safe Digital Output Field Termination Assembly in Emergency shutdown solenoids?Record terminal identity, polarity, shields, jumpers, cable tags and the as-found diagnostic state for FC-TSDO-0824.
-
Which Safety Manager configuration must be checked when commissioning the FC-TSDO-0824 Safe Digital Output Field Termination Assembly?Verify the assigned channel, slot, node or interface and compare it with the approved Safety Manager configuration before enabling FC-TSDO-0824.
-
How can the FC-TSDO-0824 Safe Digital Output Field Termination Assembly be function-tested for Burner trip circuits without disturbing the process?Use a controlled stimulus or limited command, observe the expected system indication and confirm the intended response while normal interlocks remain effective.
-
Which diagnostics should be reviewed if the FC-TSDO-0824 Safe Digital Output Field Termination Assembly stops performing its assigned system function?Check seating, the matched SDO-0824 safe output module, the condition of SICC-0001/Lx interconnection cable and the model-specific diagnostics before replacing more hardware.
-
Can the FC-TSDO-0824 Safe Digital Output Field Termination Assembly used for Fire-and-gas isolation outputs be transferred to another Safety Manager position without engineering review?No. Confirm the hardware execution, connector scheme and approved Safety Manager configuration before transferring FC-TSDO-0824 to a different duty.
-
What evidence should be retained after the FC-TSDO-0824 Safe Digital Output Field Termination Assembly returns to Machine safety contactor commands service?Retain the physical identification, as-left wiring or configuration, final diagnostics and controlled functional-test result for FC-TSDO-0824.
-
Which SDO-0824 safe output module identity must be verified before fitting the FC-TSDO-0824 Safe Digital Output Field Termination Assembly?Match the complete FC-TSDO-0824 marking, assigned Safety Manager position and installed SDO-0824 safe output module before work.
-
How should SICC-0001/Lx interconnection cable be isolated before disconnecting the FC-TSDO-0824 Safe Digital Output Field Termination Assembly?Place the affected process in its approved maintenance state, isolate applicable energy and prove SICC-0001/Lx interconnection cable safe before disconnection.
