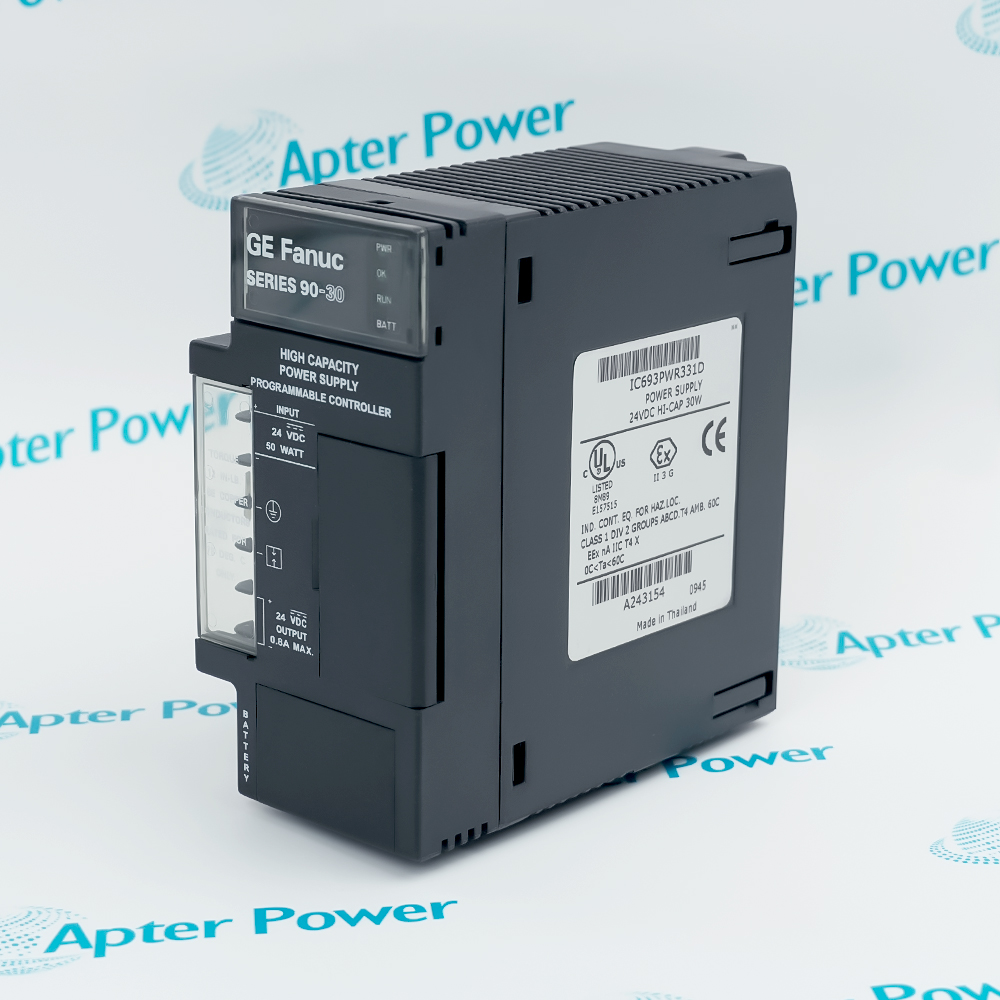

The IC693PWR331D is an industrial-grade power module manufactured by General Electric. It is typically used in GE Fanuc series 90-30 PLC systems as a power supply component for the baseboard.
Full +5V Output Flexibility
Wide Input Operating Range
Triple Isolated Outputs & Versatility
The Series 90-30 DC input High Capacity power supply (IC693PWR33 1) is a 30 watt wide range supply designed for 24 VDC nominal inputs. For applications requiring greater +5V current capacity than is available with the standard supply, this supply allows all 30 watts to be consumed from the +5 V output. It will accept an input voltage range from 2 VDC to 30 VDC. Although it is capable of maintaining all outputs within specifications with input voltages as low as will not start with initial input voltages of less than 2 VDC, it 8 VDC. The Series 90-30 DC input High Capacity power supply (IC693PWR33 ) is a 30 watt wide range supply designed for 24 VDC nominal inputs. For applications requiring greater +5V current capacity than is available with the standard supply, this supply allows all 30 watts to be consumed from the +5 V output. It will accept an input voltage range from 12 VDC to 30 VDC. Although it is capable of maintaining all outputs within specifications with input voltages as low as will not start with initial input voltages of less than 12 VDC, it 18 VDC.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric IC693PWR331D POWER SUPPLY Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Used in long-distance pipeline monitoring (SCADA) systems to maintain PLC logic operation in DC power environments.
Natural Gas
Controlling flow regulation valves, utilizing high-capacity features to support multiple analog modules.
Wastewater Treatment
Driving aeration tank control systems; its isolated output can power field level sensors.
Automotive Assembly Lines
Supporting PLCs at robotic stations, ensuring ample +5V supply during large-scale I/O data exchange.
Continuous Casting Control
Providing highly reliable power for cooling control systems in high-heat and high-interference steel mill environments.
Paper Drying Systems
Managing drying roller temperature control; its wide voltage range adapts to voltage dips in heavy industrial grids.
When using the IC693PWR331D, the primary focus should be on its startup voltage limitation, while it can maintain operation at 12V DC, an initial startup voltage of at least 18V DC is typically required for stability. Given its 30W full +5V output capability, it is essential to strictly calculate the total power consumption (Power Budget) of all modules on the backplane to avoid overloading. Additionally, ensure the grounding screw at the bottom is properly connected to suppress EMI, and regularly check the status of the internal backup battery to prevent loss of CPU memory data during power outages.
It is a High Capacity Power Supply Module for the Series 90-30 PLC, manufactured by GE Fanuc. It is responsible for providing power to the CPU and I/O modules on the baseplate.
What is the purpose of the serial port on IC693PWR331D?
It features an integrated RS-485 serial port used for PLC programming, system diagnostics, and connecting to external monitoring devices.
How does IC693PWR331D retain data during power-off?
The module includes a built-in backup battery to maintain the CPU's memory (RAM) programs and clock data during power outages.
In which slot should IC693PWR331D be installed?
It must be installed in the dedicated leftmost power supply slot of the Series 90-30 PLC baseplate.
How does IC693PWR331D demonstrate flexibility in use?ate?
Its flexibility lies in the Full +5V Output capacity, allowing users to allocate power freely based on the specific consumption of various I/O modules.
