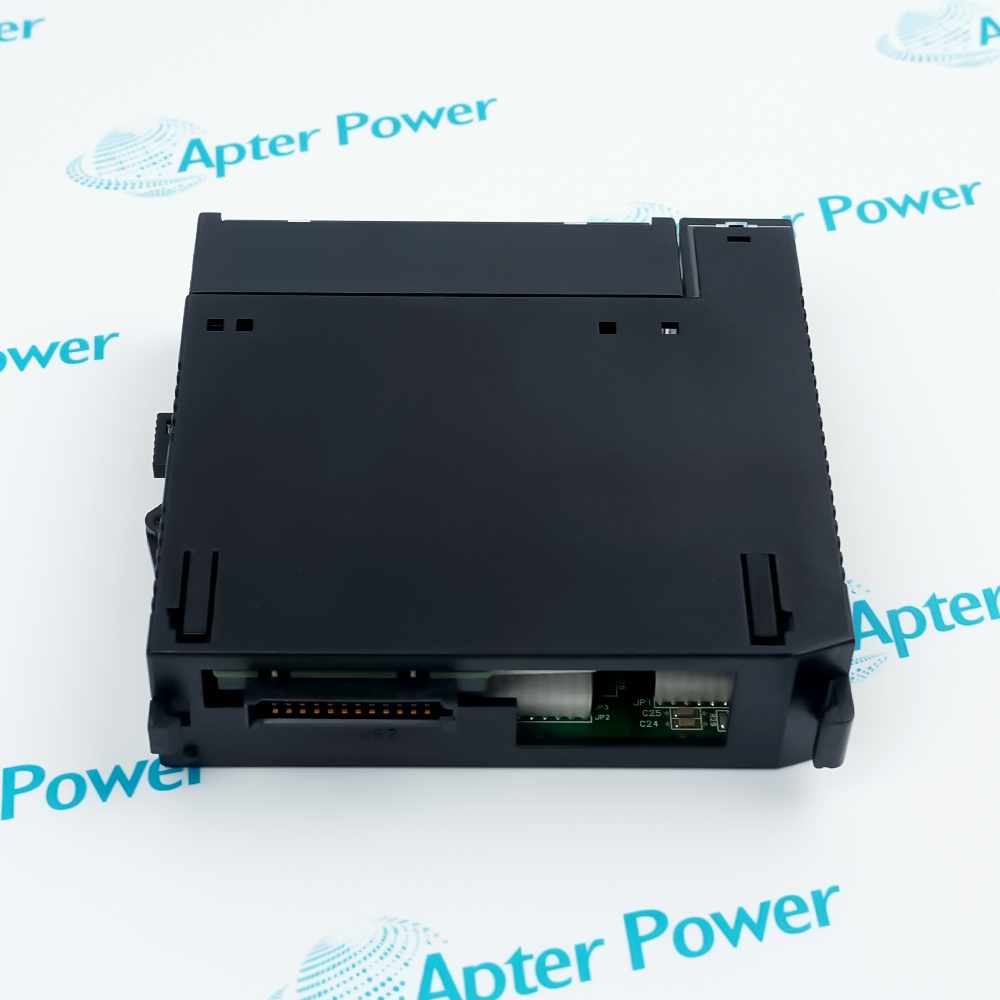

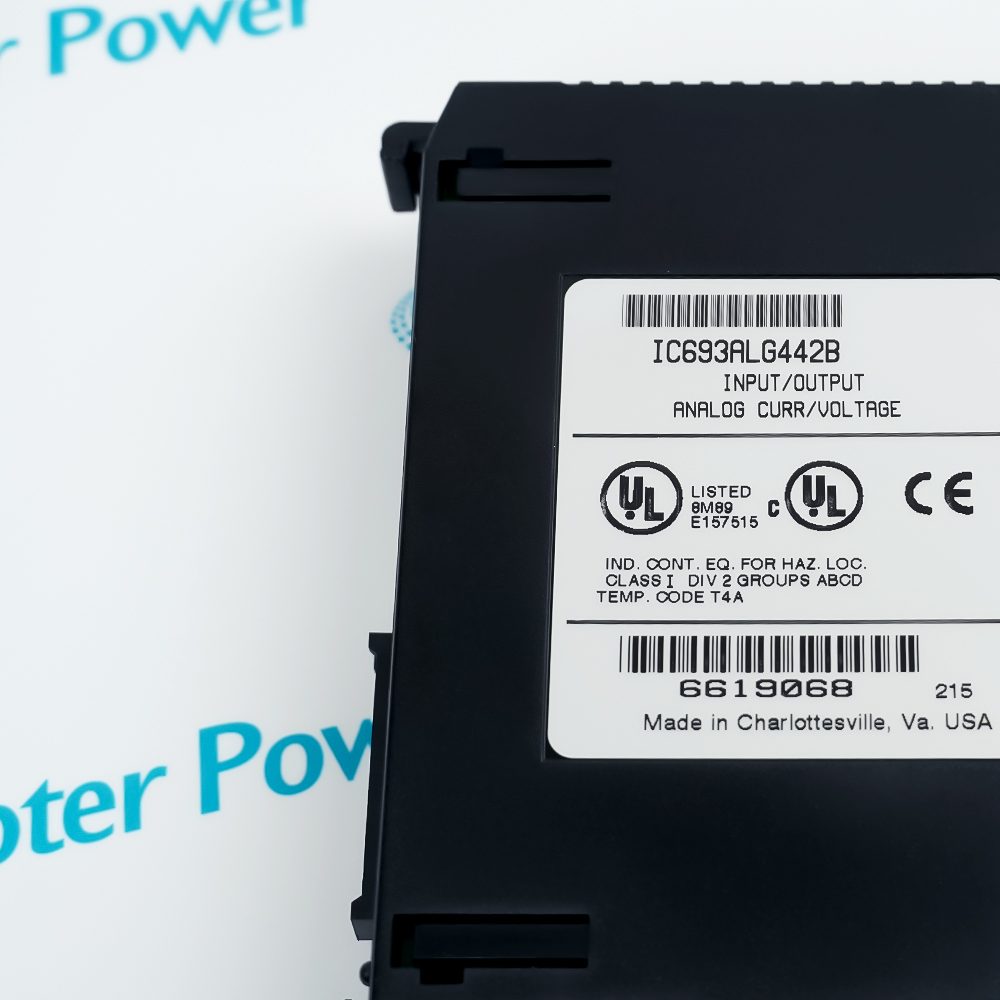

The IC693ALG442 is a combination module from GE Fanuc’s Series 90-30 Programmable Logic Control (PLC) platform. Being a combination module, this module is designed with Four (4) input channels compatible with 0 to +10 volts (unipolar), –10 to +10 volts (bipolar), 0 to 20 mA, 4 to 20 mA, and 4 to 20 mA Enhanced input signals and Two (2) analog outputs providing 0 to +10 volts (unipolar), –10 to +10 volts (bipolar), 0 to 20 mA, 4 to 20 mA output signals.
- Analog Current/Voltage Combination Module
- 2 SINGLE-ENDED OUTPUT CHANNELS
The unipolar mode can scale the user data and that mode is the default mode of this module. It also sends status information and updates to the PLCs such as the performance data of the module, overload open-wire detection, alarm status updates, and status updates about the power of the system which is supplied by the users.
Important Notice:
Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
GE IC693ALG442 ANALOG CURRENT Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Multi channel hybrid configuration: Provides 4 differential analog input channels and 2 single ended analog output channels, for a total of 6 channels.
Flexible signal processing:
Input end: Supports 0 to+10V (default unipolar), -10 to+10V (bipolar), 0-20mA, 4-20mA, and their enhanced modes.
Output end: Supports 0 to+10V, -10 to+10V, 0-20mA, and 4-20mA.
High precision conversion: It has a full range input accuracy of about 0.25% (at 25 ° C) and provides 12 bit resolution.
Quick response update: The input channel update rate is about 8ms, and the output channel update rate is about 4ms.
Ramp Mode: The output channel can be configured to smooth the ramp changes and perform a step every millisecond until the target value is reached.
