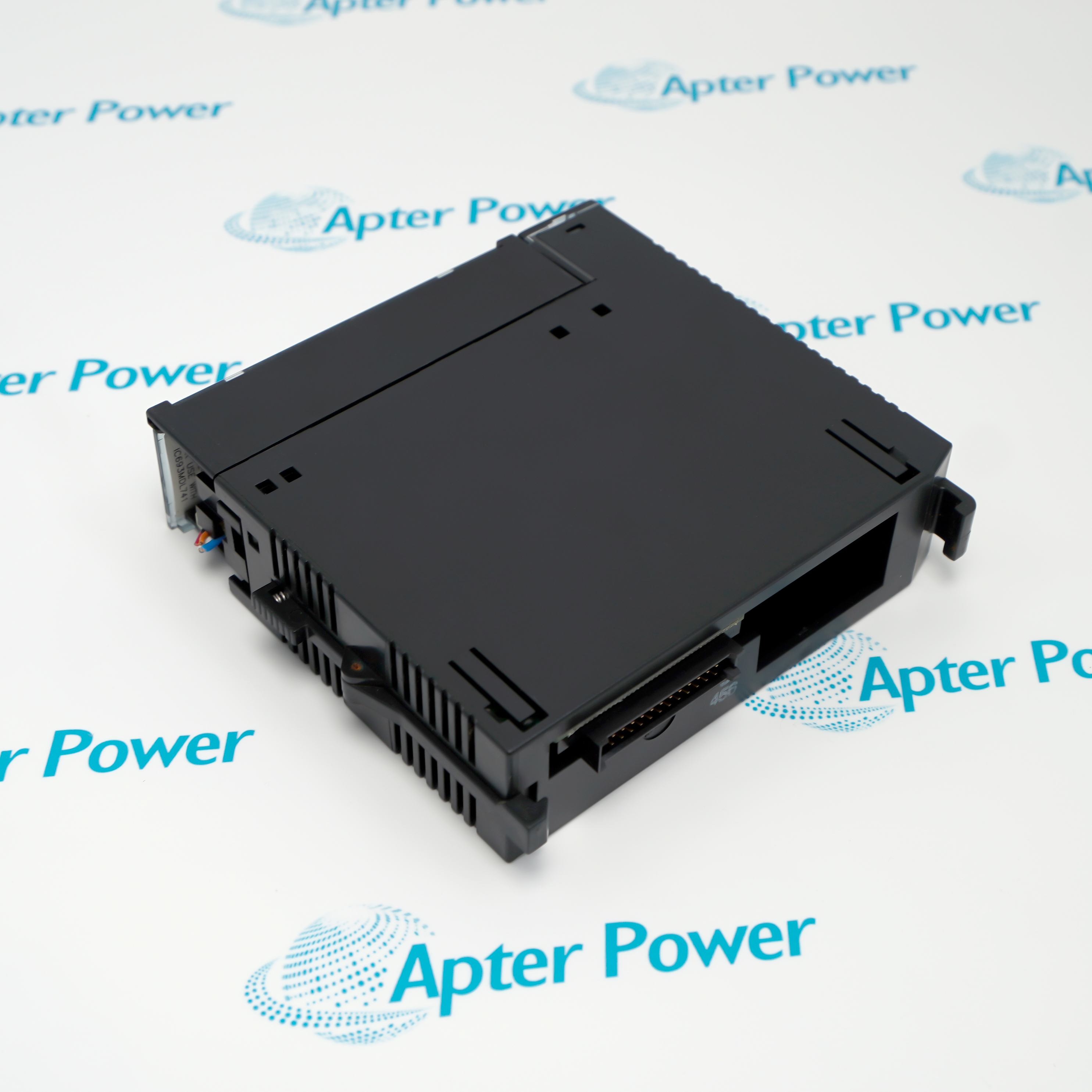

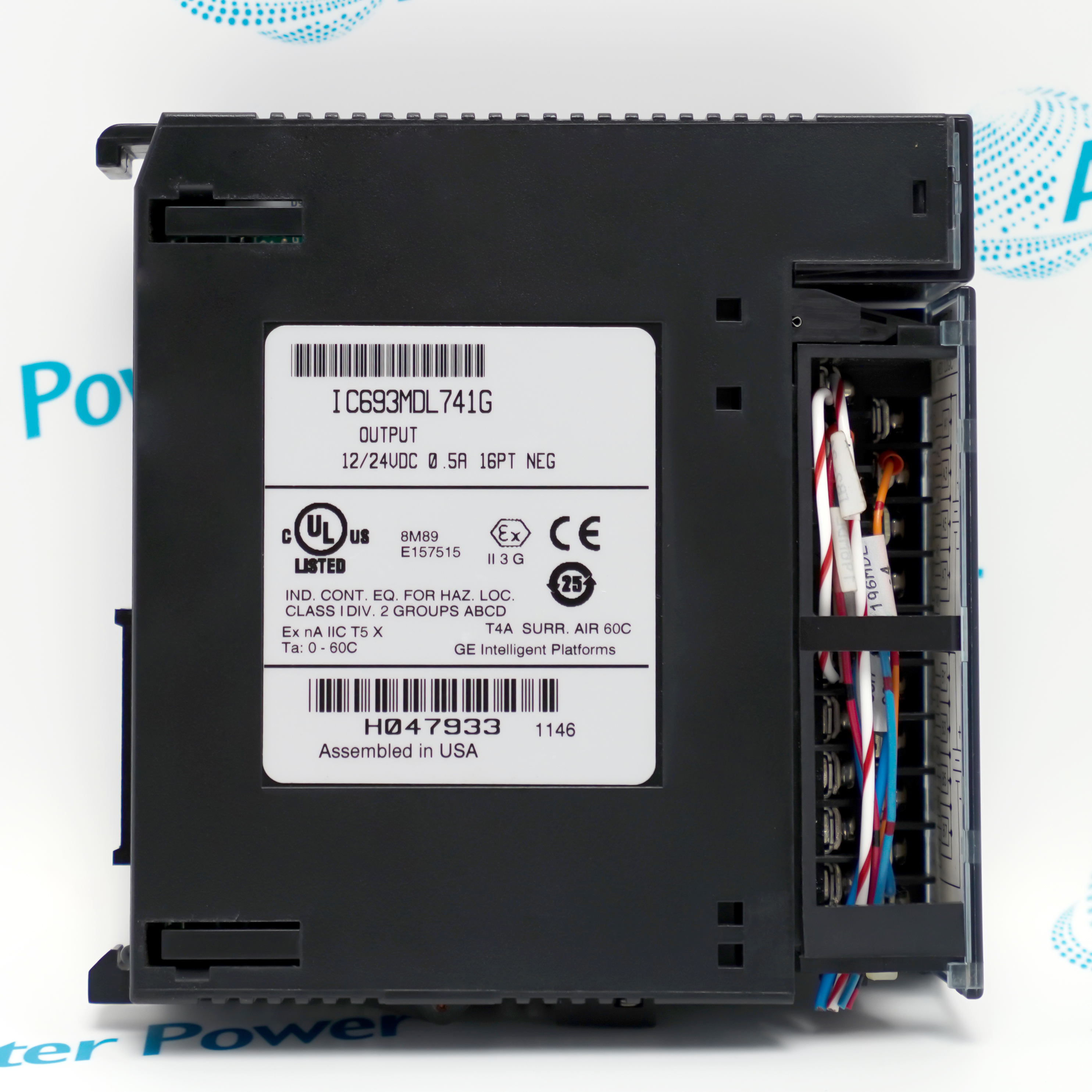

      IC693MDL741C

      Output Module
      In Stock

      Product Describe：

      16-point, 12/24 VDC
      Negative logic (sink)
      Output Module
      Series 90-30, 12/24
      VDC Negative logic
      12/24V DC user supply

      Ask our team:

      Get a quick price for： IC693MDL741C
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Revisions FAQ

      Technical specifications for IC693MDL741C

      Technical specifications for IC693MDL741C

      • Manufacturer:
        General Electric
      • Product Category:
        Gas turbine control
      • Spare Part Number:
        IC693MDL741C
      • Estimated shipping dimensions:
        3.5x13x13.5cm
      • Weight:
        0.26 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Output Channels:
        16 isolated digital outputs
      • Current Rating:
        0.5A per channel
      • Isolation:
        500V AC
      • Output Voltage:
        5-30V DC
      • On-State Voltage Drop:
        ≤1.5V @ 0.5A
      • Peak module current draw:
        110 milliamps
      • Module voltage input:
        5 Volts DC
      • Rated voltage:
        12/ 24 Volts DC
      • Nominal output voltage:
        12 / 24 VDC
      • Current draw:
        110 mA
      Ask for Quote

      Information

      Information

      Overview Manuals Need More Info
      • AC and DC Power Types
      • 8, 16, and 32 Contact Point Modules
      • Multiple Input Voltage Ranges
      The GE IC693MDL741C is a Series 90-30, 12/24 VDC Negative logic output module. This module is formerly produced by GE Fanuc, now acquired by Emerson Automation. It features Sixteen (16) discrete output channels in Two (2) groups of Eight (8) channels.

      It has an output current rating of 0.5 Amperes per point and 2.0 Amperes per common while output groupings are Eight (8) channels per group. This module does not come with individual channel isolation however, group isolation is provided.

      Group to group isolation is rated 500 Volts and 1500 Volts between field side and logic side or optical isolation. This module is also provided with a module insert where users can provide short, written descriptions of assigned outputs.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      GE IC693MDL741C OUTPUT MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.

      With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!

      Revisions

      Revisions

      Revision Part #

      Also known as

      IC693MDL741C
      IC693MDL741-C, Series C, Rev C
      Get Parts Quote
      IC693MDL741D
      IC693MDL741-D, Series D, Rev D
      Get Parts Quote
      IC693MDL741E
      IC693MDL741-E, Series E, Rev E
      Get Parts Quote
      IC693MDL741F
      IC693MDL741-F, Series F, Rev F
      Get Parts Quote
      IC693MDL741G
      IC693MDL741-G, Series G, Rev G
      Get Parts Quote

      FAQS

      • What is IC693MDL741C?
        IC693MDL741C is an Output Module
      • What is the backplane current consumption of the IC693MDL741?
        The IC693MDL741 has backplane current consumption 110 mA.
      • What are the output groupings of the IC693MDL741?
        The IC693MDL741 has Two (2) groups of Eight (8) outputs each.
      • What is the output current of the IC693MDL741?
        The IC693MDL741 has output current of 0.5 mA per point and 2 Amperes per common.
      • What are the basic specifications of the IC693MDL741C Output Module?
        It is a discrete DC output module designed to control field devices such as relays, solenoids, and indicator lamps in industrial automation systems.
      • What is the rated output voltage of the IC693MDL741C?
        The module operates with a nominal 24 V DC output suitable for standard industrial loads.
      • What is the maximum output current per channel?
        Each output channel typically supports up to 0.5 A of DC current, with total module current limited by design specifications.
