What is IC693DNM200-BC?

IC693DNM200-BC is a DeviceNet Master Module.

What are the communication rates supported by the IC693DNM200?

The IC693DNM200 supports 125K, 250K and 500K transmission rates.

How many slots does the IC693DNM200 occupy in the baseplate?

The IC693DNM200 occupies a single slot only.

How many DeviceNet slaves can be connected to the IC693DNM200?

The IC693DNM200 can be connected to up to 63 slave nodes.

Product image is representative; revision or series may vary. Contact us to request a specific version.

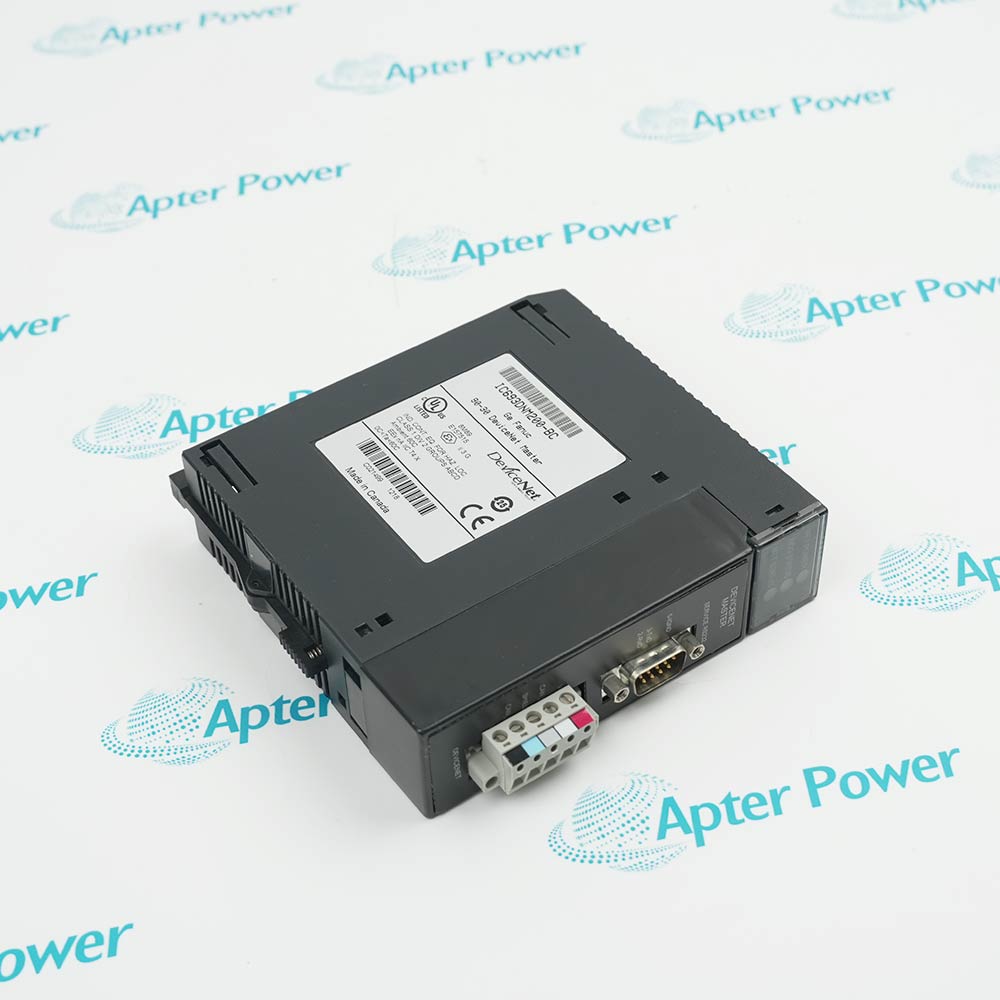

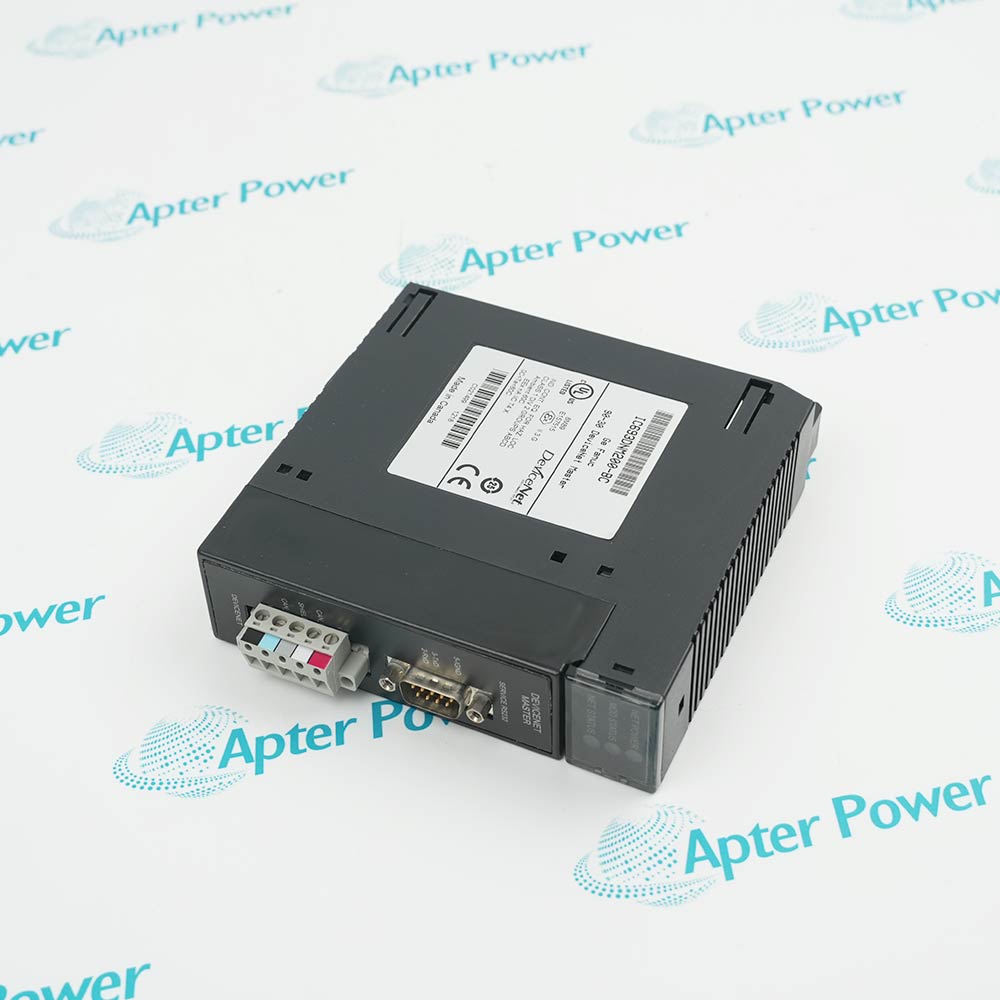

IC693DNM200-BC

Name: IC693DNM200-BC
Brand: General Electric
SKU: IC693DNM200-BC

DeviceNet Master Module

In Stock

Product Describe：

DeviceNet Master Module
Supported network
DeviceNet
Communication speed
125K, 250K and 500K

Ask our team:

Phone:
+86 180 3023 5313
E-Mail:
sales13@apterpower.com

Get a quick price for： IC693DNM200-BC

Quantity*

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy.

Technical specifications FAQ

Technical specifications for IC693DNM200-BC

Manufacturer:

General Electric
Product Category:

Gas turbine control
Spare Part Number:

IC693DNM200-BC
Estimated shipping dimensions:

3.5x13.2x13.5cm
Weight:

0.35 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Supported data rates:

125K, 250K and 500K Baud
Rated voltage:

12 to 24 Volts DC, positive logic
Module Width:

Single slot
ON-state voltage drop:

0.3 Volts DC
No. of slaves:

up to 63 DeviceNet slaves
ON / OFF response times:

0.5 milliseconds (maximum)
Output current:

0.5 Amps per point
Connection:

Poll, Strobe, Cyclic and COS I/O
Backplane current consumption:

450 milliAmps at 5 Volts DC (typical)
Backplane Current draw:

450mA at 5VDC (typical)

Ask for Quote

FAQS

What is IC693DNM200-BC?

IC693DNM200-BC is a DeviceNet Master Module.
What are the communication rates supported by the IC693DNM200?

The IC693DNM200 supports 125K, 250K and 500K transmission rates.
How many slots does the IC693DNM200 occupy in the baseplate?

The IC693DNM200 occupies a single slot only.
How many DeviceNet slaves can be connected to the IC693DNM200?

The IC693DNM200 can be connected to up to 63 slave nodes.
