Technical specifications for IC693CMM302
-
Manufacturer:General Electric
-
Product Category:Gas Turbine Control
-
Spare Part Number:IC693CMM302
-
Estimated shipping dimensions:5.1x15.2x12.7cm
-
Weight:0.4 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Current consumption:less than 300mA at+5V DC voltage
-
Number of bus devices:Each module supports up to 31 Genius bus devices
-
Data capacity:Supports sending and receiving global data of 128 bytes per module
-
Memory capacity:Some documents indicate 1 Kbyte
-
Support register types:including global registers (% G), discrete input/output (% I/% Q), analog input/output (% AI/% AQ), and register memory (% R)
-
Working temperature:0 ° C to+60 ° C
-
Storage temperature:-25 ° C to+70 ° C
-
Humidity:5% to 95% (without condensation)
-
Seismic resistance:0.2 inch displacement at 5Hz-10Hz
-
Impact resistance:5G, lasting for 10ms
Information
Overview
Manuals
Core application scenarios
Application advantages

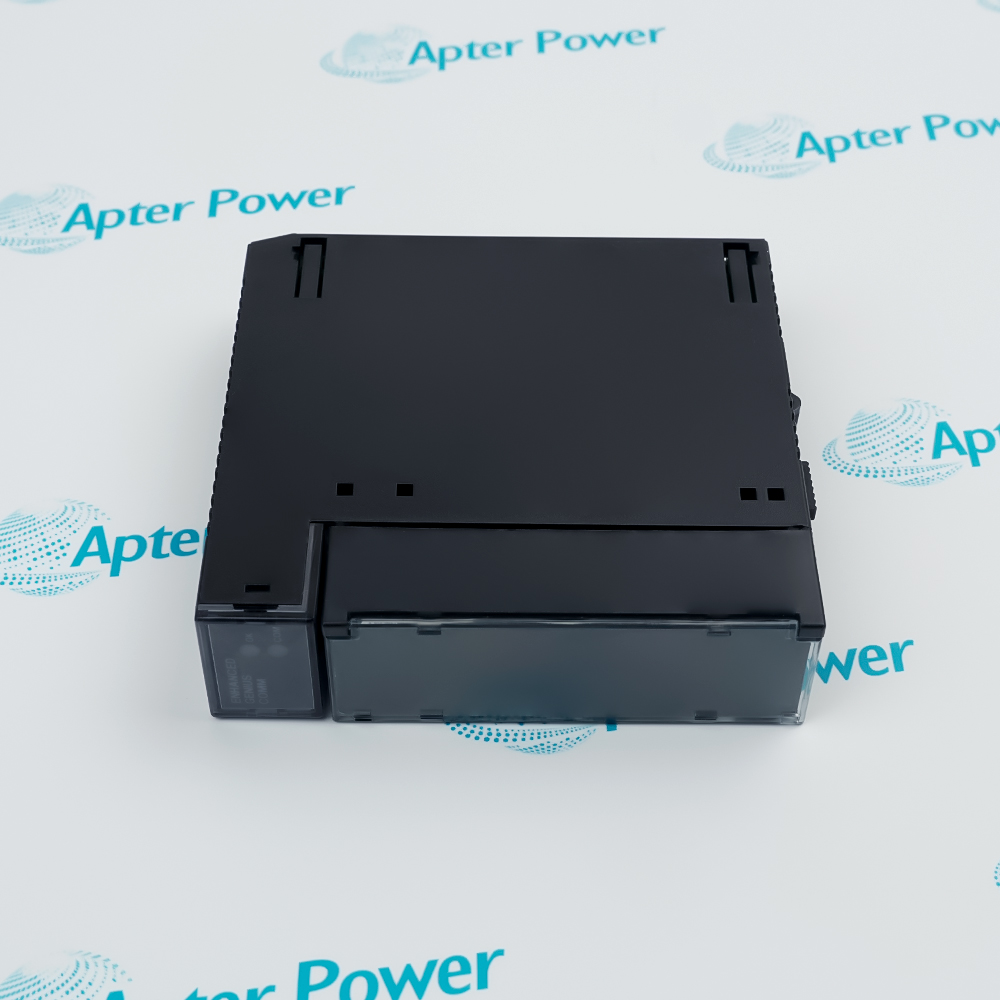

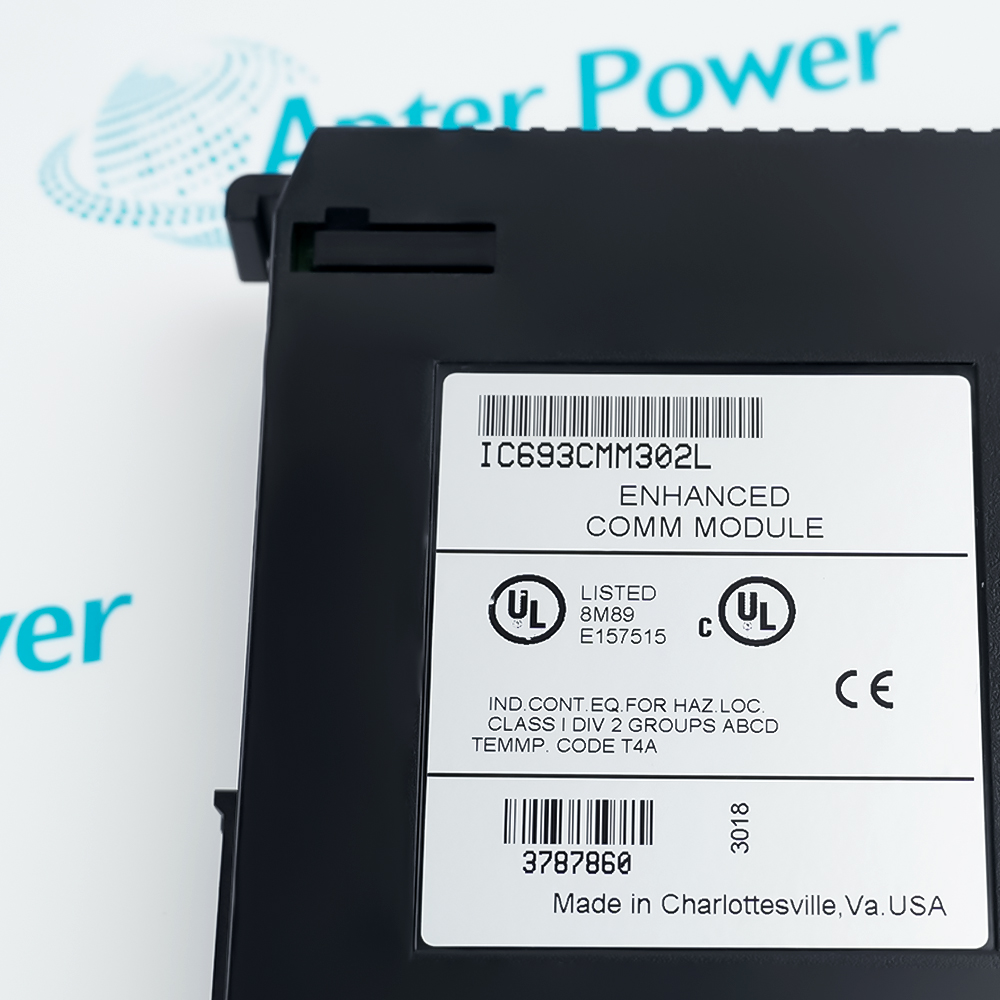

The IC693CMM302 is a Genius communication module that is part of the Series 90-30 Programmable Logic Controller (PAC) series formerly manufactured by GE Fanuc Automation, now under Emerson Automation. This module supports data exchange up to 31 devices with a global data length size of 128 bytes (Transmit) and 128 Bytes (receive) from up to 31 other devices.
- Data monitoring by a personal computer or an industrial computer
- Monitoring data from Genius I/O blocks (although it cannot control Genius I/O blocks).
- Peer-to-peer communications among devices on the bus
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
GE IC693CMM302 Enhanced Genius Communications Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
This module typically undertakes the following specific tasks in the aforementioned industries:
Distributed Control System (DCS) Integration: In large factories, multiple 90-30 PLCs are connected through the Genius bus to form a unified control platform.
Global data sharing: achieving high-speed and automated synchronization of state and control information between different controllers.
High reliability redundant system: In hazardous industries such as oil and gas, a redundant system is constructed using the fault-tolerant characteristics of the Genius protocol to ensure that the system can still operate when the communication link is partially damaged.
Real time data monitoring: allows industrial PCs to extract register data (such as% G,% R, etc.) from PLCs in real time for display in the upper computer configuration software (HMI/SCADA).
Long distance transmission: The Genius bus supports transmission distances of up to 1200 meters (4000 feet) or more, making it suitable for large-scale factory layouts.
High anti-interference ability: specially designed for harsh industrial environments, with extremely strong electromagnetic compatibility and resistance to mechanical impact.
Revisions
Revision Part #
Also known as
FAQ View All FAQ
-
How many devices does the IC693CMM302 support?The IC693CMM302 supports up to 31 devices.
-
What are the global data length of supported by the IC693CMM302?The IC693CMM302 supports 128bytes of transmitted and received data.
-
How many IC693CMM302 modules can be installed to a single controller?Up to 2 instances of IC693CMM302 can be installed er controller.
-
What is the IC693CMM302?It is an Enhanced Genius Communications module (GCM+) for the GE Fanuc Series 90-30 PLC, used for networked communication and distributed I/O.
-
How many devices can the IC693CMM302 connect to?It can communicate with up to 31 other devices on a Genius bus.
-
What is the IC693CMM302 data capacity?It supports global data up to 128 bytes per GCM+ for both transmitted and received data.
-
What racks can I use?It can be installed in any CPU rack, expansion rack, or remote I/O rack in a Series 90-30 system.
-
What do the IC693CMM302 LEDs indicate?It features two main LED indicators: OK and COMM.
