      Emerson KJ2005X1-SQ1-12P6383X022
      Emerson KJ2005X1-SQ1-12P6383X022
      Emerson KJ2005X1-SQ1-12P6383X022
      Emerson KJ2005X1-SQ1-12P6383X022
      Emerson KJ2005X1-SQ1-12P6383X022
      Emerson KJ2005X1-SQ1-12P6383X022

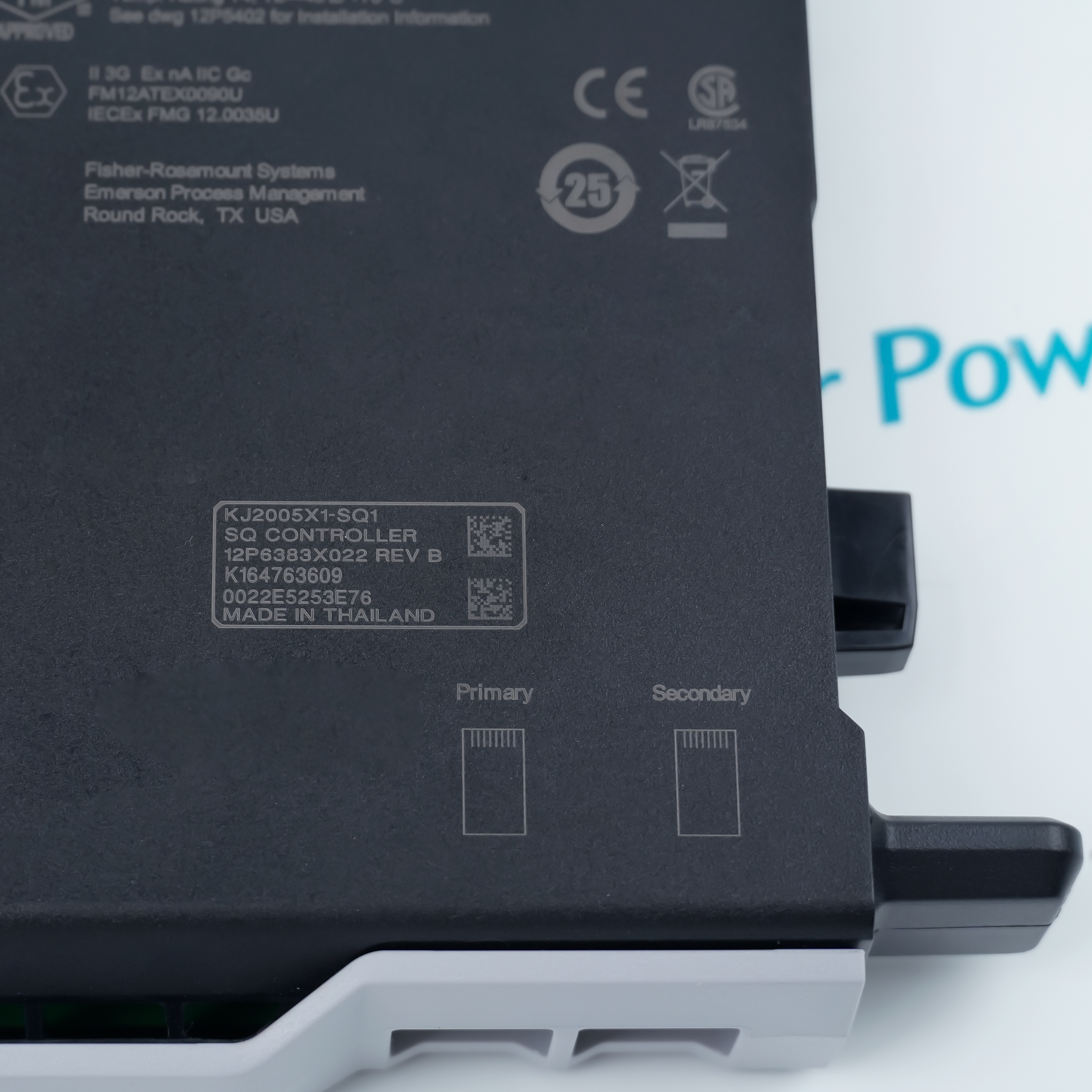

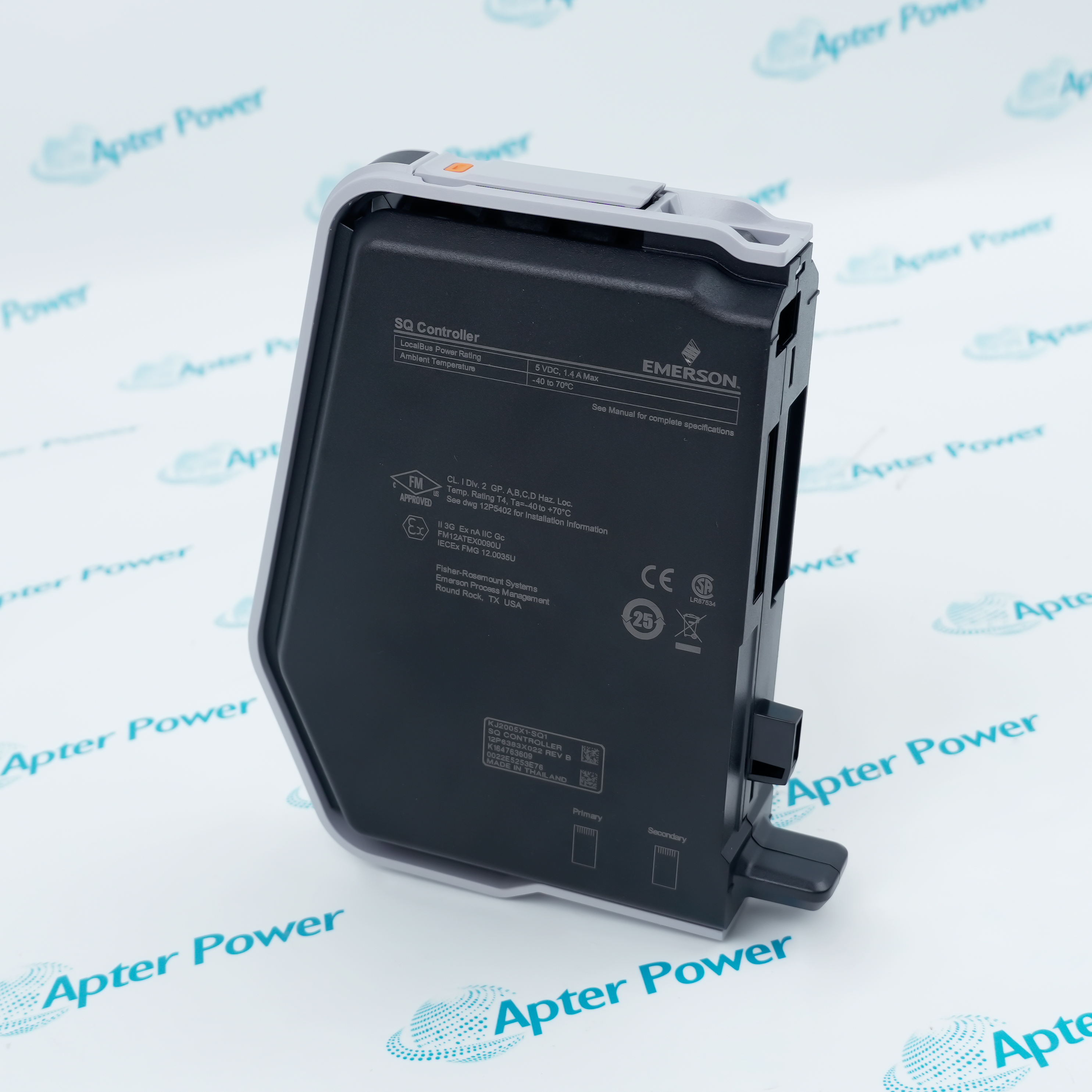

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      KJ2005X1-SQ1-12P6383X022

      DeltaV SQ Controller
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      Emerson KJ2005X1-SQ1-12P6383X022 is a DeltaV SQ controller for small-to-moderate process-control applications. It executes control logic, communicates with DeltaV I/O and network nodes, and supports simplex or 1:1 redundant controller operation.

      Ask our team:

      Get a quick price for： KJ2005X1-SQ1-12P6383X022
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for KJ2005X1-SQ1-12P6383X022

      Technical specifications for KJ2005X1-SQ1-12P6383X022

      • Manufacturer:
        Emerson
      • Product Category:
        DCS System
      • Spare Part Number:
        12P6383X022
      • Estimated shipping dimensions:
        4x16.6x19.8cm
      • Weight:
        0.4 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Controller model:
        SQ
      • DeltaV model number:
        SE3008
      • User memory:
        48 MB
      • DST limit:
        750
      • SCADA tags:
        3200
      • Maximum data values sent:
        2000 per second
      • Maximum data values received:
        250 per second
      • Maximum unsolicited client nodes:
        64
      • Module execution rates:
        100 ms to 60 s
      • Typical power dissipation:
        5.0 W
      • Maximum power dissipation:
        7.0 W
      • Operating temperature:
        -40 to +70 deg C
      • Storage temperature:
        -40 to +85 deg C
      • Relative humidity:
        5 to 95 percent, non-condensing
      • Protection rating:
        IP20
      • Primary/secondary network:
        8-pin RJ45
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      KJ2005X1-SQ1-12P6383X022 executes scheduled DeltaV strategies and coordinates the installed I/O and control-network connections.
      • Executes scheduled DeltaV control strategies
      • Supports traditional, CHARM and WirelessHART I/O
      • Uses Explorer Auto-Sense for controller commissioning
      • Supports simplex or one-to-one redundant operation

      The SQ controller operates with traditional, CHARM and WirelessHART I/O through the documented DeltaV architecture. Explorer Auto-Sense commissioning, controller software compatibility and redundancy configuration must agree with the installed system.

      Important Notice: Confirm KJ2005X1-SQ1-12P6383X022, SQ model SE3008, carrier, dedicated supply, controller hardware version, both RJ45 network paths, DeltaV software, I/O topology, redundancy license, grounding, diagnostics and controlled switchover results before commissioning.

      Apter Power KJ2005X1-SQ1-12P6383X022 Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      Small process-unit control
      Executes regulatory and sequence strategies for a compact DeltaV process area.
      CHARMs electronic marshalling
      Coordinates controller execution with the documented CHARM I/O topology.
      Distributed DeltaV I/O
      Exchanges process data with traditional and remote I/O nodes over the approved network.
      Redundant controller modernization
      Provides a one-to-one standby arrangement with controlled switchover verification.
      Read the applicable Emerson installation instructions before work. Verify KJ2005X1-SQ1-12P6383X022, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm KJ2005X1-SQ1-12P6383X022, DeltaV SQ model SE3008 and the installed carrier position.
      2
      Place the controlled process and all final elements in the approved maintenance state.
      3
      Isolate the dedicated controller supply and apply ESD controls before handling the unit.
      4
      Record primary and secondary RJ45 network connections and every assigned I/O node.
      5
      Confirm the S-series power/controller carrier, dedicated supply and cabinet grounding.
      6
      Restore the approved DeltaV project, software version and Explorer controller assignment.
      7
      For redundant service, confirm same-series hardware, redundancy license and standby commissioning.
      8
      Review diagnostics and complete a controlled process test and redundancy transfer before release.

      Alternative Names

      Alternative Names

      12P6383X022; SQ Controller SE3008

      Technical notes

      Technical notes

      Mount KJ2005X1-SQ1-12P6383X022 on the documented S-series power/controller carrier with its dedicated power supply, and record both RJ45 control-network paths before removal. Restore the approved DeltaV software, redundancy license and I/O topology, then verify controller diagnostics and a controlled primary-to-standby transfer where redundancy is installed.

      FAQS

      • Which carrier and supply are required for KJ2005X1-SQ1-12P6383X022?
        Use the documented S-series power/controller carrier and a dedicated controller power supply; preserve the installed carrier and grounding arrangement.
      • Which I/O architectures can KJ2005X1-SQ1-12P6383X022 coordinate?
        The SQ controller supports traditional DeltaV I/O, CHARM I/O and WirelessHART I/O in the approved project topology.
      • How is KJ2005X1-SQ1-12P6383X022 connected to the DeltaV control network?
        Record and restore the primary and secondary control-network connections on the two 8-pin RJ45 ports.
      • What execution-rate choices are documented for KJ2005X1-SQ1-12P6383X022?
        The documented module execution rates are 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 30 s and 60 s.
      • What controller capacity should be checked for KJ2005X1-SQ1-12P6383X022?
        Confirm the 48 MB user-memory execution, 750 DST limit, 3200 SCADA tags and the documented send/receive limits against the project.
      • Which environmental limits apply to KJ2005X1-SQ1-12P6383X022?
        The documented operating range is -40 to +70 deg C with 5 to 95 percent non-condensing humidity and IP20 protection.
      • Can KJ2005X1-SQ1-12P6383X022 be used in a redundant controller pair?
        Yes. Use a one-to-one SQ controller pair with compatible same-series hardware, dedicated supplies, the approved software and the required redundancy license.
      • What proves KJ2005X1-SQ1-12P6383X022 is ready after replacement?
        Verify Explorer commissioning, network and I/O diagnostics, strategy execution and a controlled primary-to-standby transfer when redundancy is configured.
