Where is IC752SPL013 installed in an EX2100 system?

The diagnostic interface is mounted on the exciter cabinet door and connected to the configured EX2100 control.

Which quantities can IC752SPL013 monitor?

The interface can display selected frequency, current, power and voltage values available from the EX2100 system.

How many status variables can IC752SPL013 show?

The status screen supports up to eight selected variables; the first two can be presented with text and animated meters.

Which local commands are available through IC752SPL013?

The documented interface includes Run, Stop, Auto, Manual and fault-reset functions, subject to the system interlocks and user privilege.

How should faults be reviewed on IC752SPL013?

Review current faults in order, record the active entries, use reset only under the approved procedure and retain the fault-history evidence.

Can IC752SPL013 be used to change EX2100 parameters?

Menu access can display and adjust permitted parameters when the correct password and privilege level are active.

What configuration should be recorded before replacing IC752SPL013?

Record the cable and connector orientation, display-variable selection, contrast, privilege level, active faults and the EX2100 hardware and firmware information.

What confirms IC752SPL013 is ready after installation?

Verify Status and Menu navigation, monitored values, fault list and history, security access and controlled local commands with normal EX2100 diagnostics.

IC752SPL013

Name: IC752SPL013
Brand: General Electric
SKU: IC752SPL013

EX2100 Diagnostic Interface Keypad

General Electric IC752SPL013 front panel, black faceplate with LCD, navigation keys and On/Off buttons, EX2100 control

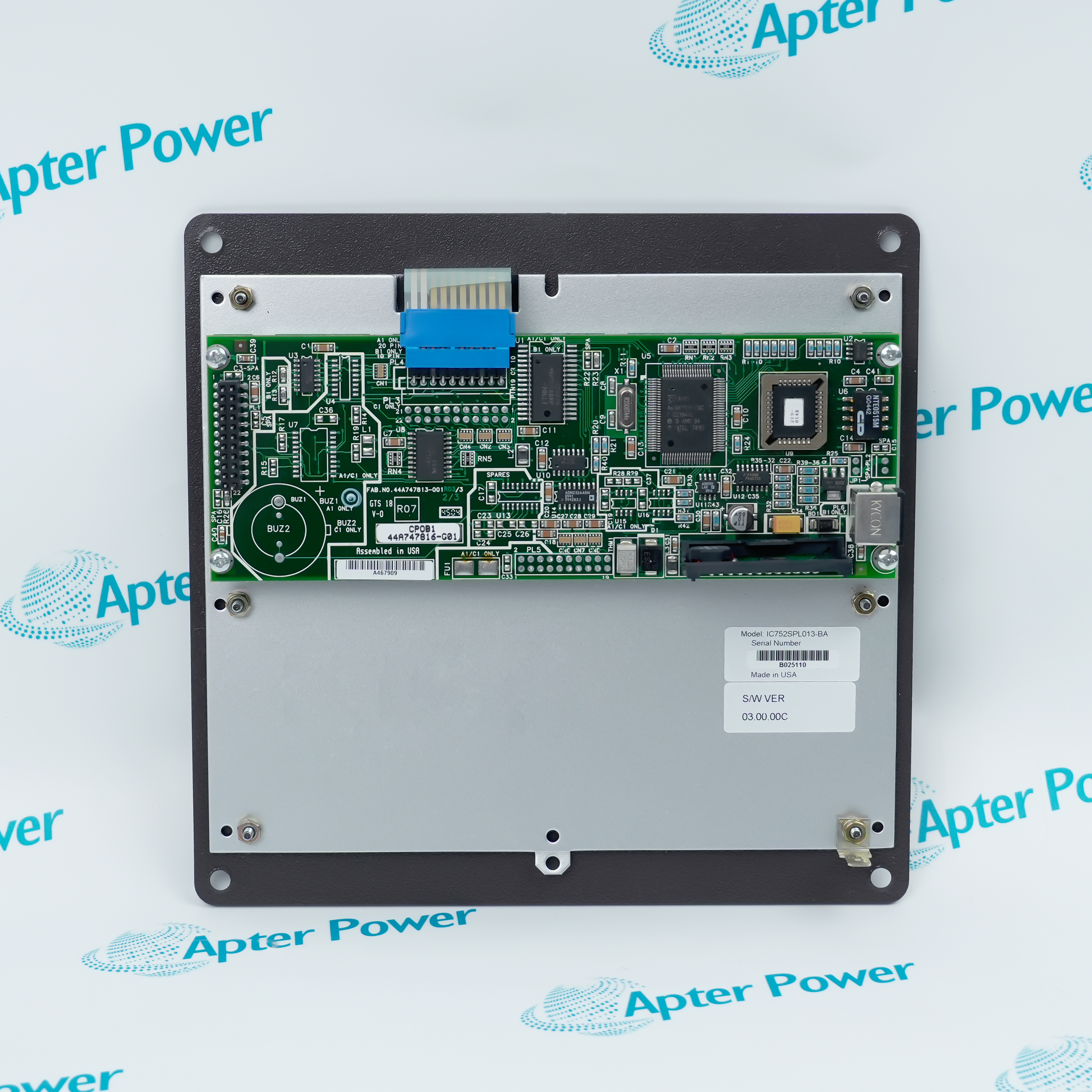

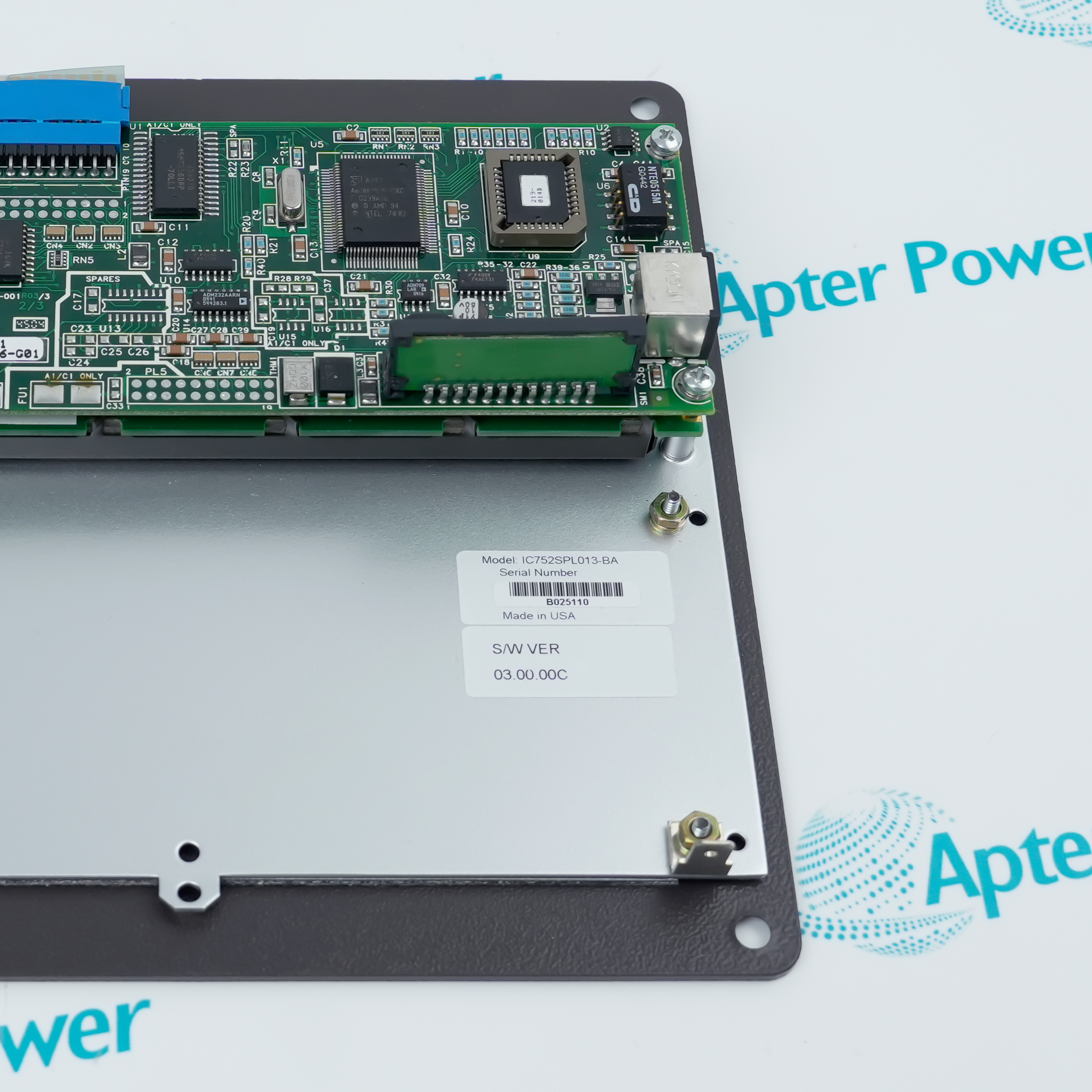

General Electric IC752SPL013 rear of panel, circuit board with model label IC752SPL013-BA and S/W VER 03.00.00C

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

GE IC752SPL013 is a door-mounted diagnostic interface keypad for an EX2100 excitation-control installation. It displays operating values and faults and provides local exciter commands, parameter access and diagnostic navigation.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for IC752SPL013

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for IC752SPL013

Manufacturer:

General Electric
Product Category:

Gas Turbine Control
Spare Part Number:

IC752SPL013
Estimated shipping dimensions:

18.8x16.4x4cm
Weight:

0.54 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Interface location:

Door mounted
Screen modes:

Status and Menu
Status variables:

Up to 8
Animated meter variables:

First 2
Monitored quantities:

Frequency, current, power and voltage
Exciter commands:

Run and Stop
Control modes:

Auto and Manual
Fault functions:

Display, reset and history
Security code:

5 digits
Privilege levels:

3

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

IC752SPL013 provides local EX2100 status, command and diagnostic access from the exciter cabinet door.

Displays up to eight selected status variables
Provides local Run, Stop, Auto and Manual commands
Shows current faults and stored fault history
Supports password-controlled parameter and diagnostic access

The keypad is used with the configured EX2100 control and its existing door wiring. Commissioning confirms screen navigation, monitored-variable selection, fault history, password privileges and controlled Run/Stop and Auto/Manual commands.

Important Notice: Confirm IC752SPL013, the installed EX2100 cabinet and controller execution, door connector and wiring, keypad configuration, five-digit security code, privilege level, monitored-variable selection, active fault history, grounding and controlled command-test status before commissioning.

Apter Power IC752SPL013 Manuals and Guides

The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

Exciter cabinet status monitoring

Displays selected electrical quantities and controller states at the cabinet door.

Controlled exciter operation

Provides local Run, Stop, Auto and Manual commands under the approved operating procedure.

Fault investigation

Reviews current faults, reset status and recorded fault history for diagnosis.

Commissioning parameter review

Uses privilege-controlled menus to inspect or adjust the documented configuration.

Read the applicable General Electric installation instructions before work. Verify IC752SPL013, the installed host system and all configured field interfaces before isolation, wiring or commissioning.

Confirm IC752SPL013 and the assigned EX2100 cabinet and door position.

Place the generator and excitation system in the approved maintenance state.

Isolate the affected interface circuit and use ESD controls before handling the keypad.

Record the keypad cable, connector orientation, active screen and displayed values.

Capture current faults and fault history before any reset or replacement.

Restore the approved display configuration, password privilege and parameter set.

Verify Status, Menu, alternate I/O status and hardware/firmware information screens.

Test local commands only under the controlled EX2100 commissioning procedure and confirm normal diagnostics.

Alternative Names

EX2100 Diagnostic Interface; Local Keypad

Technical notes

Record the IC752SPL013 keypad cable, door position, displayed configuration and active EX2100 faults before disconnection. Restore the documented interface connection and privilege level, then verify Status and Menu navigation, local commands, fault reset/history and monitored values without bypassing the excitation-system interlocks.
