Technical specifications for 1C31150G01

  • Manufacturer:
    Emerson
  • Product Category:
    DCS Systems
  • Spare Part Number:
    1C31150G01
  • Estimated shipping dimensions:
    12x2.8x9.4cm
  • Weight:
    0.14 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Subsystem:
    Pulse accumulator
  • Channels:
    2
  • Medium-speed pairing:
    1C31147G01
  • High-speed pairing:
    1C31147G02 for 5 V negative-common input
  • Input sources:
    Dry contacts or open-collector transistor drivers

Information

Overview Manuals Common Applications Product Precautions

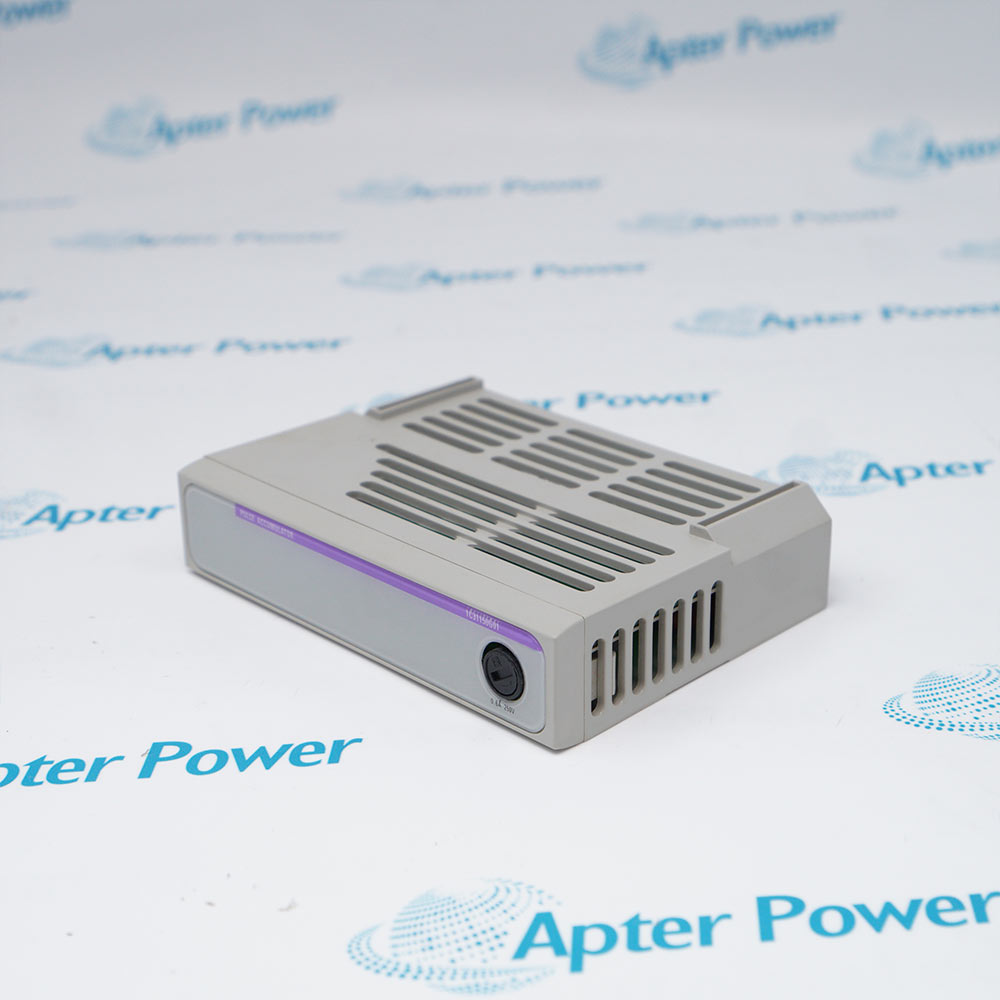

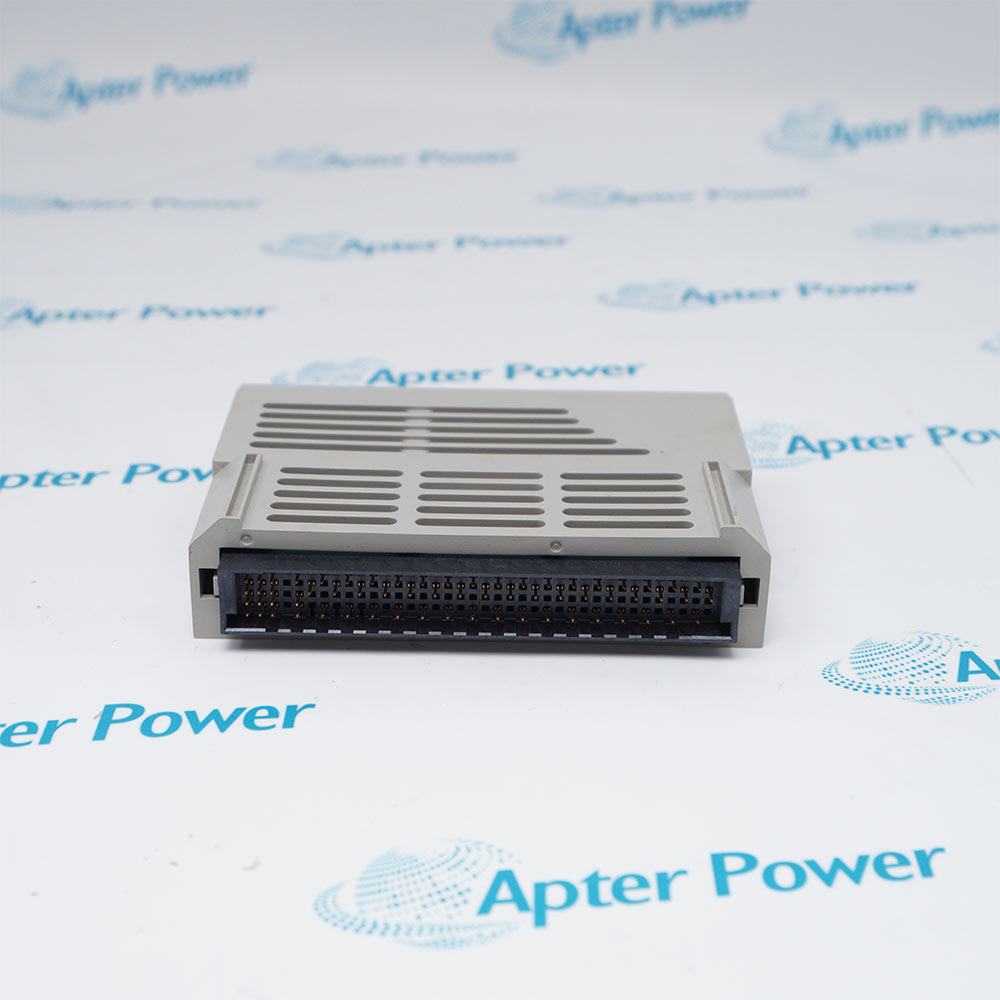

Westinghouse 1C31150G01 provides the negative-common field interface for Ovation pulse-accumulator count and control inputs.
  • Provides two pulse channels for the documented pulse accumulator personality module function.
  • Handles negative-common count and control input through the specified Ovation I/O subsystem.
  • Works with 1C31147G01 medium-speed or 1C31147G02 high-speed electronics module.
  • The field interface supports the documented negative-common pulse-input arrangements for the paired electronics module.

The pulse accumulator personality module belongs in the controlled Ovation I/O subsystem and works with 1C31147G01 medium-speed or 1C31147G02 high-speed electronics module. Its field connection, companion hardware and project configuration must be reviewed together before the channel is returned to service.

Important Notice: Use 1C31150G01 only with 1C31147G01 medium-speed or 1C31147G02 high-speed electronics module; verify the field interface and controlled configuration before energizing the subsystem.

Westinghouse 1C31150G01 Manuals & Downloads
Westinghouse 1C31150G01 Official Technical Reference Excerpt (PDF)Westinghouse 1C31150G01 Installation & Commissioning Guide (PDF)

The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.

Installed-base maintenance
Restores the documented pulse accumulator personality module position without changing the approved system architecture.
Loop or channel service
Supports verification of negative-common count and control input at the assigned control-system channel.
Planned replacement
Provides an exact-identity replacement path when 1C31147G01 medium-speed or 1C31147G02 high-speed electronics module and the field interface have been confirmed.
Commissioning support
Allows the responsible engineer to prove wiring, configuration, status and response for two pulse channels.
Before installing Westinghouse 1C31150G01, confirm the documented system, interfaces and controlled configuration.
1
Match the complete 1C31150G01 marking to the work order and installed position before removal.
2
Confirm 1C31147G01 medium-speed or 1C31147G02 high-speed electronics module before making or breaking any field connection.
3
Keep the assigned negative-common count and control input within the documented subsystem and range.
4
Record terminal designations, polarity, common and shield treatment before disconnecting conductors.
5
Inspect module seating, connector keying, terminal condition and strain relief before power is restored.
6
Restore the controlled channel configuration, range selection and alarm or timeout behavior after installation.
7
Check local indicators and controller diagnostics for internal, communication or channel faults during commissioning.
8
Prove the intended response across two pulse channels and record the acceptance result before release.

Technical notes

Use 1C31150G01 only with 1C31147G01 medium-speed or 1C31147G02 high-speed electronics module; verify the field interface and controlled configuration before energizing the subsystem.

FAQ View All FAQ

  • What common arrangement is provided by Westinghouse 1C31150G01?
    The personality module supplies the negative-common field interface for pulse count and control inputs.
  • Which pulse electronics modules can pair with Westinghouse 1C31150G01?
    It supports 1C31147G01 for medium-speed service and 1C31147G02 for the documented 5 V high-speed negative-common arrangement.
  • How many channels pass through Westinghouse 1C31150G01?
    Two pulse-accumulator field channels are provided.
  • Can dry contacts drive Westinghouse 1C31150G01 inputs?
    Yes. The documented input sources include dry contacts as well as open-collector transistor drivers.
  • What must be true of an open-collector device connected to Westinghouse 1C31150G01?
    Its circuit must be wired for the negative-common interface and for the voltage/speed execution of the paired 1C31147 electronics module.
  • Why is the paired electronics code important for Westinghouse 1C31150G01?
    The code distinguishes medium-speed operation from the supported 5 V high-speed arrangement even though the same G01 personality module is used.
  • What wiring should be preserved when changing Westinghouse 1C31150G01?
    Preserve each count input, control input and negative-common assignment for both channels before moving conductors.
  • Which pulse test verifies Westinghouse 1C31150G01 after installation?
    Apply a known contact or open-collector pulse stream to each channel and confirm that the paired electronics registers the expected count without false transitions.
