1C31166G02

SERIAL LINK CONTROLLER
Emerson 1C31166G02

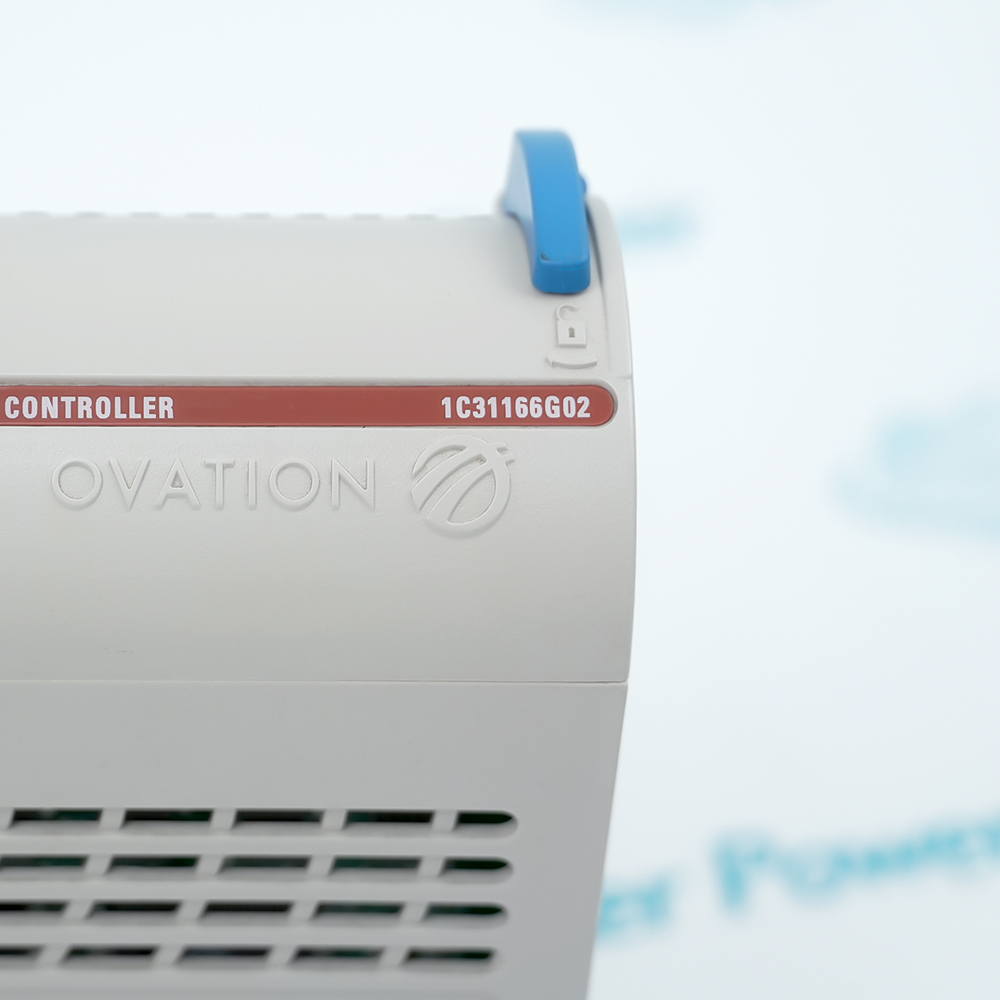

Emerson 1C31166G02
Emerson 1C31166G02
Emerson 1C31166G02
Emerson 1C31166G02
Emerson 1C31166G02
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

DISCONTINUED BY MANUFACTURER

SERIAL LINK CONTROLLER

EMOD+PMOD

R1120 CPU

Get a quick price for 1C31166G02
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1C31166G02

  • Manufacturer:
    Emerson
  • Product Category:
    DCS Systems
  • Spare Part Number:
    1C31166G02
  • Estimated shipping dimensions:
    12x5x16.5cm
  • Weight:
    0.32 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Number of Ports:
    2
  • Data Transfer Rate:
    Up to 115 kbps (RS-232)
  • Port Types:
    RS-232, RS-485
  • Communication Protocols:
    Modbus, DNP3, PROFIBUS DP
  • Protection Class:
    IP20
  • Operating temperature range:
    0 to 60°C (32°F to 140°F)
  • Storage temperature range:
    -40°C to 85°C (-40°F to 185 °F)
  • Humidity (non-condensing):
    0 to 95%

Information

Overview Manuals Common Applications Product Precautions
The 1C31166G02 is an industrial control module manufactured by Emerson or its predecessor Westinghouse, and is part of the Ovation DCS.
    • Cross-System Bridging
    • Control Command Execution
    • Debounce Adjustment
The Emerson/Westinghouse Ovation DCS-specific 1C31166G02 Serial Link Controller Module serves as a critical communication bridge connecting core assets in industrial fields. Specifically paired with the R1120 CPU controller system, the module utilizes an advanced, split-architecture design consisting of an Electronic Module (EMOD) and a Personality Module (PMOD), while supporting secure hot-swappable maintenance during live system operations. In terms of technical features, it integrates two highly independent serial ports, offering perfect physical layer compatibility with RS-232 and high-noise-immunity 4-wire RS-485/RS-422 interfaces. At the protocol layer, it comprehensively supports multiple mainstream industry-standard protocols, including Modbus RTU, DNP3, and PROFIBUS DP, achieving ultra-high-speed, low-latency data throughput of up to 3.125 Mbps in RS-485 mode. Furthermore, the module features built-in, hardware-level digital debounce adjustment and comprehensive, advanced fault self-diagnostics. It efficiently filters field electromagnetic noise under extreme and harsh operating conditions ranging from -40°C to +70°C, ensuring real-time, precise, and secure data synchronization and control command delivery between third-party PLCs, smart instruments, and the core DCS control layer.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Emerson 1C31166G02 SERIAL LINK CONTROLLER Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Connecting steam turbine Digital Electro-Hydraulic (DEH) control systems with the main DCS.

Nuclear Power Generation
Acquiring operating status data from conventional island auxiliary systems, such as water treatment networks.

Oil & Gas Extraction
Bi-directionally transmitting emergency interlock signals from wellhead Christmas tree Safety Instrumented Systems (SIS).

Steel & Metallurgy Industry
Delivering control commands precisely to high-voltage variable frequency drives in blast furnace areas with high electromagnetic noise.

Hydroelectric
Monitoring serial communication links of hydro-generator excitation and speed governing systems.

Wind Power
Aggregating low-level data remotely from third-party inverters and controllers inside wind turbine nacelles.

 When using the 1C31166G02 module, despite supporting hot-swapping, live operation in high-risk control loops requires caution to prevent signal transients from causing system false trips. Wiring must strictly utilize 4-wire shielded twisted pairs with reliable single-ended grounding, and terminating resistors must be properly matched at the end of long-distance RS-485 links to eliminate signal reflections. Furthermore, during software configuration, communication parameters such as baud rate and data bits must match identically with the third-party devices (e.g., PLCs), and the built-in debounce adjustment and self-diagnostics should be fully utilized to filter out heavy field electromagnetic interference.

FAQ View All FAQ

  • What is 1C31166G02?
    The 1C31166G02 is an industrial-grade Serial Link Controller Module.
  • What is the primary function of the 1C31166G02 module?
    It is responsible for establishing reliable serial connections and data transmission between different modules within the Ovation DCS and external devices.
  • Which communication interfaces and protocols does 1C31166G02 support?
    It provides 2 communication ports and supports RS-232 and RS-485 (4-wire) physical interfaces. At the software protocol layer, it is compatible with industry standard protocols such as Modbus (RTU), DNP3, and PROFIBUS DP.
  • What is the data transfer rate of 1C31166G02?
    Its data transmission rate depends on the selected interface type.
  • In which industries is the 1C31166G02 type of product typically used?
    It is mainly used in large-scale continuous production industries that require high automation and control precision.
