Technical specifications for 1C31233G04

  • Manufacturer:
    Emerson
  • Product Category:
    DCS Systems
  • Spare Part Number:
    1C31233G04
  • Estimated shipping dimensions:
    12.1x5.2x16.6cm
  • Weight:
    0.36 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Product class:
    Compact sequence-of-events contact input
  • Channel count:
    16
  • Field-input type:
    Contact input
  • Auxiliary supply:
    48 VDC on card
  • Auxiliary range:
    42-55 VDC
  • Field insert:
    1C31238H01 molded cavity insert
  • Transition rejection:
    Less than 3.87 ms
  • Transition acceptance:
    Greater than 4.13 ms
  • Propagation time:
    3.75-4.4 ms

Information

Overview Manuals Common Applications Product Precautions

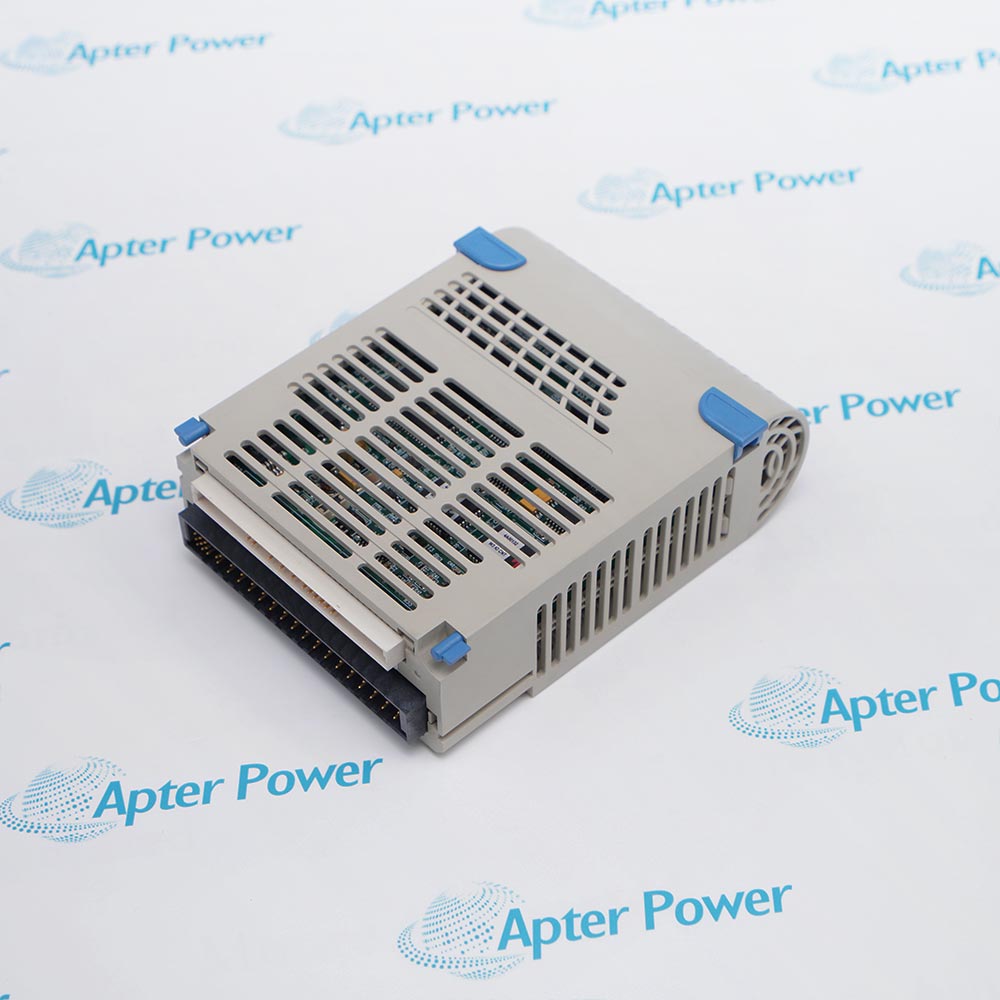

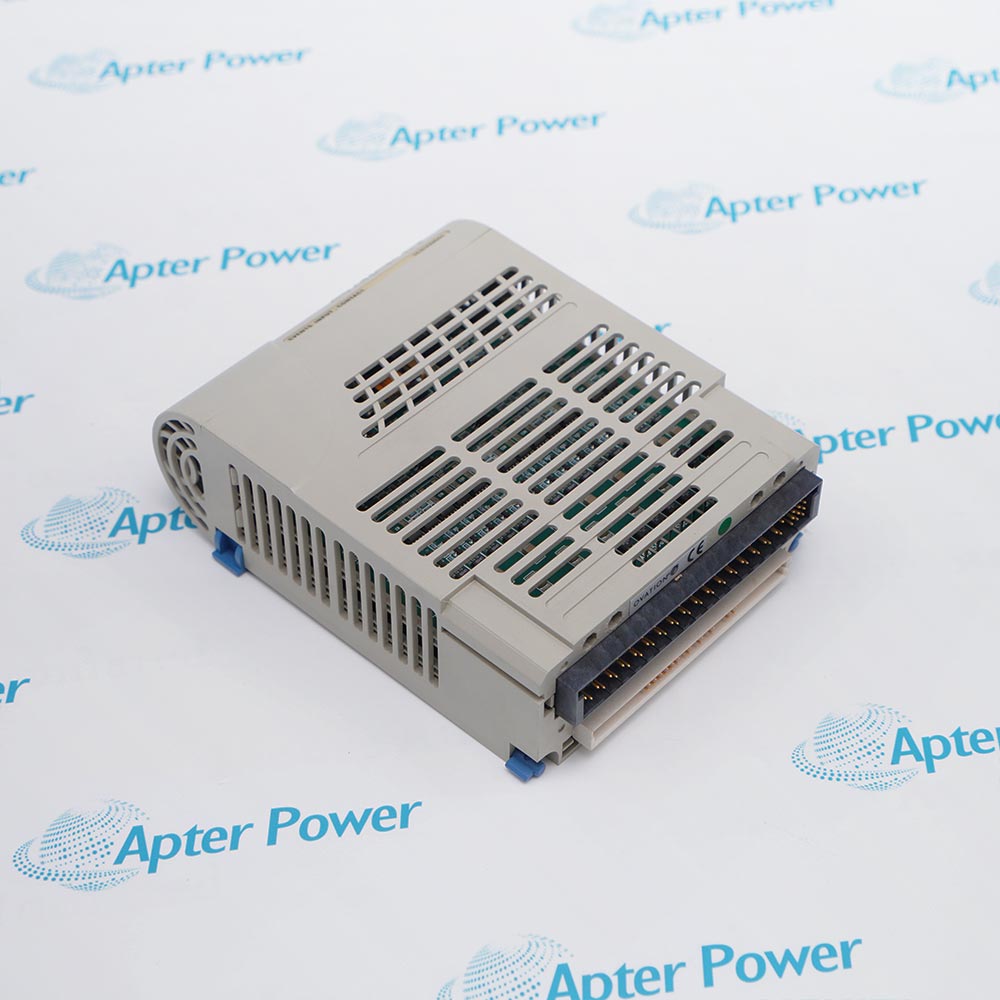

WESTINGHOUSE 1C31233G04 combines field-contact acquisition with sequence-of-events processing. Correct time synchronization, event-buffer handling and channel-state validation are essential because the module is used to reconstruct the order of plant events.
  • Sixteen sequence-of-events inputs
  • 48 VDC on-card auxiliary supply
  • Compact Ovation module format
  • 1C31238H01 cavity insert

The installed signal path is Field contact transition → 1C31238H01 wiring insert → 1C31233G04 SOE processing → Ovation event buffer and controller. Record the as-left channel assignment and verify the affected path before release.

Important Notice: Isolate the on-card auxiliary supply and all connected contact circuits before handling WESTINGHOUSE 1C31233G04.

WESTINGHOUSE 1C31233G04 Manuals & Downloads
WESTINGHOUSE 1C31233G04 Official Technical Reference Excerpt (PDF)WESTINGHOUSE 1C31233G04 Installation & Commissioning Guide (PDF)

The Technical Reference presents the applicable model data and interface details; the Installation & Commissioning Guide organizes field preparation, controlled replacement and acceptance checks for WESTINGHOUSE 1C31233G04.

Trip-sequence analysis
Captures the order of protective and equipment contact changes.
Alarm chronology
Supplies event-timed discrete states for post-event review.
Compact SOE replacement
Restores an existing sixteen-channel compact event-input position.
Event-buffer diagnostics
Provides a defined boundary for checking time sync, overflow and channel transition behavior.
Apply these controls to WESTINGHOUSE 1C31233G04 before isolation, removal, reconnection, energization and release.
1
Isolate the on-card auxiliary supply and all connected contact circuits before handling WESTINGHOUSE 1C31233G04.
2
Match the complete G04 identity and the 1C31238H01 cavity insert before installation.
3
Record all sixteen point assignments, normal states and event priorities before removing the module.
4
Preserve the field-contact common and wetting-supply arrangement shown on the installed wiring insert.
5
Confirm controller time synchronization and event-buffer readiness before injecting test transitions.
6
Do not use a slow or bouncing test contact when validating the documented millisecond transition thresholds.
7
Check event-buffer overflow and readout behavior after channel testing, not only the live input state.
8
Release the module only after timestamps, event order, alarms and protective logic match the approved sequence test.

Technical notes

WESTINGHOUSE 1C31233G04 is a compact 16-channel Ovation sequence-of-events contact input module with a 48 VDC on-card auxiliary supply.

FAQ View All FAQ

  • How many SOE channels are provided by WESTINGHOUSE 1C31233G04?
    The compact module provides sixteen contact-input channels.
  • Which field insert is used with WESTINGHOUSE 1C31233G04?
    The documented molded cavity insert is 1C31238H01.
  • What wetting supply belongs to WESTINGHOUSE 1C31233G04?
    The module uses an on-card 48 VDC auxiliary supply operating over the documented 42 to 55 VDC range.
  • Which short transitions are rejected by WESTINGHOUSE 1C31233G04?
    Input changes shorter than 3.87 ms are rejected.
  • Which transitions are accepted by WESTINGHOUSE 1C31233G04?
    Input changes longer than 4.13 ms are accepted.
  • What propagation time applies to WESTINGHOUSE 1C31233G04?
    The documented propagation interval is 3.75 to 4.4 ms.
  • Why must time synchronization be checked for WESTINGHOUSE 1C31233G04?
    The module is used to reconstruct event order, so a valid plant time base is required for meaningful timestamps.
  • Which tests finish WESTINGHOUSE 1C31233G04 commissioning?
    Prove each used contact, verify event timestamps and order, check both buffers for overflow, and confirm the associated alarm or trip sequence.
