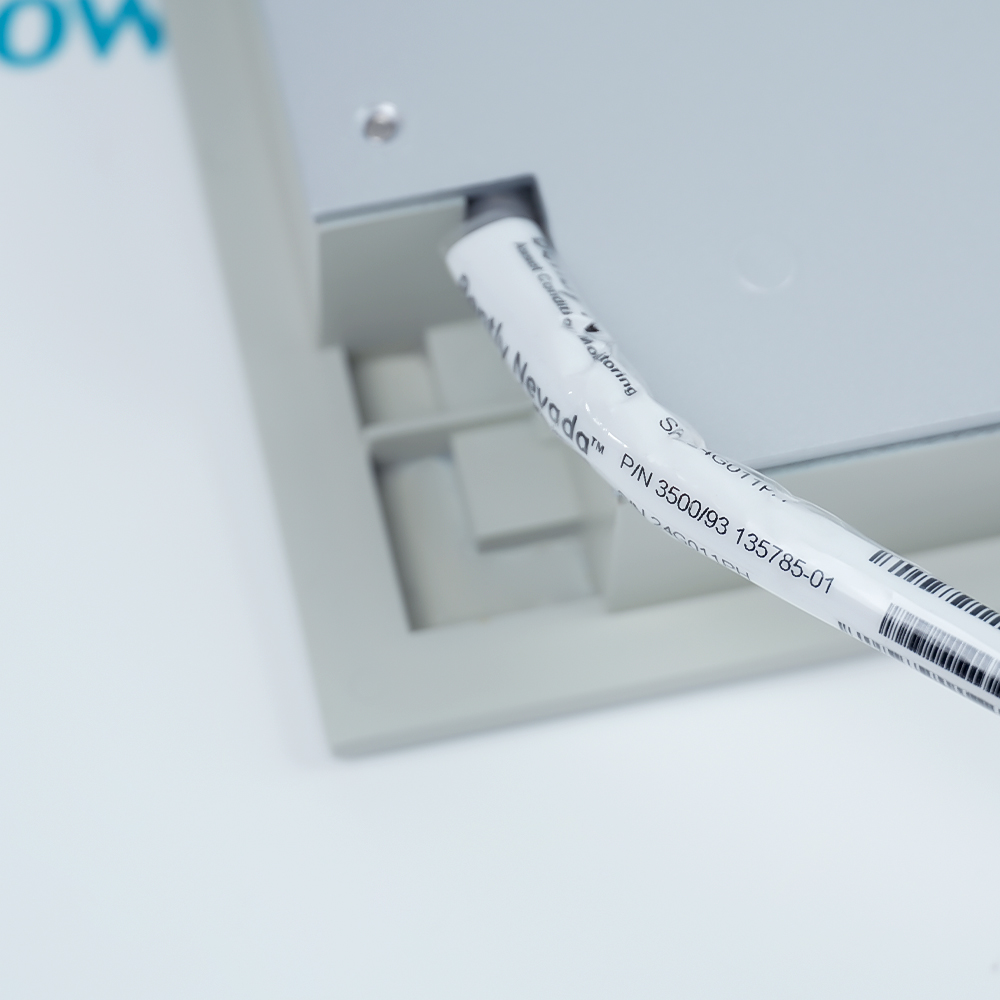

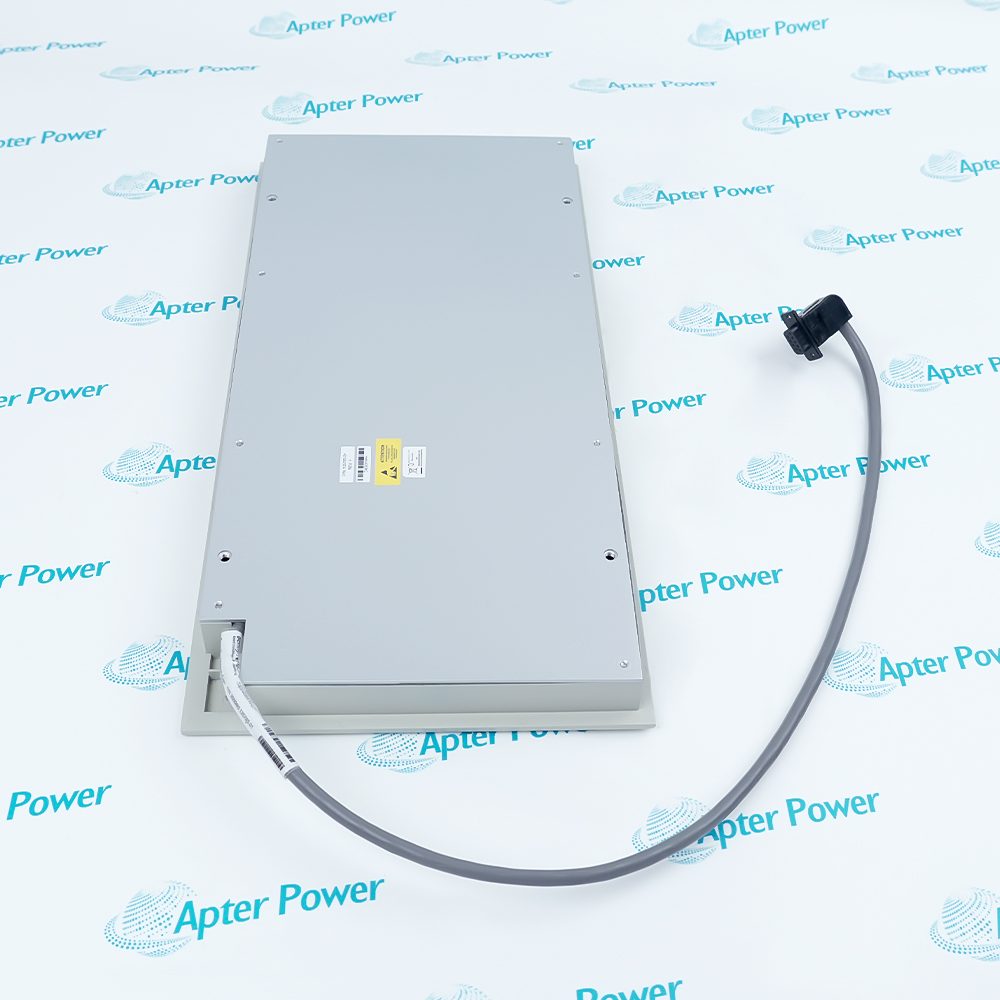

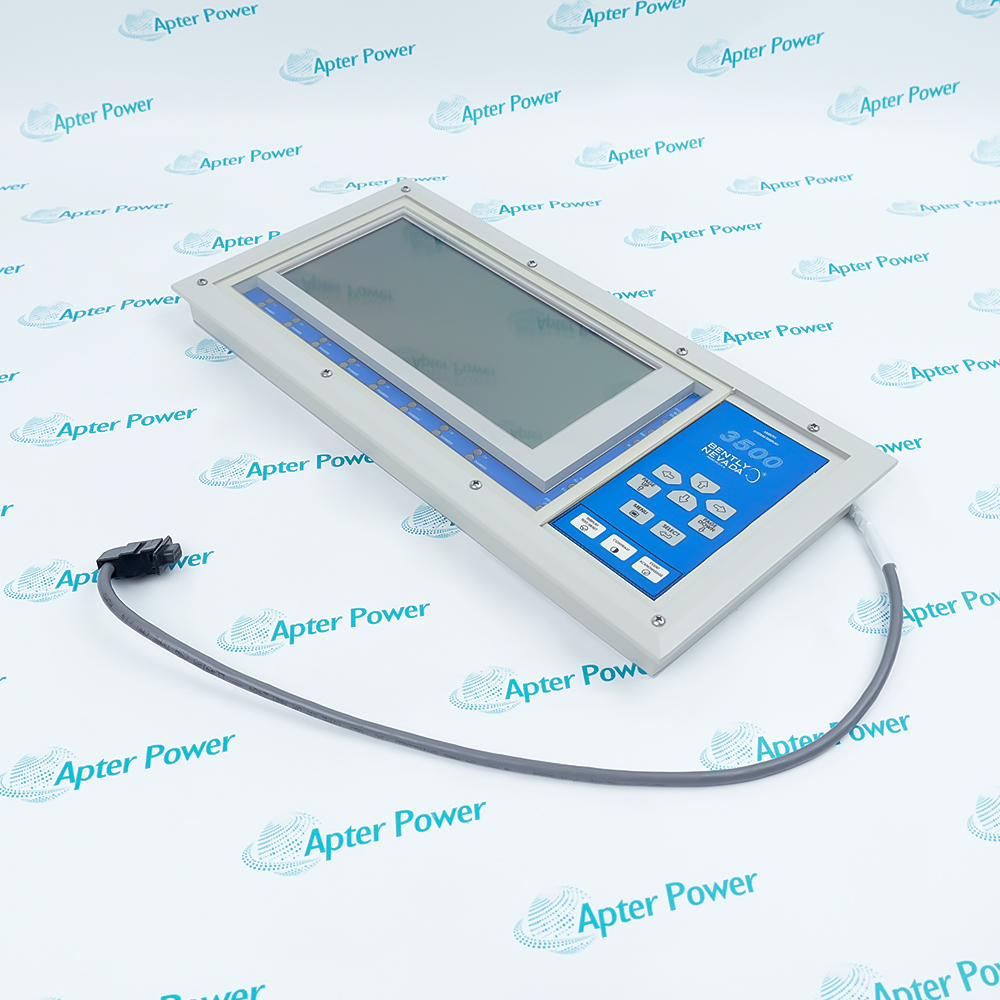

The 3500/93 135785-01 is a non-backlit System Display Unit for the 3500 Machinery Protection System. It provides local or remote visual access to rack information, including system and alarm event lists, current channel values, monitor data, relay status, and Keyphasor or tachometer information. The display presents system data in graphical and text formats through a reflective 640 × 200-dot LCD.
Complete System Visibility – Displays rack status, channel values, alarm conditions, event lists, relay information, and other 3500 system data
Flexible Mounting Options – Supports system face mounting, 19-inch EIA rack mounting, panel mounting, and independent wall or panel mounting
Clear Status Indication – Provides dedicated LEDs for rack OK, Alert, Danger, new alarms, channel status, and display operating condition
The 3500/93 System Display supports the monitoring requirements of the Bently Nevada 3500 Machinery Protection System and was developed to meet the requirements of API Standard 670. It communicates with the corresponding Display Interface Module through an RS-422 interface and can display data collected over the rack’s high-speed internal network.
The 135785-01 is specifically the non-backlit display version, which uses ambient light for screen visibility, a separate 135785-02 version provides a backlit display. Depending on the mounting arrangement, the display can be installed directly on the rack or positioned remotely, with standard cable distances up to 100 ft and extended distances up to 4,000 ft when an external power supply and cable adapter are used. Up to two displays may be connected to one 3500 rack, with each display requiring its own Display Interface Module and one rack slot.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 3500/93 135785-01 Display Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Plants
Provides local display of shaft vibration, axial position, and casing thermal expansion data for large steam turbine-generator sets.
Offshore Oil & Gas Platforms
Presents monitored channel values of high-pressure water injection pumps and primary generator drive ends in central control rooms or on local cabinets.
Petrochemical & Oil Refineries
Utilized for local value reading and reset operations of heavy rotating equipment, including catalytic cracking blowers and hydroprocessing feed pumps.
Steel & Metallurgical Industries
Monitors and displays engineering unit allocations and relay status for blast furnace blowers and hot rolling mill main drive motor bearings.
Cement Manufacturing Industry
Provides static measurement values and sensor diagnostic information for large kiln exhaust fans and raw material mill main motors on control room panels.
Mining & Ore Crushing
Provides graphical data display of heavy semi-autogenous (SAG) and ball mill bearing vibrations via local explosion-proof enclosure windows in harsh field environments.
The 3500/93 135785-01 System Display Unit communicates with the Display Interface Module (DIM) through an RS-422 interface to provide real-time visualization of rack data. It displays system events, alarm conditions, monitor values, relay status, and Keyphasor information collected from the 3500 Machinery Protection System, providing operators with convenient local or remote access to critical machine status information.
Alternative Names
Alternative Names
3500/93135785-01
Technical notes
Technical notes
The 135785-01 utilizes the 3500 Rack Configuration Software to define data routing, channel mapping, display refresh rates, and engineering unit allocations. As an integral component of the 3500 system, this module complies with API 670 machinery protection standards for mechanical and electrical safety, allowing installation inside control cabinets, instrument panels, or explosion-proof enclosures.
It collects data from the 3500 rack and transmits it to display panels.
Where should the 3500/93 135785-01 be installed?
It installs into the rear slots of the Bently Nevada 3500 rack.
What physical communication ports are on the 3500/93 135785-01?
It incorporates dedicated data ports to connect the rack and display panels.
