The 16710-85 is an industrial-grade armored cable used with Bently Nevada 330400 and 330425 accelerometers. This cable is 85 feet long and is specifically used in harsh industrial environments where standard cables would easily fail. Its heavy, flexible stainless steel outer armor provides robust physical protection, resisting accidental trampling or impact from heavy equipment while effectively preventing cuts from sharp metal edges, tool gouges, and smash damage from falling objects.
The monitor end of the cable features pre-installed standard terminal lugs

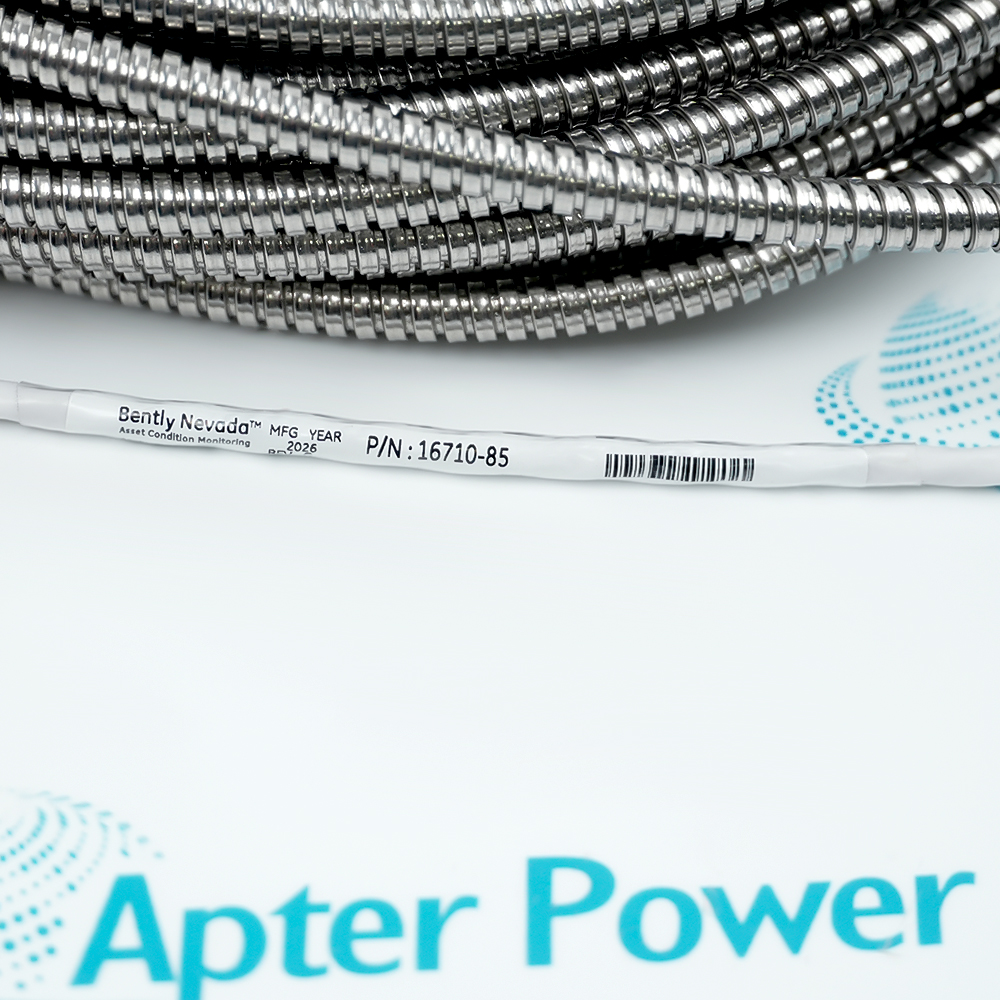

The cable is externally wrapped with a heavy, flexible stainless steel armor layer
Internally, it utilizes a standard 22 AWG three-conductor twisted pair with a high-density shield layer
Internally, the 16710-85 utilizes a standard 22 AWG three-conductor twisted shielded structure. Since the voltage output from the accelerometer is relatively weak, it is highly susceptible to interference from nearby strong electromagnetic sources such as variable frequency drives, motor starters, large contactors, and radio transmitters. The three-conductor twisted configuration cancels out common-mode noise induced equally on the conductors, while the overall outer shield builds a physical barrier against external electric fields, ensuring clean and noise-free transmission of low-level acceleration signals over long distances.
The sensor end of the cable features a specialized three-socket moisture-resistant plug that mates perfectly with the MIL-C-5015 receptacle on the accelerometer. The monitor end of the cable features pre-installed standard terminal lugs, which fasten directly to the screw-type terminal blocks of the monitor rack, completely eliminating the tedious process of stripping and tinning wires on-site, thereby significantly shortening installation time and effectively preventing wiring errors. It operates in temperatures from -55°C to +121°C, matching the environmental rating of the accelerometer.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 16710-85 Interconnect Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation & Heavy Gas Turbine Industry
Connects accelerometers on high-speed gas turbines and generator casings to stably transmit high-frequency mechanical vibration signals under high-thermal and high-wear environments.
Hydroelectric Power & Pumped Storage Industry
Deployed on the top frames and thrust bearing casings of large hydro-generator units to capture high-frequency structural vibration caused by hydraulic imbalance.
Oil & Gas High-Pressure Pipeline Industry
Used on large centrifugal compressor bearing housings along long-distance gas transmission pipelines, relying on its armor to resist harsh outdoor environments and return acceleration data.
Petroleum Refining & Hydrocracking Industry
Connects the gearbox casings of critical recycle hydrogen compressors in hydrocracking units to comprehensively monitor sudden high-frequency faults during high-speed gear meshing.
Coal Deep Processing & Chemical Industry
Connects casing measurement points of large coal slurry compressors and reciprocating gas pumps in dusty environments, utilizing the stainless steel jacket to prevent circuit collision injuries.
During installation a sufficient bend radius must be maintained to prevent permanent deformation of the stainless steel armor or breakage of the three-conductor wire. When connecting to the sensor rotate the threaded locking ring clockwise firmly to ensure a moisture-resistant seal and prevent poor contact caused by machine vibration.
The cable shield mesh must strictly follow single-ended grounding protocols by connecting to the ground only at the back-end monitor or junction box. Dual-ended grounding is strictly prohibited to prevent ground loop interference. Lastly this cable operates within a thermal rating of -55°C to +121°C and must be kept away from extreme heat sources exceeding this upper limit.
Alternative Names
Alternative Names
16710 85I6710-85167I0-85I67IO-85
Technical notes
Technical notes
The 16710-85 is an 85-foot three-conductor shielded cable wrapped in heavy-duty stainless steel armor, built for Bently Nevada 330400 and 330425 accelerometers. This rugged assembly features a 3-socket plug along with convenient terminal lugs, making it optimal for permanent gear mesh and casing vibration monitoring setups. Constructed to withstand standard industrial environments, the cable safely operates across a thermal spectrum from -40°C up to +85°C. While the overall product series accommodates customized lengths up to a maximum of 99 feet, this specific variant provides a secure interface for compatible accelerometers to support long-term industrial operations.
16710-85 is an 85-foot three-conductor stainless steel armored shielded interconnect cable for industrial accelerometers.
How do you use a product like 16710-85?
Thread the 3-socket connector end tightly onto the accelerometer and then route and secure the terminal lugs end into the remote monitoring panel.
Which sensor systems is the 16710-85 compatible with?
It perfectly matches the Bently Nevada 330400 and 330425 standard accelerometer systems.
What is the internal wire and core specification of 16710-85?
It contains three high-purity copper twisted shielded conductors of 22 AWG specification internally.
What is the function of the stainless steel armor on 16710-85?
It provides a highly robust physical mechanical barrier resisting heavy object crushing, sharp object cutting, and severe abrasion in harsh industrial fields.
