What is the 16925-17?

It is a 17-foot, non-armored, 3-conductor shielded sensor interconnecting cable.

What is the wire gauge of 16925-17?

It uses 3-conductor, 22 AWG shielded wiring.

What connector types are on 16925-17?

One end features a 3-socket plug, and the other has terminal lugs.

What does 16925-17 mainly connect?

It connects accelerometers to field junction boxes or monitors.

Do you offer global delivery services?

Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.

How many parts do you have in stock?

We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies. If you are unable to find what you are looking for then don’t panic.

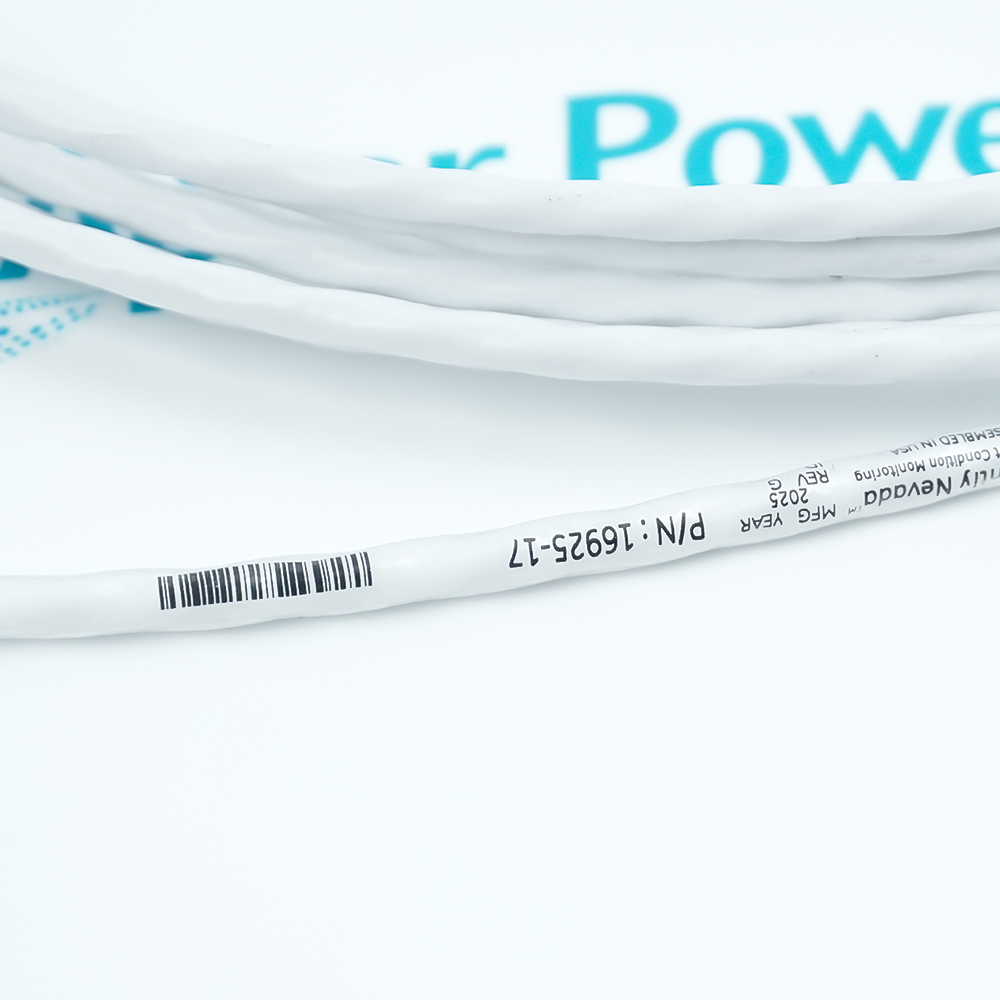

16925-17

Name: 16925-17
Brand: Bently Nevada
SKU: 16925-17

Interconnect Cable

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Interconnecting Cable
without Armor
3-Conductor 22 AWG Shielded Cable
(2.0 to 99 ft) with 3-Socket Plug and Terminal Lugs

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for 16925-17

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 16925-17

Manufacturer:

Bently Nevada
Product Category:

Machinery Monitoring Systems
Spare Part Number:

16925-17
Estimated shipping dimensions:

26x24x3cm
Weight:

0.15 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Cable Type:

3-conductor shielded
Wire Gauge:

22 AWG
Cable Construction:

3-conductor shielded, 22 AWG
Capacitance:

30 pF/ft max
Impedance:

50Ω
Max Voltage Rating:

300V AC/DC
Jacket Material:

PVC or PUR
Bend Radius:

10× cable diameter

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The 16925-17 is a standard non-armored interconnect cable for vibration monitoring systems, categorized as a sensor accessory. This assembly includes a 17-foot 3-conductor 22 AWG shielded cable, with a 3-socket plug on one end and terminal lugs on the other.

High-performance shielding suppresses EMI/RFI
Features a rugged MIL-C-5015 compliant connector
Fully aligns with API 670 standards for machinery protection

The cable utilizes a PVC or PUR jacket for oil and wear resistance, with an installation flexibility of a 10× bend radius. Its 3-conductor shielded configuration features a capacitance of 30 pF/ft max and a 50Ω impedance, providing EMI/RFI suppression to prevent signal distortion during the transmission of casing acceleration data. Terminated with a MIL-C-5015 compliant connector, this assembly establishes a locking connection that aligns with API 670 standards for asset monitoring loops in heavy industries.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Bently Nevada 16925-17 Interconnect Cable Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Thermal Power Generation

Deployed at the high-pressure and intermediate-pressure cylinders of large supercritical or mega-watt steam turbine-generator sets.

Hydroelectric Power Generation

Installed within the thrust bearing housing of vertical large hydro-turbine generator units (e.g., Francis or Kaplan turbines).

Petroleum Refining

Applied to the main shafts of high-pressure, high-power centrifugal or reciprocating compressor trains in hydrocracking and fluid catalytic cracking units.

Iron and Steel Industry

Deployed on mega-scale blast furnace blower trains and the main drive gearboxes of heavy rolling mills.

Air Separation Industry

Applied to centrifugal oxygen and nitrogen compressors, as well as high-speed turbo-expanders in air separation units.

Nuclear Power Generation

Installed at the shaft seals and thrust bearing sections of conventional island steam turbine-generator sets in nuclear power plants.

When using the 16925-17 cable, strictly follow the pin configuration and ensure the external power supply current is limited to under 15 mA to prevent permanent sensor damage. The cable shield must be grounded at a single end to avoid ground loop interference.

Technical notes

16925-17 incorporates a non-armored, flexible outer jacket that provides excellent bending capabilities and a lightweight profile, making it ideal for routing inside tight machinery terminal boxes or pulling through long-distance protective industrial conduits.
