16710-20 is an Interconnect Cable.

How to use the 16710-20?

Connect the 3-socket plug to a vibration sensor and wire the terminal lugs to a monitoring system.

What is the wire gauge of the 16710-20?

Does the 16710-20 have explosion-proof approvals?

As a passive component, it meets explosion-proof wiring standards for intrinsically safe systems.

Do you offer global delivery services?

Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.

How many parts do you have in stock?

We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies. If you are unable to find what you are looking for then don’t panic.

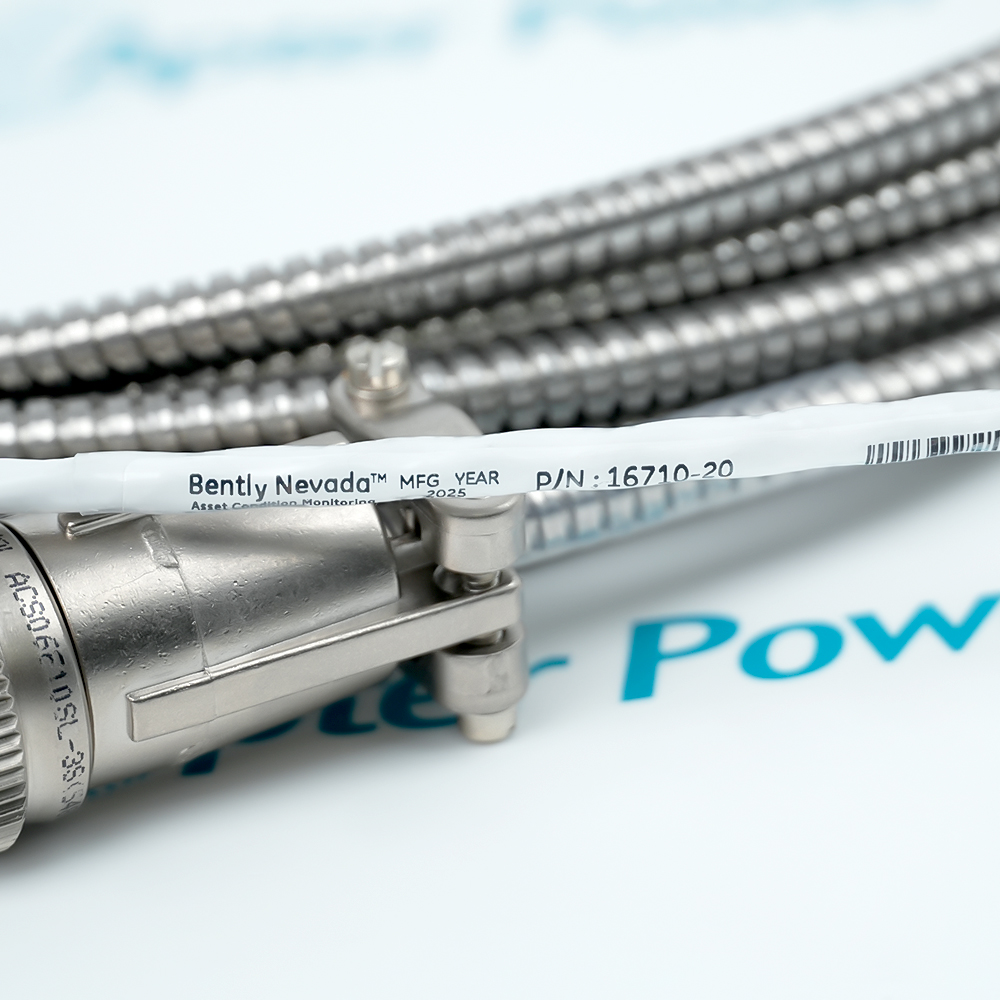

16710-20

Name: 16710-20
Brand: Bently Nevada
SKU: 16710-20

Interconnect Cable

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

3-conductor shielded 22 AWG armored cable with 3-socket
plug at one end, terminal lugs at the other end
Minimum length of 3.0 ft (0.9 m)
maximum length of 99 ft (30 m)

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for 16710-20

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 16710-20

Manufacturer:

Bently Nevada
Product Category:

Machinery Monitoring Systems
Spare Part Number:

16710-20
Estimated shipping dimensions:

31x28x3cm
Weight:

0.52 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Compatible Accelerometers:

330400 / 330425
Cable Length:

20 ft (6.10 m)
Conductors:

3-Conductor
Conductor Size:

22 AWG (0.5 mm²)
Cable Type:

Shielded Armored Cable
Connector:

3-Socket Plug
Minimum Length:

3 ft (0.9 m)
Maximum Length:

99 ft (30 m)
Other End:

Terminal Lugs

Ask for Quote

Information

Overview Manuals Common Applications System Integration

The 16710-20 armored interconnect cable is a 20-foot armored interconnect cable dedicated to connecting Bently Nevada 330400 and 330425 accelerometers, applicable for critical machinery applications requiring casing acceleration measurements such as gear mesh monitoring.

3-socket gas-tight vibration-resistant plug
Pre-terminated trailing end terminal lugs
Stainless steel interlocking armor sleeve

The configuration of the 16710-20 fully complies with the system requirements of the American Petroleum Institute Standard 670 for transducer wiring. It provides a secure shielded transmission path for the signal outputs of these high-precision sensors, protecting the signals of the 330400 with a 50 g peak amplitude and 100 mV/g sensitivity and the 330425 with a 75 g peak amplitude and 25 mV/g sensitivity from electromagnetic interference and mechanical stress in harsh industrial environments.

The cable features a robust 3-conductor 22 AWG architecture with 0.5 mm² cross-sectional wires, delivering optimal electrical conductivity and minimal signal attenuation over its 20-foot length. The stainless steel armor interlocking sleeve provides mechanical protection against crushing, abrasions, and sharp bends, while the integrated 3-socket plug guarantees a gas-tight, vibration-resistant connection at the sensor interface.

The 16710-20 Bently Nevada Interconnect Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Bently Nevada 16710-20 Interconnect Cable Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Petrochemical and Refining

Connects casing accelerometers on high-speed centrifugal compressors to monitoring racks to track gear mesh and rotor stability.

Thermal Power Plants

Transmits high-precision vibration signals from steam turbine bearing housings to safety systems under high-temperature conditions.

Oil and Gas Pipelines

Routes sensor signals from heavy-duty mainline pumps to local junction boxes through rugged environments prone to mechanical impacts.

Wind Energy Generation

Links nacelle-mounted main gearboxes and generators to online diagnostic units, protecting signals from high electromagnetic interference.

Pulp and Paper Mills

Interconnects accelerometers on paper machine press section rolls to central systems through constant steam and chemical exposure.

Offshore Drilling Platforms

Routes critical machinery data from mud pumps and top drive units to structural safety consoles over tough salt-spray areas.

The 16710-20 Interconnect Cable connects the 330400 or 330425 Accelerometer to the vibration monitoring system. Its shielded armored construction helps maintain signal integrity in industrial environments while providing reliable connections for long-term machinery condition monitoring.

Technical notes

The 16710-20 contains an internal foil and braided shield configuration with a drain wire to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI). This shielding structure limits noise and signal distortion from adjacent power cables or variable frequency drives, preserving analog signal integrity during transmission.
