330904-05-14-05-02-00

3300 XL NSv proximity probe
In Stock
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

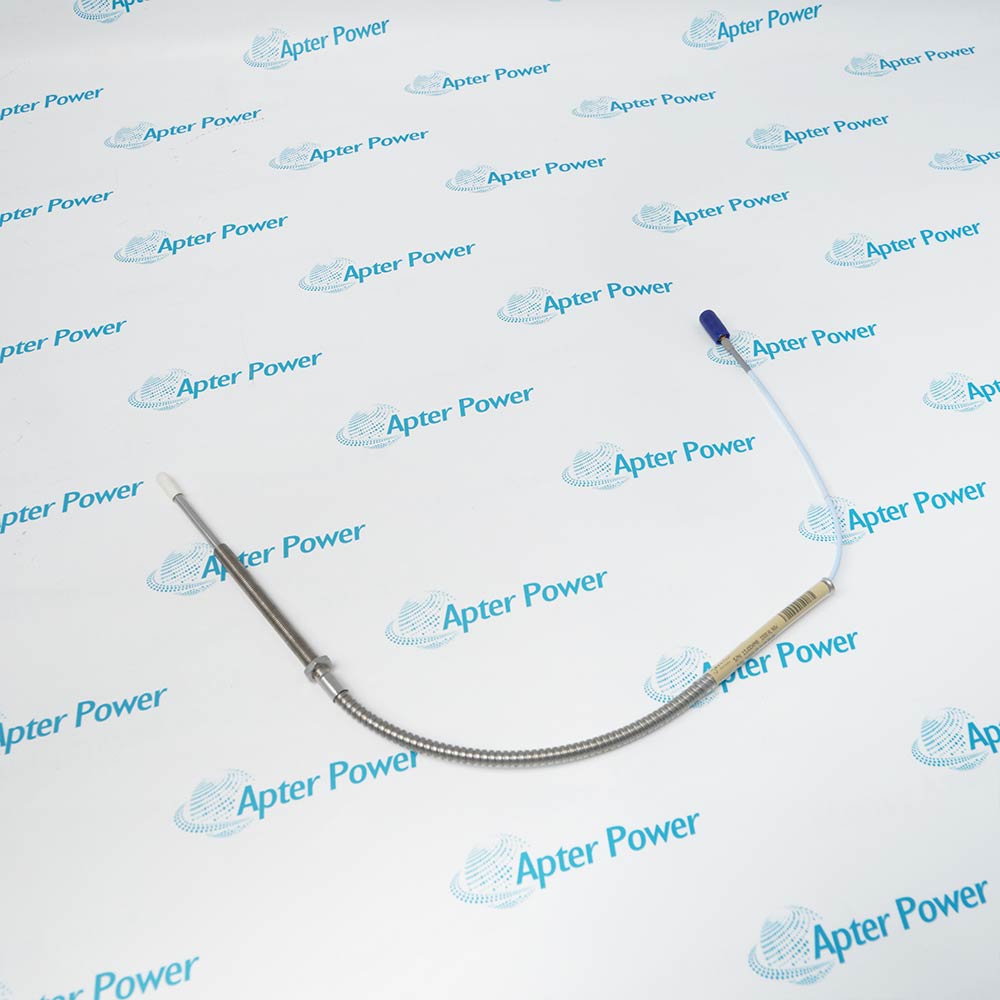

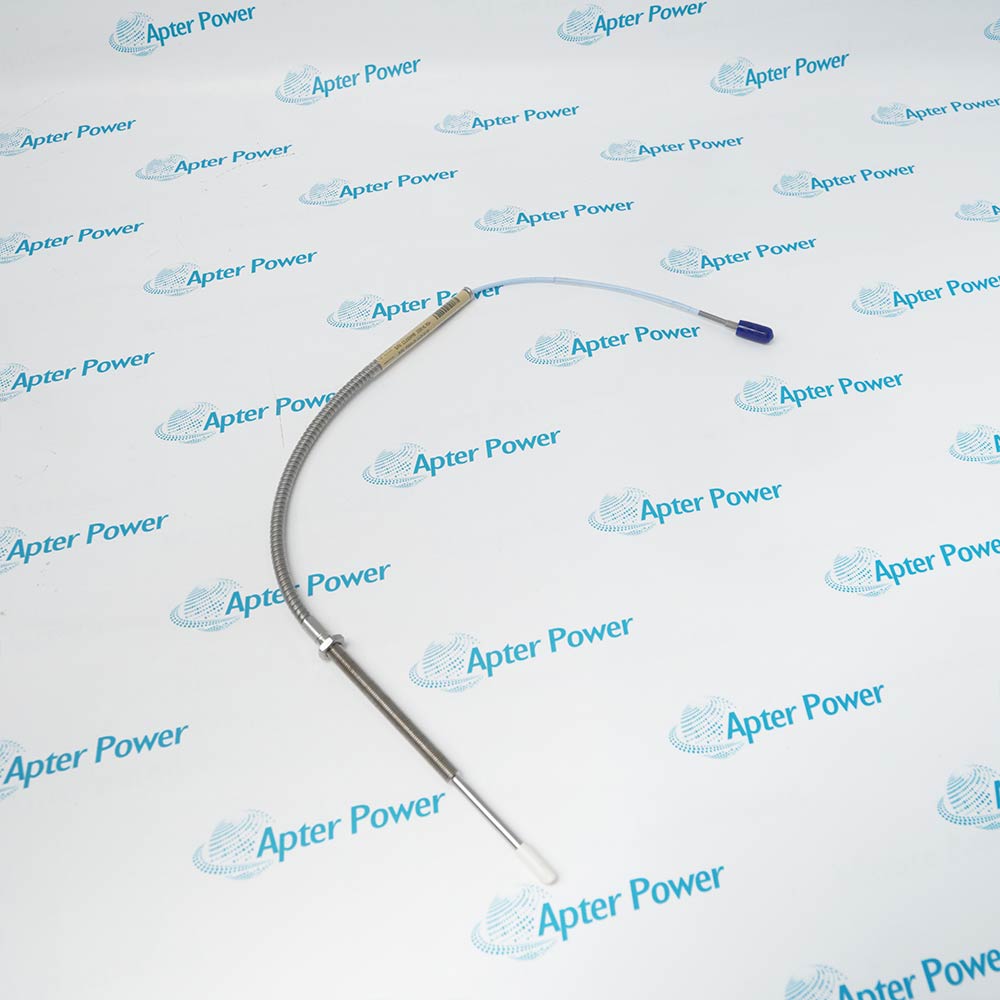

Bently Nevada 330904-05-14-05-02-00 is a M8 x 1 armored NSv probe for restricted mounting and small-target measurement in a matched NSv chain.
  • Manufacturer part number
    330904-05-14-05-02-00
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    1.5cm x 1.1cm x 61.5cm
  • Country of Origin
    USA
Get a quick price for 330904-05-14-05-02-00
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Review your reference

    Send the full marking, quantity and label photos. We review the item and any version details that need clarification.
  • 1

    Confirm the offer

    Check the quoted reference, condition, included items and expected dispatch date before approving your order.
  • 2

    Arrange dispatch

    Confirm delivery details and receive the tracking number when it becomes available.
  • Match the complete marking

    Include 330904-05-14-05-02-00 and every revision or approval marking visible on the item. Keep the exact reference on your enquiry and quotation.
  • Check the offered item before ordering

    Request available label and interface photos. Have your maintenance team compare the offered 330904-05-14-05-02-00 reference with the installed equipment and applicable Bently Nevada documentation.

Technical specifications for 330904-05-14-05-02-00

  • Manufacturer:
    Bently Nevada
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    330904-05-14-05-02-00
  • Weight:
    0.08 kg
  • Tariff Code:
    8537101190
  • Probe family:
    3300 XL NSv
  • Mounting thread:
    M8 x 1
  • Cable armor:
    Stainless-steel armor
  • Unthreaded length:
    50 mm
  • Overall case length:
    140 mm
  • Total probe length:
    0.5 m
  • Connector:
    Miniature coaxial ClickLoc, standard cable
  • Approval selection:
    No agency approval
  • Nominal probe resistance:
    4.0 +/- 0.5 ohm
  • Cable impedance:
    75 ohm
  • Probe tip material:
    PPS
  • Case material:
    AISI 304 stainless steel
  • Connector material:
    Gold-plated brass
  • Probe tensile strength:
    220 N maximum
  • Matched-system lengths:
    5 m or 7 m
  • Matched-system range:
    1.5 mm
  • Matched-system scale:
    7.87 V/mm (200 mV/mil)
  • Recommended gap:
    1.0 mm
  • Frequency response:
    0 to 10 kHz, +0/-3 dB typical

Information

Overview Downloads Applications / Compatibility Product Precautions
  • Bently Nevada 330904-05-14-05-02-00 is a M8 x 1 armored NSv probe for restricted mounting and small-target measurement in a matched NSv chain.
Selected mechanics: M8 x 1; 50 mm unthreaded reach; 140 mm case.
Lead interface: 0.5 m lead; Miniature coaxial ClickLoc, standard cable.
NSv role: Reduced side-view and small-target measurement in a matched 5 m or 7 m chain.
The M8 x 1 body, 50 mm unthreaded reach and 140 mm case position the NSv sensing tip in restricted counterbore or side-view installations. Compare them with the machine drawing and target travel before removal.

The 0.5 m, 75-ohm probe lead terminates in miniature coaxial clickloc, standard cable. Probe lead plus extension cable must equal the 5 m or 7 m Proximitor selection, so cable length is part of the calibrated configuration.

NSv range and scale are characterized for the complete matched system. Acceptance also checks target size, nearby conductive surfaces, probe spacing, restored gap or bias and the monitor response for the machine.
Platform: 3300 XL NSv system. Verify the installed chain.
Technical downloads for Bently Nevada 330904-05-14-05-02-00: model-specific technical reference and installation review.
Use the exact order code and installed configuration when applying either document.
Prepare Bently Nevada 330904-05-14-05-02-00 using the approved machine documentation and site procedure.
Confirm the complete marking

Match every field of 330904-05-14-05-02-00 with the installed spare-parts and channel records.

Protect the sensing face

Prevent impact, metal-particle contact and contamination at the probe tip during handling.

Preserve the mechanical datum

Record thread engagement, reach, lock position, target relationship and as-found gap or bias before removal.

Control the cable route

Maintain the approved bend radius, connector protection and independent strain relief; do not twist the probe lead.

Restore the operating point

Use the approved stopped-machine procedure to restore the documented gap or bias.

Prove the matched channel

Verify as-left electrical indication and controlled machine response against the accepted baseline.

Alternative Names

Bently Nevada 330904-05-14-05-02-00 Bently Nevada 330904 05 14 05 02 00

Technical notes

Mechanical relationship: The M8 x 1 mounting, 50 mm reach and 140 mm case control probe position.

System relationship: The 0.5 m probe lead must be combined with the correct NSv extension cable and Proximitor total-length option.

Technical reference: Bently Nevada 3300 XL NSv Proximity Transducer System Datasheet, 147385 Rev. R.

FAQ View All FAQ

  • How should the installed port be checked before fitting 330904-05-14-05-02-00?
    Compare the M8 x 1 thread, 50 mm unthreaded reach and 140 mm case with the machine drawing, record the as-found datum and verify that expected target travel will remain clear before the old probe is moved.
  • Which companion electronics must be retained with 330904-05-14-05-02-00?
    Keep 330904-05-14-05-02-00 inside the documented 3300 XL NSv proximity transducer system; confirm the extension-cable and Proximitor identities and the selected total system length.
  • What connector inspection is required for 330904-05-14-05-02-00?
    The selected interface is Miniature coaxial ClickLoc, standard cable. Isolate the channel, inspect mating surfaces for moisture, contamination and damage, then seat and support the connection without lead strain.
  • How is the operating point restored after installing 330904-05-14-05-02-00?
    Use the approved stopped-machine method to restore the recorded gap or bias, then perform target-size, bias and monitor-response checks against the accepted baseline.
  • How should target material be handled when accepting 330904-05-14-05-02-00?
    Use the documented target material and geometry for the installed machine; a different alloy, curvature or target area can change scale and linearity.
  • What check helps separate a probe fault from a monitor fault on 330904-05-14-05-02-00?
    Compare the stopped-machine gap or bias at the Proximitor with the local monitor indication, then inspect the probe and cable path before substituting electronics.
  • When must 330904-05-14-05-02-00 be withheld from service?
    Do not release the channel if identity, mounting geometry, connector, companion electronics, target relationship or controlled response differs from the approved record.
  • What as-left evidence should be retained for 330904-05-14-05-02-00?
    Retain the full marking, small-target geometry, companion identities, probe spacing, as-left gap or bias and operating response.
