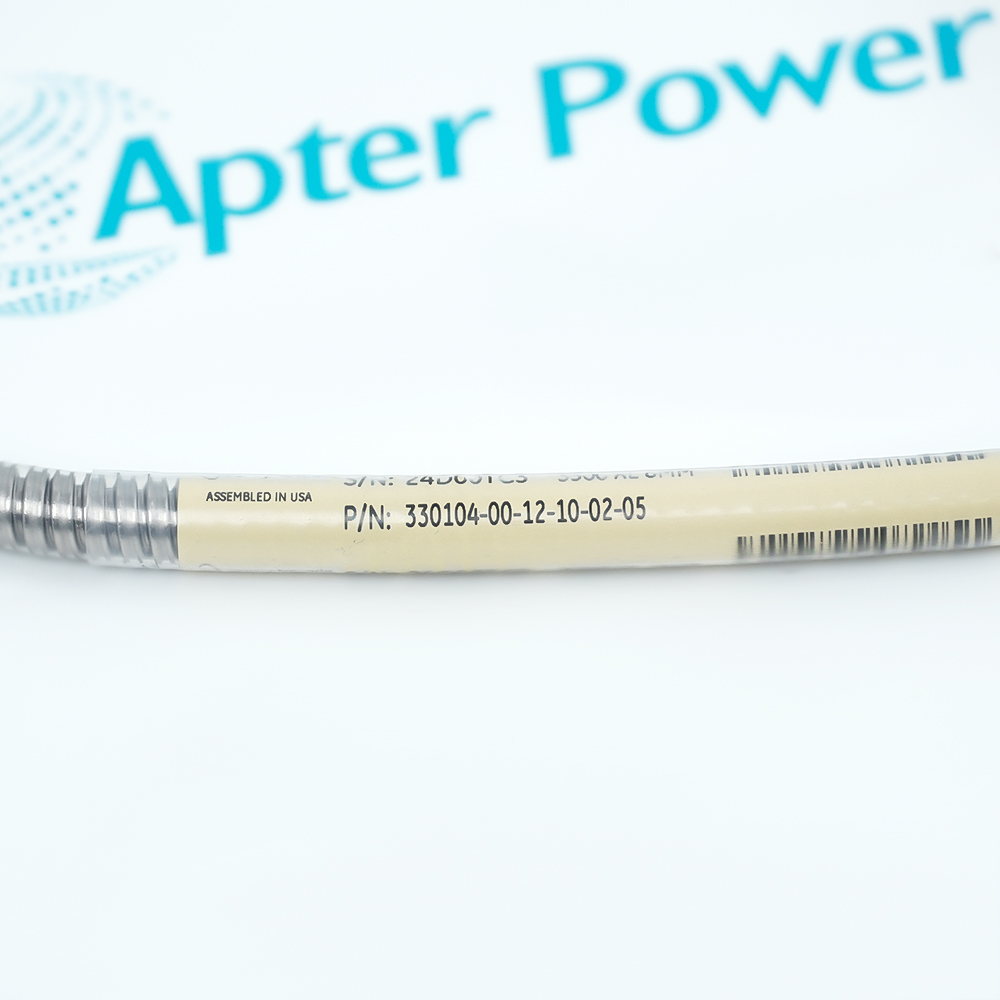

The 330104-00-12-10-02-05 is a specific engineering configuration of Bently Nevada's classic 3300 XL 8mm eddy current proximity sensor probe. This product belongs to the 3300 XL series eddy current sensor system, specifically designed to monitor shaft vibration, axial displacement, key phase, and rotational speed of rotating machinery using the non-contact eddy current principle.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330104-00-12-10-02-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power
Monitors the radial shaft vibration of large steam turbines and generator sets to evaluate rotor dynamic balance status.
Petroleum Refining
Performs high-precision axial displacement monitoring on continuously running critical turbine trains to prevent dynamic-to-static impeller collisions.
Hydroelectric Power
Monitors the radial shaft runout of large vertical hydroelectric turbine generator units where the fully threaded case allows flexible field adjustment of the probe gap.
Iron and Steel Metallurgy Industry
Monitors mechanical wear and vibration status inside the bearing housings of large blast furnace blowers with flexible cables routed through conduits.
Nuclear Power
Monitors the operational stability and thermal expansion displacement of conventional island steam turbine generator shafts according to nuclear safety requirements.
Rail Transit
Performs precision bearing displacement data acquisition during reliability bench tests of high-power traction motors and gearboxes for high-speed rail transit.
When using the 330104-00-12-10-02-05 probe you must ensure that the total electrical length of the system combined with this 1.0-meter probe matches precisely to avoid severe measurement errors. Since this model features a 120mm fully threaded case with no unthreaded length protection, extreme care must be taken during thread-in installation to prevent the probe tip from striking the shaft surface and cracking the PPS plastic insulation layer.
Additionally its non-armored flexible cable is highly susceptible to wear so it must be routed through metallic conduits for protection and the ClickLoc connector must be tightly sealed with silicone tape to prevent oil ingress. If the target shaft material is not the standard 4140 steel the scale factor must be recalibrated.
As an intrinsically safe 330104-00-12-10-02-05 3300 XL 8mm proximity probe built for tight spaces, it features a 0mm unthreaded length (fully threaded case), a 120mm stainless steel case, and a 1.0-meter standard unarmored cable.The system provides an output voltage that is directly proportional to the distance between the polyphenylene sulfide (PPS) probe tip and the observed conductive surface, delivering a nominal scale factor of 7.87 V/mm over a 2.0 mm linear range (from 0.25 to 2.25 mm) to enable the precise measurement of both static (position) and dynamic (vibration) values.Leveraging its standard wide operating temperature range (-52 °C to +177 °C) and 100% condensing submersible sealing specifications, the primary applications of this specific model focus on vibration and position measurements on fluid-film bearing machines within hazardous areas, as well as providing essential Keyphasor reference and speed measurements for the monitoring network.
It is typically threaded into a machine bearing housing with the probe tip facing the rotating shaft metal surface, and connected via its own cable to an extension cable and a Proximitor sensor to output displacement or vibration signals.
What connector specification does 330104-00-12-10-02-05 use?
It utilizes a gold-plated miniature coaxial ClickLoc connector featuring a self-locking mechanism to prevent loosening.
What is the recommended initial gap voltage during the installation and commissioning of 330104-00-12-10-02-05?
For routine radial vibration monitoring applications, it is officially recommended to adjust the initial installation gap voltage to approximately -9 Vdc when the machine is at rest.
Does the cable of 330104-00-12-10-02-05 include metal armor protection?
No, according to the code 02 option, it is equipped with a standard coaxial cable with a connector protector, without flexible stainless steel armor.
