Get a quick price for 330103-00-05-10-02-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy

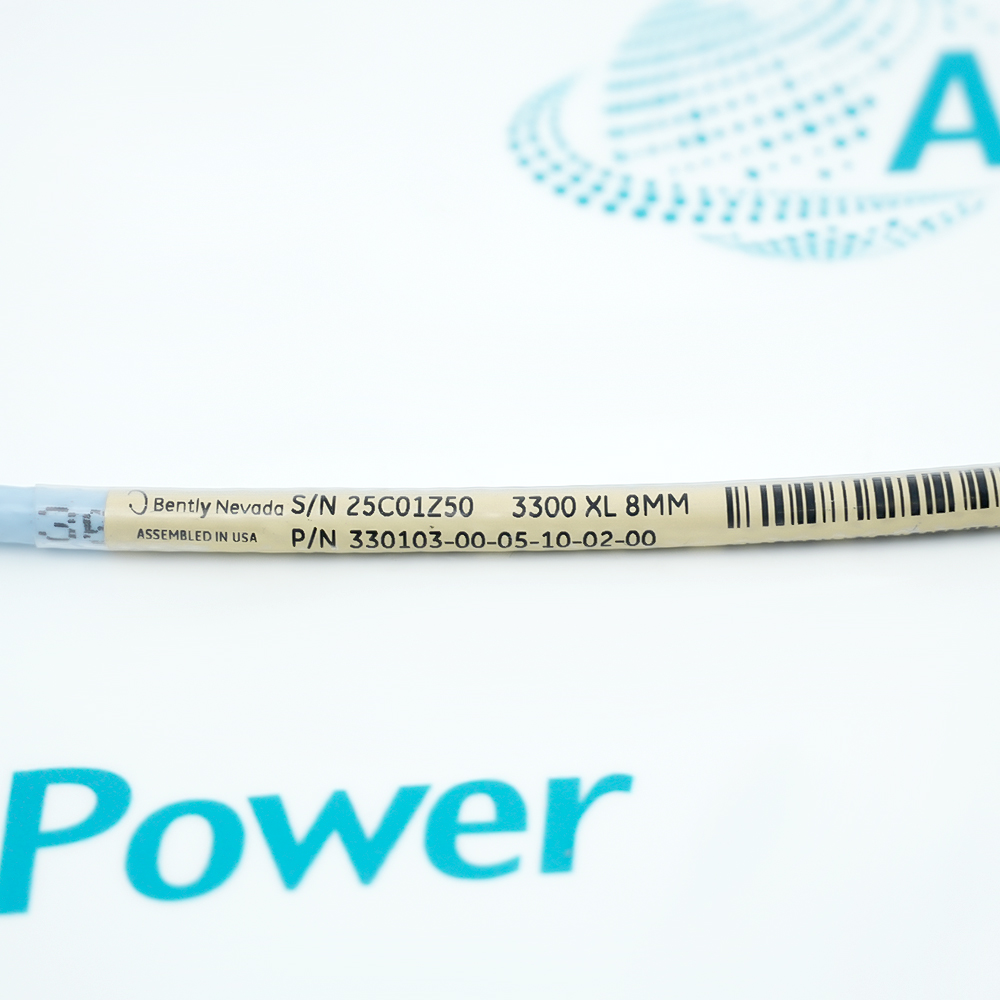

Technical specifications for 330103-00-05-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330103-00-05-10-02-00
-
Estimated shipping dimensions:108x1.8x1.5cm
-
Weight:0.06 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Probe Length:8 mm
-
Operating Range:5.0 meters
-
Detection Sensitivity:2.0 mm (80 mils)
-
Protection Class:IP67
-
Unthreaded Length Option:0 mm
-
Overall Case Length Option:50 mm
-
Total Length Option:1.0 meter (3.3 feet)
-
Connector and Cable-Type Option:Miniature coaxial ClickLoc connector, standard cable
-
Agency Approval Option:Not required
Information
Overview
Manuals
Common Applications
Product Precautions

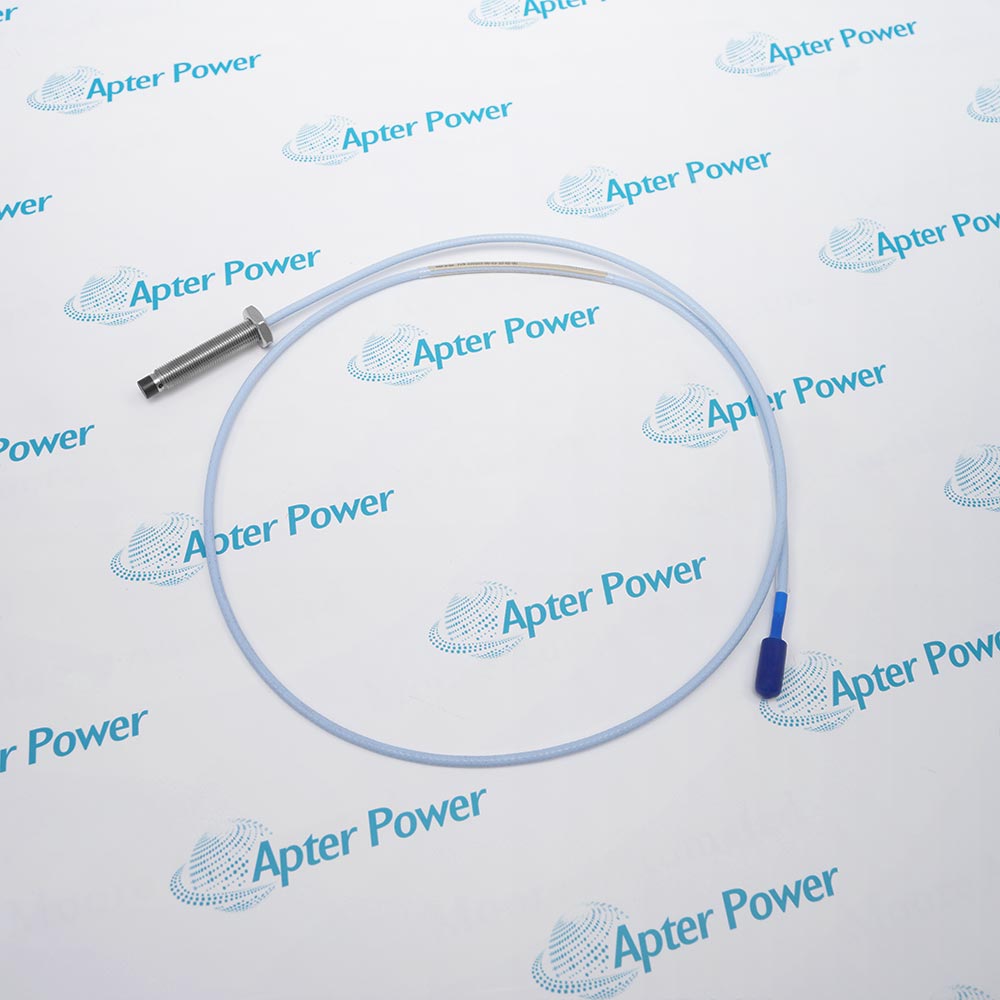

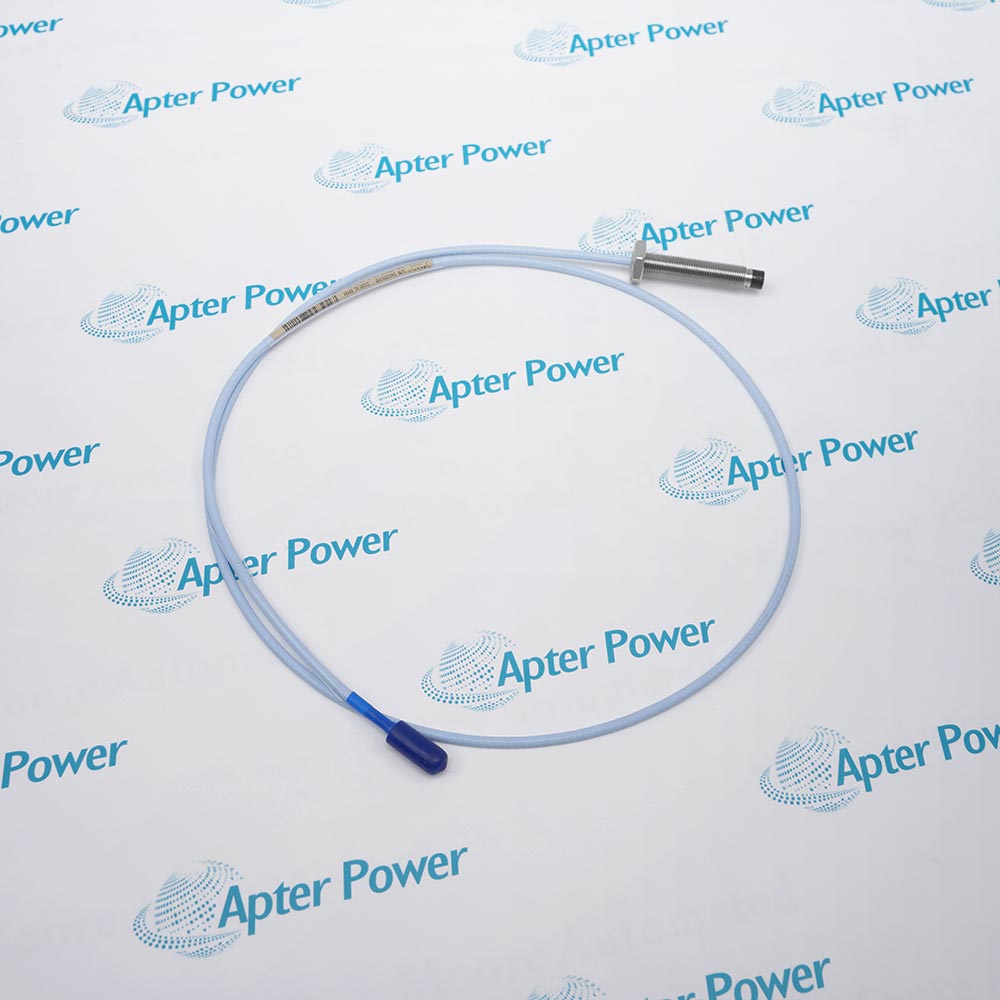

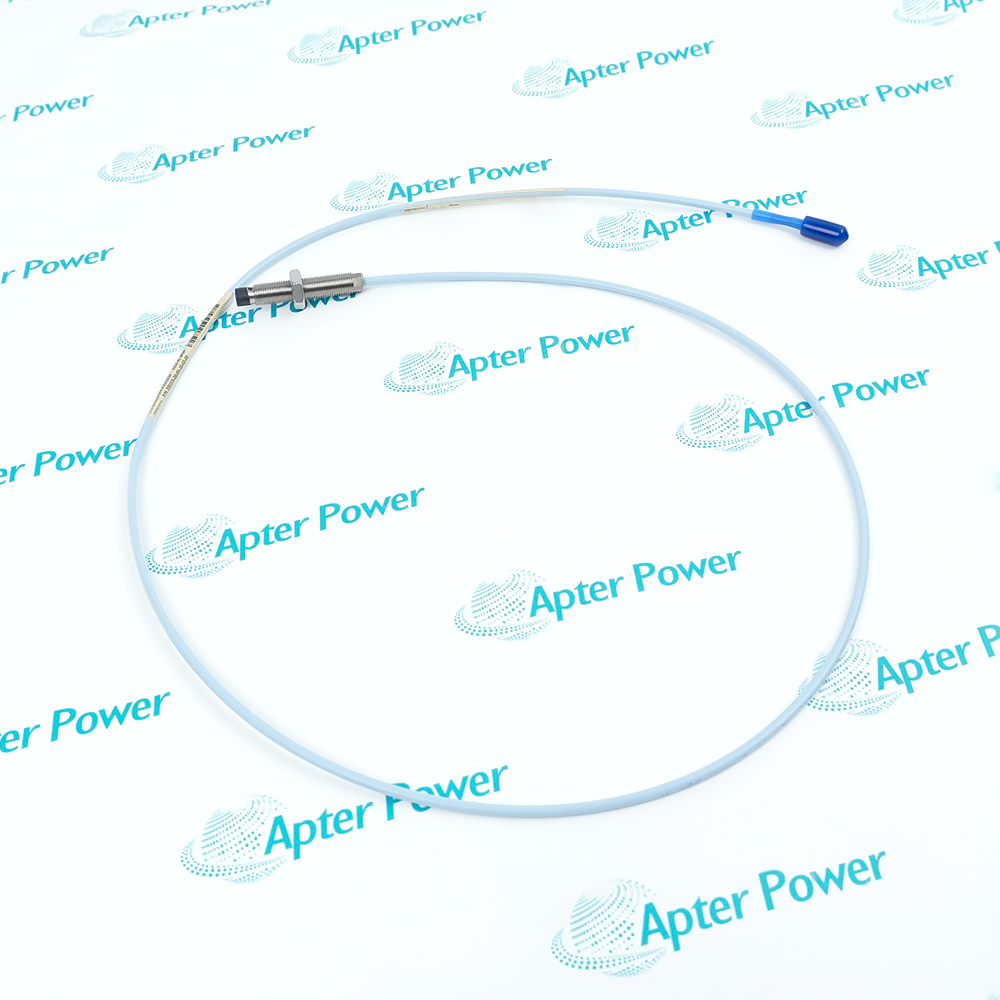

The 330103-00-05-10-02-00 is an imperial eddy current proximity probe for the 3300 XL 8mm system, featuring a 3/8-24 UNF thread, 0.5" unthreaded length, 1.0" overall case length, and a 0.5m unarmored cable. It fully complies with the API 670 standard, offering a 2.0 mm (80 mils) linear range and 100% calibration-free interchangeability. This product is primarily used for non-contact precise monitoring of radial vibration, axial position, speed, and Keyphasor references on large rotating machinery such as turbines and compressors.
- One 3300 XL 8 mm probe
- One 3300 XL extension cable
- One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330103-00-05-10-02-00 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Refining
Monitors shaft vibration of core hydrocracking compressors and high-pressure oil pumps in catalytic cracking units.
Thermal Power Generation
Monitors the axial displacement (position) of large steam turbine generator shafts to prevent catastrophic axial movement and thrust bearing failure.
Hydroelectric Power Generation
Installed on hydro-turbine generator shafts to measure shaft runout (radial vibration) and thrust clearance.
Nuclear Power Generation
Monitors bearing conditions and Keyphasor references of giant main steam turbines and reactor coolant pumps (RCPs) in the conventional island.
Iron & Steel / Metallurgy
Monitors the dynamic vibration and speed of blast furnace blowers and large converter gas fans.
Mining & Mineral Processing
Monitors high-power gearbox input bearings of large ball mills and SAG mills in mineral processing plants.
When installing and operating the 330103-00-05-10-02-00 probe, the following critical precautions must be strictly observed: First, since the native cable is only 0.5 meters long and unarmored, external protective conduits must be installed to prevent mechanical wear, and it must be paired strictly with a 4.5-meter extension cable to maintain the 5-meter system's measurement accuracy.
Second, during installation, use a multimeter to monitor the Proximitor output and precisely set the initial gap to the linear midpoint (typically -10 Vdc).
Lastly, avoid any impact on the probe tip, do not overtighten the threads during mounting, and ensure the target shaft material is standard AISI 4140 steel with a smooth, scratch-free, and demagnetized surface to prevent severe reading distortions.
Second, during installation, use a multimeter to monitor the Proximitor output and precisely set the initial gap to the linear midpoint (typically -10 Vdc).
Lastly, avoid any impact on the probe tip, do not overtighten the threads during mounting, and ensure the target shaft material is standard AISI 4140 steel with a smooth, scratch-free, and demagnetized surface to prevent severe reading distortions.
Alternative Names
330103 00 05 10 02 00
330103-00-05-10-02-05
33O1O3-OO-O5-1O-O2-OO
330I03-00-05-I0-02-00
33OIO3-OO-O5-IO-O2-OO
330103-00-05-10-02-BR
330103-00-05-10-02-RU
330103-00-05-10-02-CN
Technical notes
Bently Nevada 330103-00-05-10-02-00 is an imperial eddy current proximity probe for the 3300 XL 8mm system, featuring a 3/8-24 UNF thread, 0.5" unthreaded length, 1.0" overall case length, and a 0.5m unarmored cable.
FAQ View All FAQ
-
What is 330103-00-05-10-02-00?330103-00-05-10-02-00 is a 3300 XL 8 mm Proximity Probes.
-
What is the principle of the 330103-00-05-10-02-00 probe?Proximity sensors detect objects without touching them. They operate using principles like electromagnetic induction (inductive), changes in capacitance (capacitive), reflection of ultrasonic waves (ultrasonic), or interruption of light beams (photoelectric).
-
How to use 330103-00-05-10-02-00?It must be rigidly mounted on the machine bearing housing or a dedicated bracket, aligning the probe tip perpendicularly to the rotating shaft surface. The cable must connect to a 3300 XL extension cable and a 3300 XL Proximitor sensor (5-meter system), then route the signal to a Bently Nevada 3500 monitoring system for data acquisition.
-
What are the primary applications of 330103-00-05-10-02-00?It is primarily used for radial vibration and axial position measurements on fluid-film bearing machines (such as steam turbines, compressors, hydro turbines, large fans), as well as for Keyphasor reference and speed measurements.
-
What industrial standards does 330103-00-05-10-02-00 comply with?When combined as a complete 3300 XL 8 mm 5-meter system, it fully complies with the American Petroleum Institute's API 670 standard for mechanical configuration, linear range, accuracy, and temperature stability.
