      Bently Nevada 330103-00-03-10-02-CN
      Bently Nevada 330103-00-03-10-02-CN
      Bently Nevada 330103-00-03-10-02-CN
      Bently Nevada 330103-00-03-10-02-CN
      Bently Nevada 330103-00-03-10-02-CN
      Bently Nevada 330103-00-03-10-02-CN
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330103-00-03-10-02-CN

      Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

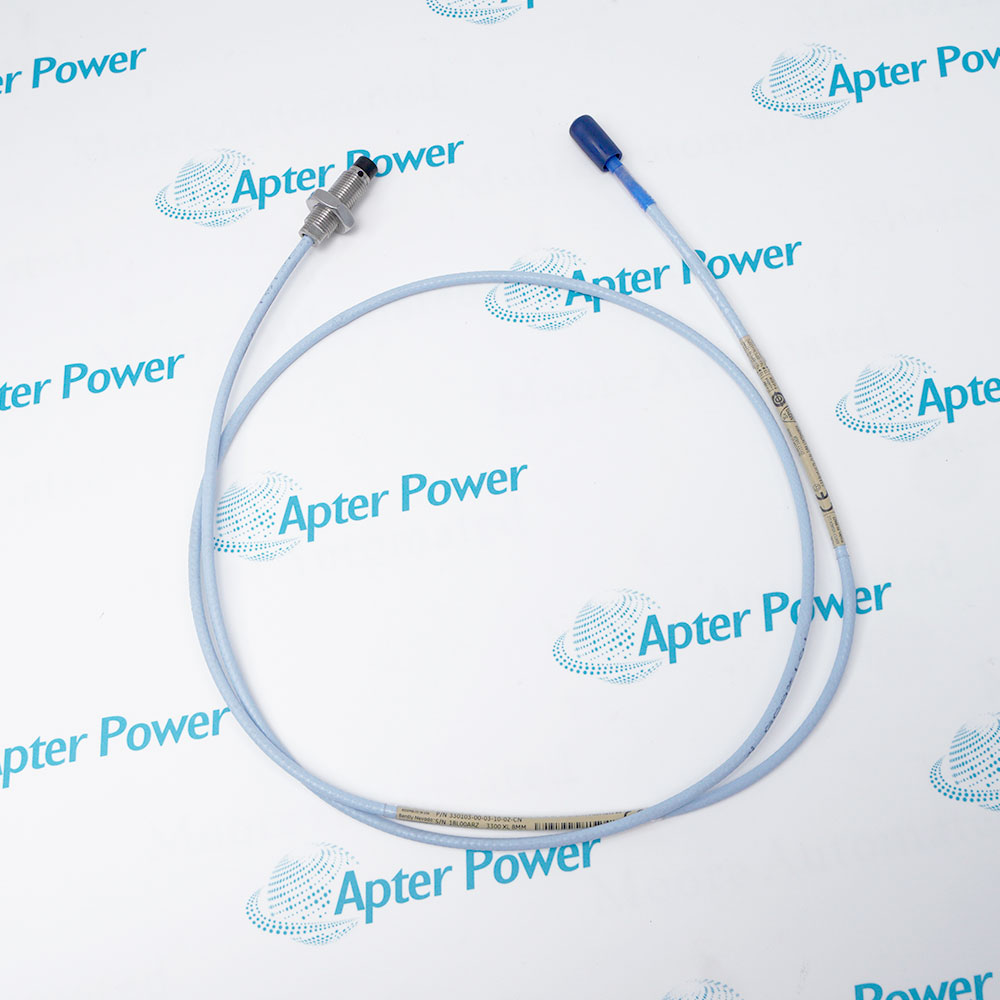

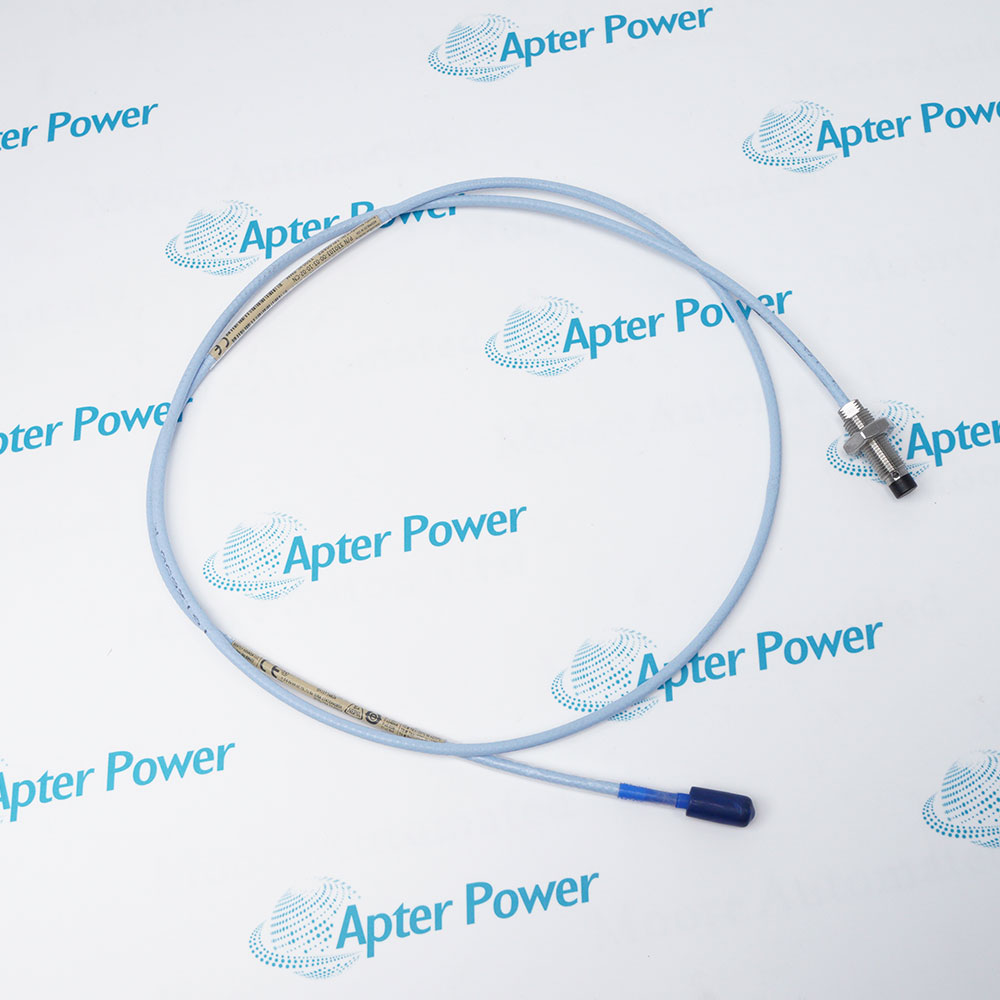

      Bently Nevada 330103-00-03-10-02-CN is a proximity probe for the 3300 XL 8 mm proximity transducer system. It is a unarmored M10 x 1 3300 XL 8 mm probe with a 30 mm case and 1.0 m integral lead.

      Ask our team:

      Get a quick price for： 330103-00-03-10-02-CN
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330103-00-03-10-02-CN

      Technical specifications for 330103-00-03-10-02-CN

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330103-00-03-10-02-CN
      • Estimated shipping dimensions:
        2.2x12.4x12.6 cm
      • Weight:
        0.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product family:
        3300 XL 8 mm proximity transducer system
      • Probe part family:
        330103
      • Mounting thread:
        M10 x 1
      • Cable armor:
        Unarmored
      • Unthreaded length:
        0 mm
      • Overall case length:
        30 mm
      • Probe lead length:
        1.0 m
      • Connector and cable option:
        ClickLoc standard cable
      • Approval option:
        CN suffix; current standard table does not decode CN
      • System linear range:
        2.0 mm (80 mils)
      • Scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz
      • Nominal gap:
        1.27 mm (50 mils)
      • Ordering-code boundary:
        Retain CN as an exact supplied suffix and verify the certification record.
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330103-00-03-10-02-CN is a proximity probe for the 3300 XL 8 mm proximity transducer system. It is a unarmored M10 x 1 3300 XL 8 mm probe with a 30 mm case and 1.0 m integral lead.
      • Probe part family: 330103
      • Mounting thread: M10 x 1
      • Cable armor: Unarmored
      • Unthreaded length: 0 mm

      330103-00-03-10-02-CN is documented as a Proximity Probe within the 3300 XL 8 mm proximity transducer system.

      Use the complete model identity and published parameter set for integration, replacement and commissioning.

      Important Notice: Verify 330103-00-03-10-02-CN, the installed extension cable and Proximitor Sensor, target material, system length and gap before replacement. Retain CN as an exact supplied suffix and verify the certification record.

      Bently Nevada 330103-00-03-10-02-CN Manuals & Downloads
      Bently Nevada 330103-00-03-10-02-CN Technical Reference (PDF)Bently Nevada 330103-00-03-10-02-CN Installation & Commissioning Guide (PDF)

      The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Exact Proximity Probe replacement
      Preserves the complete 330103-00-03-10-02-CN identity and published configuration.
      Documented system integration
      Uses the official product-family and interface values for the installed system.
      Commissioning verification
      Checks the exact electrical, mechanical and signal parameters before release.
      Maintenance diagnostics
      Supports controlled troubleshooting while retaining the as-found installation record.
      Read the applicable Bently Nevada instructions before work. Verify 330103-00-03-10-02-CN and every installed interface before isolation, wiring or commissioning.
      1
      Confirm the complete 330103-00-03-10-02-CN marking before work.
      2
      Isolate the installed system and document the maintenance state.
      3
      Verify probe part family: 330103.
      4
      Verify mounting thread: M10 x 1.
      5
      Verify cable armor: Unarmored.
      6
      Verify unthreaded length: 0 mm.
      7
      Protect connectors, wiring and exposed interfaces from damage or contamination.
      8
      Complete a controlled functional test and retain the final acceptance record.

      Technical notes

      Technical notes

      Verify 330103-00-03-10-02-CN, the installed extension cable and Proximitor Sensor, target material, system length and gap before replacement. Retain CN as an exact supplied suffix and verify the certification record.

      FAQS

      • Where is the compact 30 mm case of Bently Nevada 330103-00-03-10-02-CN useful?
        The 30 mm overall case with no unthreaded section suits an M10 x 1 position where clearance is limited, provided the tip and locknut remain accessible.
      • How is Bently Nevada 330103-00-03-10-02-CN connected to its extension cable?
        A 1.0 m unarmored integral lead terminates in the ClickLoc standard-cable connection used by the matched 3300 XL 8 mm system.
      • What must stay traceable about the CN ending on Bently Nevada 330103-00-03-10-02-CN?
        Keep the CN suffix with the exact probe and installed certification record; do not replace it with a guessed standard suffix.
      • Which target and gap conditions support Bently Nevada 330103-00-03-10-02-CN?
        Use the engineered conductive target and establish approximately 1.27 mm nominal gap before evaluating the signal.
      • What slope should a displacement test produce for Bently Nevada 330103-00-03-10-02-CN?
        Within the linear region, the matched chain should produce 7.87 V/mm (200 mV/mil).
      • How much linear travel is available from the 330103-00-03-10-02-CN system?
        The usable system range is 2.0 mm (80 mils), so the mechanical operating window must remain inside that span.
      • When is the 10 kHz upper response relevant to Bently Nevada 330103-00-03-10-02-CN?
        It matters when verifying the transducer chain and selecting monitor filtering for the intended vibration or position variable.
      • How should the compact 330103-00-03-10-02-CN installation be signed off?
        Recheck tip clearance, locknut security, ClickLoc engagement, gap voltage, sensitivity, waveform, and monitor alarms after final tightening.
