2201/03-01

Name: 2201/03-01
Brand: Bently Nevada
SKU: 2201/03-01

Four Channel Monitor

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

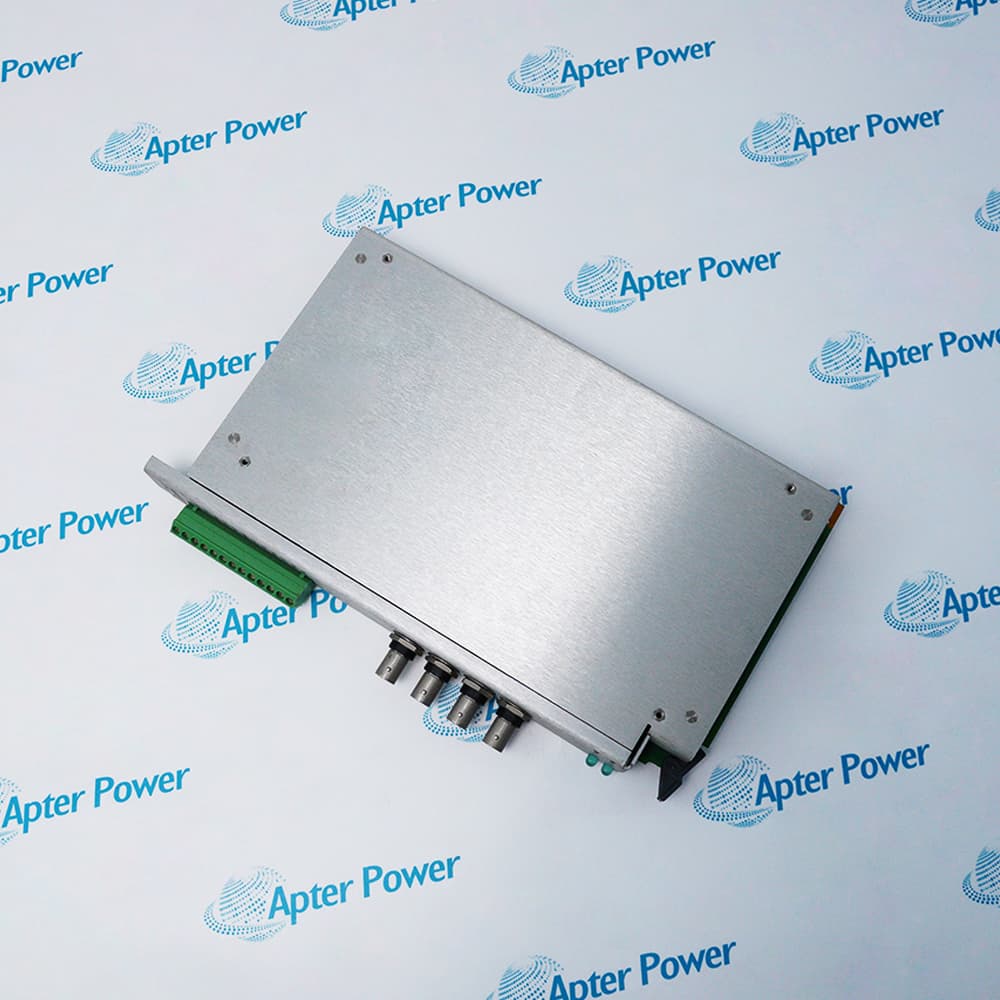

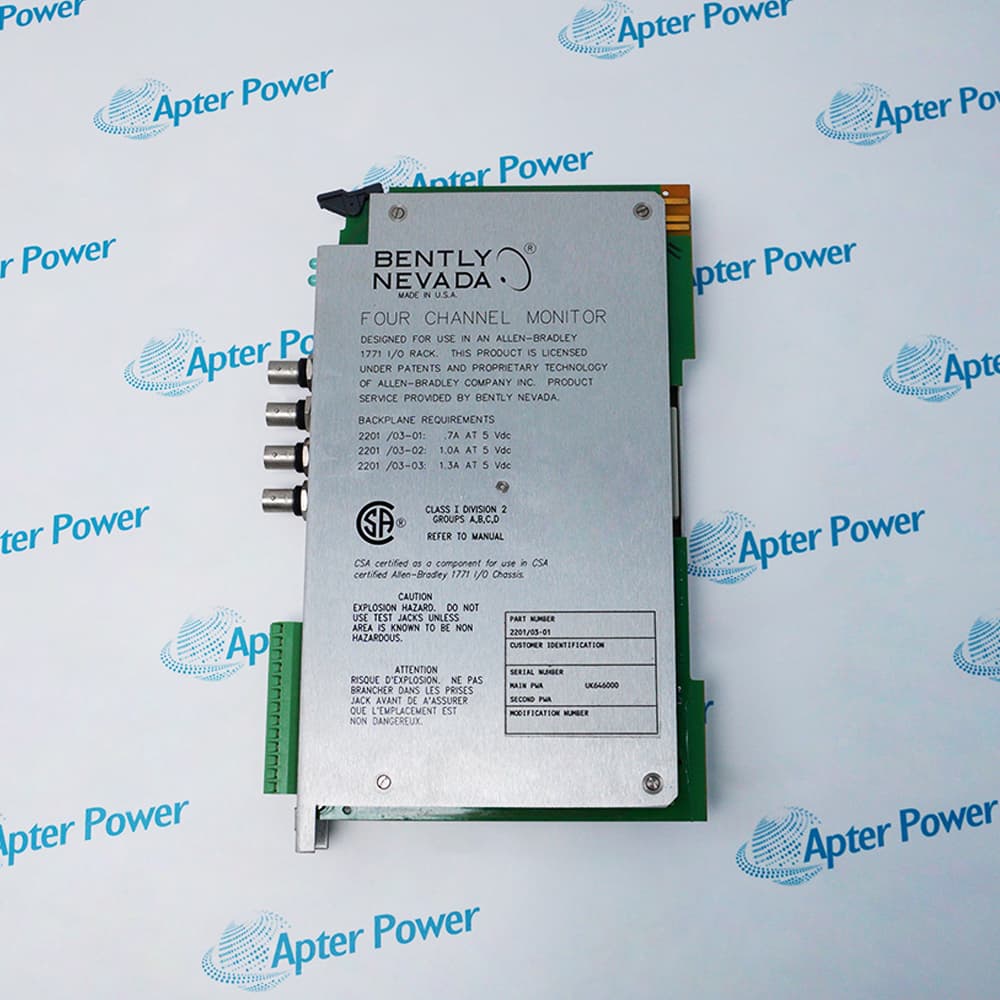

Bently Nevada 2201/03-01 is a four-channel monitor with Proximitor transducer input on all four channels for a 2201 Monitoring System installed in an Allen-Bradley 1771 rack.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for 2201/03-01

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 2201/03-01

Manufacturer:

Bently Nevada
Product Category:

Machinery Monitoring Systems
Spare Part Number:

2201/03-01
Estimated shipping dimensions:

25.4×3.2×14.6cm
Weight:

0.65 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Module role:

2201 Four Channel Monitor
Input option:

01
Channel count:

Four
Transducer inputs:

Proximitor inputs on all four channels
System chassis:

Allen-Bradley 1771 rack
PLC communication:

Block transfer reads and writes plus single data reads
Buffered outputs:

Direct displacement-transducer signals at front coaxial connectors
Channel status:

OK requires valid configuration and input within OK voltage limits
Self-tests:

Power-up, cyclic, and self-test with calibration

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

Bently Nevada 2201/03-01 brings four Proximitor measurement channels into the PLC-connected 2201 Monitoring System.

Accepts Proximitor transducer signals on all four monitor channels.
Operates as an intelligent I/O module in an Allen-Bradley 1771 rack.
Exchanges configuration and status data with the PLC through block transfers.
Provides buffered transducer outputs for local diagnostic measurements.

The monitor belongs to a 2201 system consisting of a System Monitor, a backplane and one or more monitoring modules. PLC configuration, transducer type, full-scale range, filtering and alarm settings must be retained for all four channels.

Important Notice: Preserve the PLC addressing and the complete four-channel configuration. Verify the self-test result, buffered outputs and alarm behavior before service release.

Bently Nevada 2201/03-01 Manuals & Downloads

Bently Nevada 2201/03-01 Technical Reference (PDF)Bently Nevada 2201/03-01 Installation & Commissioning Guide (PDF)

The first document presents the model-specific technical function and system relationship. The installation guide covers identification, controlled installation, commissioning checks and acceptance records.

Four-channel proximity monitoring

Connects four Proximitor transducer signals to the 2201 monitoring architecture.

PLC-integrated machinery protection

Transfers configuration, channel values and alarm status through the Allen-Bradley rack interface.

Thrust or radial measurements

Applies the configured proximity-channel function for the assigned machine points.

Diagnostic signal access

Provides front-panel buffered outputs for approved external diagnostic equipment.

Apply these checks to the exact Bently Nevada 2201/03-01 position before isolation, replacement or release.

Match the complete 2201/03-01 identity with the recorded 2201 backplane position.

Remove system power and observe electrostatic-discharge controls before handling the monitor.

Record all four channel types, ranges, setpoints, filters and PLC address settings.

Connect only the documented Proximitor input circuits to the four channel terminals.

Preserve shield, common and signal assignments for every transducer connection.

Confirm PLC block-transfer addressing before applying a restored configuration.

Review channel OK, Alert and Danger status after the self-test with calibration completes.

Verify buffered outputs and the required alarm response on all four channels before release.

Technical notes

Preserve the PLC addressing and the complete four-channel configuration. Verify the self-test result, buffered outputs and alarm behavior before service release.

FAQ View All FAQ

Which transducer population defines Bently Nevada 2201/03-01?

The 01 monitor option accepts Proximitor transducer inputs on all four channels.
How many measurement channels are available on Bently Nevada 2201/03-01?

It provides four general-purpose proximity-monitoring channels.
Where does Bently Nevada 2201/03-01 operate?

It operates in a 2201 Monitoring System installed in an Allen-Bradley 1771 rack.
How does Bently Nevada 2201/03-01 exchange information with the PLC?

The 2201 system uses block transfer reads and writes plus single data reads under PLC control.

What signal is available at the front connectors of Bently Nevada 2201/03-01?

The buffered output provides the direct displacement-transducer signal for approved diagnostic use.
What makes a channel OK on Bently Nevada 2201/03-01?

The channel must pass the monitor tests, have a valid configuration and receive an input within the upper and lower OK voltage limits.
Which self-tests support fault detection in Bently Nevada 2201/03-01?

The system performs power-up and cyclic self-tests and runs a self-test with calibration when the full configuration is written.
What must be demonstrated after configuring Bently Nevada 2201/03-01?

All four channels must show the expected value, OK state, buffered signal and configured Alert and Danger response.
