Technical specifications for JNJ5300-08-03-000-060-10-00-00-03
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:JNJ5300-08-03-000-060-10-00-00-03
-
Estimated shipping dimensions:20.5x22.5x3.5cm
-
Weight:0.15 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Operating Frequency:1 MHz to 2 MHz
-
Measurement Range:2.0 mm (80 mils)
-
Input Current:12 mA to 15 mA
-
Relative Humidity:0% to 95% non-condensing
-
Probe Diameter:8mm
-
Armor Option:Without Stainless Steel Armor Protection
-
Total Cable Length:1.0 Meter Total Cable Length
-
Case Length:60 mm Total Case Length
-
Unthreaded Length:0 mm
Information
Overview
Manuals
Common Applications
Product Precautions

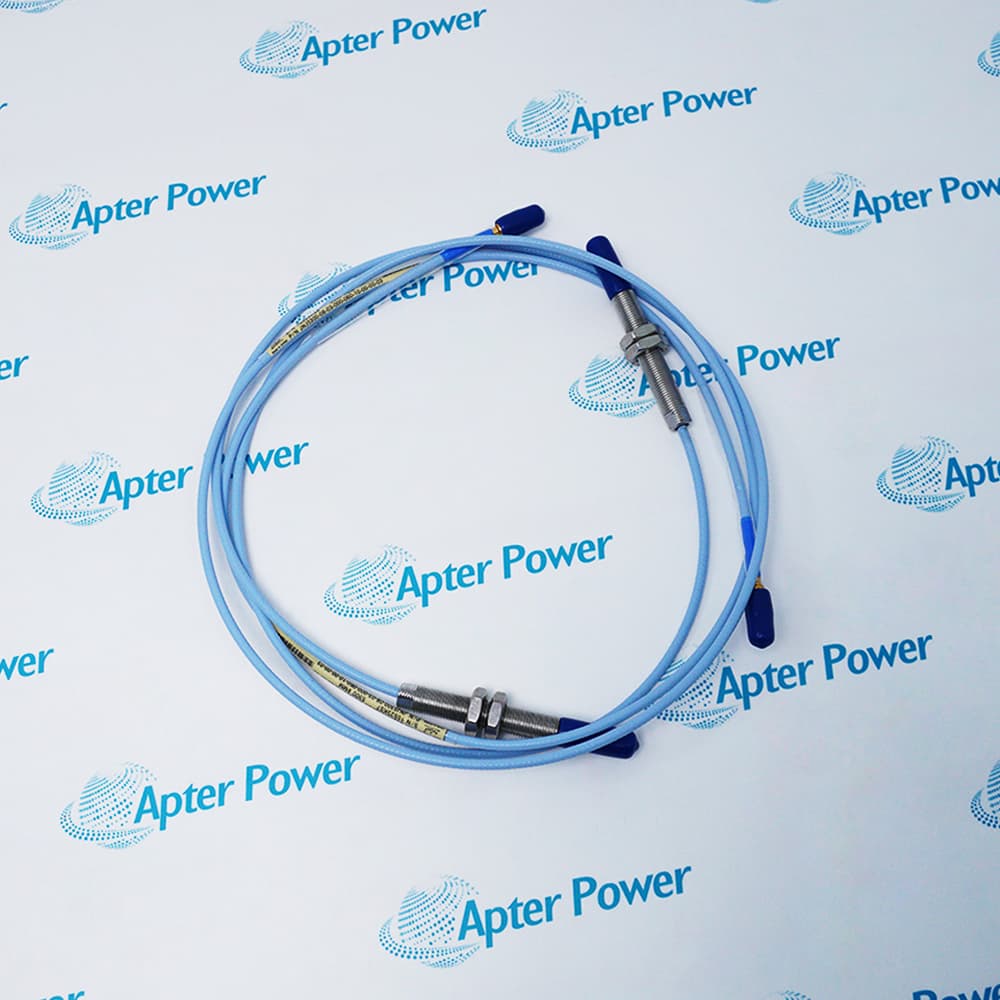

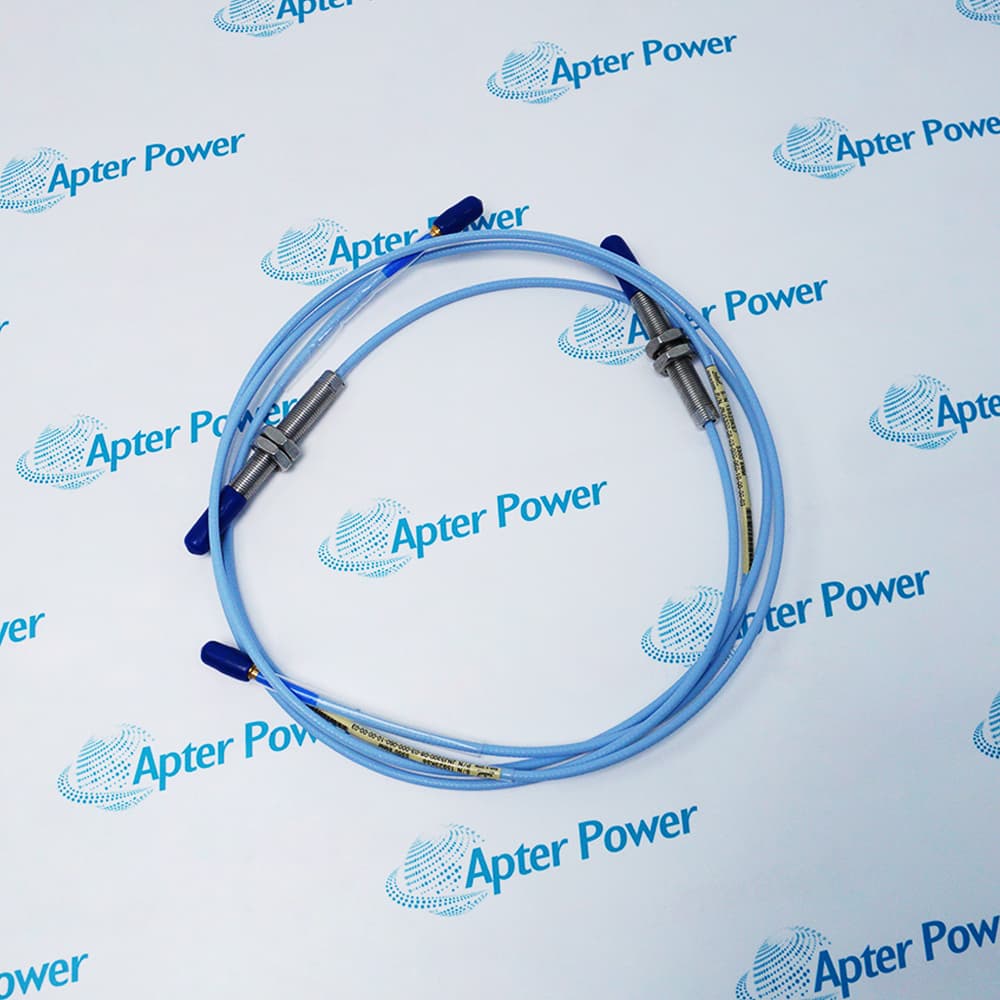

The JNJ5300-08-03-000-060-10-00-00-03 is an eddy current proximity transducer used in industrial monitoring systems, with all its physical indicators and material parameters fulfilling specific industrial standards. The component is factory-calibrated for AISI 4140 steel, allowing direct acquisition of measurement data during the initial commissioning phase under standard operating conditions, which simplifies the on-site configuration workflow.
- Chemical-resistant PPS tip prevents degradation
- Rugged 304SS housing withstands impacts & 30 N·m torque
- Fully threaded 60mm body for flexible bracket mounting
JNJ5300-08-03-000-060-10-00-00-03 features an 8 mm probe tip diameter and a 60 mm total case length, a dimensional combination that provides a specific spatial reference for on-site positioning while satisfying the tightening requirements of various mechanical brackets. The hardware comes with an integrated 1.0-meter coaxial cable, providing a defined physical connection route between the transducer and subsequent proximitors or TSI monitoring modules, which helps optimize routing layouts and maintain a stable signal state throughout the transmission channel.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada JNJ5300-08-03-000-060-10-00-00-03 Position Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in t330101-00-16-10-01-05n.
Thermal Power
Measures shaft vibration, axial displacement, and keyphasor signals of steam turbine-generator sets and high-capacity feedwater pumps to prevent moving-to-stationary part friction.
Hydroelectric Power
Monitors the radial runout (vibration) of the main shaft and the axial displacement of the thrust bearings in hydroelectric generator units.
Petroleum Refining Industry
Monitors oil film thickness and shaft vibration in the bearings of large core rotating equipment such as catalytic cracking units and rich gas compressors.
Coal Chemical Industry
Measures shaft vibration and axial displacement in critical high-pressure reciprocating or centrifugal units like syngas and methanol compressors in gasification plants.
Nuclear Power Industry
Monitors micron-level vibration states of the conventional island steam turbine-generator sets and main feedwater pump shaft lines during operation.
Paper Manufacturing Industry
Provides early warnings for vibration defects on large drying cylinder drive systems, high-speed paper reel shafts, and high-pressure pulper drive shafts.
During installation, the tightening torque must strictly stay within the 30 N·m limit, and the standard initial physical gap between the probe tip and the AISI 4140 steel target surface must be precisely maintained. For routing, the minimum bend radius of the integrated 1.0-meter coaxial cable must be respected, avoiding forceful pulling to safeguard the 75-ohm impedance structure.
Lastly, ensure that the operational temperature does not cross the limits of -40°C to +177°C during operation, and never hot-plug the connectors, while always keeping the probe and the proximitor matched from the same brand and series.
Lastly, ensure that the operational temperature does not cross the limits of -40°C to +177°C during operation, and never hot-plug the connectors, while always keeping the probe and the proximitor matched from the same brand and series.
Alternative Names
JNJ5300 08 03 000 060 10 00 00 03
JNJ53OO-08-03-000-060-10-00-00-03
JNJ5300-O8-O3-000-060-10-00-00-03
JNJ5300-08-03-OOO-060-10-00-00-03
JNJ5300-08-03-000-060-10-OO-OO-03
JNJ5300-08-03-000-060-I0-00-00-03
JNJ53OO-O8-O3-OOO-O6O-1O-OO-OO-O3
JNJ53OO-O8-O3-OOO-O6O-IO-OO-OO-O3
Technical notes
JNJ5300-08-03-000-060-10-00-00-03 is an industrial-grade eddy current proximity transducer component featuring an 8mm probe tip, M10×1 full thread (60mm case length), and an integrated 1.0-meter PTFE coaxial cable. Operating on a -24V DC supply with 75-ohm impedance, the hardware delivers a nominal scale factor of 8.0 V/mm against a 4140 alloy steel target within a standard range of 0.25mm to 2.25mm; it carries an IP67/IP68 sealing standard and a probe temperature exposure limit of -40°C to +177°C, permitting contact with lubricating oil, water, and other industrial fluids.
FAQ View All FAQ
-
What is JNJ5300-08-03-000-060-10-00-00-03?JNJ5300-08-03-000-060-10-00-00-03 is a Position Sensor.
-
What is the primary use of JNJ5300-08-03-000-060-10-00-00-03?It is used to measure the axial displacement, radial vibration, and keyphasor signals of mechanical shafts, enabling machine health monitoring for critical equipment.
-
How do you correctly install JNJ5300-08-03-000-060-10-00-00-03?It must be installed on a dedicated probe bracket, ensuring a precise initial gap between the probe tip and the measured target surface, and securely connected to the proximitor.
-
What is the working principle of JNJ5300-08-03-000-060-10-00-00-03?It operates based on the eddy current effect. The probe tip emits a high-frequency electromagnetic field. When a metal surface approaches, it generates eddy currents that change the sensor's impedance.
-
What should be noted for the daily maintenance of JNJ5300-08-03-000-060-10-00-00-03?Regularly check whether the connectors are contaminated by oil, inspect the cable for wear, and ensure the installation remains tight.
