1766-L32BWAA

MicroLogix 1400 32 Point Controller
In Stock
Ships by Saturday, November 21
Fast Shipping Available

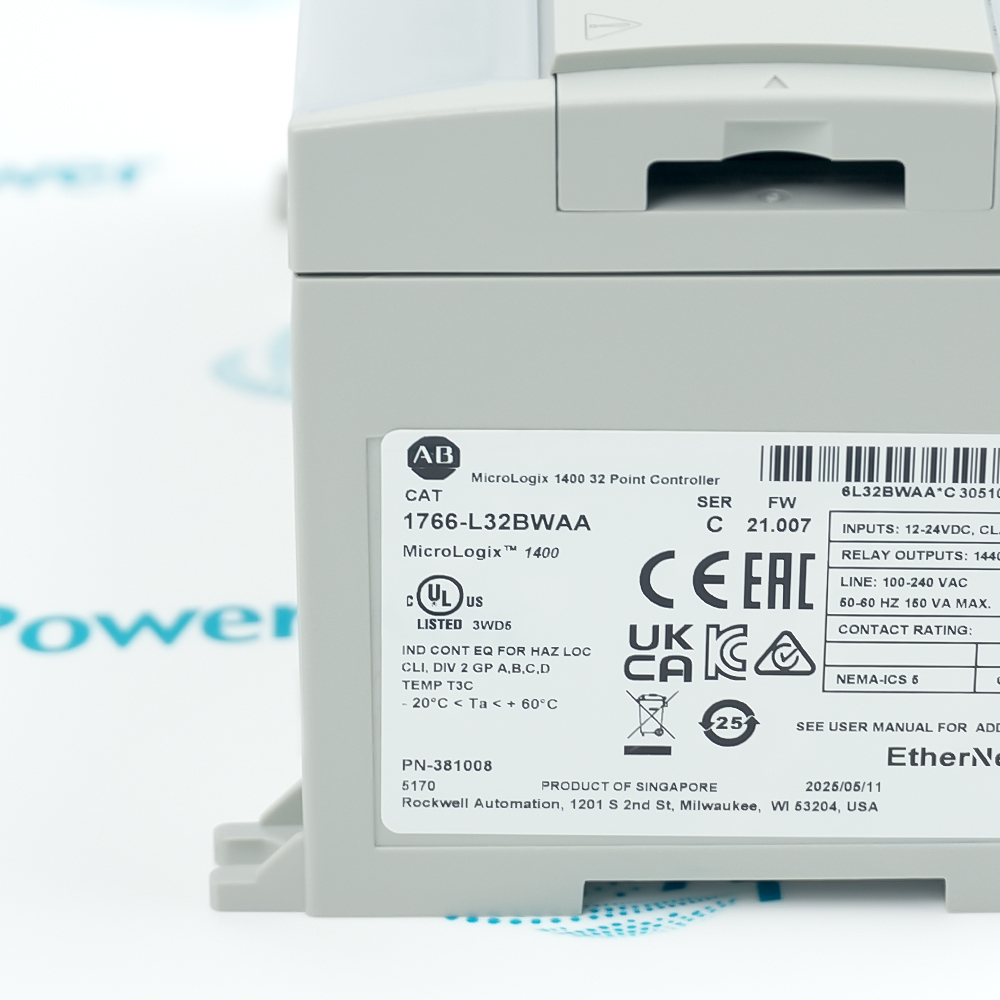

Allen-Bradley 1766-L32BWAA
Allen-Bradley 1766-L32BWAA
Allen-Bradley 1766-L32BWAA
Allen-Bradley 1766-L32BWAA
Allen-Bradley 1766-L32BWAA
Allen-Bradley 1766-L32BWAA
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Allen-Bradley MicroLogix 1400 PLC
24V DC Power, (20) 24V DC Digital Inputs
(12) Relay Outputs, (4) 0-10V Analog Inputs
(2) 0-10V Analog Outputs
Get a quick price for 1766-L32BWAA
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1766-L32BWAA

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1766L32BWAA
  • Estimated shipping dimensions:
    12.7x10.2x20.3cm
  • Weight:
    0.9 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Operating Power:
    110 to 240 Volts AC
  • Analog Input Signal Range:
    0…10.0V DC - 1 LSB
  • Memory:
    20 KB
  • Power supply:
    100/240V AC
  • Operating Frequency:
    47-63 Hz
  • Power Consumption:
    120 VA
  • Power supply inrush current:
    120V AC

Information

Overview Manuals Common Applications Product Precautions
The 1766-L32BWAA is a programmable logic controller (PLC) in the MicroLogix 1400 series, applicable for small to medium-sized industrial automation applications. Powered by 100–240V AC, the controller includes 10 KB of user program memory and 10 KB of user data memory for storing ladder logic programs and operating data.
    • Independent 4-input 2-output architecture
    • Dual independent serial ports
    • 32-point digital I/O
This controller includes 32 points of digital I/O and 6 channels of embedded analog I/O. The hardware interfaces consist of 20 points of 24V DC digital inputs, which are 12 fast inputs and 8 standard inputs, 12 mechanical relay digital outputs, 4 channels of 0-10V DC analog voltage inputs with 12-bit resolution, and 2 channels of 0-10V DC analog voltage outputs with 12-bit resolution. In addition, this hardware device integrates 1 10/100 EtherNet/IP ethernet port, 1 isolated RS-232/RS-485 combo serial port, 1 non-isolated RS-232C serial port, and a backlit LCD screen and operation keypad.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1766-L32BWAA MicroLogix 1400 32 Point Controller Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Wastewater Treatment Industry
Controls pump start/stop sequences in small-to-medium wastewater plants, monitors filter basin levels via built-in analog inputs, and drives chemical dosing valves through relay outputs.

Industrial Refrigeration Industry
Acts as the cluster control core for central air conditioning units or large cold storage rooms, gathering multi-channel temperature sensor data (0-10V) to adjust fan speeds and compressor running states.

Rubber Machinery Industry
Controls heating zone temperatures (PID loops) of small injection molding machines or extruders, transmitting mold pressure and melt temperature data to host systems via Ethernet.

Metallurgy & Metal Processing Auxiliary Systems
Controls auxiliary water-cooling circulation systems or hydraulic pump station interlocks in blast furnaces or rolling mills, as well as the fully automated strapping logic of steel bundling machines.

Glass & Deep Processing Industry
Controls the high-efficiency operation of glass washing machines and double-edging machines, allowing operators to adjust conveyor speeds and cutting parameters on-site via the built-in LCD.

Petrochemical Auxiliary Pump Station Control
Used in oil unloading docks or auxiliary valve rooms far from the main control room in chemical plants, managing remote open/close sequences for electric valves and monitoring pipe pressure alarms.
 When using the 1766-L32BWAA, the embedded analog channels only support 0-10V DC voltage signals, requiring external 500-ohm resistors for 4-20mA inputs. Because the device uses 100-240V AC power, high-voltage AC terminals must be strictly separated from 24V DC digital input terminals during wiring.

Additionally, the 12 digital outputs are mechanical relays, which are unsuitable for high-frequency switching and require surge suppressors when connecting inductive loads to protect contacts.

Revisions

Revision Part #

Also known as

1766-L32BWAA Ser A
1766-L32BWAA/A, Series A, Rev A
1766-L32BWAA Ser B
1766-L32BWAA/B, Series B, Rev B
1766-L32BWAA Ser C
1766-L32BWAA/C, Series C, Rev C

Alternative Names

1766-L328WAA I766-L32BWAA 1766L328WAA I766L328WAA 1766L32BWAA I766L32BWAA I766-L328WAA

Technical notes

Built-in 6-channel analog I/O without extra expansion modules, consisting of 4 embedded channels of 0-10V DC voltage inputs and 2 channels of 0-10V DC voltage outputs, both with 12-bit resolution.

FAQ View All FAQ

  • Can the 1766-L32BWAA mount on a DIN rail?
    Yes, the 1766-L32BWAA can mount on a DIN rail.
  • How much memory does the 1766-L32BWAA have?
    The 1766-L32BWAA has 20 KB of memory.
  • How many embedded high-speed counters does the 1766-L32BWAA have?
    The 1766-L32BWAA has 6 embedded high-speed counters,
  • Does the 1766-L32BWAA have a real-time clock?
    Yes, the 1766-L32BWAA has a real-time clock.
  • What kind of enclosure does the 1766-L32BWAA have?
    The 1766-L32BWAA has an open enclosure.
  • Does the 1766-L32BWAA support Ethernet?
    Yes, the 1766-L32BWAA supports Ethernet.
