1756-L84E

ControlLogix 5580 Controller
In Stock
Ships by Saturday, November 21
Fast Shipping Available

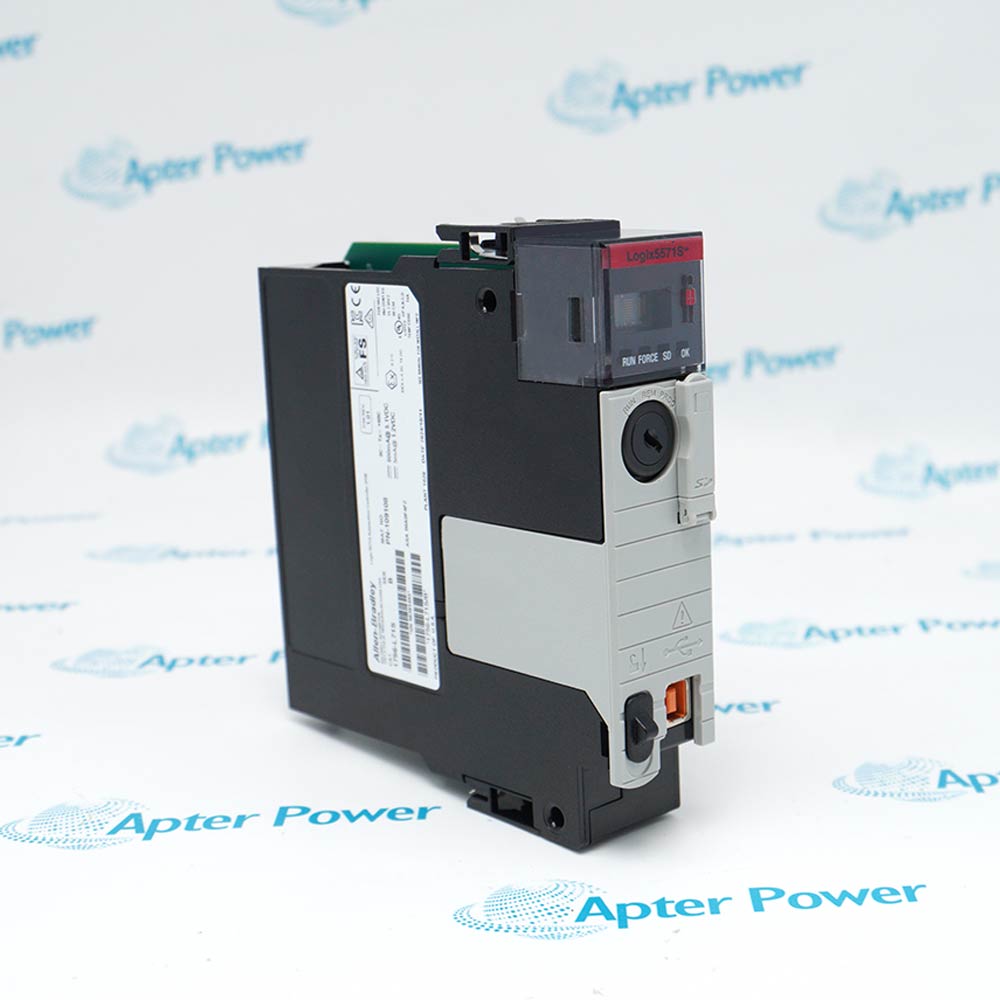

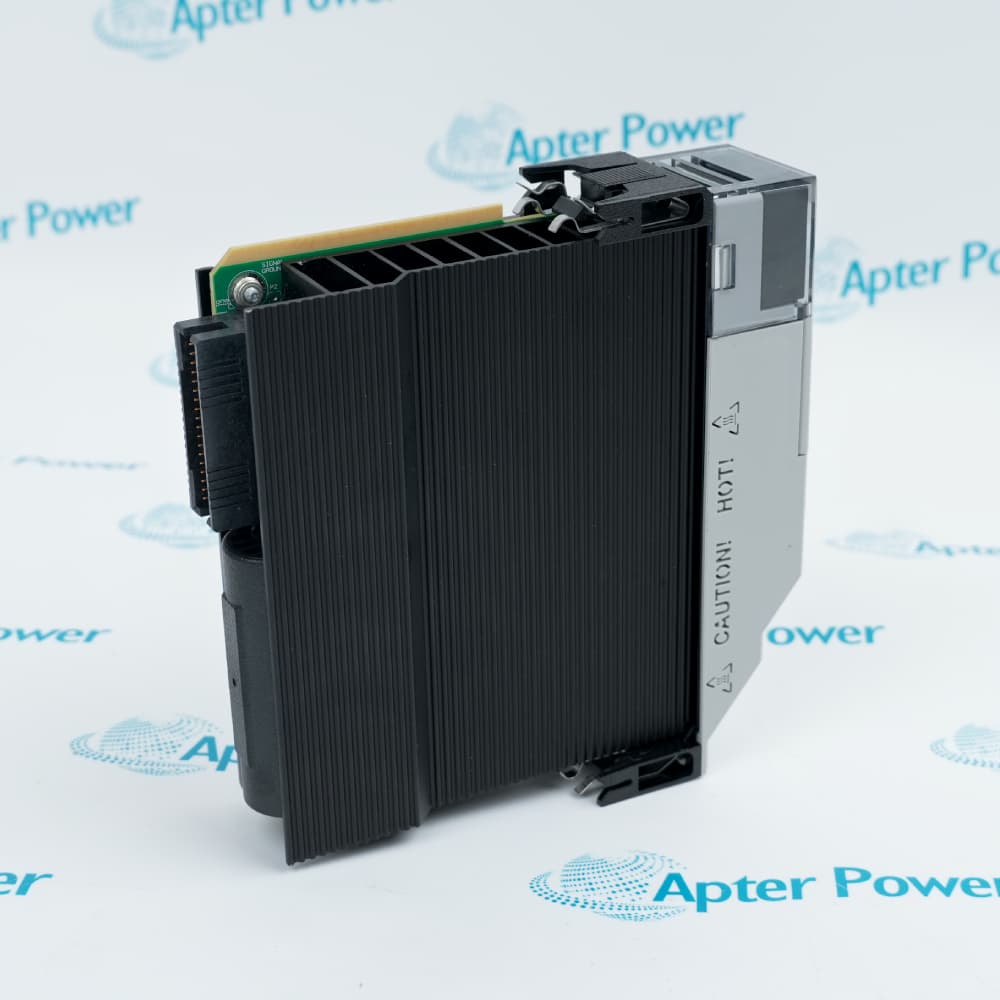

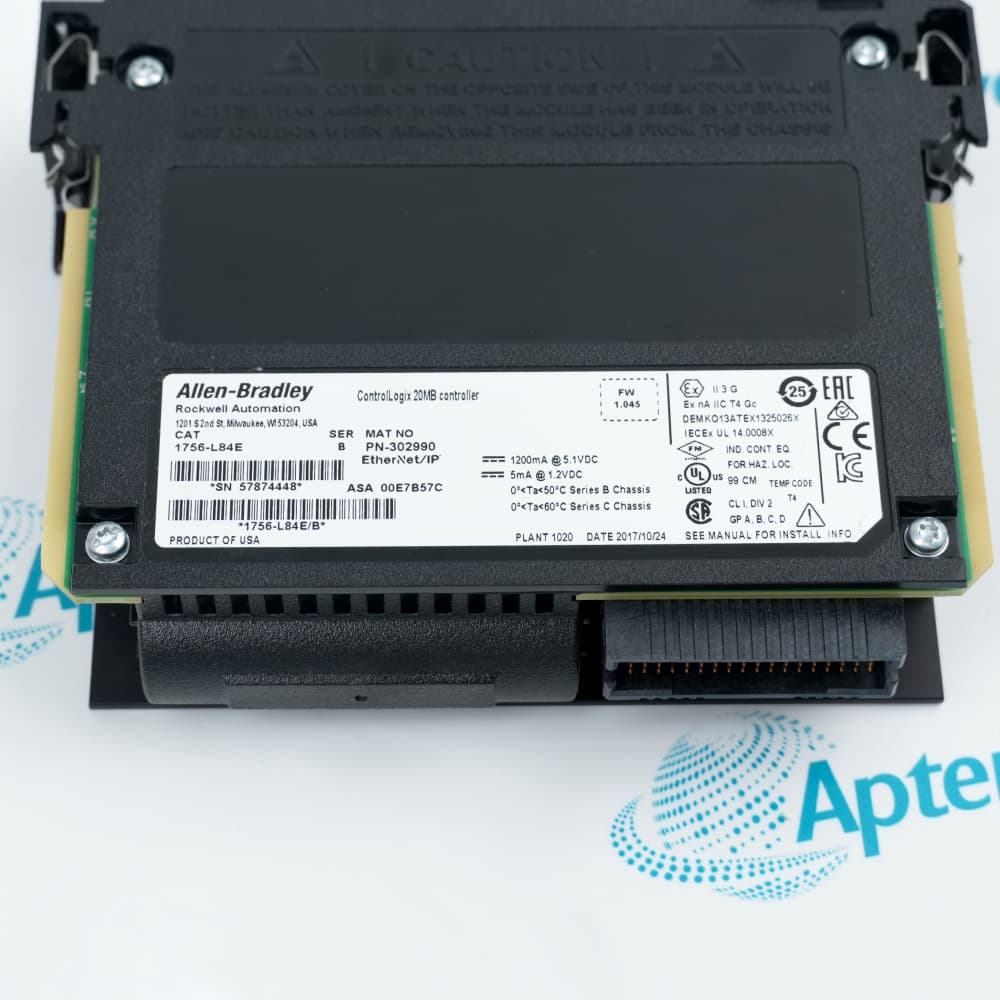

Allen-Bradley 1756-L84E
Allen-Bradley 1756-L84E
Allen-Bradley 1756-L84E
Allen-Bradley 1756-L84E
Allen-Bradley 1756-L84E
Allen-Bradley 1756-L84E
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

ControlLogix 5580 Controller
with 20MB user memory
embedded gigabit Ethernet
and a USB port
Get a quick price for 1756-L84E
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1756-L84E

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756-L84E
  • Estimated shipping dimensions:
    14.5x14x3.5cm
  • Weight:
    0.42 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Isolation Voltage:
    50 Volts Continuous
  • Power Dissipation:
    6.2 Watts
  • Current Draw (5.1 Volts):
    1.20 Miliamperes
  • Current Draw (1.2 Volts DC):
    5.0 Miliamperes
  • Standard memory:
    20 MB
  • Controller tasks:
    32 tasks, including a combination of one continuous, periodic, and event tasks 1000 programs/task
  • Digital I/O max:
    128,000
  • Analog I/O max:
    4000
  • Total I/O max:
    128,000
  • Current draw @ 1.2V DC:
    5.0 mA
  • Current draw @ 5.1V DC:
    1.20 A

Information

Overview Manuals Common Applications Product Precautions
The 1756-L84E ControlLogix controller delivers high-velocity processing with 20MB of internal memory, an integrated Ethernet connection, and a front-facing USB utility port. Engineered to handle large-scale manufacturing data demands, this robust hardware accommodates vast I/O matrices comprising up to 128,000 digital and 4,000 analog data loops without sacrificing network performance.
    • Configured with 20 MB of large user memory
    • Supports Ethernet-based integrated motion control
    • Built-in capacitor energy storage module
The 1756-L84E features a rugged open-enclosure structure tailored for trouble-free operation in demanding industrial environments, sustaining constant functionality within an ambient operating temperature window of 0°C to 60°C. It incorporates built-in energy storage modules that eliminate the need for traditional lithium batteries, mitigating hazardous material maintenance while securing critical volatile data during unexpected facility power disruptions. Furthermore, the controller utilizes digital signature verification and multi-tiered hardware-based security protocols to block unauthorized firmware modifications and safeguard proprietary control code against external network threats.

The 1756-L84E embeds a front-facing display panel that provides real-time diagnostic text, scrolling status updates, and fault codes to accelerate local troubleshooting without opening programming software. The physical assembly slide-mounts into any available slot of a standard 1756 ControlLogix chassis, establishing immediate communication over the high-speed passive backplane. It communicates natively with production-tier hardware like PowerFlex drives and PanelView operator interfaces via the gigabit Ethernet link, supporting up to 250 connected nodes. The onboard secure digital (SD) slot accommodates industrial-grade memory cards for non-volatile storage of project files, firmware images, and historical recipe data, ensuring rapid controller hot-swapping during unscheduled maintenance.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1756-L84E ControlLogix 5580 Controller Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Assembly
Coordinates multi-axis robotic welding cells, high-speed conveyor lines, and precision positioning systems across main vehicle assembly loops.

Petrochemical & Refining
Manages plant-wide continuous process loops, safety interlocking matrices, and dense analog diagnostic tracking for large-scale cracking furnaces.

Food & Beverage Processing
Orchestrates synchronized multi-axis servo motors on high-speed bottling lines, continuous pasteurization tasks, and automatic packaging machinery.

Thermal Power Generation
Coordinates emergency shutdown logic, boiler combustion loop parameter tracking, and turbine auxiliary equipment sequencing within centralized control layers.

Iron & Steel Metallurgy
Tracks high-temperature ladle transfer mechanisms, blast furnace cooling jacket flow valves, and continuous casting rolling mill multi-axis synchronizations.

Chemical Fertilizer Production
Coordinates continuous ammonia synthesis high-pressure loop control, product granulator speeds, and automated packing-scale weighing matrices.
 When operating the 1756-L84E controller, ensure solid chassis grounding and utilize shielded gigabit-rated network cables to eliminate the impact of heavy industrial electromagnetic interference on Ethernet communications. Before downloading online program edits or flashing firmware, always secure the processor mode via the front-facing toggle switch and back up the project file to the SD card to prevent unexpected data loss.

Additionally, because this hardware incorporates a built-in capacitor-based energy storage module that removes the need for lithium battery replacements, hot-swapping must be avoided immediately after power-off, and technicians must strictly adhere to the standard safety discharge timelines of the chassis power supply module.

Revisions

Revision Part #

Also known as

1756-L84E Ser A
1756-L84E/A, Series A, Rev A
1756-L84E Ser B
1756-L84E/B, Series B, Rev B

Alternative Names

1756-L8AE 1756-LB4E 1756L84E 1756L8AE 1756LB4E I756-L84E I756-LBAE I756L84E I756LBAE

Technical notes

The Allen-Bradley 1756-L84E operates as a ControlLogix 5580 central processing unit configured with 20 megabytes of user data storage memory. The processor backplane logic addresses a maximum capacity of 128,000 digital inputs and outputs alongside a maximum capacity of 4,000 analog input and output channels, yielding an aggregate limit of 128,000 total field I/O connections. Utilizing an infrastructure with zero dedicated local non-volatile I/O memory partitions, the active module hardware generates a continuous power dissipation threshold of 6.2 Watts during standard electrical execution.

FAQ View All FAQ

  • What are the maximum number of I/O capability of the 1756-L84E?
    The 1756-L84E supports a maximum number of 128,000 Discrete I/O and 4000 Analog I/O.
  • What is the user memory capacity of the 1756-L84E?
    It features 20 MB of onboard non-volatile user memory dedicated to storing user program code, configuration data, and historical recipes.
  • How to install and use products like the 1756-L84E?
    Slide it directly into any available slot of a standard 1756 ControlLogix chassis, draw power through the backplane connectors, and utilize Studio 5000 software for programming and logic downloading.
  • Which communication ports are integrated into the 1756-L84E?
    It comes equipped with one embedded gigabit Ethernet (EtherNet/IP) port and one front-facing USB 2.0 port for local configuration and firmware flashing.
  • How many Ethernet nodes can the 1756-L84E support at maximum?
    Through its embedded Ethernet port, this controller can simultaneously manage and control up to 250 independent EtherNet/IP network nodes.
