1305-BA03A

Variable Speed Drive
In Stock

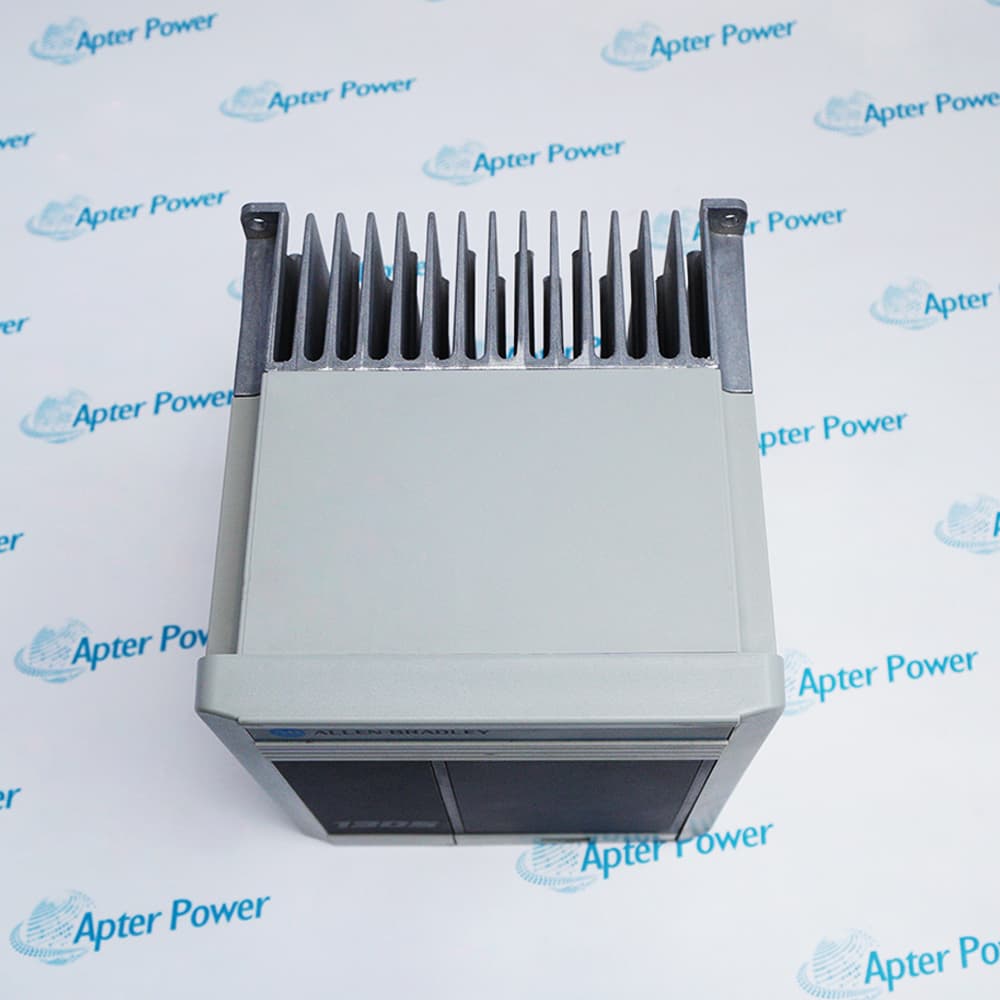

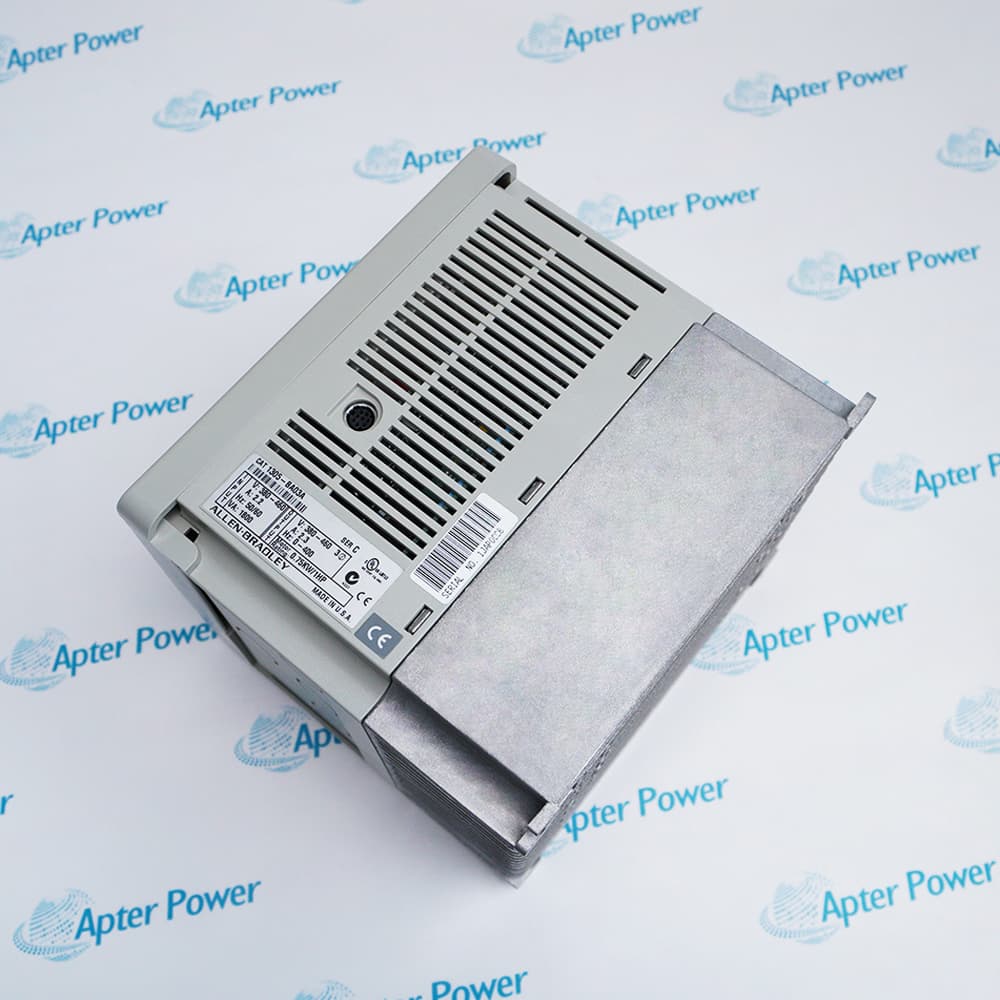

Allen-Bradley 1305-BA03A
Allen-Bradley 1305-BA03A
Allen-Bradley 1305-BA03A
Allen-Bradley 1305-BA03A
Allen-Bradley 1305-BA03A
Allen-Bradley 1305-BA03A
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

1305-BA03A

Variable Speed Drive

AC DRIVE

1305 SERIES

3 PHASE

380-460 VAC

50/60 HZ


Get a quick price for 1305-BA03A
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1305-BA03A

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1305-BA03A
  • Estimated shipping dimensions:
    17.8x20.3x12.7cm
  • Weight:
    3.3 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Rated Current output:
    2.3 A
  • Rated Power:
    0.75 kW / 1HP
  • Input Voltage:
    380-460 V
  • Input Current:
    2.2 A
  • Input Frequency:
    50/60 Hz
  • Output Voltage:
    380-460 V
  • Output Current:
    2.3 A
  • Output Frequency:
    0-400 Hz

Information

Overview Manuals Common Applications Installation
The 1305-BA03A is an adjustable frequency AC drive within the Allen-Bradley 1305 series, designed for 380-460V AC 3-phase input and rated for a 0.75 kW (1.0 HP) motor output. This unit features an IP20 rated enclosure and is engineered to provide precise microprocessor-based control for 3-phase induction motors in a wide range of industrial applications.
    • High Overload Capacity
    • Versatile Frequency Range
    • Robust Thermal Design
This drive provides a continuous output current of 2.3 Amps and is capable of handling intermittent overload currents up to 3.5 Amps for a one-minute duration. It utilizes pulse width modulation (PWM) technology with a programmable carrier frequency of 2 to 8 kHz, supporting an output frequency range of 0 to 400 Hz to ensure high-performance speed and torque regulation.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1305-BA03A AC DRIVE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 HVAC Systems
Controls fan and blower speeds in commercial heating and cooling units. The drive utilizes pulse width modulation (PWM) to provide energy-efficient airflow control and maintain precise ambient temperatures.

 Food and Beverage
Manages small centrifugal pumps and sorting conveyors in processing plants. It provides a wide operating frequency range of 0 to 400 Hz to ensure consistent motor speed for automated bottling and packaging lines.

 Material Handling
Regulates low-power motorized rollers and belt conveyors in warehouse distribution centers. The integrated Human Interface Module (HIM) allows for immediate parameter adjustment of acceleration and deceleration times for smooth product transport.

 Textile Manufacturing
Drives precision winding machines and spinning frames requiring constant torque. It features a programmable carrier frequency of 2 to 8 kHz to reduce audible motor noise and improve operational efficiency in high-density production environments.

 Water Treatment
Operates small chemical metering pumps and agitators in municipal treatment facilities. The IP20 (NEMA 1) rated enclosure and 380-460V AC input capability ensure reliable performance for localized liquid handling applications.

 Machine Tooling
Controls spindle speeds for small industrial drills and specialized milling equipment. It handles intermittent overload currents up to 3.5 Amps for one minute, providing the necessary torque for varied metalworking and fabrication tasks.
The 1305-BA03A requires a 3-phase input voltage of 380-460V AC with a frequency of 48 to 62 Hz, and users must ensure the branch circuit protection does not exceed a 10 Amp rating using Class J, CC, or T fuses to prevent equipment damage.

During installation, the drive must be mounted on a vertical, metallic surface to act as a heat sink, maintaining an ambient temperature between 0°C and 50°C, while personnel must wear a grounding wrist strap to protect internal ESD-sensitive parts from electrostatic discharge. The drive features a power dissipation of approximately 37 Watts and requires the removal of the front cover and Human Interface Module (HIM) to access the power (TB1) and control (TB2) terminal blocks for secure wiring.

Revisions

Revision Part #

Also known as

1305-BA03A Ser A
1305-BA03A-A, Rev A
1305-BA03A Ser B
1305-BA03A-B, Rev B
1305-BA03A Ser C
1305-BA03A-C, Rev C

FAQ View All FAQ

  • What are the input voltage and nominal current ratings for the 1305-BA03A drive?
    The 1305-BA03A has a voltage rating of 380-460V AC, 3-phase, with a nominal input current of 2.2 Amps and a corresponding capacity of 1800 VA.
  • What is the continuous and intermittent output current for the 1305-BA03A model?
    The drive provides a continuous output current of 2.3 Amps and is designed to handle an intermittent overload current of 3.5 Amps for up to one minute.
  • What type of motor power rating is supported by the 1305-BA03A drive?
    The 1305-BA03A is specifically rated to drive a 3-phase induction motor with a power output of 0.75 kW or 1.0 HP.
  • What are the recommended fuse ratings and types for protecting the 1305-BA03A?
    For the -BA03A model, branch circuit protection should be provided by using 6 Amp fuses, with recommended types being Class J, CC, or T.
  • What is the maximum heat dissipation (Watts loss) for the 1305-BA03A during operation?
    The total power dissipation for the 1305-BA03A is approximately 37 Watts, which must be considered for enclosure cooling and ventilation design.
